Description

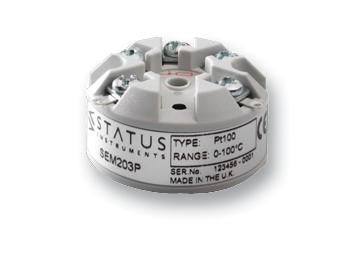

The SEM203/P is a high stability smart in head Temperature Transmitter which accepts PT100 temperature sensors and converts sensor output over a configured range to a standard industrial (4 to 20mA) transmission signal. A simple push button operation allows the user to not only select the desire range and burnout direction but also perform user trim at both (4 and 20mA) points. The SEM203 in head transmitter incorporates the latest digital technology to ensure accurate drift free performance.
- Programmable burn out
- Configurable in seconds
- Unique push button configuration without PC
- Push button sensor matching
- 0.2�A/V Loop voltage effect
Applications
Signal Processing
Product details
| Output Accuracy | - |
| Signal Conditioner Mounting | - |
| Signal Conditioner Input | Pt100 |
| Supply Voltage | 30VDC |
| No. of Channels | 1 Channel |
| Signal Conditioner Output | Current |
| Accuracy % | - |
| No. of Output Channels | 1Channels |
| Product Range | - |
| Isolation Input | Non Isolated |
Other details
| Brand | STATUS |
| Part Number | SEM203/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
