- 2 x USB Type A PC Interface
- RJ-45 Ethernet Interface
- Supports Combo Keyboard & Mouse
- Supports Auto-Switching
- Intuitive Hot-Key Commands
- CE, FC, and RoHS Compliant

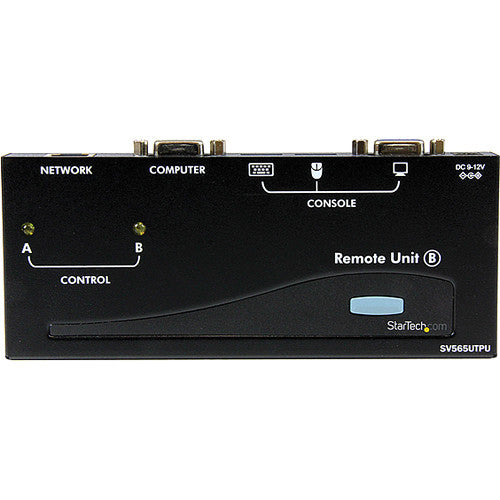

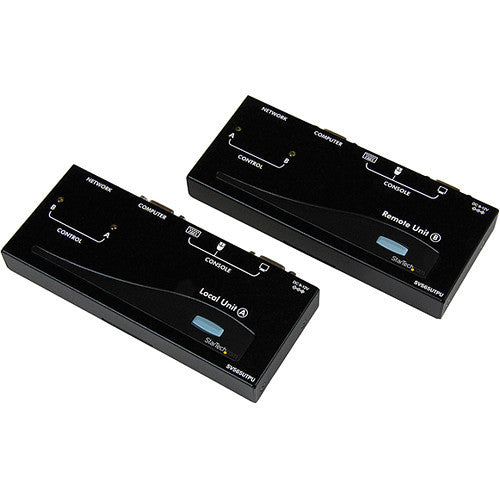

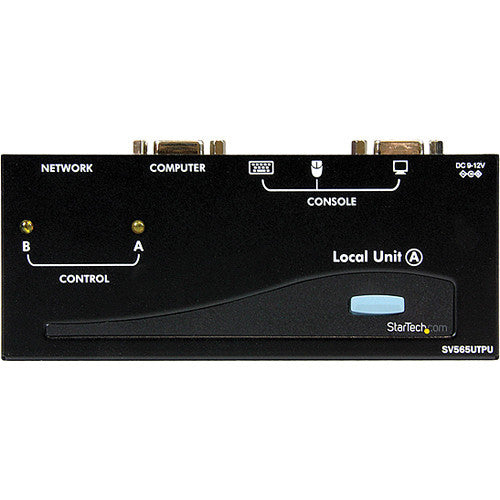

The USB VGA KVM Console Extender over CAT5 UTP from StarTech lets you control a server, a computer or multiple computers (connected through KVM switch) over a standard CAT5 or CAT6 UTP network cable connection, at distances of up to 492' away. You can use your existing keyboard, mouse, and monitor to access both the server rooms and your office computer, which allows you to switch between workstation view and KVM view at the remote location.
- Supports most combo keyboard and mouse sets (including wireless sets)
- PS/2 and USB host PCs supported via the appropriate PS/2 or USB KVM cable
- The unit can be used with a single computer or with an existing KVM switch
- Easy installation using industry-standard UTP network cable
- Intuitive hot-key commands
- Supports auto-switching between host and remote user or dedicated control
Applications
- Monitor computer-controlled equipment in a factory or warehouse
- Use one or more servers in a server room from a remote location
- Control remote machines and security monitoring systems
UPC: 065030832625

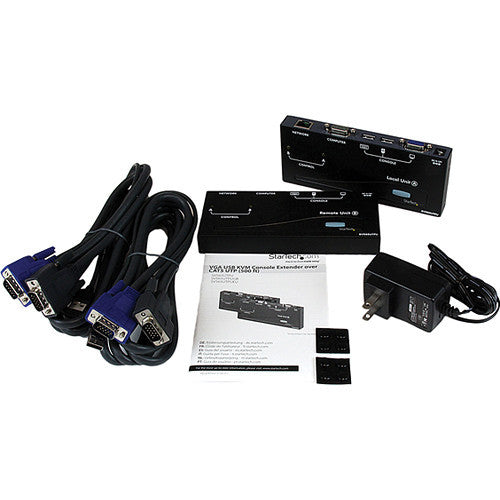

In the Box
StarTech USB VGA KVM Console Extender over CAT5 UTP
- 2 x 2-in-1 USB VGA KVM Cables (6')
- 2 x Packs Rubber Feet
- 1 x Power Adapter
- Limited 2-Year Warranty
Hardware | KVM Ports: 2 PC Interface: USB PC Video Type: VGA |

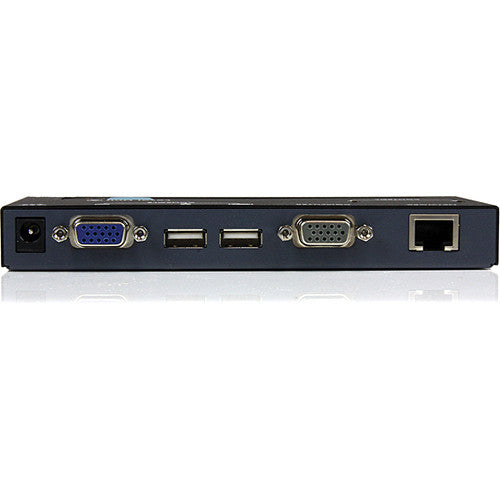

Connectors | Console Interface: 1 x VGA (15-pin high density D-Sub) female 2 x USB type A (4-pin) female Host Connectors: 1 x VGA (15-pin, high density D-Sub) female Other Interface: 1 x RJ-45 female |
Performance | Maximum Transfer Distance: 492' (150 m) Supported Resolutions: 1280 x 1024 @ 300' (91.4 m) 1024 x 768 @ maximum cable length |
OS Compatibility | OS independent No software or drivers required |
Power | Input Voltage: 110 ~ 240 VAC Input Current: 0.2 A Output Voltage: 9 VDC Output Current: 0.6 A Center Tip Polarity: Positive Plug Type: M |
Compliance | CE, FCC, RoHS |
Operating Temperature | 32 to 104�F (0 to 40�C) |
Storage Temperature | -4 to +140�F (-20 to +60�C) |
Relative Humidity | 0~80% |
Dimensions (L x W x H) | 3.0 x 6.1 x 0.8" (76.2 x 154.9 x 20.3 mm) |
Weight | 10.6 oz (300.5 g) |
Packaging Info |
Package Weight | 3.1 lb |
Box Dimensions (LxWxH) | 11.9 x 9.8 x 3.4" |
