StarTech CDP2DP Overview
-
1Description
-
2High Performance
-
3Display Compatibility
-
4Plug-and-Play
-
5Portable Design

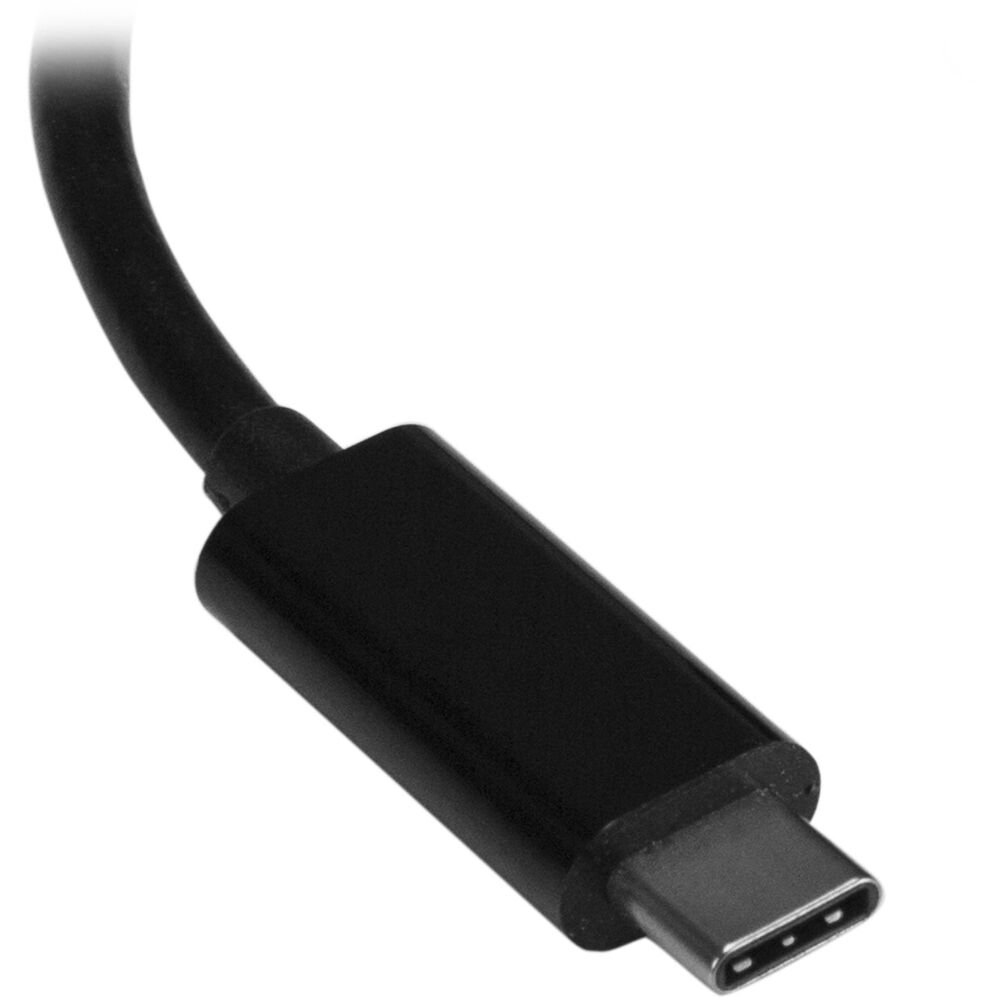

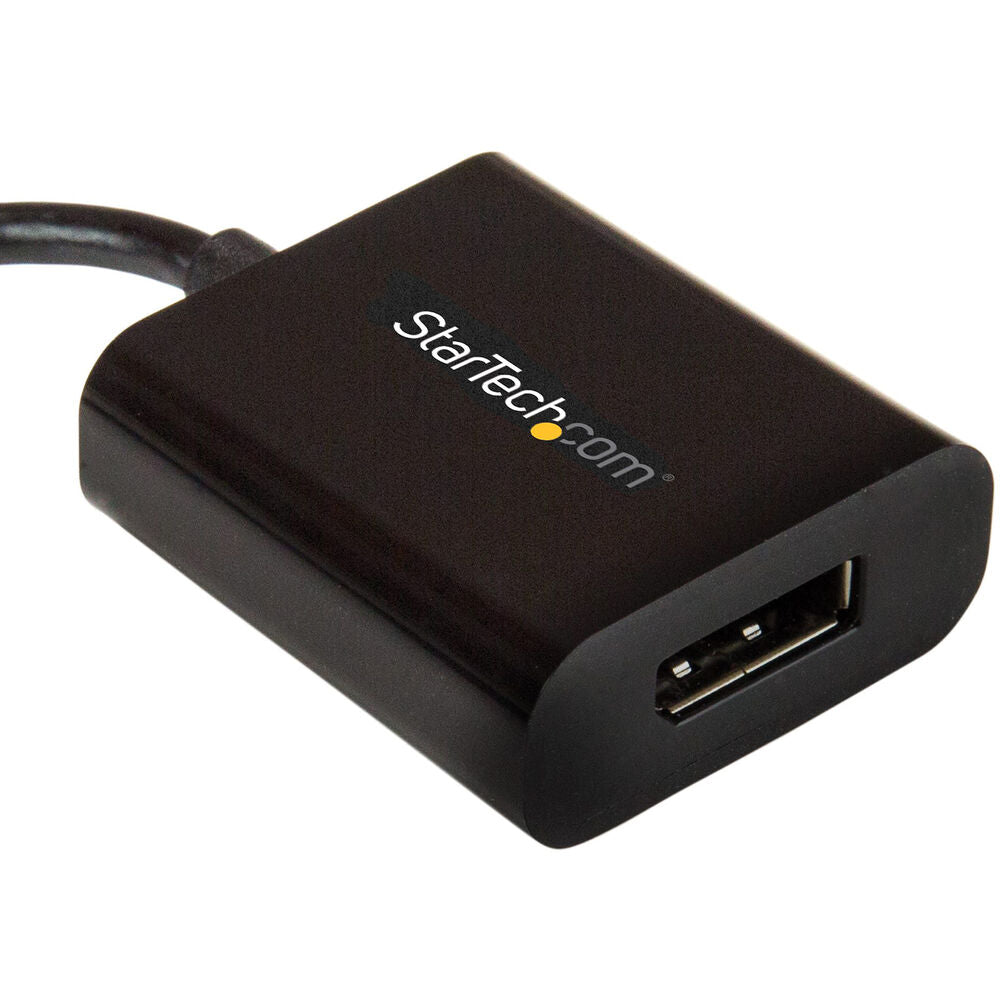

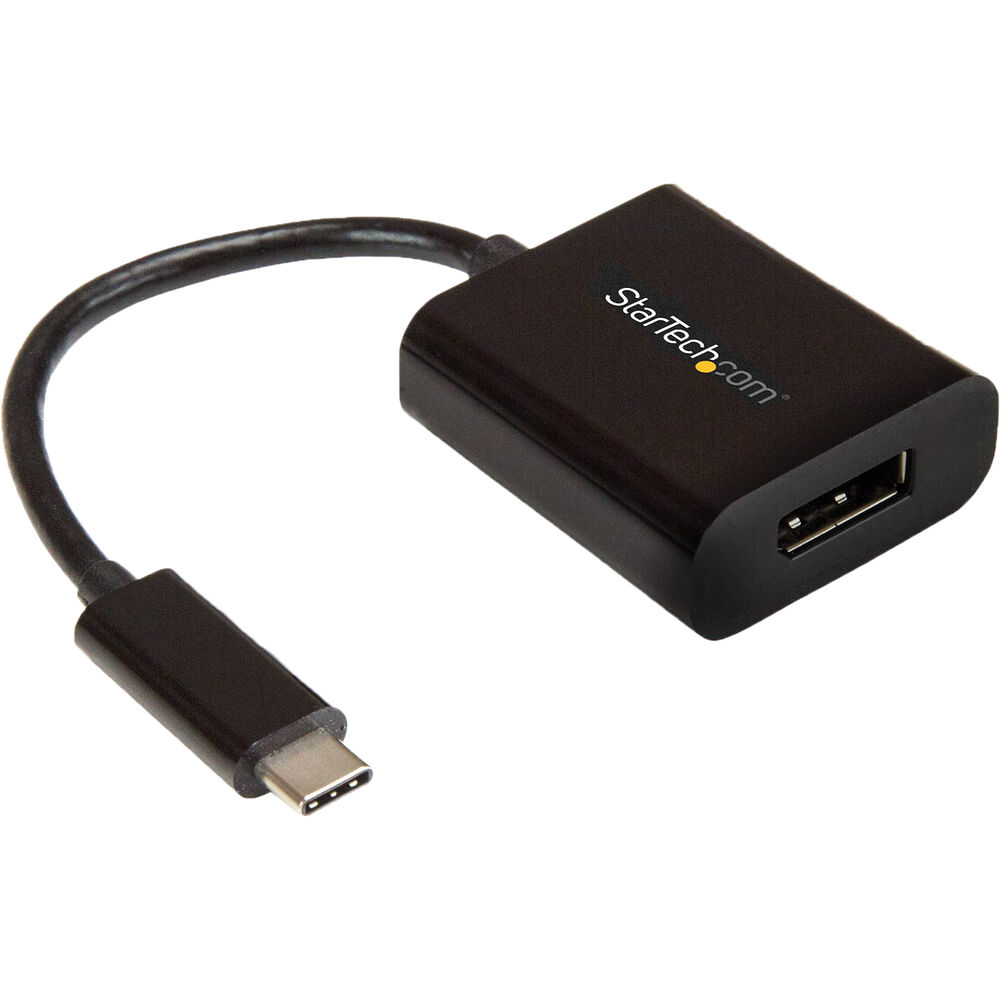

Connect to a display with the USB Type-C to DisplayPort 8K Video Adapter from StarTech. Connect to a host via the 5.5" integrated cable and USB Type-C connector and use the DisplayPort output to connect a monitor with a resolution up to 7680 x 4320 at 30 Hz. This adapter is plug-and-play and works with USB Type-C and Thunderbolt 3 devices that support DisplayPort over USB Type-C (DP Alt Mode).
This adapter connects a single DisplayPort display supporting 8k 30 Hz UHD along with 2-channel audio, HDCP 2.2/1.4 and is Thunderbolt 3 compatible.
This adapter has been tested for peak performance at 8K 30 Hz on a range of DisplayPort monitors.
The adapter supports driverless plug-and-play setup and is compatible with macOS, Windows 10, Ubuntu, and Chrome OS, and will work with any USB Type-C or Thunderbolt 3 device.
This adapter fits in laptop bags and is ideal for on-the-go use when traveling between the office and home.
Table of Contents
- Description
- High Performance
- Display Compatibility
- Plug-and-Play
- Portable Design
StarTech CDP2DP Specs
Connectivity
Connector 1 |
USB (Version Unspecified) Type-C Male |
Connector 2 |
DisplayPort 1.4 Female |
General
Maximum Resolution Support |
7680 x 4320 at 30 Hz |
Audio Support |
Yes, 2 Channel |
Chipset |
Pericom PI3DPX1203 NXP PTN5100 |
Cable
Cable Length |
5.5" / 14 cm |
Environmental
Certifications |
RoHS, WEEE *as per Manufacturer |
Physical
Dimensions |
1.5 x 0.6 x 7.1" / 3.8 x 1.5 x 18.0 cm |
Weight |
0.6 oz / 17 g |
Packaging Info
Package Weight |
0.06 lb |
Box Dimensions (LxWxH) |
7.1 x 4.9 x 0.85" |
