StarTech ST124 Overview

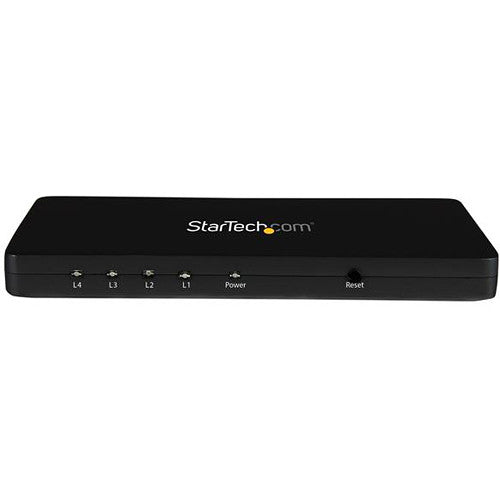

Useful in digital signage, presentations, and other audiovisual settings, StarTech's ST124HD4K 1x4 UHD 4K HDMI Splitter splits a single HDMI signal and sends it out to up to four displays. HD, VESA, and UHD 4K signals are supported for exhibiting detailed images from high-resolution sources, such as computer graphics and UHD Blu-rays. EDID emulation maximizes compatibility between the source and the connected displays. On the front panel status LEDs show which outputs have a connected display. To use, simply plug in the power supply, source, and displays, and the splitter does the rest.
In the Box
- StarTech ST124HD4K 1x4 UHD 4K HDMI Splitter
- Power Supply
StarTech ST124 Specs
Interfaces
Input |
1 x HDMI |
Output |
4 x HDMI |
Transmission
PC Resolutions |
3840 x 2160 |
Power
Power Consumption |
Power Supply: 5 VDC at 1 A |
Environmental
Operating Temperature |
32 to 158°F / 0 to 70°C |
Storage Temperature |
14 to 176°F / -10 to 80°C |
Operating Humidity |
5 to 90% |
General
Dimensions |
1.2 x 7.9 x 5.7" / 3.0 x 20.0 x 14.5 cm |
Weight |
2.2 lb / 1 kg |
Packaging Info
Package Weight |
1.25 lb |
Box Dimensions (LxWxH) |
8.5 x 5.8 x 2.1" |
StarTech ST124 Reviews
