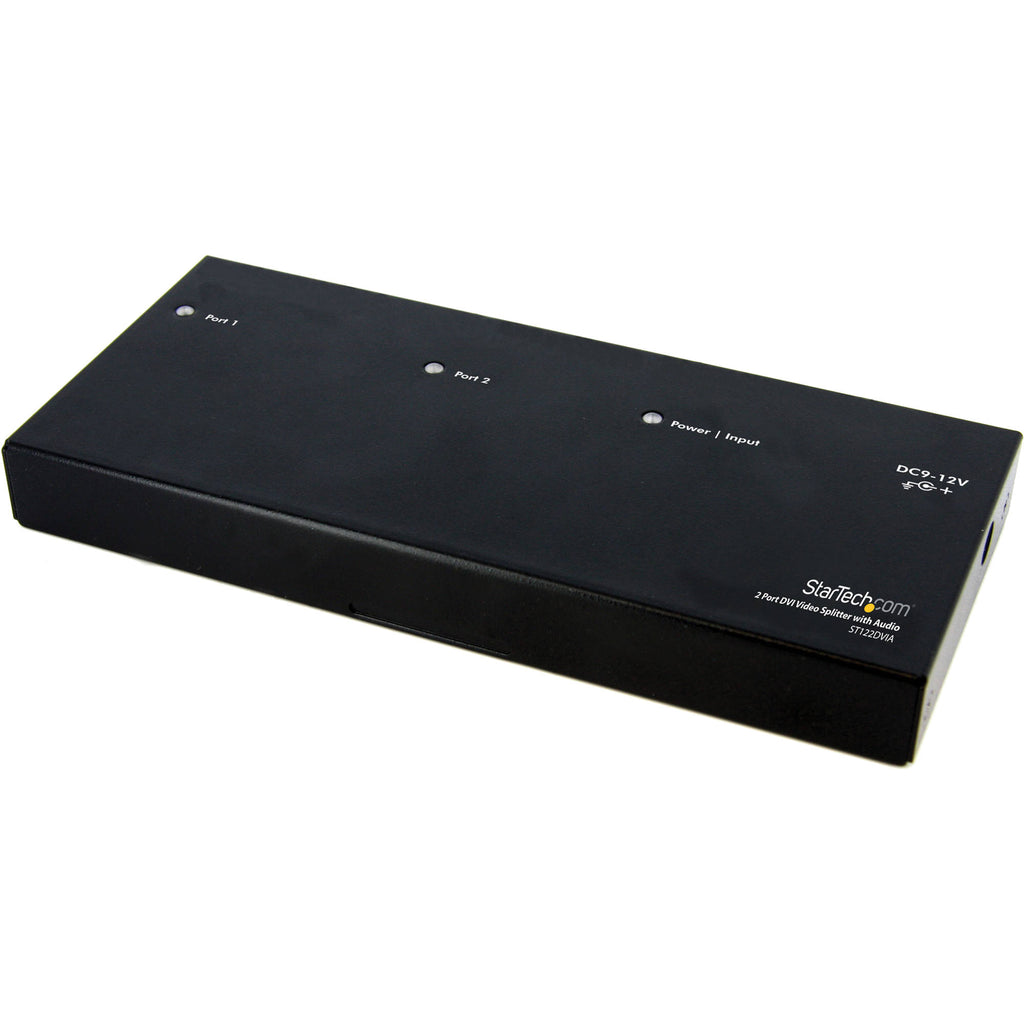

StarTech ST122 Overview
The ST122DVIA DVI Video Splitter from Startech lets you share 1 DVI video and audio source on 2 displays and acts as a signal amplifier that allows you to locate your DVI monitors up to 33' away from your computer or DVI signal source. With support for high definition resolutions up to 1080p (HDTV), or 1920 x 1200 (PC), the DVI splitter delivers a simple and convenient DVI video solution that suits virtually any application or operating environment like classrooms, healthcare applications, professional A/V, control centers, retail POS environments and more. The video splitter/distribution amplifier is easy to install, providing you with digital video that will help you get the most from your DVI-enabled monitors, projectors, or plasma screens.
Doubles as an extender with a range up to 33' from your DVI source
Splits a DVI signal to display sharp digital images on 2 monitors with support for HD resolutions and stereo audio
Supports resolutions of up to 1920 x 1200 pixels @ 60 Hz
Split both video and 3.5mm analog stereo audio
DVI, and HDCP compliant for easier HD video distribution
Accurate and reliable reproduction of digital video signal, with no signal attenuation or distortion
Easy setup for a quick connection in minutes
Connect DVI projectors, monitors, large displays, and wall display systems for digital signage applications, ensuring content is delivered to your target audience
For use in tradeshows, POS retail, healthcare applications, transportation terminals, educational environment, houses of worship and more

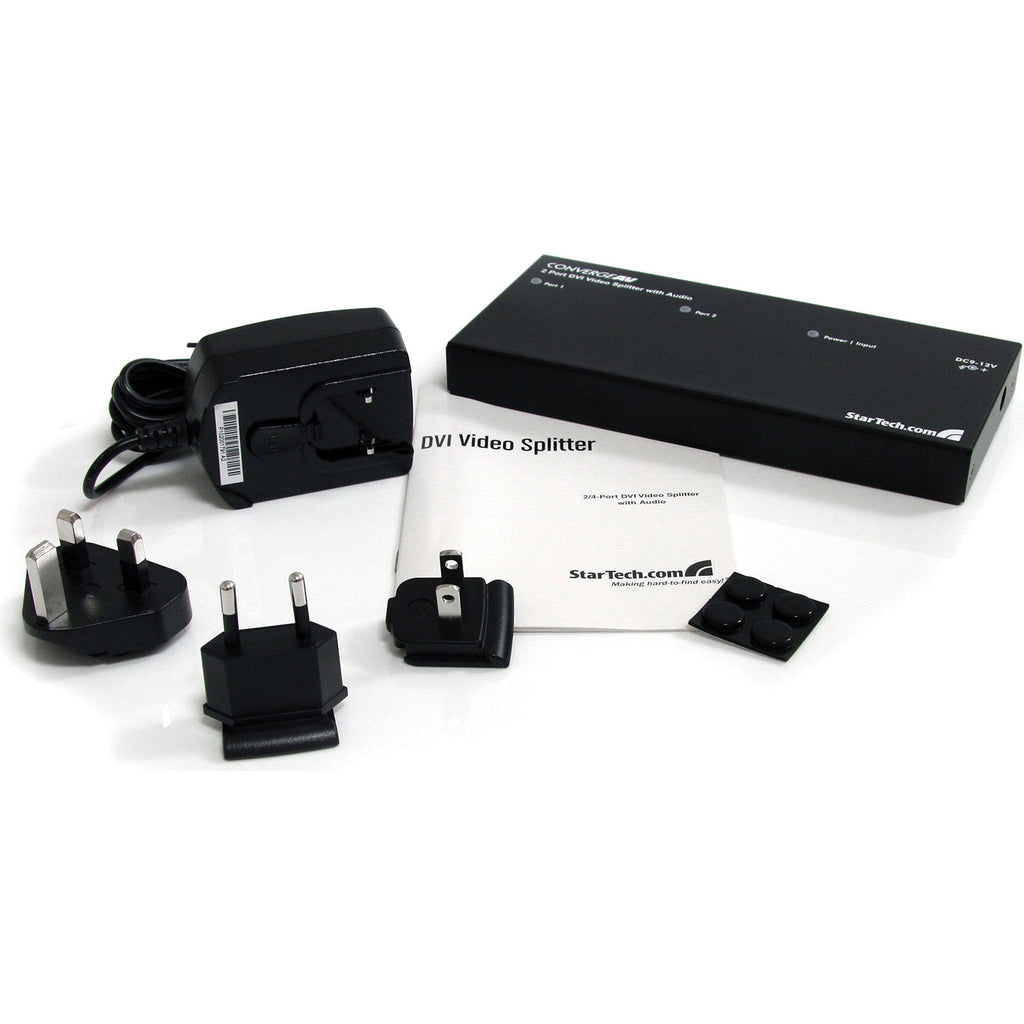

In the Box
- StarTech ST122DVIA 2 Port DVI Video Splitter with Audio
- 4 x Rubber Feet
- Universal Power Adapter
- Limited 2-Year Manufacturer Warranty
StarTech ST122 Specs
Hardware

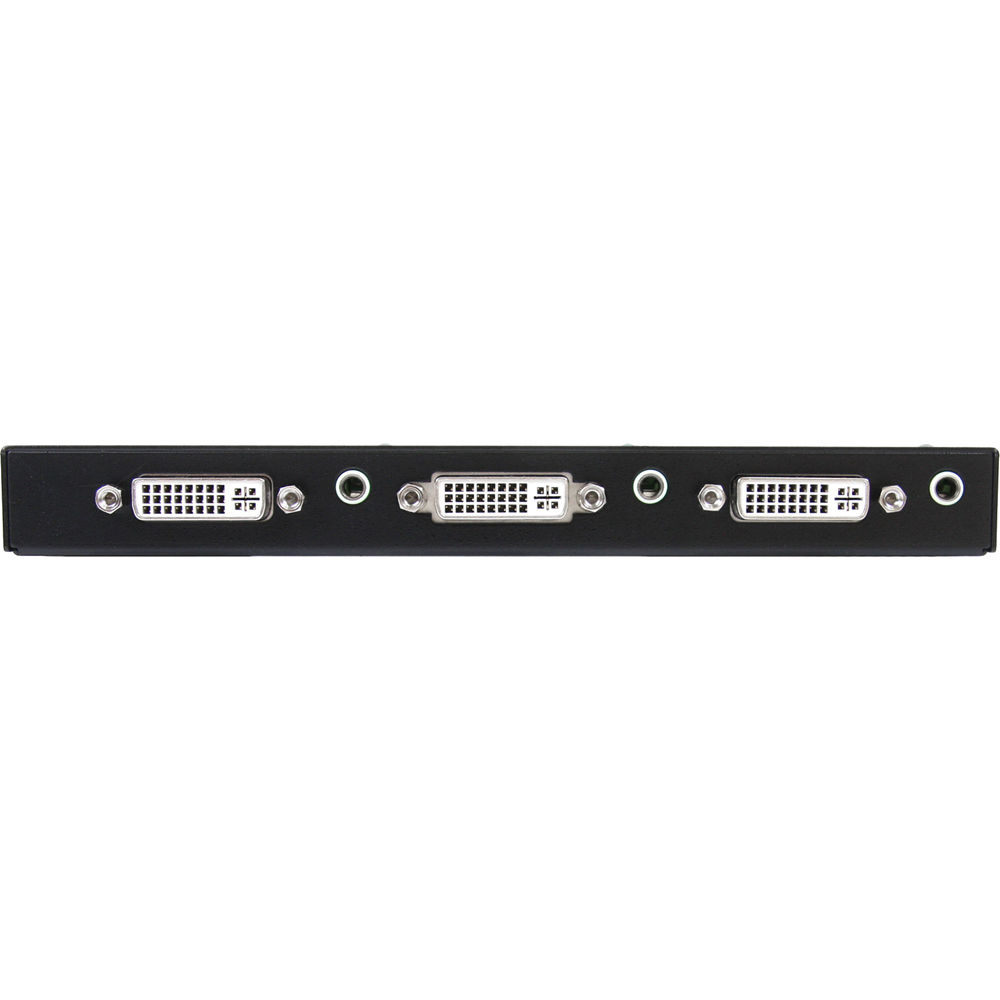

| Inputs |
1 x DVI-D via female DVI-I connector
1 x Analog audio via female 3.5 mm connector |
| Outputs |
2 x DVI-D via female DVI-I connector
2 x Analog audio via female 3.5 mm connector |
| Output Signal |
DVI-D (DVI Digital) |
| Standards |
Industry: DVI 1.0, and HDCP 1.1 |
Performance
| Distance |
Maximum: 33' (10 m) |
| Resolution |
Maximum: 1920 x 1200 @ 60 Hz |
Indicator
| LED Indicator |
1: Green - Power/Link
2: Green - Link |
Power
| Output Voltage |
9 VDC |
| Output Current |
0.6 A |
| Center Tip Polarity |
Positive |
Environmental
| Operating Temperature |
32 to 104°F (0 to 40°C) |
| Storage Temperature |
-4 to 140°F (-20 to 60°C) |
| Humidity |
0 to 80% RH |
Physical Characteristics
| Enclosure Type |
Aluminum |
| Dimensions |
7.1 x 3.4 x 0.8" (181.4 x 85.2 x 20.0 mm) |
| Weight |
1.3 lb (0.6 kg) |
Packaging Info
| Package Weight |
1.65 lb |
| Box Dimensions (LxWxH) |
8.7 x 4.1 x 3.9" |
