Description
StarTech ST121 Overview
The black ST121R VGA Video Extender Remote Receiver Over Cat5 from StarTech is specifically designed for use as a receiver unit to StarTech�s ST1214T 4 Port, and ST1218T 8 Port VGA over Cat5 UTP Extender Transmitter Units (sold separately). It allows you to split and extend a single VGA source to up to 4 remote displays over a Cat5 cable.
From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver, supporting distances of up to 500� (150 m).
This receiver provides a good video extension solution and is suitable for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances.

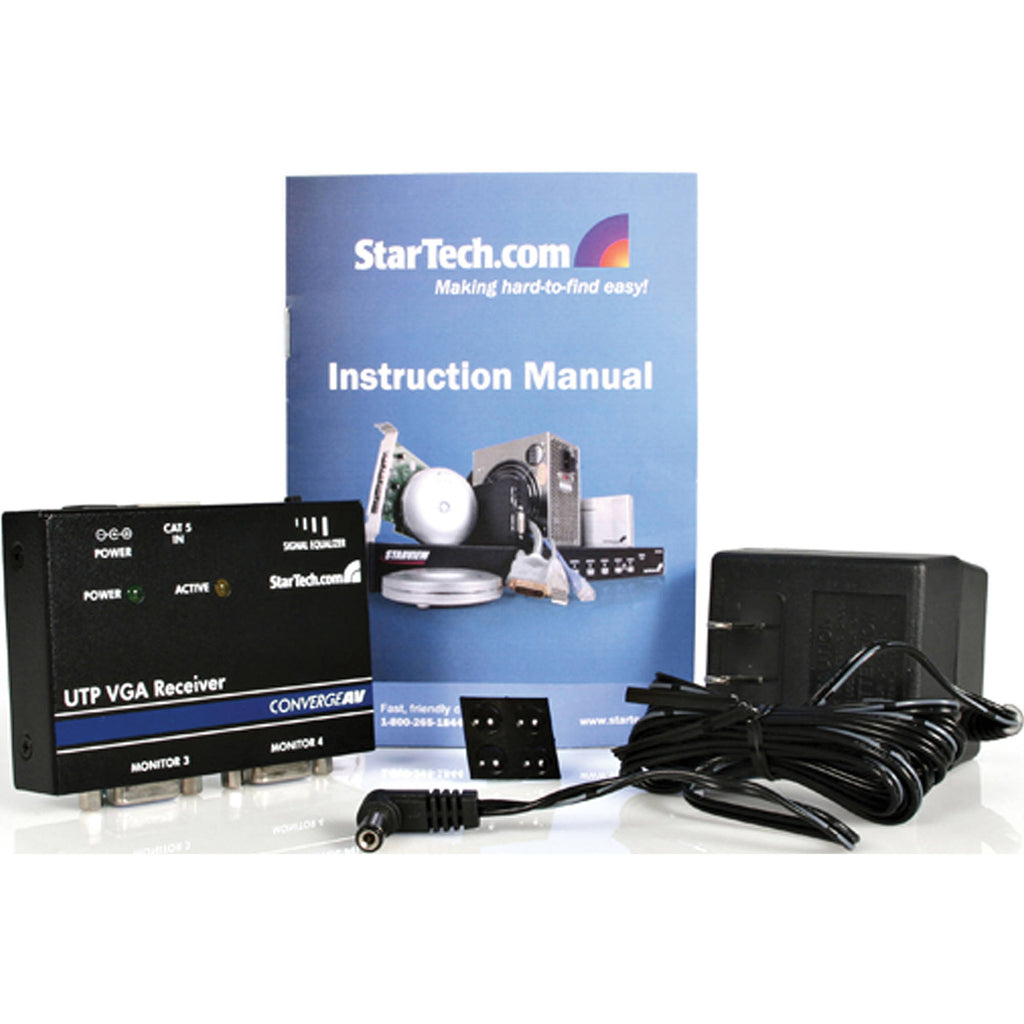

In the Box
- StarTech ST121R VGA Video Extender Remote Receiver Over Cat5 (Black)
- Mounting Brackets
- 9VAC 500ma Adapter
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Transmission Cables (Not Included)
Guides & Manuals
StarTech ST121 Specs
| Port |
1
|
| Cabling Type |
Cat 5 UTP or better
|
| Connector 1 |

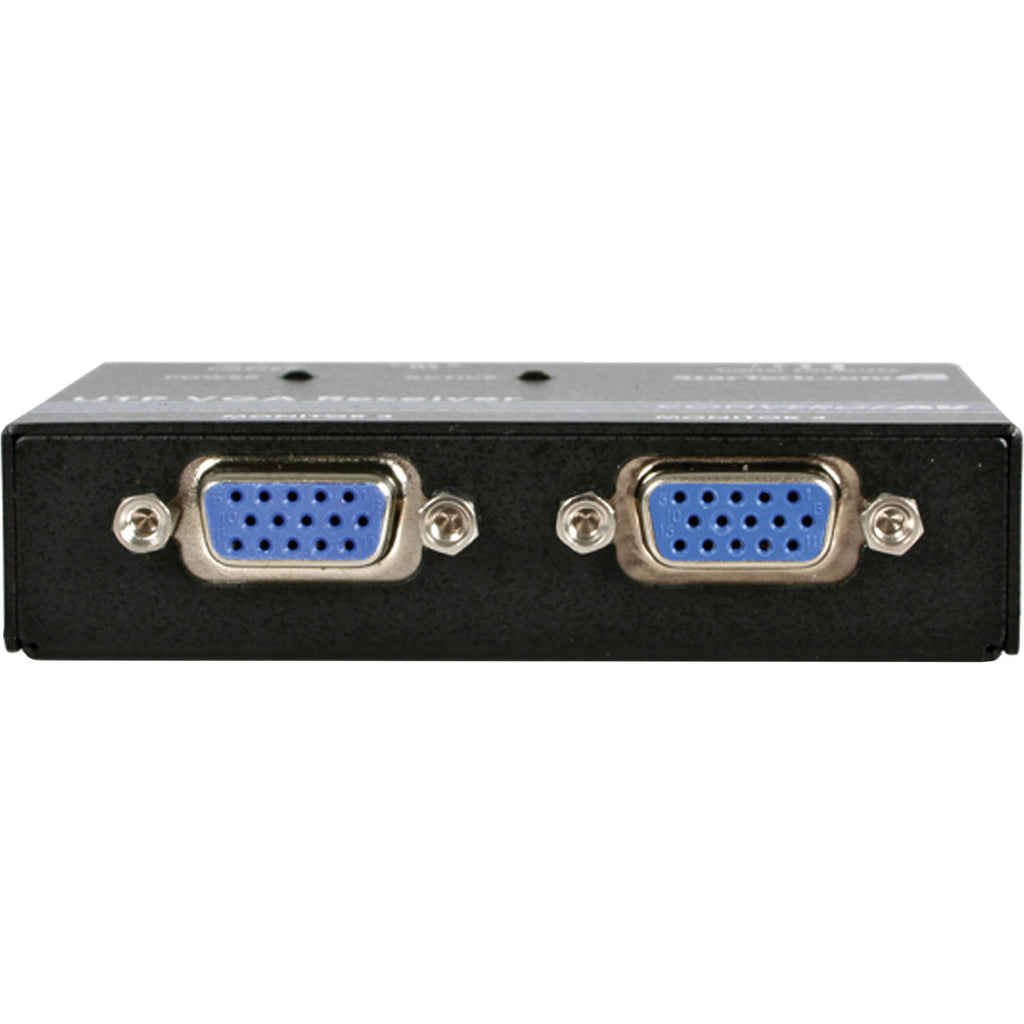

Remote Unit Connectors:
1 x RJ-45 Female 2 x VGA (15 pin; high density D-Sub) Female |
| Cable Length |
500' (150 m) maximum
|
| Maximum Distance |
500' (150 m)
|
| Analog Recording Rate/Resolution |
1024 x 768 maximum
|
| Supported Resolutions |
1600 x 1200 @ 150�(50 m)
1280 x 1024 @ 300� (100 m) 1024 x 768 @ 500� (150 m) |
| Input Voltage |
115 VAC
|
| Output Voltage |
9 VDC
|
| Output Current |
0.6 A
|
| Center Tip Polarity |
Positive
|
| Plug Type |
M
|
| Enclosure Type |
Aluminum
|
| Dimensions |
3.30 x 2.60 x 0.80" (8.38 x 6.60 x 2.03 cm)
|
| Weight |
6.00 oz (170.10 g)
|
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
8.6 x 4 x 2.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
