StarTech MDP2HDW Overview

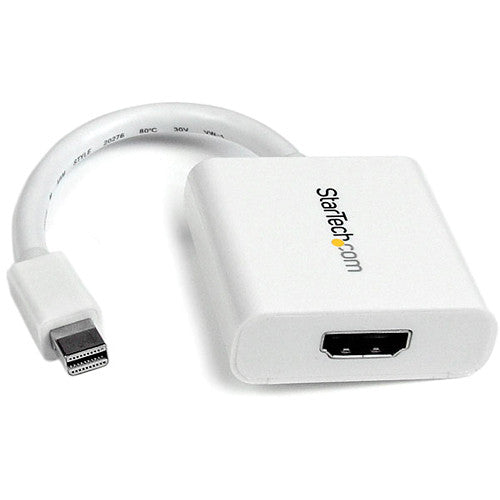

The white Mini-DisplayPort to HDMI Video Adapter Converter from StarTech offers a convenient HDMI/Mini-DisplayPort link, which enables you to connect an HDMI computer monitor or television to a device with a Mini-DisplayPort output. You save the expense of upgrading the monitor for compatibility. The adapter supports high resolution output of up to 1920 x 1200 and offers a high quality solution for mirroring or extending a computer desktop onto a second display.
This versatile adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function and is compatible with Intel Thunderbolt output when connected directly to a supporting DisplayPort over Thunderbolt I/O port. It also allows for audio pass-through if supported by the video source.
Simple to use, small form factor converter makes Mini-DisplayPort output backwards compatible with your existing HDMI enabled display or projector
No software driver installation required, provides a simple plug-and-play solution
Supports PC resolutions up to 1920x1200 and HDTV resolutions up to 1080p
Compatible with Intel Thunderbolt
Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
You can keep your existing HDMI monitor to be used with your new Mini-DisplayPort device
Ideal for using your HDMI monitor as a secondary display
UPC: 065030845960
StarTech MDP2HDW Specs
Hardware
Converter Type | Passive |
Industry Standards | DisplayPort 1.1a HDMI 1.3a |
Audio | Yes |
Connectors
Connector 1 | 1 x mini-DisplayPort (20-pin) male |
Connector 2 | 1 x HDMI (19-pin) female |
Performance
Audio Specifications | 5.1 surround sound |
Maximum Digital Resolution | 1920 x 1200 / 1080 p |
Environmental
Operating Temperature | 32 to 140°F (0 to 60°C) |
Storage Temperature | 14 to 158°F (-10 to 70°C) |
Humidity | 40~85% RH |
Requirements
System Requirements | DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) |
General
Certification | CE, FCC and RoHS |
Physical
Cable Length | 4.7" (120 mm) |
Dimensions (L x W x H) | 6.7 x 1.6 x 0.6" (170 x 40 x 15 mm) |
Weight | 10.5 oz (298 g) |
Packaging Info
Package Weight | 0.2 lb |
Box Dimensions (LxWxH) | 9 x 8 x 1" |
