| ₹ 24190.0 includes GST and import duties. | |
| B2B customers can avail ₹ 3688.98 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- Single Mode
The black ET90110WDM2 10/100 Mb/s Ethernet Single Mode WDM Fiber Media Converter Kit from StarTech lets you extend a 10/100 Mb/s Ethernet connection over single mode fiber, at distances up to 12.4 miles (20.0 km). The kit consists of 1 local media converter unit and 1 remote media converter unit, 2 universal power adapter, and 6 power adapter plugs.
This converter kit offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.
The Ethernet to WDM fiber kit includes both endpoints (2 interchangeable modules) which is a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet-to-fiber converter also features a durable all-steel chassis and a simple plug-and-play installation wherein minimal configuration is required.

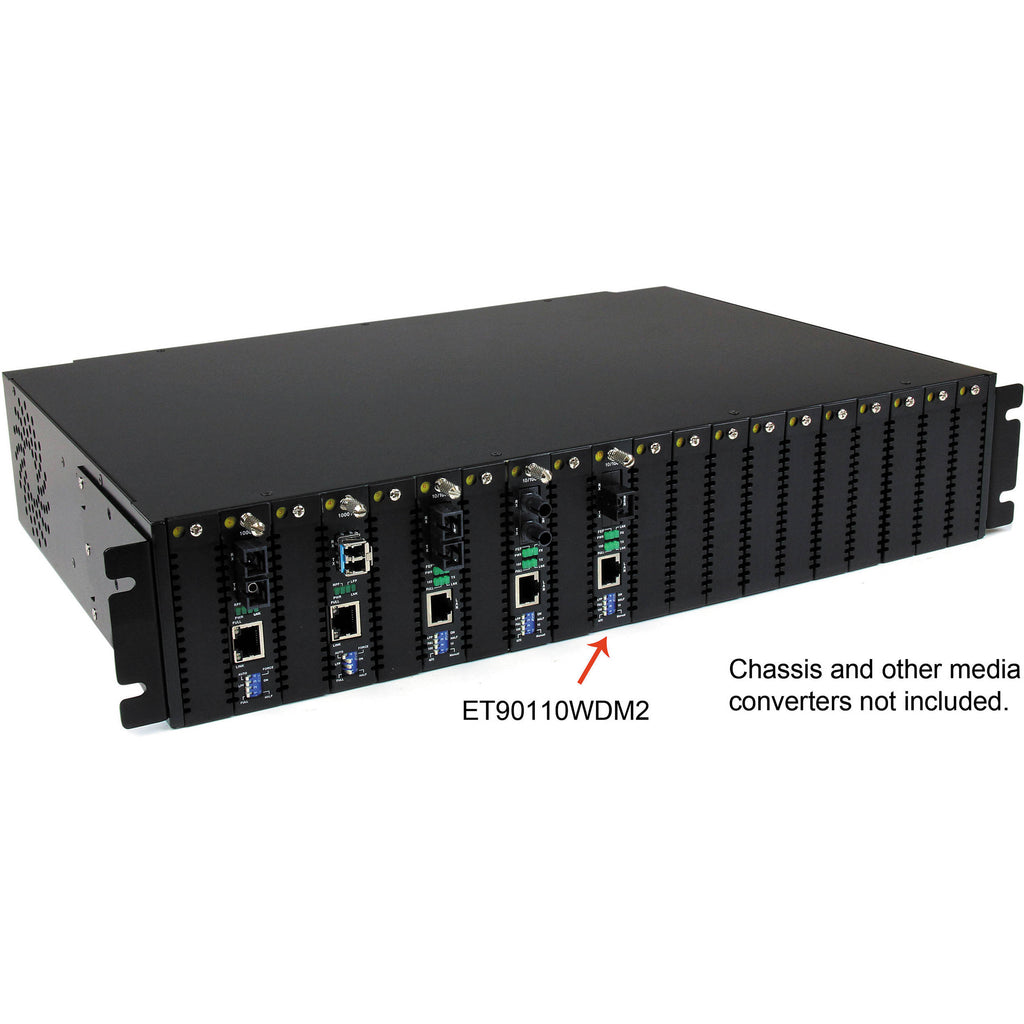

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U rack mount chassis (ETCHS2U).�
- Supports standalone operation or installation into the ETCHS2U Rackmount chassis
- Extends/bridges networks using fiber cabling
- Kit includes local and remote converter module for a complete solution
- WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for full-duplex operation
- Supports standalone operation or installation into the ETCHS2U rack mount chassis
- Maximum fiber cable length of (20 km)
- Link-loss forwarding, remote status monitoring, 2 frame lengths
- Supports full or half-duplex operation
- Easy to use and install
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Designed for environments such as government agencies, where security threats (network tapping, etc.) need to be prevented
- Connects traffic control/monitoring systems at extreme distances to the main office
- Extends network connectivity to remote areas of stadiums, auditoriums, or other venues
- Converts 10/100Base-T Ethernet to 100Base-FX fiber optic signals (and back - includes both endpoints) over single mode fiber cable
- Auto MDIX
- 2 x Universal Power Adapter
- 6 x Power Adapter Plug (2 x NA/ UK/ EU)
- Limited 2-Year Warranty
| Ports | 2 x SC 2 x RJ45 |
| Wavelength | 1310�nm |
| Maximum Networking Distance | 65,617' / 20,000 m |
| Maximum Data Rate | 200�Mbps |
| Mode | Single-Mode |
| Operating Mode | Full Duplex, Half Duplex |
| Plug Type | M |
| AC Input Power | 115 - 230�VAC, 50 / 60�Hz |
| DC Input Power | 12�VDC, 1�A |
| Center Tip Polarity | Positive |
| Material | Metal |
| Operating Temperature | 32 to 140�F / 0 to 60�C |
| Operating Humidity | 15 to 90% |
| Storage Temperature | 14 to 158�F / -10 to 70�C |
| Dimensions (L x W x H) | 6.3 x 3.7 x 0.9" / 160.0 x 94.0 x 22.9 mm |
| Weight | 49.6 oz / 1406.1 g |
| Packaging Info | |
|---|---|
| Package Weight | 3.75 lb |
| Box Dimensions (LxWxH) | 9.4 x 7.7 x 6.4" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 23706.2 |
| 3-5 | ₹ 23464.3 |
| 5-10 | ₹ 22980.5 |
| 10+ | ₹ 22496.7 |
Bulk discount will be automatically applied during checkout based on quantity.
