The black ET90110SM302 10/100 Mb/s Single Mode Fiber Media Converter from StarTech lets you convert and extend a fast Ethernet network (10/100) over single mode SC fiber, at distances up to 18.6 miles (30.0 km) Used for connecting a 10/100 Mb/s Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, this media converter is designed to offer a durable and convenient Ethernet to fiber solution. It comes with an all-steel chassis and simple plug-and-play installation wherein minimal configuration is required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 slot, 2U rackmount chassis (ETCHS2U).
- Supports standalone operation or installation into the ETCHS2U Rackmount chassis
- Extends/bridges networks using fiber cabling
- Link loss forwarding, remote status monitoring, 2 frame lengths
- Maximum fiber cable length of 18.6 miles (30 km)
- Supports full or half-duplex operation
- Easy to use and install
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Suitable for secured environments required by government agencies, where EMI is not acceptable
- Connects traffic control/monitoring systems at extreme distances to the main office
- Extends network connectivity to remote areas of stadiums, auditoriums, or other venues
- Converts 100Base-FX fiber optic signals to 10/100Base-T Ethernet over single mode fiber cable
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to fiber conversion as a standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
- Auto MDIX
UPC: 065030846264
In the Box
StarTech ET90110SM302 10/100 Mb/s Single Mode Fiber Media Converter SC (Black)
- Universal Power Adapter (NA/UK/EU)
- Limited 2-Year Warranty
| Ports | 1 x SC
1 x RJ45 |
| Wavelength | 1310�nm |
| Maximum Networking Distance | 98,425' / 30,000 m |
| Maximum Data Rate | 200�Mbps |
| Mode | Single-Mode |
| Operating Mode | Full Duplex, Half Duplex |
| Plug Type | M |
| AC Input Power | 115 - 230�VAC, 50 / 60�Hz |

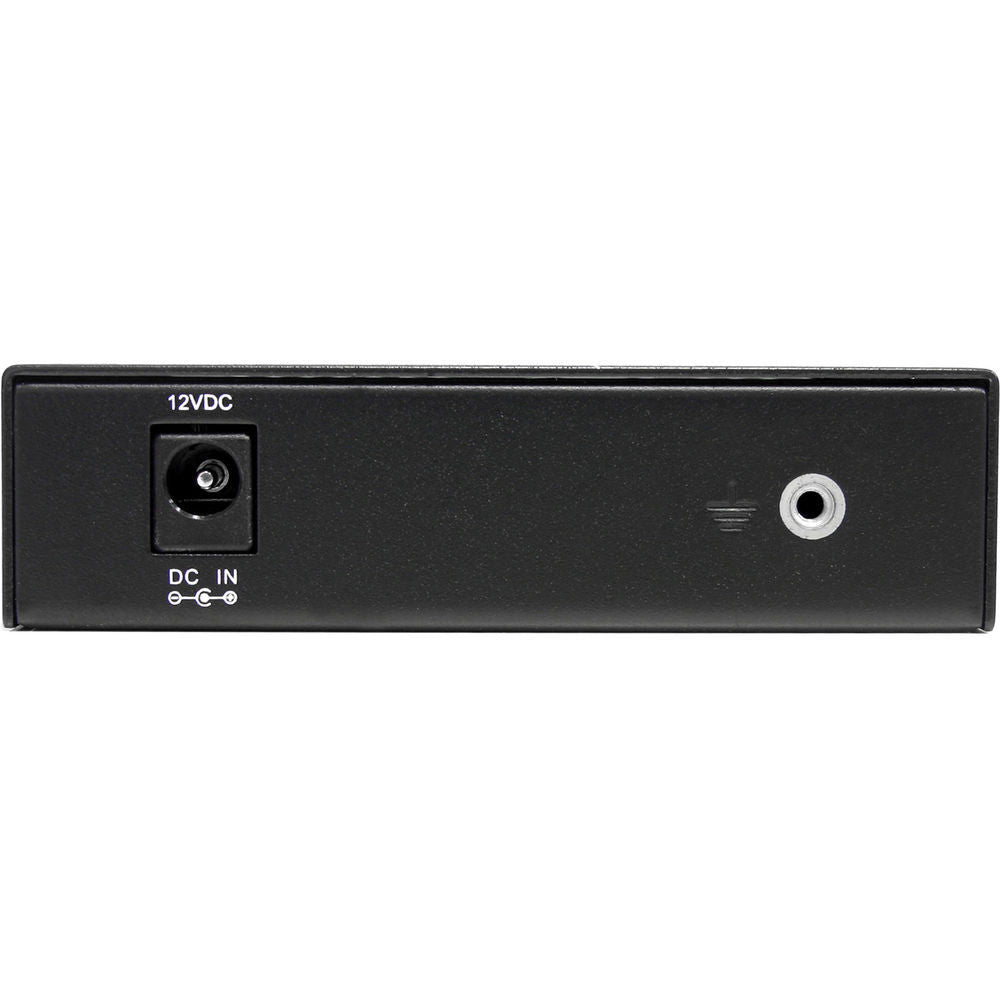

| DC Input Power | 12�VDC, 1�A |
| Center Tip Polarity | Positive |
| Material | Metal |
| Operating Temperature | 32 to 140�F / 0 to 60�C |
| Operating Humidity | 13 to 90% |
| Storage Temperature | 14 to 158�F / -10 to 70�C |
| Dimensions (L x W x H) | 6.1 x 3.4 x 0.9" / 154.9 x 86.4 x 22.9 mm |
| Weight | 14 oz / 396.9 g |
| Packaging Info |
| Package Weight | 1.7 lb |
| Box Dimensions (LxWxH) | 9.0 x 7.4 x 3.0" |
