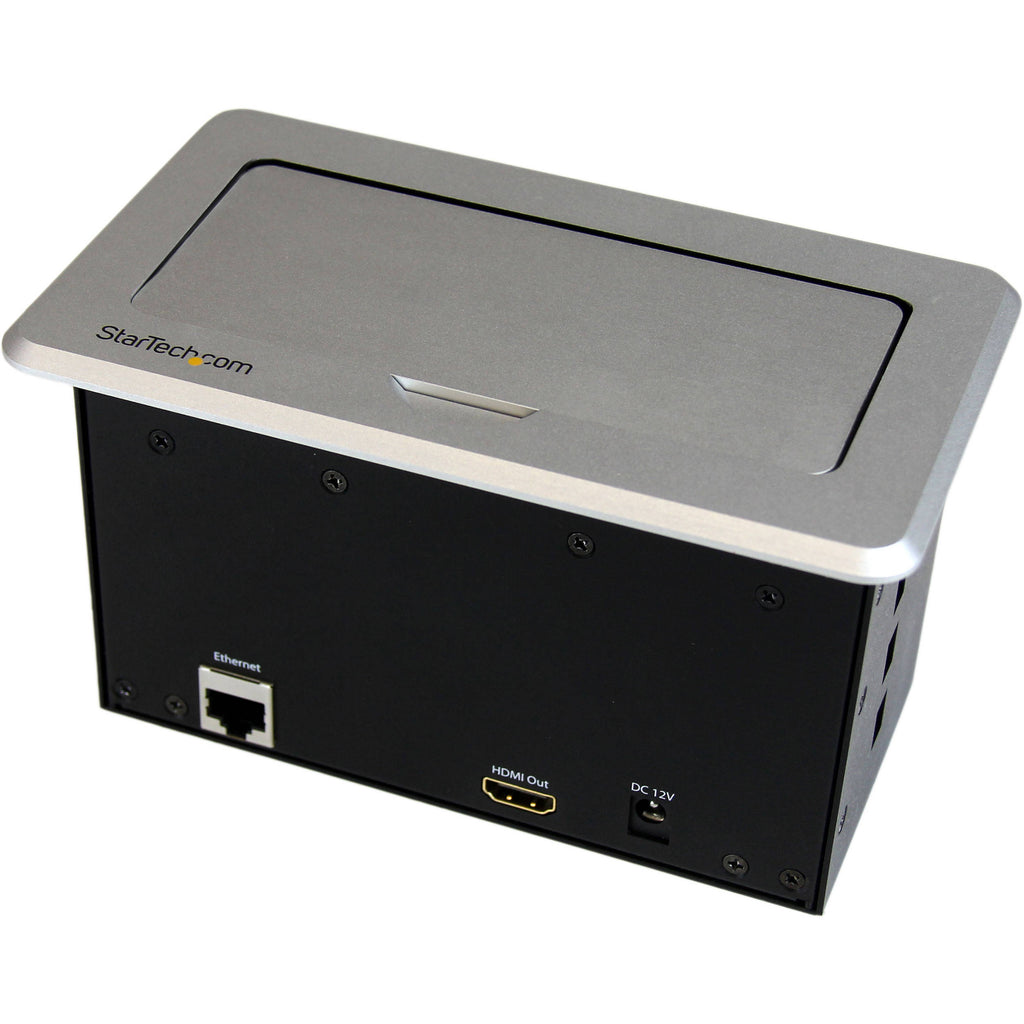

StarTech BOX4HDECP Conference Table Connectivity Box

Built-In Table-Top Design

Connects Multiple Video & Audio Sources

Single Cable Connection to HDMI Devices

Ethernet Pass-Through

StarTech' s BOX4HDECP is a connectivity box for multiple video and audio sources. It can be installed directly into a conference table, and supports connection with VGA, Mini DisplayPort, HDMI, and composite video-source devices, routing them all to an HDMI display or projector. When the video switch isn't in use, you can simply slide a stylish cover panel over the connectors, hiding them inside the table or podium surface.



Accessibility and Convenience With the BOX4HDECP, you can share content from your own device, as the table-top switch automatically converts any attached audio/video source device into a single HDMI output. The BOX4HDECP also features a USB charging port for powering your mobile device, as well as an Ethernet pass-through port for internet connectivity in boardrooms where wireless internet is not an option. Furthermore, the switch box also offers a discreet hideaway panel. Multiple Options for Connectivity With support for HDMI, VGA, Mini DisplayPort, and composite, this unit is compatible with many devices, including mobile devices. The switch panel also works with DVD players, and supports the use of video adapters for your iPhone or iPad. High Definition Support for video resolutions up to 1920x1080 (1080p) ensures that high-definition presentations stay highly defined. Additional Features

• Can be installed directly into a boardroom table for video presentations, video conferencing, and live video control.
• Can be used where a projector or display may not have the required connectivity ports.
• Hides unsightly cables and switch box by building directly into your table or podium.
• Works via single-cable connection to your HDMI Display.
• Eliminates need for adapters and cables.
• Compatible with any Ultrabook, or laptop with VGA, HDMI, mDP & composite A/V support.



UPC: 065030858359

Ports	4
Audio	Yes
USB Pass-Through	No
Output Signal	HDMI

Connector A	1 x HDMI (19-pin) Female 1 x VGA (15-pin, High-density D-Sub) female 1 x 3.5 mm mini-jack (3-position) female 1 x composite video (RCA) female 1 x RJ-45 female 1 x USB-A (4-pin) female 1 x mini DisplayPort (20-pin) Female 2 x RCA female
Connector B	1 x HDMI (19-pin) male 1 x RJ-45 female
Maximum Analog Resolution	1920 x 1080
Maximum Digital Resolution	1920 x 1080
Supported Resolutions	1920x1080 (1080p)
Widescreen Supported	Yes
Audio Specifications	7.1 Surround sound (HDMI, Mini DisplayPort) 2-Channel Stereo (3.5mm, RCA)

Power Source	AC Adapter Included
Input Voltage	100 to 240 AC
Output Voltage	12 VDC
Output Current	2A

Operating Temperature	32° to 104°F / 0° to 40°C
Storage Temperature	-4° to 140°F / -20° to 60°C
Humidity	10% to 85% (Non-condensing)
Dimensions (L x W x H)	6.7 x 3.9 x 3.9" / 170 x 100 x 100 mm
Weight	2.5 lb / 1.1 kg

Package Weight	3.8 lb
Box Dimensions (LxWxH)	9 x 7.3 x 6.3"
