| ₹ 8661.51 includes GST and import duties. | |
| B2B customers can avail ₹ 1320.88 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

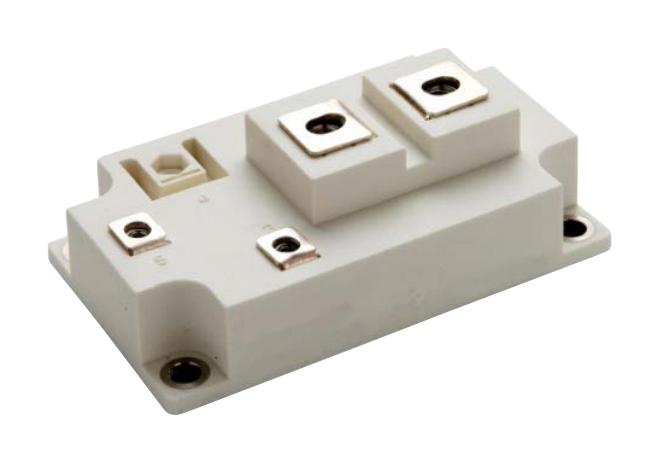

This is a GD200SGY120C2S IGBT Module , Single, 309 A, 1.7 V, 1.006 kW, 150 °C, Module New product from STARPOWER with the model number GD200SGY120C2S
Product details
| IGBT Configuration | Single |
| DC Collector Current | 309A |
| Collector Emitter Saturation Voltage Vce(on) | 1.7V |
| Power Dissipation Pd | 1.006kW |
| Junction Temperature Tj Max | 150°C |
| Transistor Case Style | Module |
| IGBT Termination | Stud |
| Collector Emitter Voltage V(br)ceo | 1.2kV |
| IGBT Technology | Trench |
| Product Range | - |
Other details
| Brand | STARPOWER |
| Part Number | GD200SGY120C2S |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 8488.28 |
| 3-5 | ₹ 8401.66 |
| 5-10 | ₹ 8228.43 |
| 10+ | ₹ 8055.2 |
Bulk discount will be automatically applied during checkout based on quantity.
