Description
StarBoard Solution TE-YL5S Overview
- 1Description
- 2Flexible Connectivity
- 3Narrow Bezel
- 4Additional Features

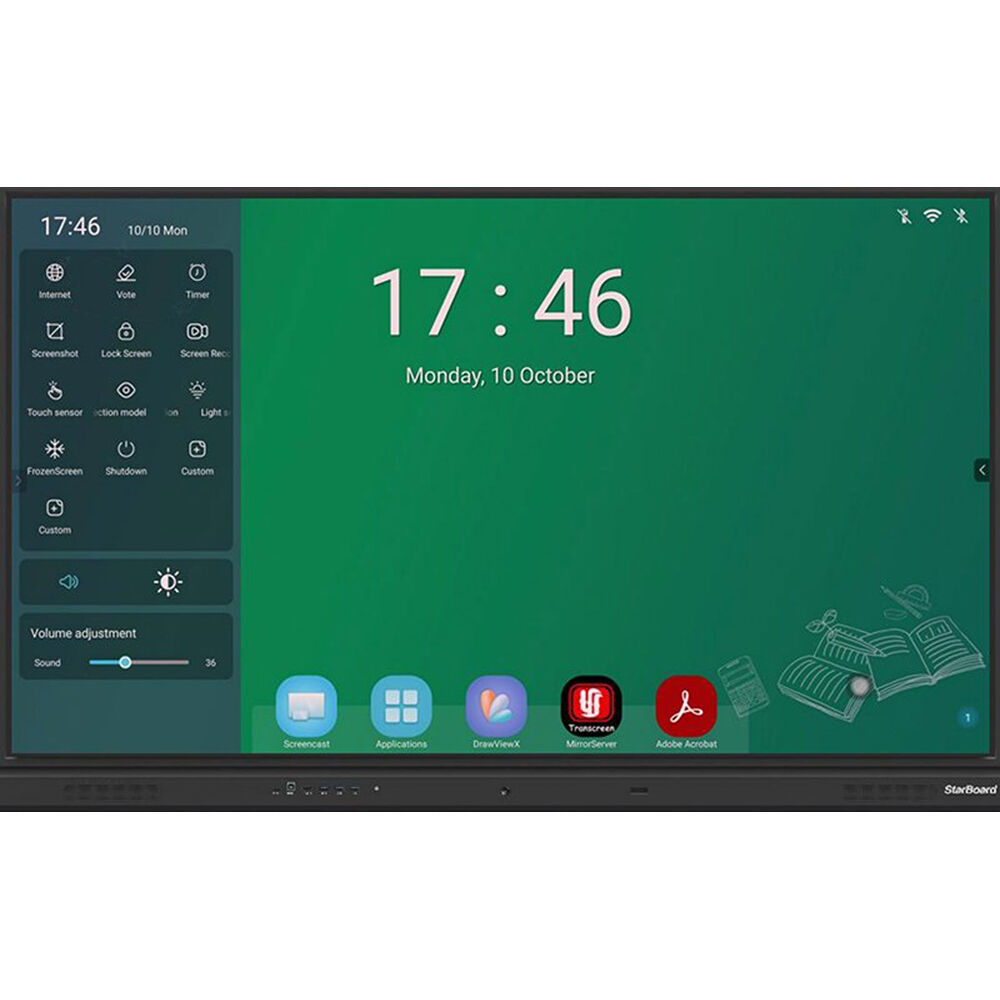

The StarBoard Solution TE-YL5 Series 2 75" UHD 4K Touchscreen Commercial Monitor is a 350 nits bright interactive display featuring an integrated Android operating system. Connect a wide variety of devices via HDMI, DisplayPort, USB, and OPS inputs to enjoy up to 4K60 video playback. Experience smooth interactivity with 20-point infrared touch and use any opaque object, such as the included pens or your finger, to annotate with the built-in software. You can then share the notes made by an auto-generated QR code for mobile devices. For convenince, Wi-Fi and Bluetooth are built in with the ability to wirelessly screen share with up to 9 devices at once. The StarBoard Solution TE-YL5 Series 2 is designed to be an all-in-one interactive solution for classrooms, conference rooms, and other collaborative spaces.
Flexible Connectivity
The TE-YL5 Series 2 features a wide variety of inputs, including HDMI, DisplayPort, and USB for connecting all of your devices. Front-loading HDMI and USB-C ports are available for easy walk-up-and-use access along with USB inputs for touch control, memory devices, and peripherals. RJ45 LAN in and out are available along with Wi-Fi to connect to the network. Additionally, there is an input for a microphone and an analog audio out to connect to headphones or external speakers.
Narrow Bezel
With an 11.5mm frame the screen utilization rate reaches 98%. Combined with advanced IR filter technology, this allows for a more natural writing experience.
Additional Features
- OPS module slot
- Android tablet functions
- Simplified user interface for Android
- 20-point touch with intelligent gesture control
- 32GB on-board storage
- <2mm touch accuracy
- Dual-band Wi-Fi
- Bluetooth 5.0
In the Box
- StarBoard Solution TE-YL5 Series 2 75" UHD 4K Touchscreen Commercial Monitor
- 2 x Magnetic Pens
- HDMI Cable
- USB-B to USB-A Touch Cable
- Power Cable
- Starboard Software Online Download
- Remote Control
- Wall Mounting Bracket
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 3-Year - Limited 5-Year Manufacturer Warranty (Available with Purchase of Extended Warranty)
Table of Contents
- Description
- Flexible Connectivity
- Narrow Bezel
- Additional Features
StarBoard Solution TE-YL5S Specs
Display
| Size | 75" |
| Panel Type | LCD |
| Aspect Ratio | 16:9 |
| Display Orientation | Landscape |
| Resolution | 3840 x 2160 |
| Maximum Brightness | 350 nits / cd/m2 |
| Lighting System | Direct LED |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 64.96 x 36.54" / 1649.98 x 928.12 mm |
| Pixels Per Inch (ppi) | 59 ppi |
Surface
| Touchscreen Technology | Infrared (IR) |
| Multi-Touch Points | 20 |
Video
| TV Tuner | No |
Connectivity
| Inputs | Front: 1 x HDMI (2.0) Rear: 2 x HDMI (2.0) 1 x DisplayPort 1 x 1/8" / 3.5 mm |
| Outputs | 1 x HDMI 1 x 1/8" / 3.5 mm (Headphone) |
| HDCP Support | Yes |
| Wireless | Wi-Fi / Bluetooth 5.0 |
| Bluetooth | 5.0 |
| USB I/O | Front: 1 x USB-B Unspecified Version (Touchscreen Control) 3 x USB-A 3.0 / 3.1/3.2 Gen 1 1 x USB-C Unspecified Version Rear: 2 x USB-B Unspecified Version (Touchscreen Control) 2 x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O | 2 x RJ45 10/100 Mb/s Ethernet |
| Other I/O | 1 x Serial (RS-232C) Control Input |
| Number of OPS/Expansion Slots | 1 |
Speaker
| Built-In Speakers | Yes, 2 x 15 W |
| Speaker Configuration | 2-Channel |
Hardware
| Smart TV | Android 11 |
| Storage | 32 GB eMMC |
| RAM | 4 GB DDR3 |
| OS Compatibility | Android Windows macOS Linux *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible | Yes *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Media Card Reader | 1 x microSD (Unspecified Type) |
| Built-In Mic | No |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
Electrical
| Power Consumption | Typical: < 350.0 W Standby: < 1.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
General
| IK Rating | None |
| Bezel Thickness | 11.5 mm (Right/Top/Left) |
| Dimensions | 67.2 x 40.5 x 3.6" / 1706.9 x 1028.7 x 91.4 mm |
| Weight | 119.0 lb / 54 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 372061.9 |
| 3-5 | ₹ 368265.35 |
| 5-10 | ₹ 360672.25 |
| 10+ | ₹ 353079.15 |
Bulk discount will be automatically applied during checkout based on quantity.
