| ₹ 1082.73 includes GST and import duties. | |
| B2B customers can avail ₹ 165.12 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

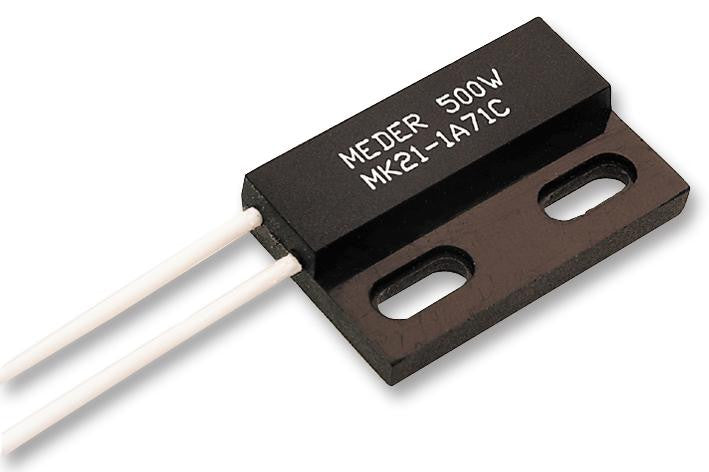

The MK21P series Reed Sensor in a rectangular housing with cable terminals. The series features high temperature resistant screw fastened flange mount. Used in position, level and end limit sensing. The series features optional internal switch, cable, length and termination.
- 10/100W Rated power (maximum)
- 0.5/1A Switching current maximum
- 150mR Contact resistance (maximum)
- 0.05/0.1/1.5ms Release time
- 109/1010R Insulation resistance
- 1A (SPST) (N.O.), 1B (SPST) (N.C.), 1C (SPDT) Changeover Contact form
Applications
Industrial, Security, Automotive
Product details
| Sensor Mounting | - |
| Sensing Range Max | - |
| Operating Temperature Min | -5°C |
| Product Range | MK21 Series |
| Supply Current | 500mA |
| Operating Temperature Max | 70°C |
Other details
| Brand | STANDEXMEDER |
| Part Number | MK21P-1A66B-500W |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1061.08 |
| 3-5 | ₹ 1050.25 |
| 5-10 | ₹ 1028.59 |
| 10+ | ₹ 1006.94 |
Bulk discount will be automatically applied during checkout based on quantity.
