| ₹ 590.69 includes GST and import duties. | |
| B2B customers can avail ₹ 90.08 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

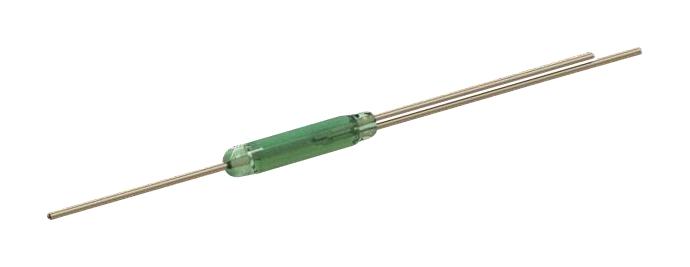

This is a Reed Switch, KSK-1C90U Series, SPDT-CO, Through Hole, 500 mA, 175 V, 10 W product from STANDEXMEDER with the model number KSK-1C90U-1520
Product details
| Product Range | KSK-1C90U Series |
| Contact Configuration | SPDT-CO |
| Switch Mounting | Through Hole |
| Contact Current Max | 500mA |
| Switching Voltage Max | 175V |
| Switching Power Max | 10W |
| Contact Resistance Max | 0.15ohm |
| Operate AT Min | 15AT |
| Operate AT Max | 20AT |
Other details
| Brand | STANDEXMEDER |
| Part Number | KSK-1C90U-1520 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 578.88 |
| 3-5 | ₹ 572.97 |
| 5-10 | ₹ 561.16 |
| 10+ | ₹ 549.34 |
Bulk discount will be automatically applied during checkout based on quantity.
