| ₹ 129380.0 includes GST and import duties. | |
| B2B customers can avail ₹ 19730.45 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
SPL SMC Overview
- 1Description
- 2Looks as Good as It Sounds
- 3Stereo and Surround
- 4Multiple Connections
- 5Hardy Controls
The SPL SMC Surround Monitor Controller is an audiophile-grade speaker and source-management processor for 5.1 surround and stereo playback. Use it for surround and stereo production as well as postproduction for film and multimedia projects.

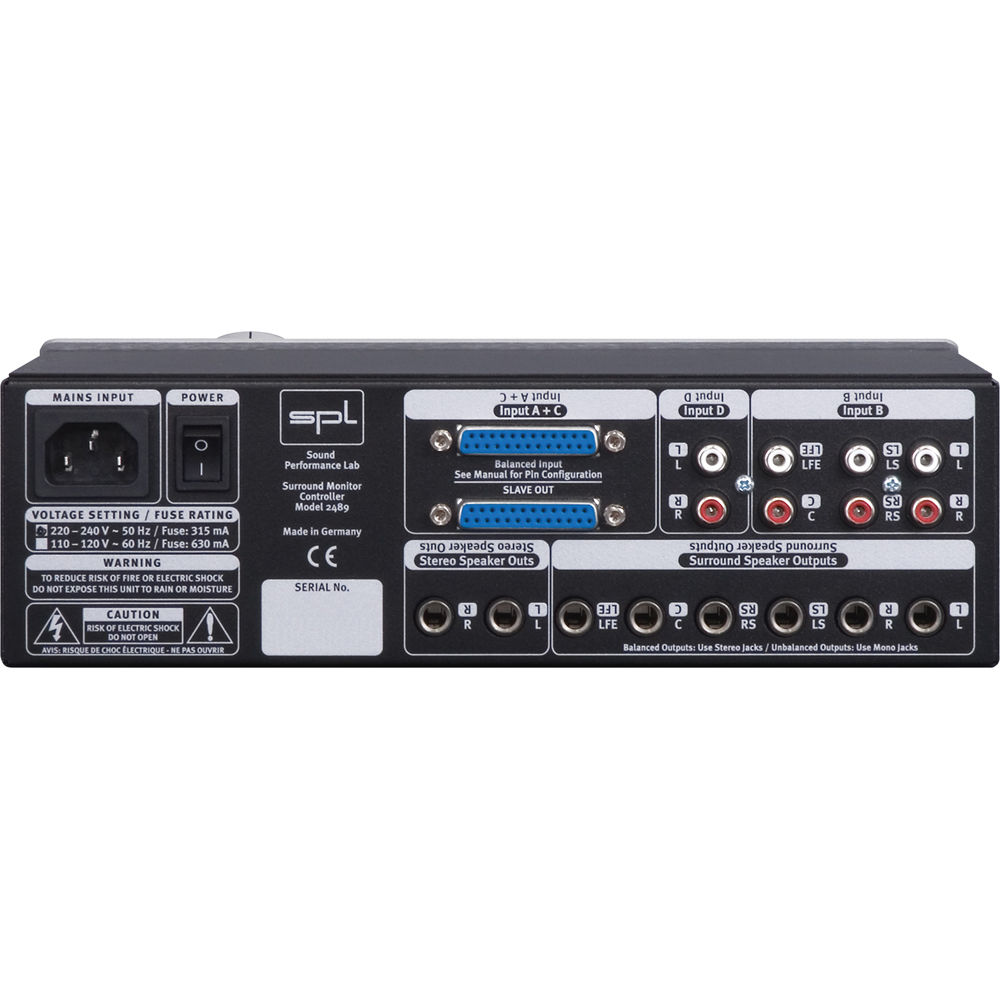

The device offers balanced connections over the built-in DB25 connector, and unbalanced connections over RCA connections. These connections are individuated for stereo and surround setups�and you can switch between them at will.

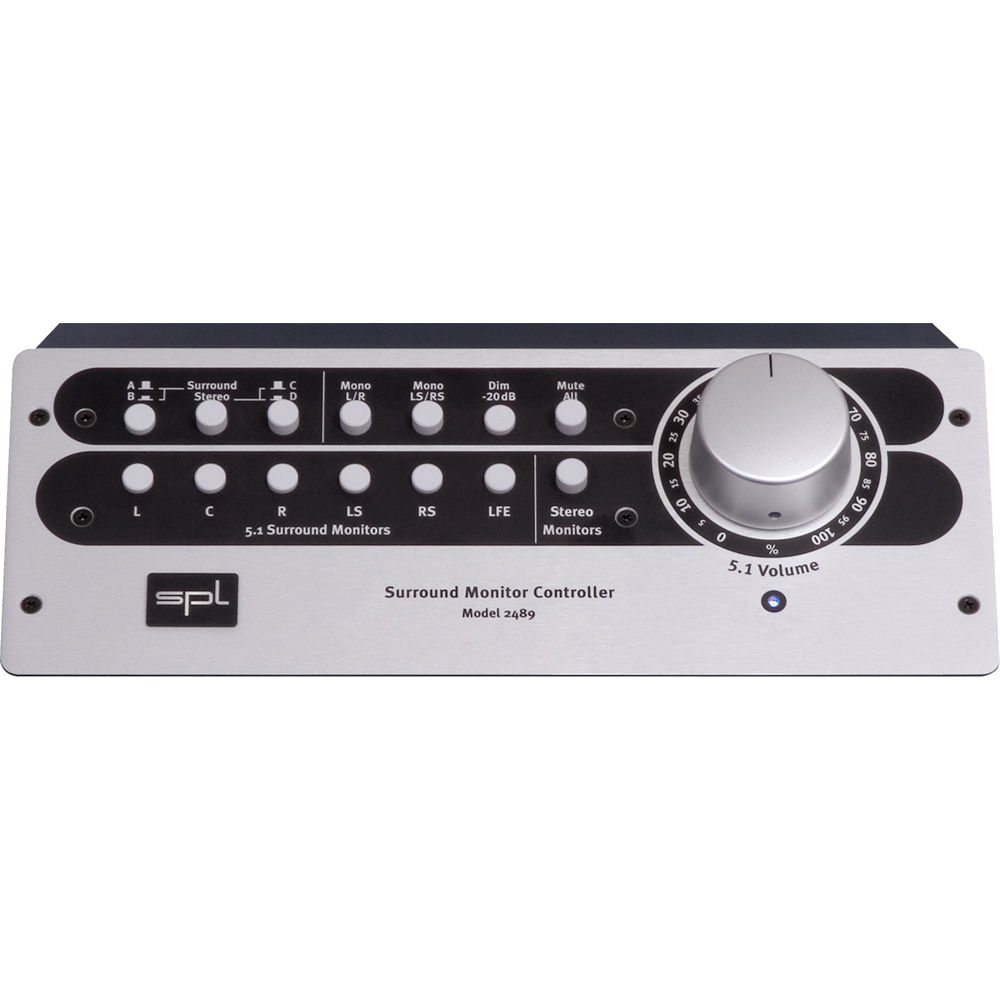

The SMC offers controls not prevelant on your usual soundcard. With this device, you can adjust the levels of each output, fold L/R signal to mono, and fold Ls/Rs signals to mono. You can dim the signal by -20 dB, and you can mute all sound at any time. As the unit can manage several input sources at once, you can use it to compare and monitor material from multiple sources, without introducing extra AD/DA conversion stages.
In the Box
- SPL SMC Surround Monitor Controller
- AC Power Cord
- Limited 2-Year Manufacturer Warranty
- Description
- Looks as Good as It Sounds
- Stereo and Surround
- Multiple Connections
- Hardy Controls
SPL SMC Specs
| Inputs | 1 x DB25 (Balanced) 2 x RCA (Unbalanced, Stereo Pair) 5 x RCA (Unbalanced, Surround Channels) |
| Input Impedance | Balanced: 50 Kilohms Unbalanced: > 10 Kilohms |
| Outputs | 1 x DB25 (Passive Thru) 2 x 1/4" (Stereo Pair) 5 x 1/4" (Surround Channels) |
| Maximum Input Level | + 22 dBu |
| Output Impedance | � 600 Ohms |
| THD & Noise | Input Level -10 dB: 0.04% Input Level 0 dB: 0.01% Input Level:+10 dB: 0.006% Input Level +18 dB: 0.002% Input Level +22 dB: 0.1% |
| Noise | -98 dBa |
| Dynamic Range | 120 dB |
| Common Mode Rejection | 100 Hz: � 70 dBu 1 kHz: � 70 dBu 10 kHz: � 60 dBu 100 kHz: � 50 dBu |
| Frequency Response | 10 Hz to 100 kHz (-3 dB) |
| Phase | -36° (10 to 120 kHz, -3 dB Center Frequency) Phase, Linear 20 Hz to 100 kHz |
| Dimensions | 3.6 x 10.7 x 8.7" / 91 x 272 x 220 mm |
| Weight | 5 lb / 2.3 kg |
| Package Weight | 7.65 lb |
| Box Dimensions (LxWxH) | 14.8 x 14.3 x 6.9" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 126792.4 |
| 3-5 | ₹ 125498.6 |
| 5-10 | ₹ 122911.0 |
| 10+ | ₹ 120323.4 |
Bulk discount will be automatically applied during checkout based on quantity.
