Description
SPL SPLMARC1 Overview
- 1Description
- 22 Stereo Inputs
- 3Clean Line Output
- 432-Bit DA-Converter
- 5Three Monitoring Modes
- 6Class Compliant USB
- 7Class AB Power Amp
- 8Adjustable Crossfeed for Stereo Speaker Sound

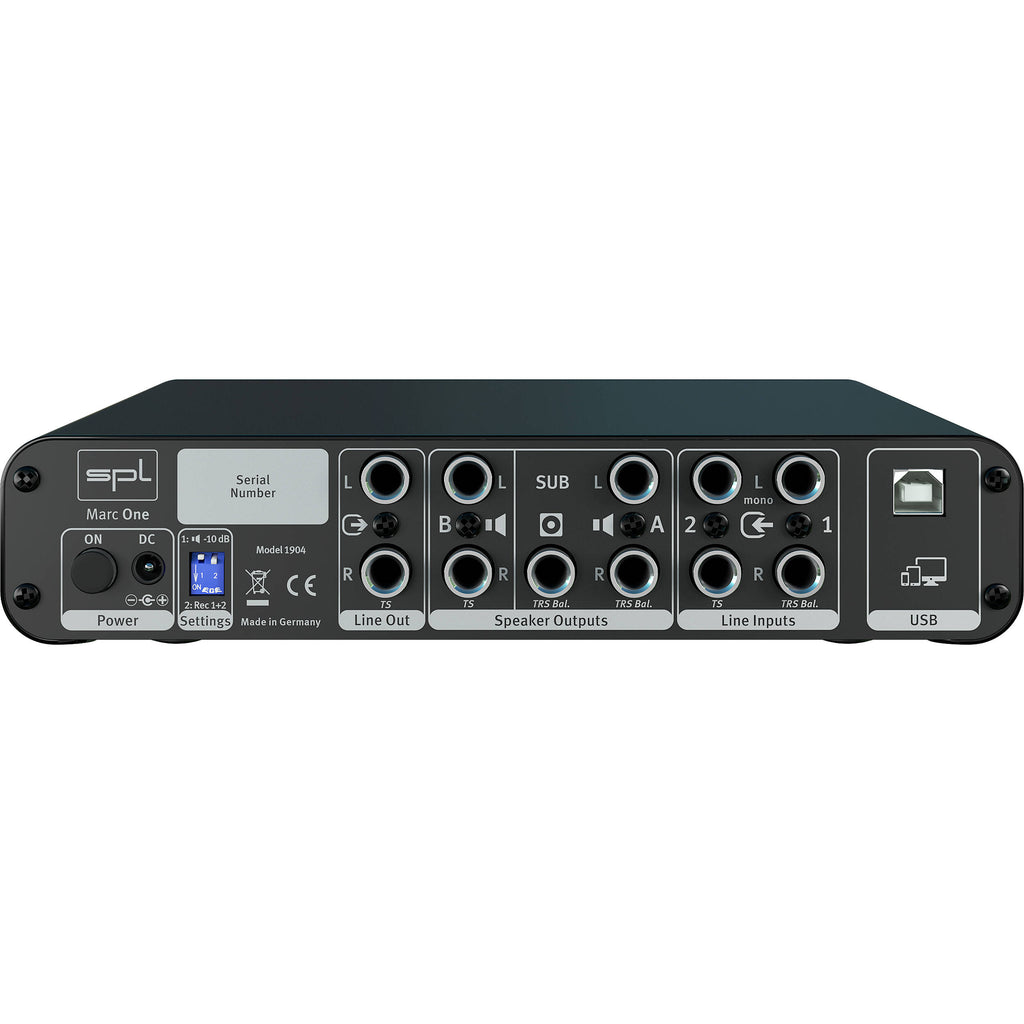

The Marc One from SPL is a monitor controller and 32-Bit AD/DA in SPL's One series of high-quality audio equipment. This unit offers two stereo inputs (one balanced, one unbalanced) as well as two speaker outputs, a headphone output, and a subwoofer output. As with the inputs, the output sections give you a choice of balanced or unbalanced 1/4" connection points. You'll also note the USB port, through which you can record or playback 32-bit audio at high sample rates.

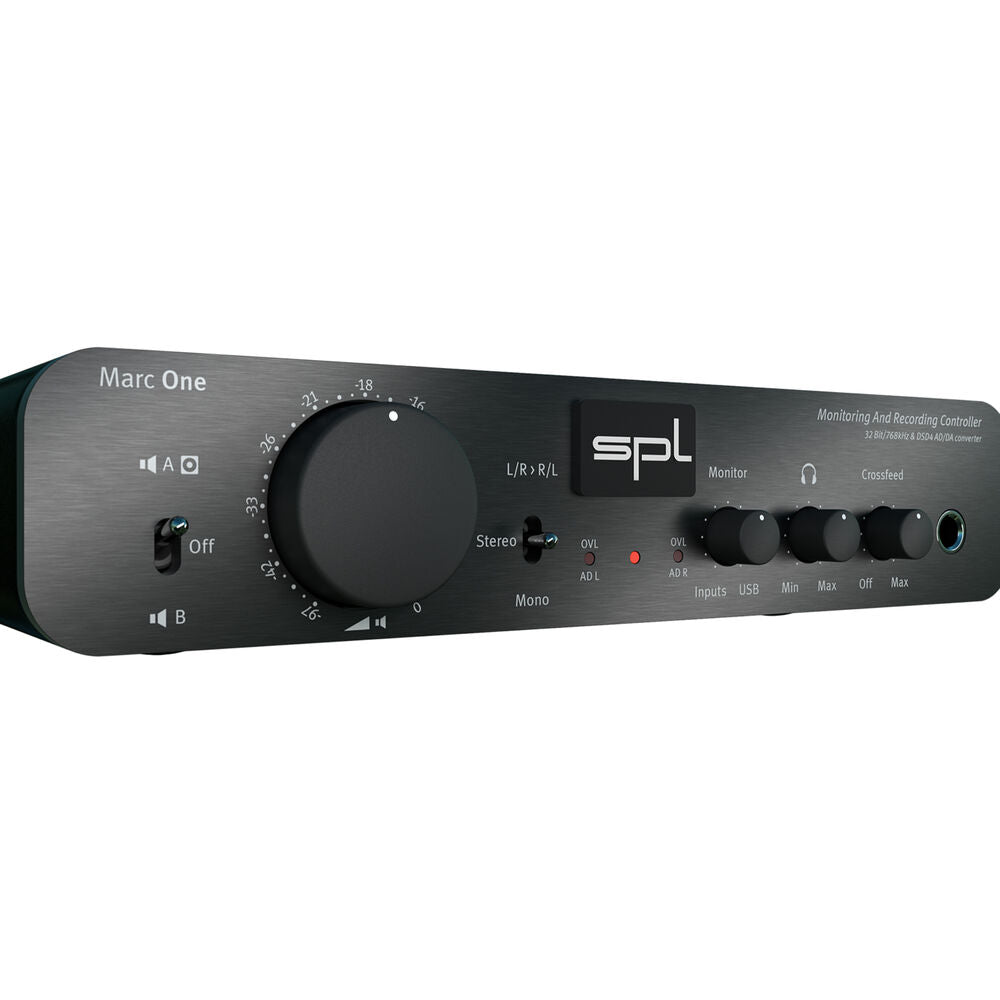

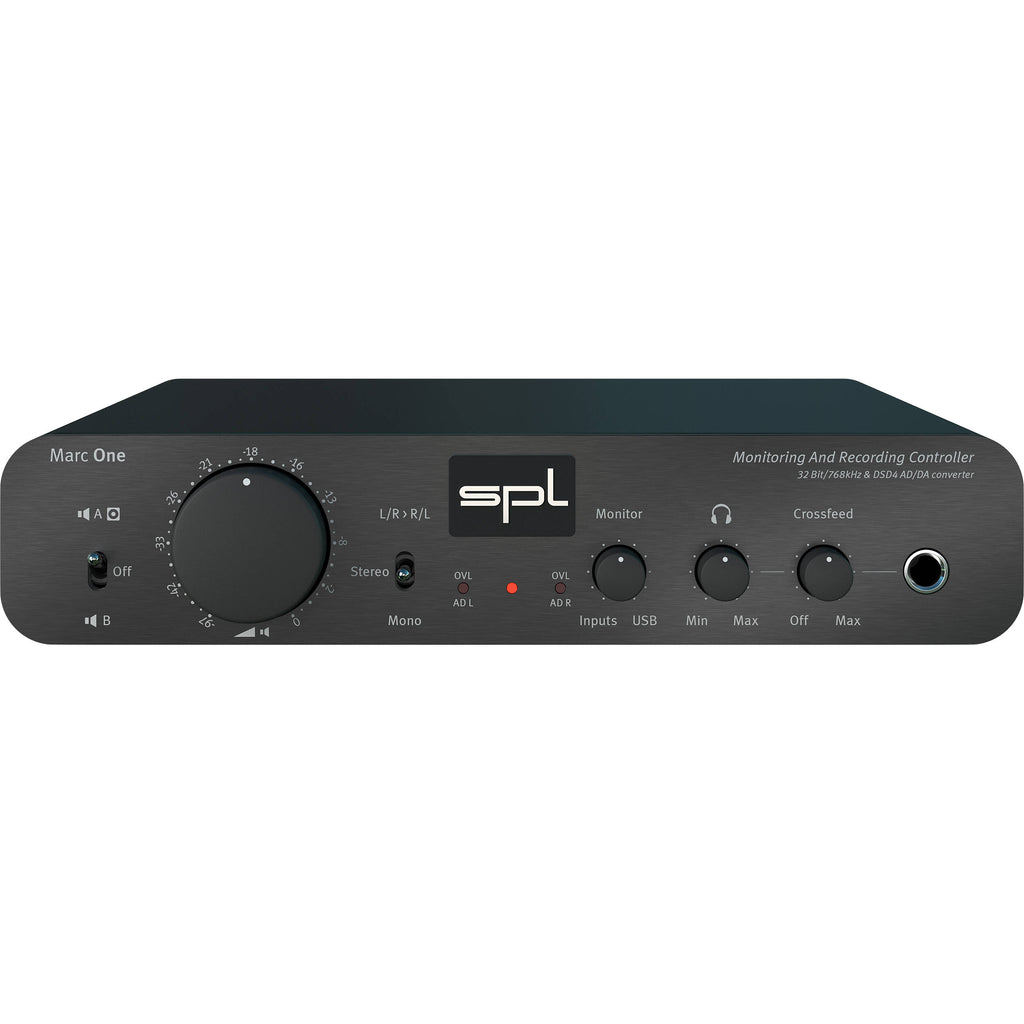

Indeed, the Marc One can support PCM sample rates up to 768 kHz. If you have DSD audio you'd like to hear, you can play it via DSD over PCM (DoP) up to DSD256. Because this unit has line inputs as well as outputs, you can even record audio at these high sample rates and resolutions, which is great for capturing vinyl records or recording instruments such as analog synths. On its front panel, you'll find an input selector that lets you switch between your two line sources, which you can also blend, if that is your desire. An output selector allows you to choose between your A and B output sets. Another front-panel switch sums the stereo output to mono, which can be useful for checking the integrity of your mix. You can also swap the left and right channels in order to ensure that you're center elements are truly centered.
In the headphone section, note the Crossfeed knob. This engages the Phonitor Matrix, SPL's technology for emulating speaker positioning, within a room, all in your headphones. With the Crossfeed knob, you can dial in subtle amounts of the opposing channel to emulate the feeling of speakers. Mixing engineers might find this feature particularly handy when mixing in headphones.
The headphone amp itself utilizes a Class AB design, and is able to power both high- and low-impedance headphones alike. You can go between your favorite consumer-grade closed-backs and your high-grade open backs without problem. A 12V external power supply unit is included.
2 Stereo Inputs
Clean Line Output
32-Bit DA-Converter
Three Monitoring Modes
Class Compliant USB
Class AB Power Amp
The output stage transistors are thermally coupled and thus run particularly coherently, which contributes to a consistent and stable sound image.
The power supply has a buffer circuit with low source resistance, ensuring generous current reserves even when operating low-impedance headphones.
Adjustable Crossfeed for Stereo Speaker Sound
At the beginning of the control path, the function is not in the audio path. It is only switched on by adding it via relay (hysteresis circuit). The audio signal therefore does not pass through the crossfeed stage if this is not desired.
In the Box
- SPL Marc One Monitor and Recording Controller
- 12V External PSU
- Limited 2-Year Warranty
- Description
- 2 Stereo Inputs
- Clean Line Output
- 32-Bit DA-Converter
- Three Monitoring Modes
- Class Compliant USB
- Class AB Power Amp
- Adjustable Crossfeed for Stereo Speaker Sound
SPL SPLMARC1 Specs
| Analog I/O | 2 x 1/4" TRS Balanced Line Inputs 2 x 1/4" TS Unbalanced Line Inputs 2 x 1/4" TRS Balanced Speaker Outputs 2 x 1/4" TS Unbalanced Speaker Outputs 1 x 1/4" TRS Balanced Subwoofer Output 1 x 1/4" Stereo Headphones Output |
| Input Gain | +22.5 dBu |
| Input Impedance | Line In 1: 20 Kilohms Line In 2: 10 Kilohms |
| Common Mode Rejection | Line In 1: < 60 dB |
| Output Level | Speaker Output (600 Ohms): +22 dBu, Max |
| Output Impedance | Speaker Out 1: 150 Ohms Line Out (Unbalanced): 75 Ohms Sub Out (Balanced): 150 Ohms |
| Frequency Response (-3 dB) | 10 Hz to 200 kHz |
| Dynamic Range | 121 dB |
| Noise | -99 dB (A-Weighted, 0 dBu, 600-Ohm Load) |
| THD+N | 0.002% (0 dBu, 10 Hz to 22 kHz, 600 Ohms) |
| Crosstalk | < 75 dB at 1 kHz |
| Attenuation | -93 dB (Fade Out Attenuation) |
| Headphones Output | 1/4" TRS Jack |
| Wiring Scheme | Wiring Tip = Left, Ring = Right, Sleeve = GND |
| Source Impedance | 20 Ohms |
| Frequency Response (-3 dB) | 10 Hz to 200 kHz |
| Noise | -97 dBu (A-Weighted, 600 Ohms) |
| THD + N | 0.002% (0 dBu, 10 Hz to 22 kHz, 600 Ohms) 0.013% (0 dBu, 10 Hz - 22 kHz, 32 Ohms |
| Output Power | 2 x 190 mW at 600 Ohms 2 x 330 mW at 250 Ohms 2 x 400 mW at 47 Ohms |
| Attenuation | -99 dB (Fade Out Attenuation at 600 Ohms) |
| Crosstalk | -75 dB at 1 kHz, 600 Ohms |
| Dynamic Range | 117 dB |
| Resolution | 32-Bit AD/DA over USB |
| Sample Rate | PCM over USB: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, and 768 kHz DSD over PCM (DoP): 2.8, 5.6, 11.2 MHz / DSD256, DSD64, DSD128 |
| Calibration | 0 dBFS = 15 dBu |
| Noise | -113 dBFS (A-Weighted at 44.1 or 48 kHz) |
| Dynamic Range | 113 dB (at 44.1 or 48 kHz) |
| THD + N | 0.0012% (-1 dBFS, 10 Hz to 22 kHz) |
| Internal Power Supply | Operating Voltage: Analog Audio: ±17 V Headphone Amplifier: ±19 V Relays and LEDs: +12 V |
| External Power Supply | AC/DC Switching Adapter: Mean Well GE18/12-SC DC Plug: (+) Pin 2.1 mm; (-) Outside Ring 5.5 mm Input: 100 to 240 VAC, 50 to 60 Hz, 0.7 A Output: 12 VDC, 1.5 A |
| Dimensions (W x H x D) | 8.2 x 1.95 x 8.7" / 210 x 49.6 x 220 mm |
| Weight | 3.4 lb / 1.6 kg |
| Package Weight | 4.69 lb |
| Box Dimensions (LxWxH) | 14.8 x 10.7 x 3.1" |
