| ₹ 37835.0 includes GST and import duties. | |
| B2B customers can avail ₹ 5769.84 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

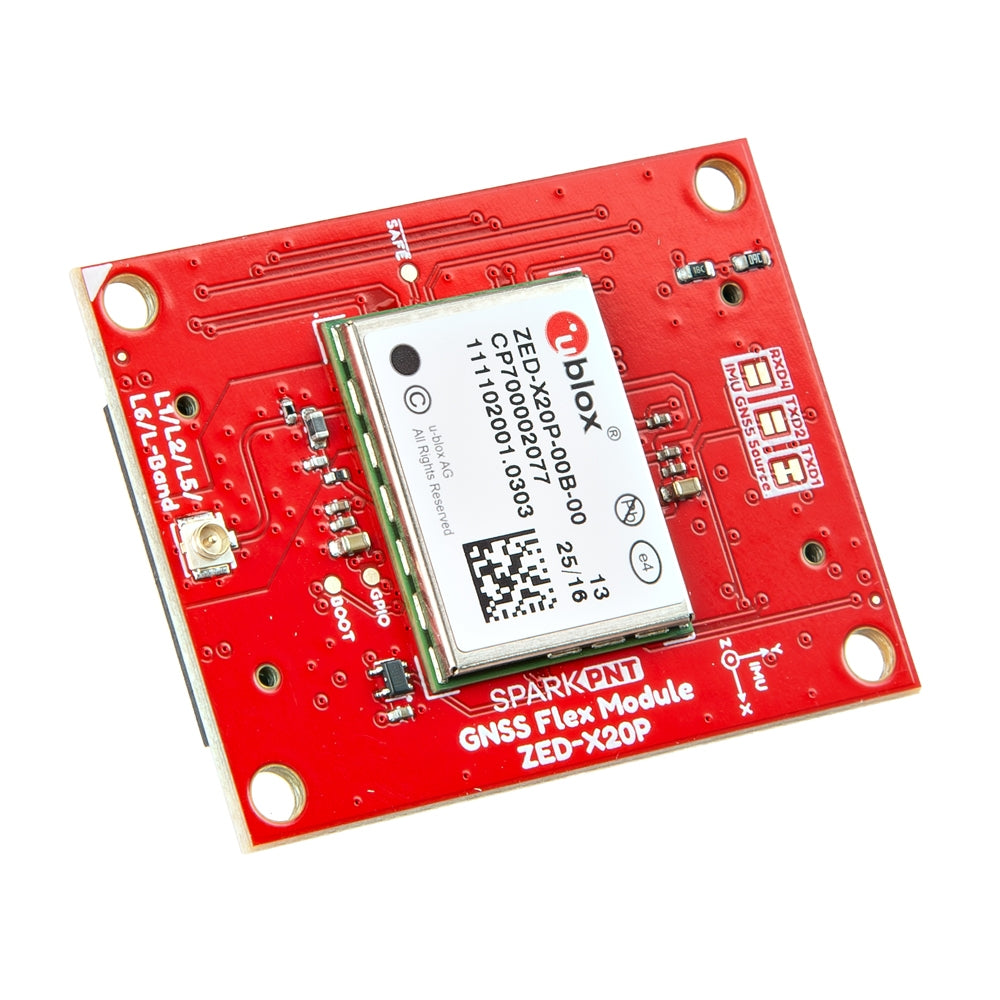

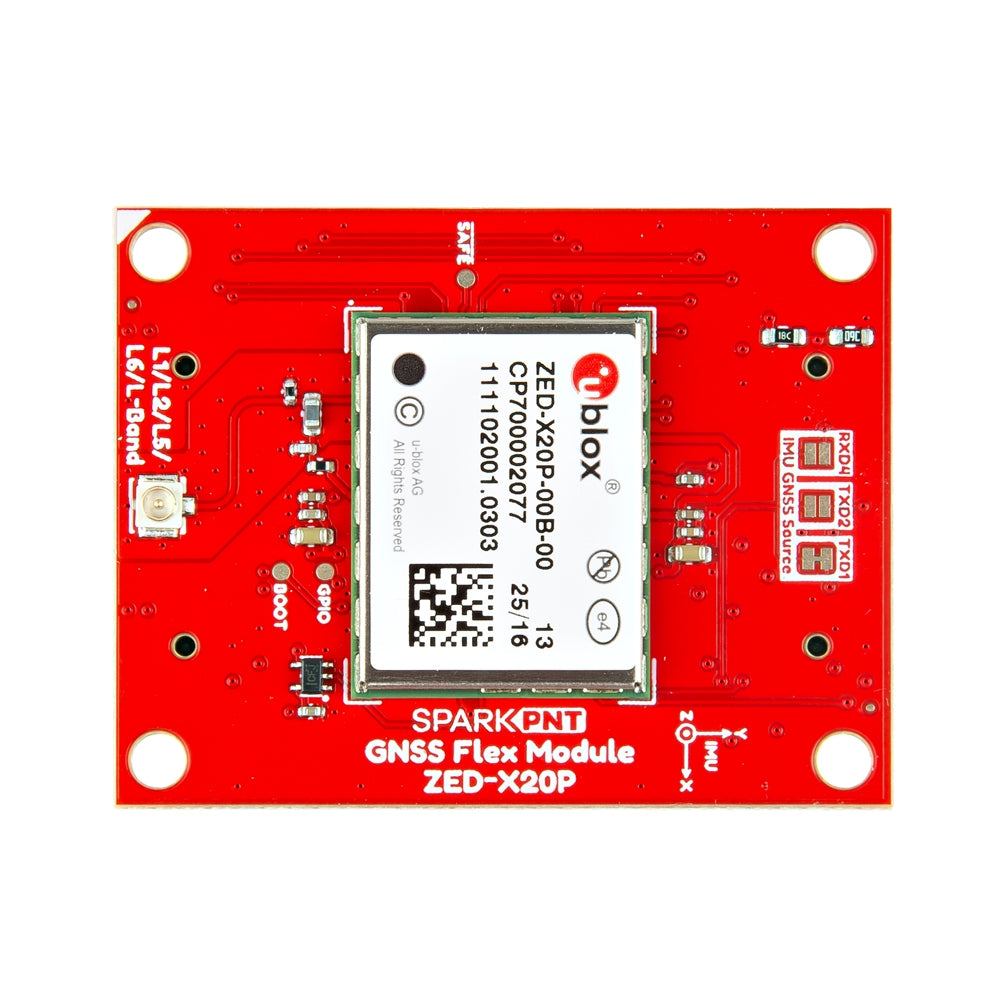

Achieve centimeter-level, all-band RTK positioning with this next-generation, swappable SparkPNT GNSS Flex module featuring the highly secure u-blox ZED-X20P.
Features & Specs
GNSS Flex Module - ZED-X20P:
- u-blox ZED-X20P Allband, GNSS module
- GNSS Constellations:
- GPS (USA)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:

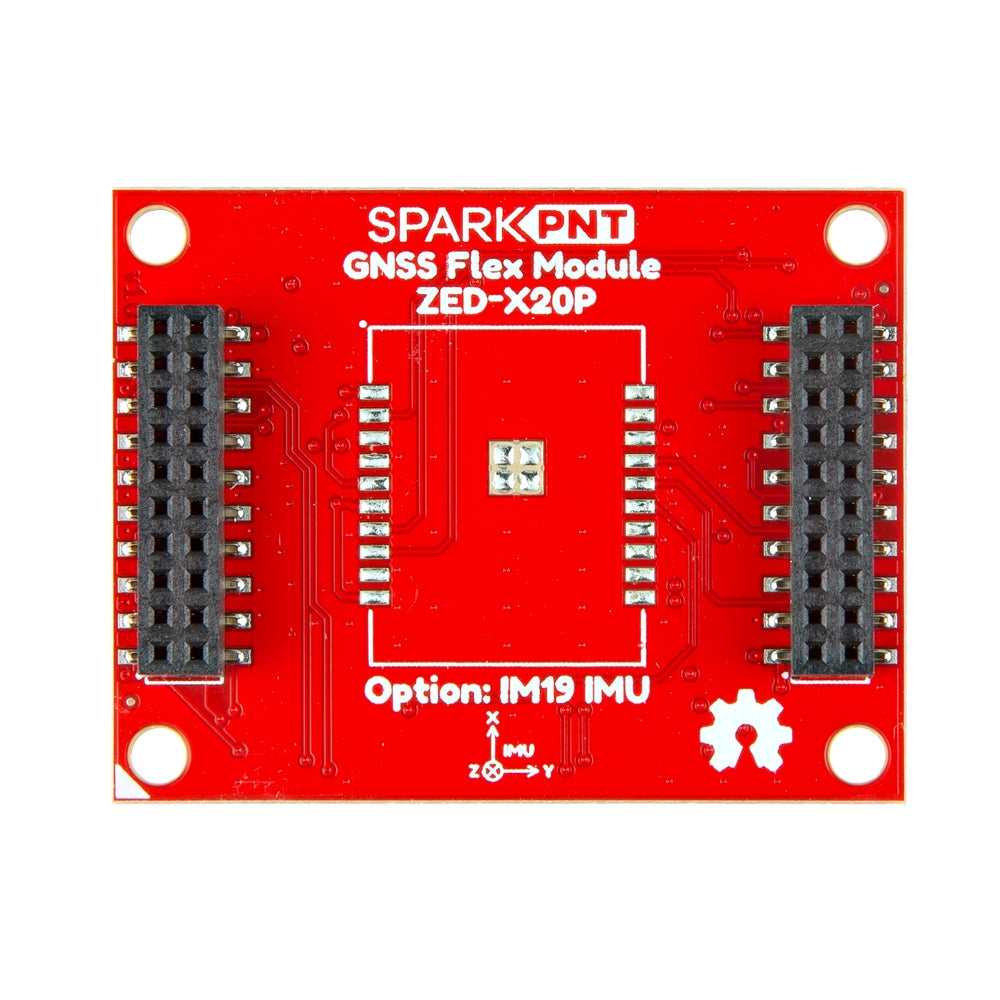

- Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex pHAT / Breakout
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB (x1) (Read USB note)
- UART (x2)
- I2C bus
- PPS signal (x1)
- PVT signal (x1)
- RTK signal (x1)
- Event signal (x1)
- Power
- 40-pin socket for GNSS Flex pHAT / Breakout
- U.FL Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna

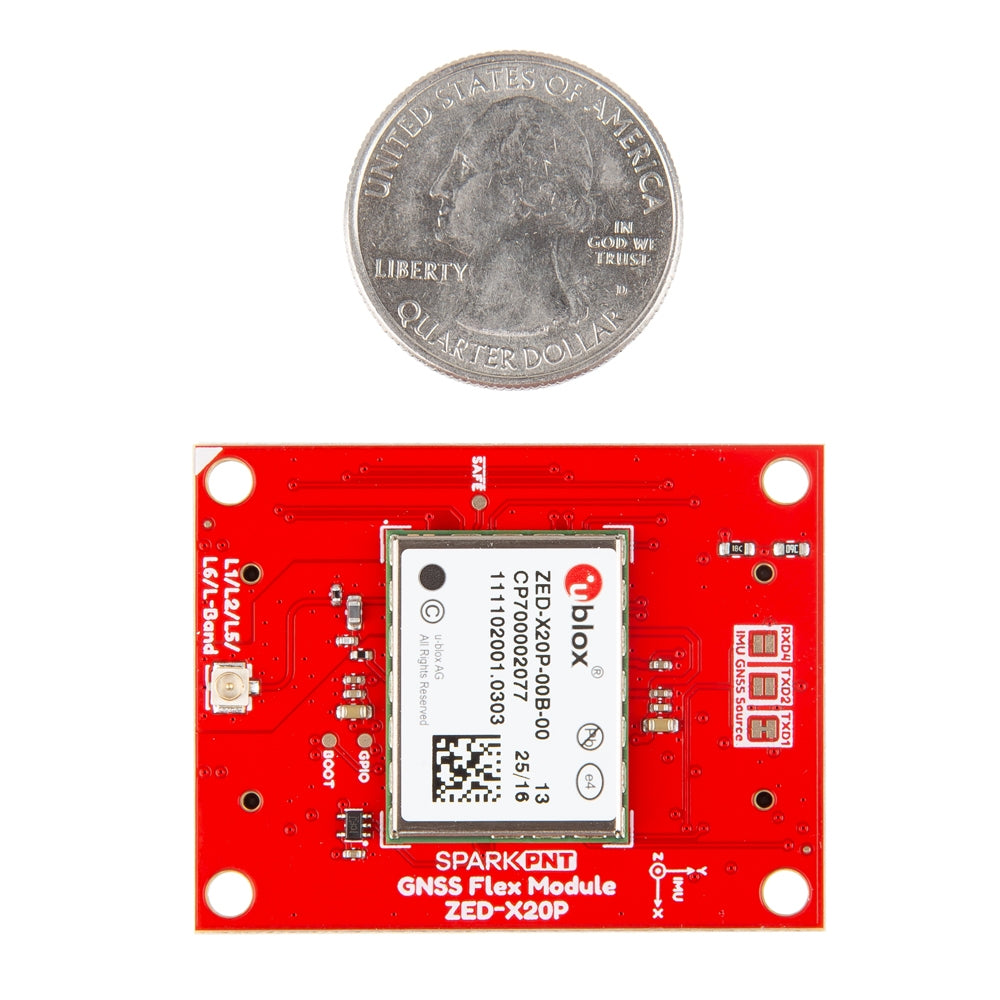

- Dimensions: 44.0mm x 34.0mm (Approx. 1.73" x 1.34")
- Four mounting holes:
- 4-40 screw compatible
- Hole centers: 39.0mm x 29.0mm
- Header spacing: 36.0mm
Flex Module Interfaces:
- USB: ZED-X20P USB (D+ and D-) (Read USB note)
- I2C: ZED-X20P I2C (SDA and SCL)
- Flex COM1: ZED-X20P UART1 (TX and RX only)
- Flex COM2: ZED-X20P UART2 (TX and RX only)
- Flex COM3: N/C
- Flex COM4: N/C
- PPS1: ZED-X20P TIMEPULSE
- PPS2: N/C
- EVENTA: ZED-X20P EXTINT
- EVENTB: N/C
- RTK LED: ZED-X20P RTK_STAT (Inverted)
-
PVT LED: ZED-X20P GEO_STAT (Geofence)
ZED-X20P General Features
- Supply voltage: 2.7V to 3.6V
- GNSS Support:
- GPS: L1C/A, L2C, L5
- Galileo: E1B/C, E5a, E6
- BeiDou: B1I, B1C, B2a, B3I
- QZSS: L1C/A, L1C/B*, L2C, L5, L6
- NavIC: L1*, L5
- SBAS: L1C/A
- Interfaces:
- USB (Read USB note)
- UART x2
- SPI
- I2C
- Features
- Programmable flash memory
- Carrier phase output
- Jamming detection
- Galileo OSNMA
- Secure boot
- Services:
- AssistNow
- PointPerfect
- Operating temperature: -40°C to 85°C
*: Feature in development
Features & Specs
GNSS Flex Module - ZED-X20P:
- u-blox ZED-X20P Allband, GNSS module
- GNSS Constellations:
- GPS (USA)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:
- Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex pHAT / Breakout
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB (x1) (Read USB note)
- UART (x2)
- I2C bus
- PPS signal (x1)
- PVT signal (x1)
- RTK signal (x1)
- Event signal (x1)
- Power
- 40-pin socket for GNSS Flex pHAT / Breakout
- U.FL Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna
- Dimensions: 44.0mm x 34.0mm (Approx. 1.73" x 1.34")
- Four mounting holes:
- 4-40 screw compatible
- Hole centers: 39.0mm x 29.0mm
- Header spacing: 36.0mm
Flex Module Interfaces:
- USB: ZED-X20P USB (D+ and D-) (Read USB note)
- I2C: ZED-X20P I2C (SDA and SCL)
- Flex COM1: ZED-X20P UART1 (TX and RX only)
- Flex COM2: ZED-X20P UART2 (TX and RX only)
- Flex COM3: N/C
- Flex COM4: N/C
- PPS1: ZED-X20P TIMEPULSE
- PPS2: N/C
- EVENTA: ZED-X20P EXTINT
- EVENTB: N/C
- RTK LED: ZED-X20P RTK_STAT (Inverted)
-
PVT LED: ZED-X20P GEO_STAT (Geofence)
ZED-X20P General Features
- Supply voltage: 2.7V to 3.6V
- GNSS Support:
- GPS: L1C/A, L2C, L5
- Galileo: E1B/C, E5a, E6
- BeiDou: B1I, B1C, B2a, B3I
- QZSS: L1C/A, L1C/B*, L2C, L5, L6
- NavIC: L1*, L5
- SBAS: L1C/A
- Interfaces:
- USB (Read USB note)
- UART x2
- SPI
- I2C
- Features
- Programmable flash memory
- Carrier phase output
- Jamming detection
- Galileo OSNMA
- Secure boot
- Services:
- AssistNow
- PointPerfect
- Operating temperature: -40°C to 85°C
*: Feature in development
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- STEP File
- Hookup Guide
- Component Documentation
- Product Summary
- Datasheet
- Integration Manual
- GNSS Product Nomenclature
- Firmware (HPG 2.02)
- Application Note
- Building a GNSS System
- GitHub Hardware Repo
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 37078.3 |
| 3-5 | ₹ 36699.95 |
| 5-10 | ₹ 35943.25 |
| 10+ | ₹ 35186.55 |
Bulk discount will be automatically applied during checkout based on quantity.
