Description

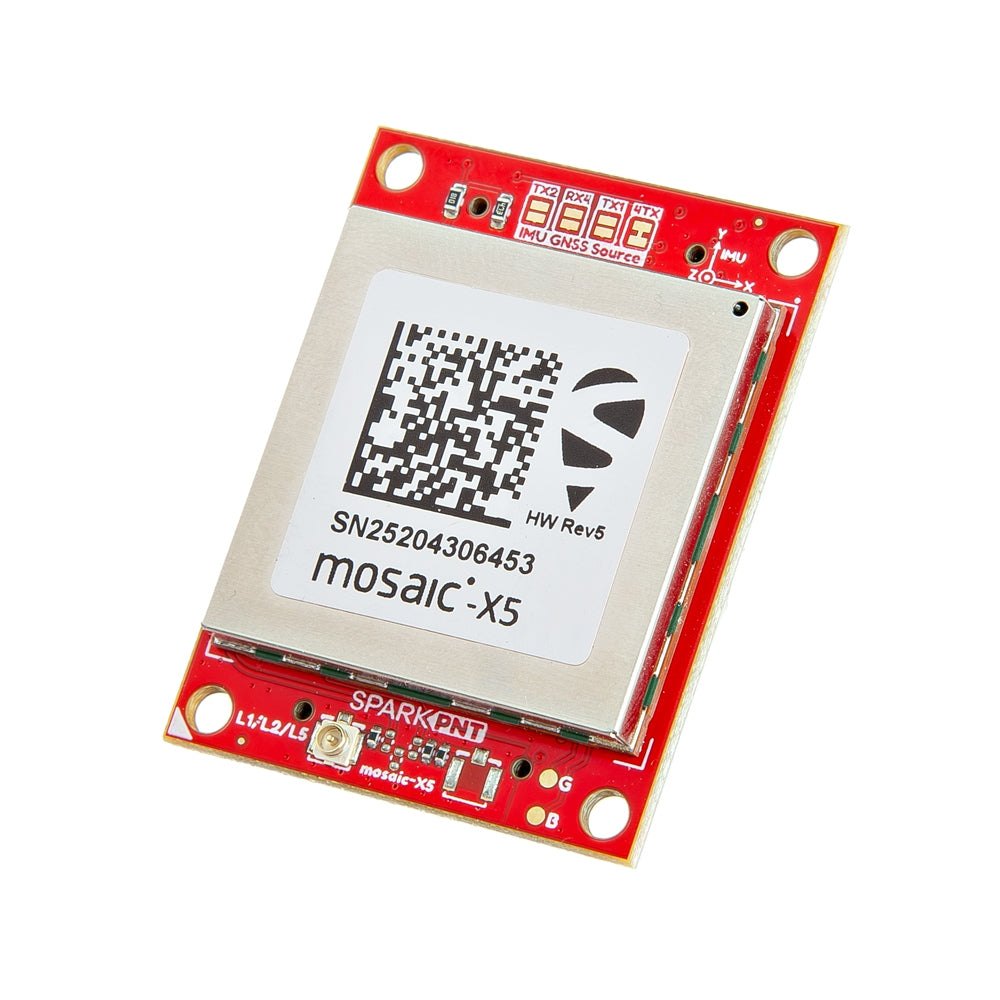

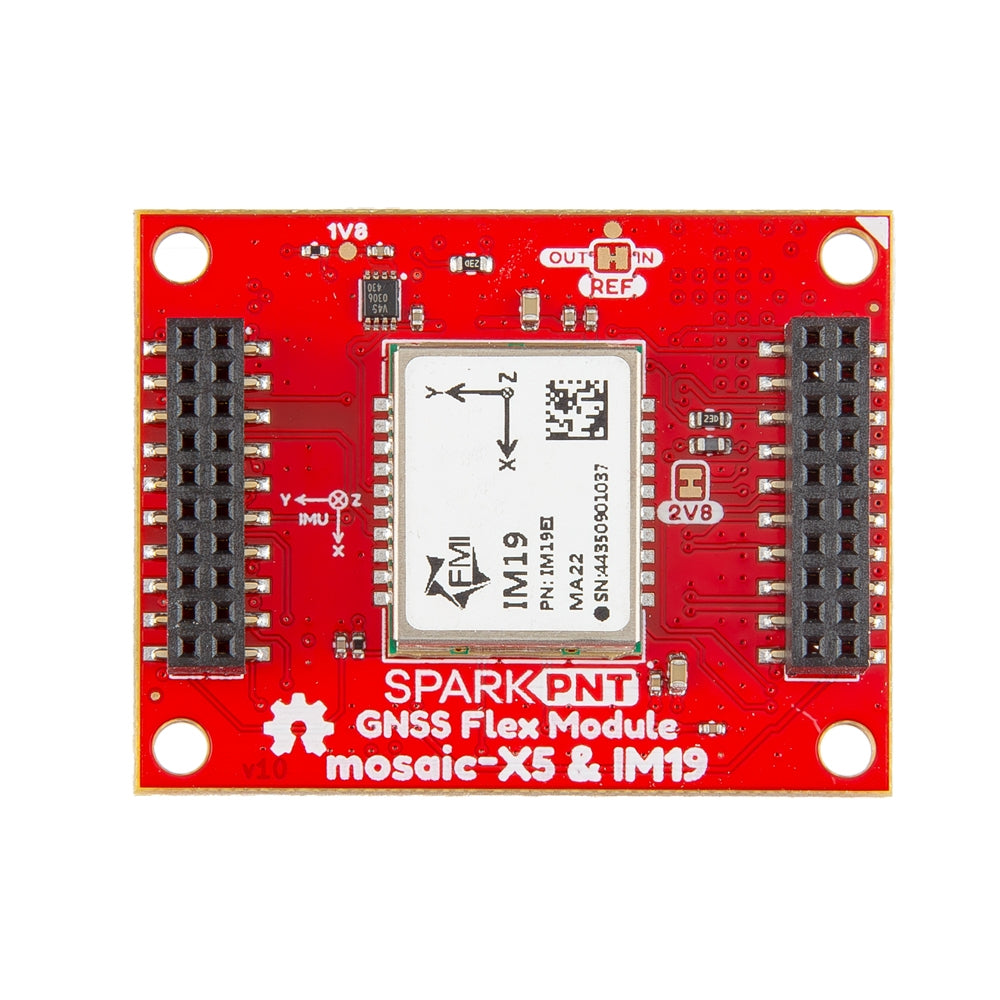

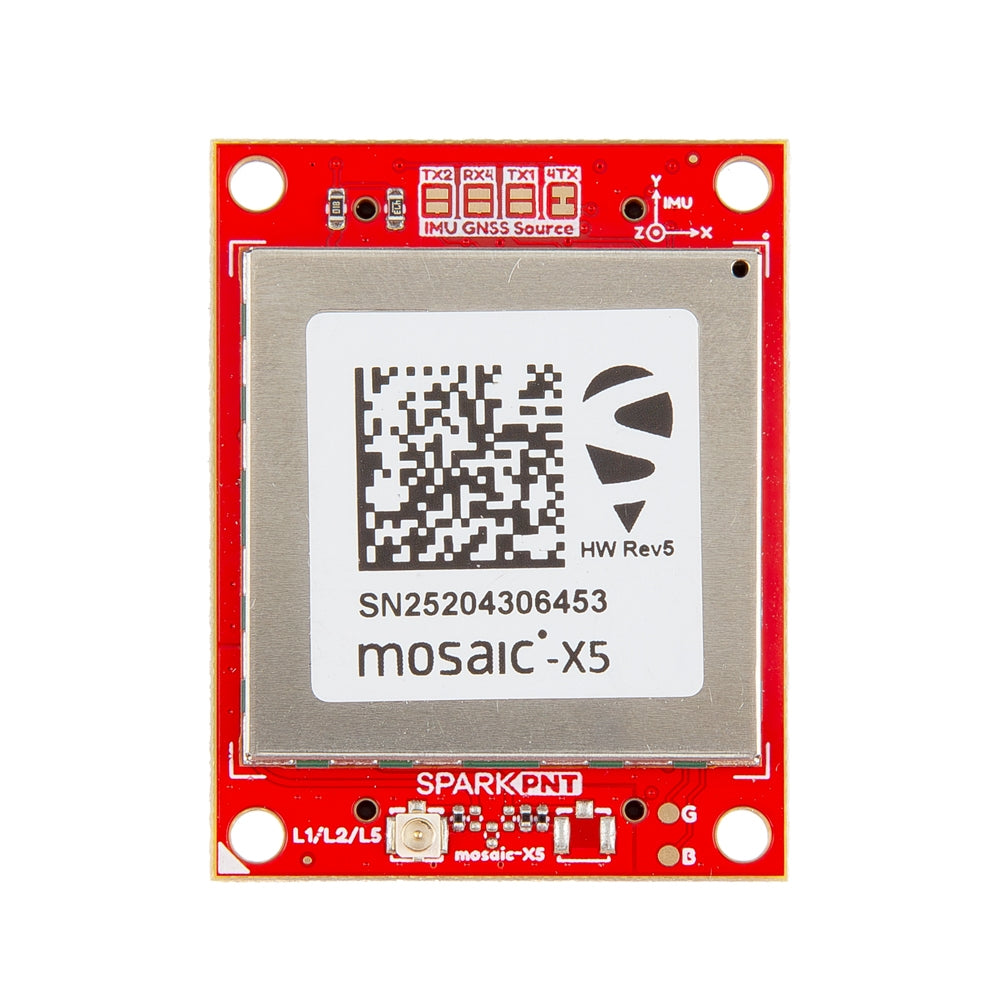

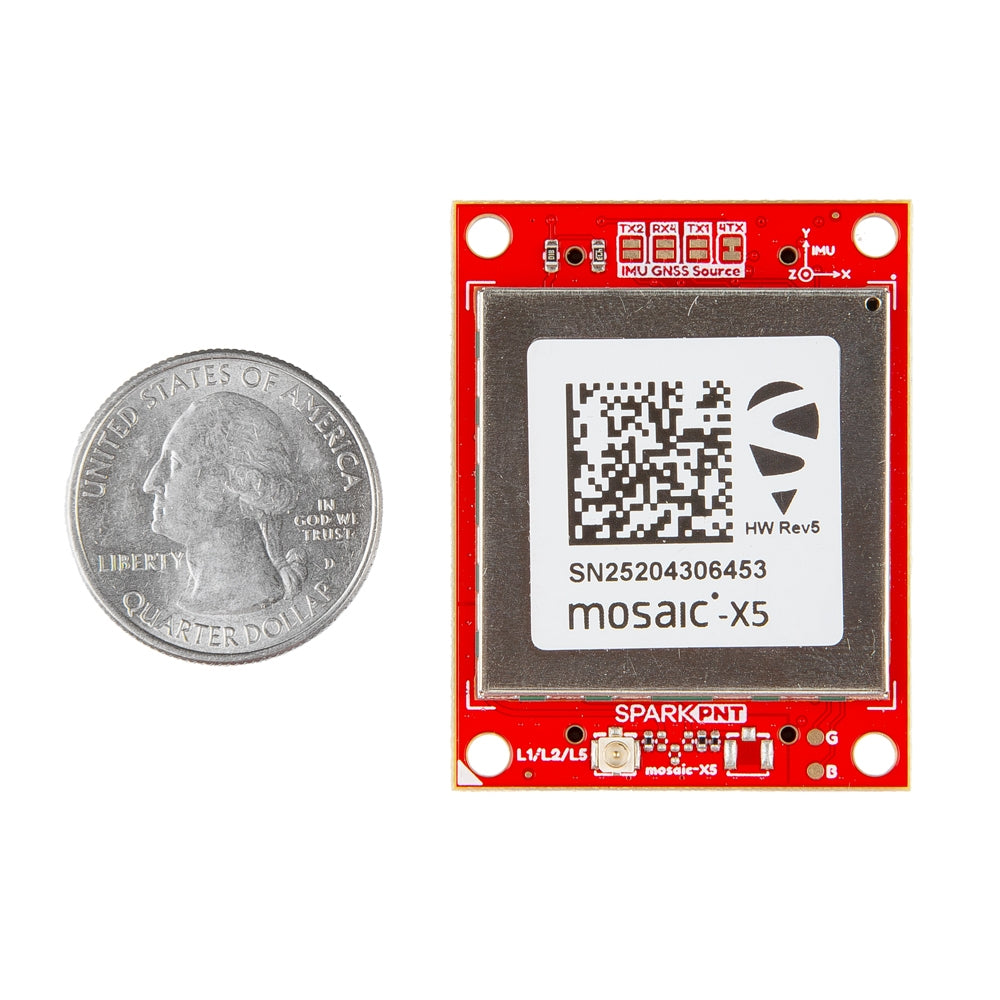

The ultimate swappable GNSS Flex Module, combining the Septentrio mosaic-X5 and anIM19 IMU for millimeter-level RTK accuracy, full tilt compensation, and robust AIM+ anti-jamming.
Features & Specs
GNSS Flex Module - mosaic-X5 and IM19:
- Septentrio mosaic-X5 GNSS Receiver
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- SDCM (Russia)
- EGNOS (EU)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:
- IM19 Inertial Measurement Unit
- Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- 40-pin socket for GNSS Flex system
- u.fl Connector:
- GNSS Antenna (Active, Multi-band)
- GNSS Antenna (Active, Multi-band)
mosaic-X5 GNSS Receiver:
- Voltage Range: 3.135 to 3.465V
- Max current: 500mA
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 448 (simultaneous tracking)
- GNSS Frequency Bands:
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1, L5)
- L-band
- Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
- Timing Precision: 5ns
- Update Rate: 100Hz
- Latency: < 10ms
-
VANT Voltage Range: 3.0 to 5.0V
- Max current: 150mA
- Interfaces:
- UART (x2)
- USB device (2.0, HS)
- SDIO (mass storage)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out
Features & Specs
GNSS Flex Module - mosaic-X5 and IM19:
- Septentrio mosaic-X5 GNSS Receiver
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- SDCM (Russia)
- EGNOS (EU)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:
- IM19 Inertial Measurement Unit
- Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- 40-pin socket for GNSS Flex system
- u.fl Connector:
- GNSS Antenna (Active, Multi-band)
- GNSS Antenna (Active, Multi-band)
mosaic-X5 GNSS Receiver:
- Voltage Range: 3.135 to 3.465V
- Max current: 500mA
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 448 (simultaneous tracking)
- GNSS Frequency Bands:
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1, L5)
- L-band
- Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
- Timing Precision: 5ns
- Update Rate: 100Hz
- Latency: < 10ms
-
VANT Voltage Range: 3.0 to 5.0V
- Max current: 150mA
- Interfaces:
- UART (x2)
- USB device (2.0, HS)
- SDIO (mass storage)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- STEP File
-
Hookup Guide
- Software: RxTools
- Correction Service: Agnostic Corrections
- Component Datasheets:
- Building a GNSS System
- GitHub Hardware Repo
