Description

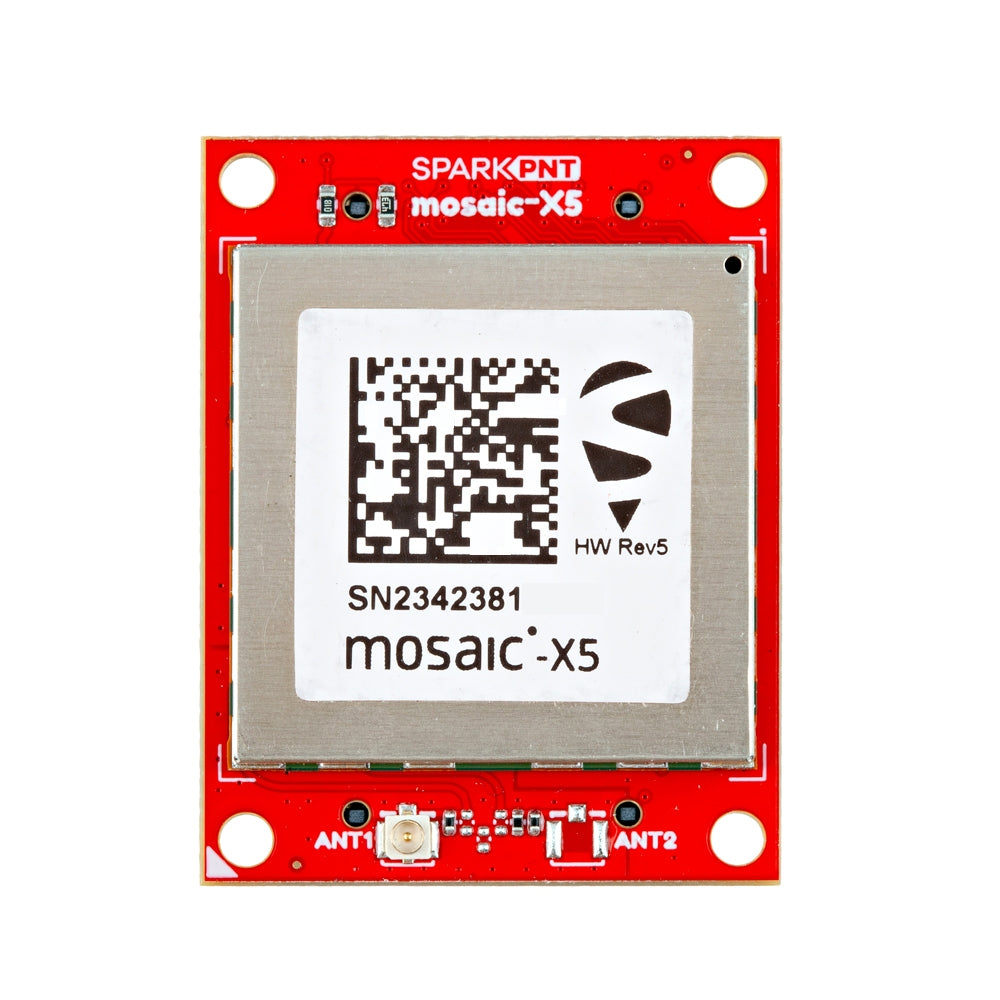

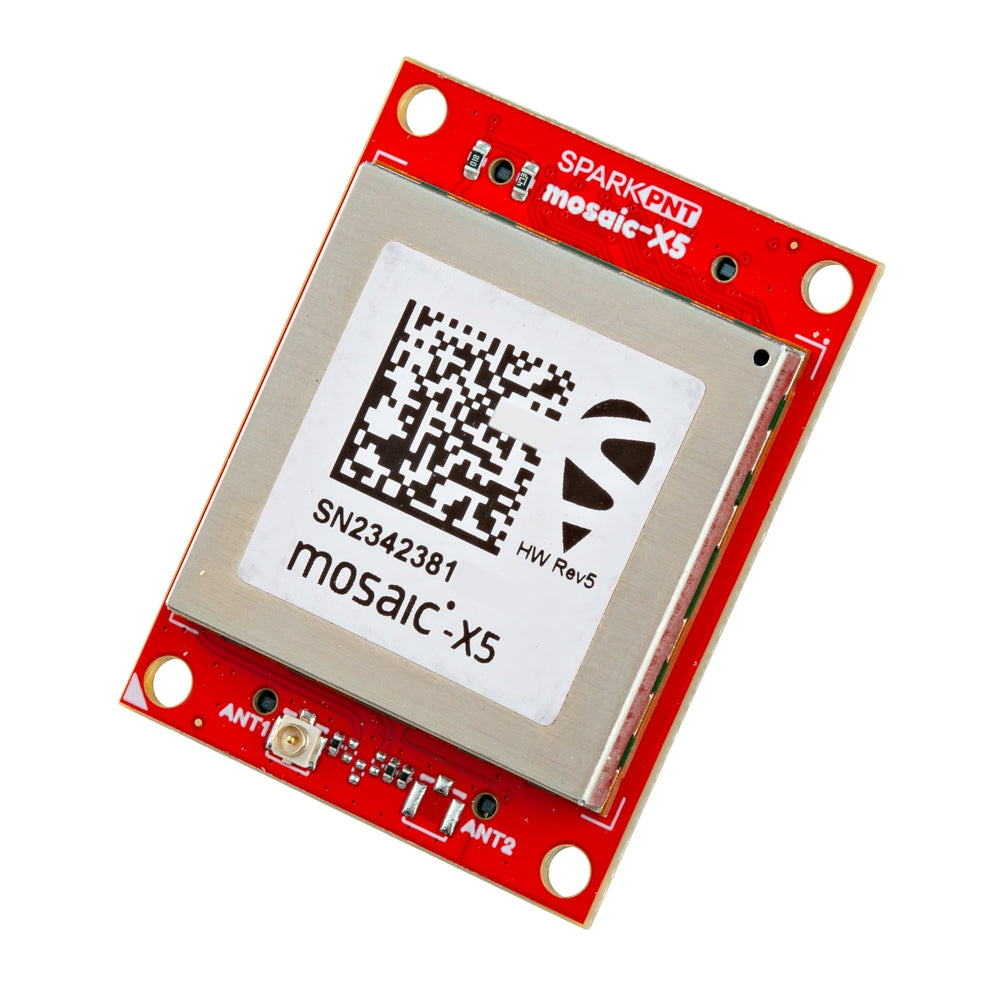

The SparkPNT mosaic-X5 GNSS Flex Module brings precision, anti-interference technology and a plug-in modular design to your GNSS projects.
Features & Specs
mosaic-X5 GNSS Flex Module:
- Septentrio mosaic-X5 GNSS Receiver
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- SDCM (Russia)
- EGNOS (EU)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:

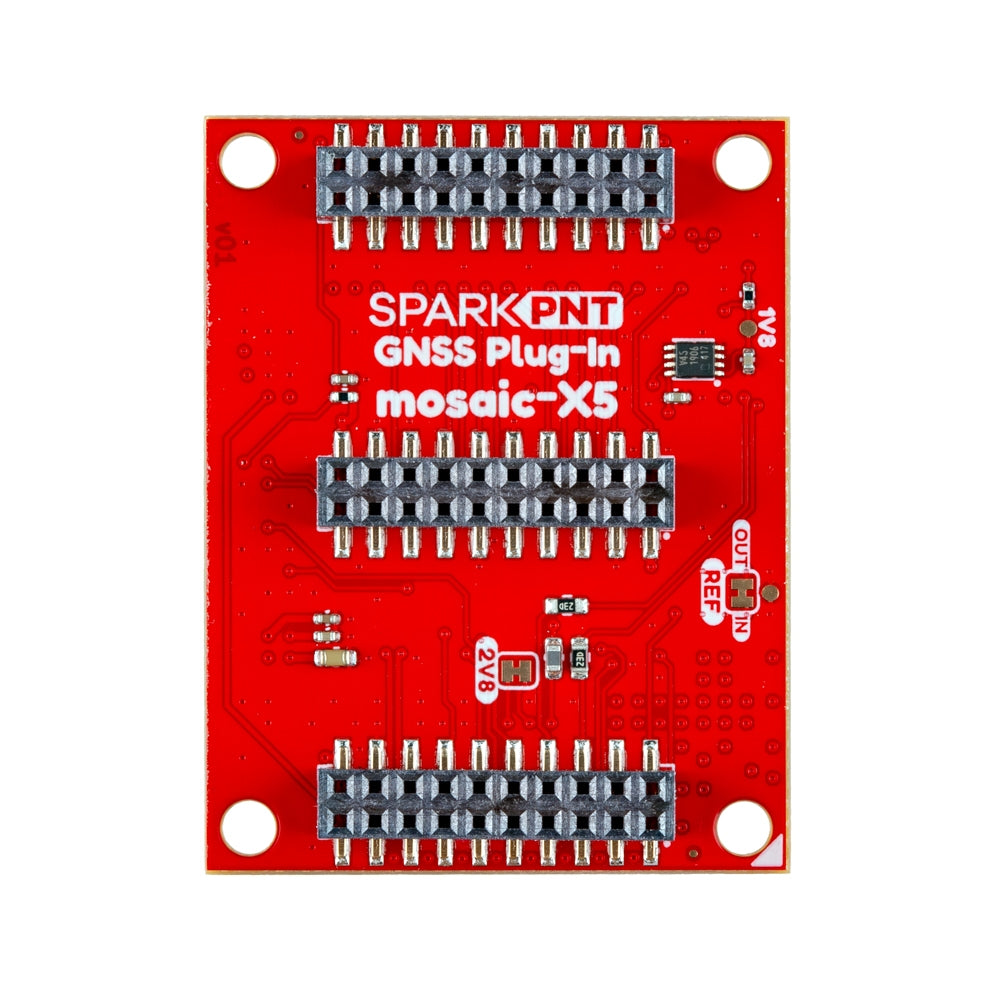

- Three 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- 20-pin socket for mosaic-X5 Ethernet PHY
- 40-pin socket for GNSS Flex system
- U.FL Connector:
- GNSS Antenna (Active, Multi-band)
mosaic-X5 GNSS Receiver:
- Voltage Range: 3.135 to 3.465V
- Max current: 500mA
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 448 (simultaneous tracking)
- GNSS Frequency Bands:
- GPS:
L1C/A,L1PY,L2C,L2P,L5 - GLONASS:
L1CA,L2CA,L2P,L3 CDMA - Beidou:
B1I,B1C,B2a,B2b,B2I,B3 - Galileo:
E1,E5a,E5b,E5 AltBoc,E6 - QZSS:
L1C/A,L1 C/B,L2C,L5 - NavIC:
L5 - SBAS:
Egnos,WAAS,GAGAN,MSAS,SDCM(L1,L5) - L-band
- GPS:
- Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
- Timing Precision: 5ns
- Update Rate: 100Hz
- Latency: < 10ms
-
VANTVoltage Range: 3.0 to 5.0V- Max current: 150mA
- Interfaces:
- UART (x4)
- Ethernet
- USB device (2.0, HS)
- SDIO (mass storage)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
Features & Specs
mosaic-X5 GNSS Flex Module:
- Septentrio mosaic-X5 GNSS Receiver
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- SDCM (Russia)
- EGNOS (EU)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:
- Three 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- 20-pin socket for mosaic-X5 Ethernet PHY
- 40-pin socket for GNSS Flex system
- U.FL Connector:
- GNSS Antenna (Active, Multi-band)
mosaic-X5 GNSS Receiver:
- Voltage Range: 3.135 to 3.465V
- Max current: 500mA
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 448 (simultaneous tracking)
- GNSS Frequency Bands:
- GPS:
L1C/A,L1PY,L2C,L2P,L5 - GLONASS:
L1CA,L2CA,L2P,L3 CDMA - Beidou:
B1I,B1C,B2a,B2b,B2I,B3 - Galileo:
E1,E5a,E5b,E5 AltBoc,E6 - QZSS:
L1C/A,L1 C/B,L2C,L5 - NavIC:
L5 - SBAS:
Egnos,WAAS,GAGAN,MSAS,SDCM(L1,L5) - L-band
- GPS:
- Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
- Timing Precision: 5ns
- Update Rate: 100Hz
- Latency: < 10ms
-
VANTVoltage Range: 3.0 to 5.0V- Max current: 150mA
- Interfaces:
- UART (x4)
- Ethernet
- USB device (2.0, HS)
- SDIO (mass storage)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- STEP File
-
Hookup Guide
- Software: RxTools
- Correction Service: Agnostic Corrections
- Component Datasheets:
- Building a GNSS System
- GitHub Hardware Repo
