Description

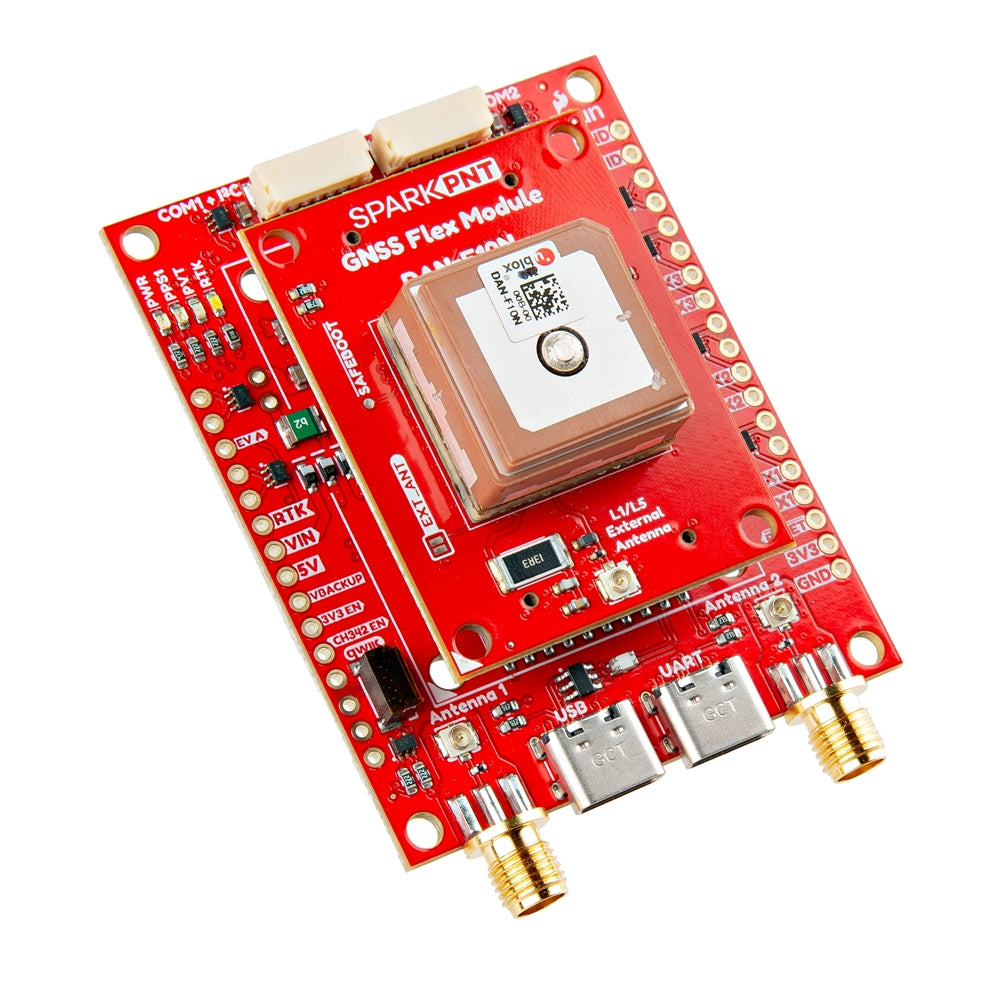

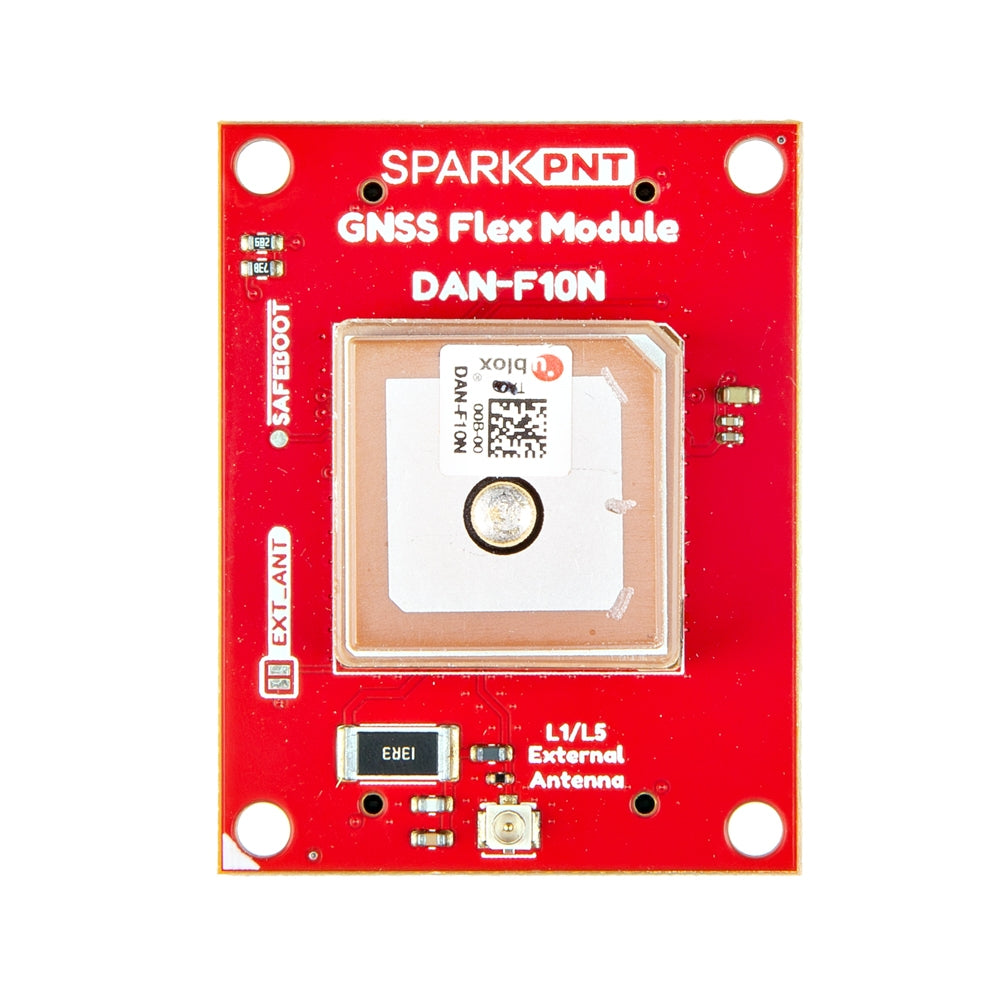

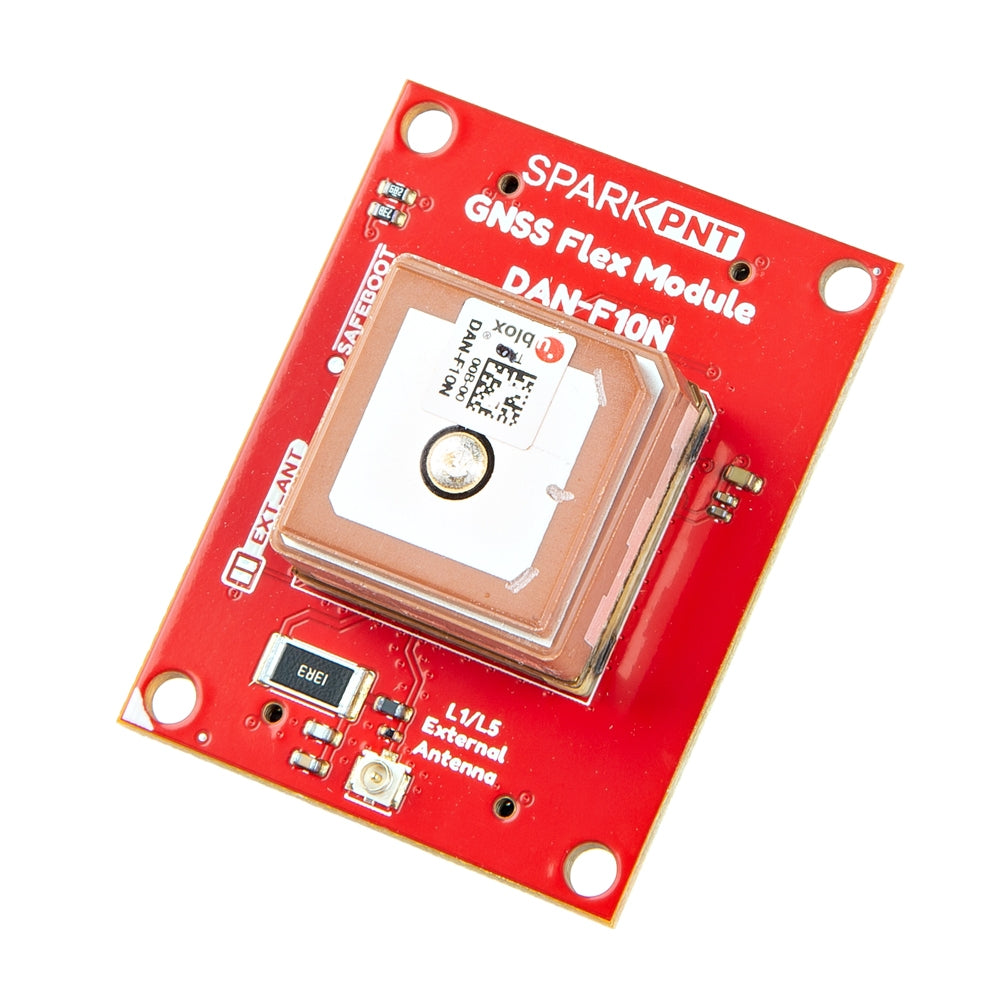

The SparkFun DAN-F10N GNSS Flex Module provides L1/L5, meter-level accuracy, and a plug-in modular design for your GNSS projects.
Features & Specs
DAN-F10N GNSS Flex Module:
- u-blox DAN-F10N
- GNSS moduleGNSS Constellations:
- GPS (USA)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- KASS (Korea)
- SouthPAN (Australian + New Zealand)
- GNSS moduleGNSS Constellations:

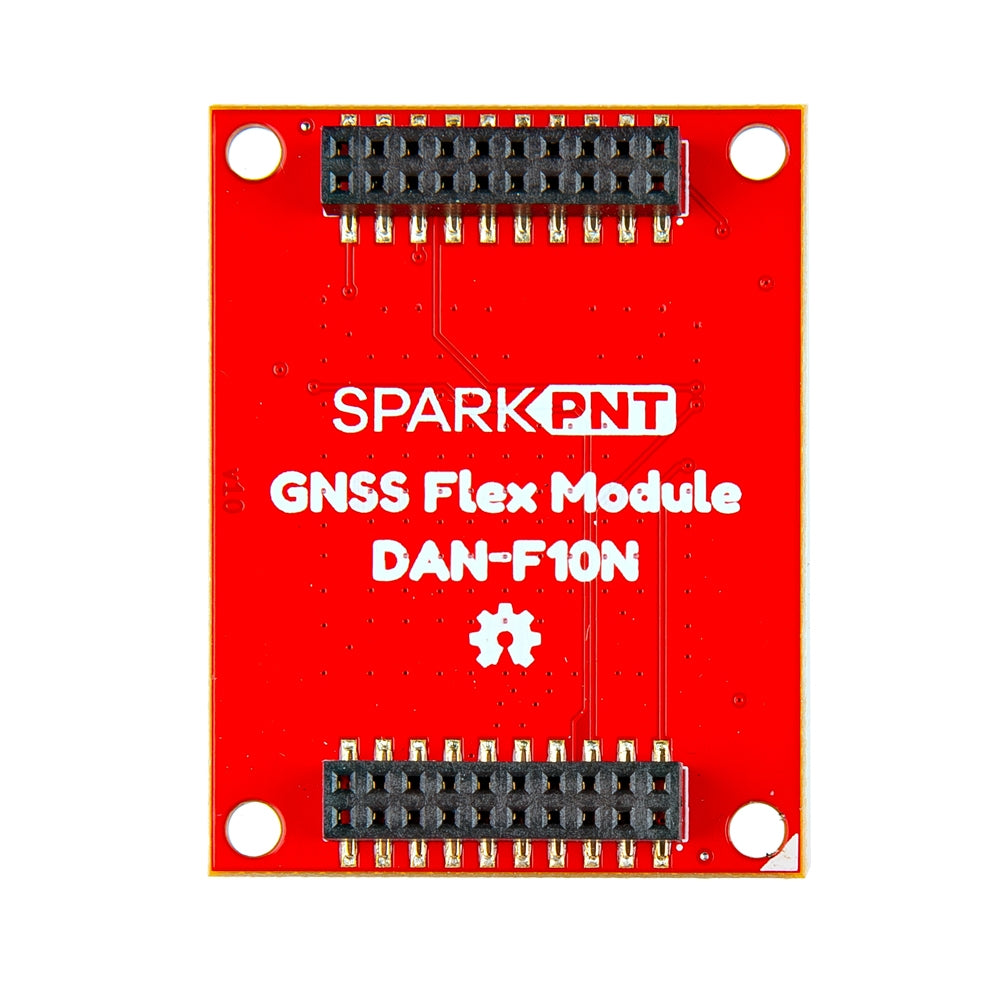

- Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- UART
- PPS signal (x1)
- Event indicators (x1)
- Power
- 40-pin socket for GNSS Flex system
- U.FL Connector:
- GNSS Antenna (optional, L1/L5 dual-band)

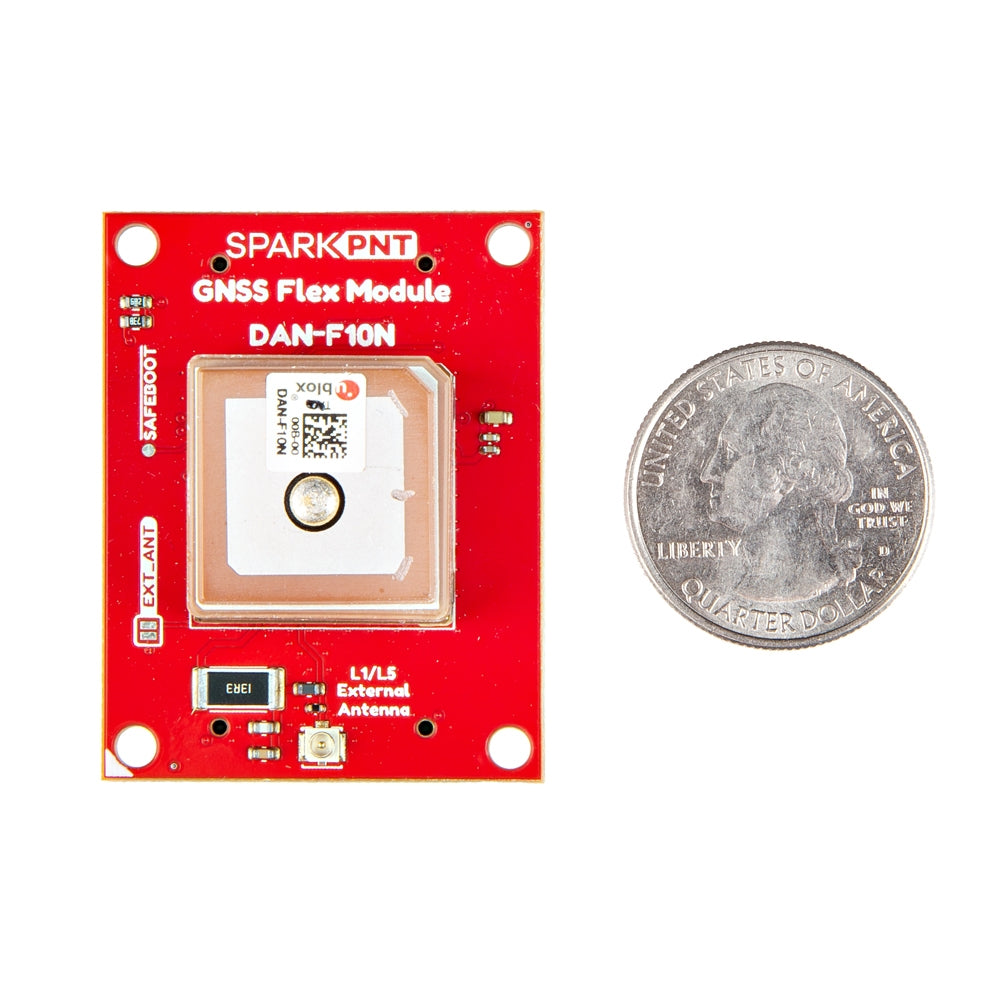

- Dimensions: 34.0 x 44.0mm
- Weight: 23.85g
Flex Module Interfaces:
- I2C: N/C
- Flex COM1: DAN-F10N UART (TX and RX only)
- Flex COM2: N/C
- Flex COM3: N/C
- Flex COM4: N/C
- PPS1: DAN-F10N TIMEPULSE
- PPS2: N/C
- EVENTA: DAN-F10N EXTINT
- EVENTB: N/C
- RTK LED: N/C
-
PVT LED: N/C
DAN-F10N General Features:
- GNSS receiver
- u-blox F10 engine
- GPS: L1 C/A, L5
- QZSS: L1C/A, L5
- Galileo: E1B/C, E5a
- BeiDou: B1C, B2a
- NavIC: L5
- SBAS: L1 C/A, L1S, L1Sb, B1C
- Sensitivity
- Tracking & Navigation: -164dBm
- Reacquisition: -156dBm
- Cold start: -145dBm
- Hot start: -156dBm
- Update rate: Up to 10Hz
- Horizontal position accuracy
- 1.0m CEP (with SBAS)
- 1.5m CEP (without SBAS)
- Acquisition
- Cold start: 28s
- Aided start: 2s
- Reacquisition: 2s
- Interfaces
- 1x UART
- Digital I/O
- Configurable timepulse (0.25Hz to 10MHz)
- EXTINT input for wakeup
- JTAG debug interface (disabled by default)
- Communication protocol
- NMEA: 2.1, 2.3, 4.0, 4.10, 4.11 (default)
- UBX binary
- RTCM v3.4
- SPARTN v2.0.2
- Security
- RF interference and jamming detection/reporting
- Spoofing detection/reporting
- Secure boot for firmware integrity
- Signed UBX messages (SHA-256
- Misc
- Antenna switch function
- Supports external active antenna (optional)
- Integrated RTC crystal and TCXO
- Antenna switch function
- Power
- Power supply: 2.7V to 3.6V
- Backup supply: 1.65V to 3.6V
- Power consumption: 63 mW (continuous tracking, 3V)
- Temperature range: -40°C to +85°C
- Package
- 56-pin LCC package
- 20 x 20 x 11.6mm
- 17.5g
Features & Specs
DAN-F10N GNSS Flex Module:
- u-blox DAN-F10N
- GNSS moduleGNSS Constellations:
- GPS (USA)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- KASS (Korea)
- SouthPAN (Australian + New Zealand)
- GNSS moduleGNSS Constellations:
- Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- UART
- PPS signal (x1)
- Event indicators (x1)
- Power
- 40-pin socket for GNSS Flex system
- U.FL Connector:
- GNSS Antenna (optional, L1/L5 dual-band)
- Dimensions: 34.0 x 44.0mm
- Weight: 23.85g
Flex Module Interfaces:
- I2C: N/C
- Flex COM1: DAN-F10N UART (TX and RX only)
- Flex COM2: N/C
- Flex COM3: N/C
- Flex COM4: N/C
- PPS1: DAN-F10N TIMEPULSE
- PPS2: N/C
- EVENTA: DAN-F10N EXTINT
- EVENTB: N/C
- RTK LED: N/C
-
PVT LED: N/C
DAN-F10N General Features:
- GNSS receiver
- u-blox F10 engine
- GPS: L1 C/A, L5
- QZSS: L1C/A, L5
- Galileo: E1B/C, E5a
- BeiDou: B1C, B2a
- NavIC: L5
- SBAS: L1 C/A, L1S, L1Sb, B1C
- Sensitivity
- Tracking & Navigation: -164dBm
- Reacquisition: -156dBm
- Cold start: -145dBm
- Hot start: -156dBm
- Update rate: Up to 10Hz
- Horizontal position accuracy
- 1.0m CEP (with SBAS)
- 1.5m CEP (without SBAS)
- Acquisition
- Cold start: 28s
- Aided start: 2s
- Reacquisition: 2s
- Interfaces
- 1x UART
- Digital I/O
- Configurable timepulse (0.25Hz to 10MHz)
- EXTINT input for wakeup
- JTAG debug interface (disabled by default)
- Communication protocol
- NMEA: 2.1, 2.3, 4.0, 4.10, 4.11 (default)
- UBX binary
- RTCM v3.4
- SPARTN v2.0.2
- Security
- RF interference and jamming detection/reporting
- Spoofing detection/reporting
- Secure boot for firmware integrity
- Signed UBX messages (SHA-256
- Misc
- Antenna switch function
- Supports external active antenna (optional)
- Integrated RTC crystal and TCXO
- Antenna switch function
- Power
- Power supply: 2.7V to 3.6V
- Backup supply: 1.65V to 3.6V
- Power consumption: 63 mW (continuous tracking, 3V)
- Temperature range: -40°C to +85°C
- Package
- 56-pin LCC package
- 20 x 20 x 11.6mm
- 17.5g
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- STEP File
- Hookup Guide
- Component Documentation
- Building a GNSS System
- GitHub Hardware Repo
