SparkFun Zener Diode - 12V, 300mW

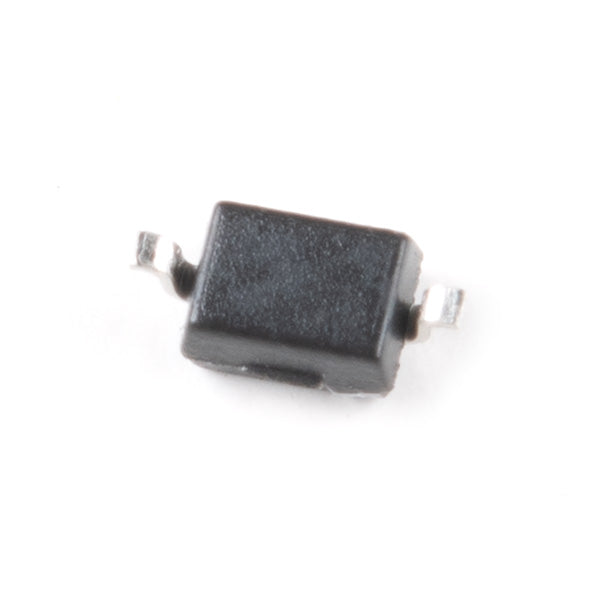

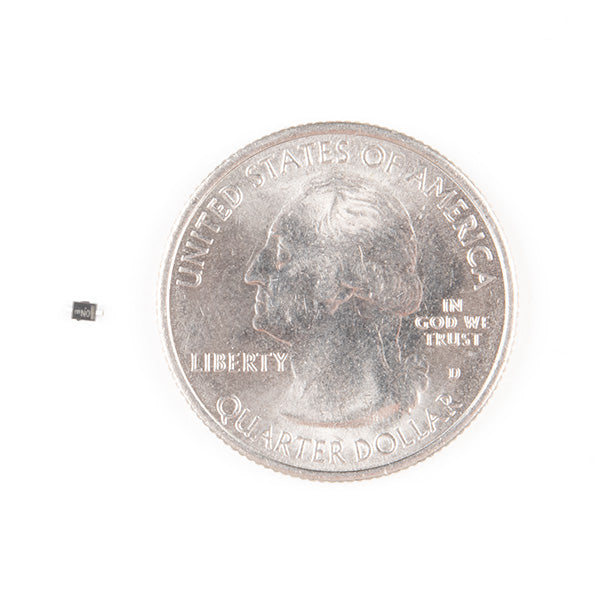

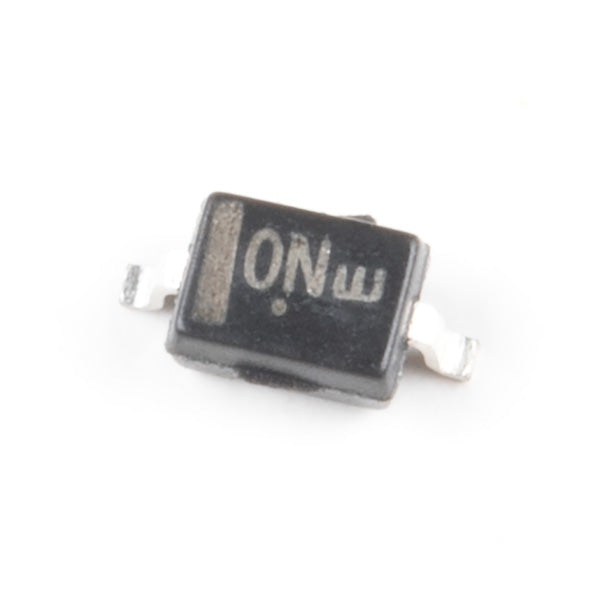

This series of Zener diodes is packaged in a SOD�323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium.

Features:

• Voltage - Zener (Nom) (Vz): 12 V
• Tolerance: ±5%
• Power - Max: 300 mW
• Impedance (Max) (Zzt): 25 Ohms
• Current - Reverse Leakage @ Vr: 100 nA @ 8 V
• Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
• Operating Temperature: -65°C ~ 150°C

Documents:

• Datasheet
