Description

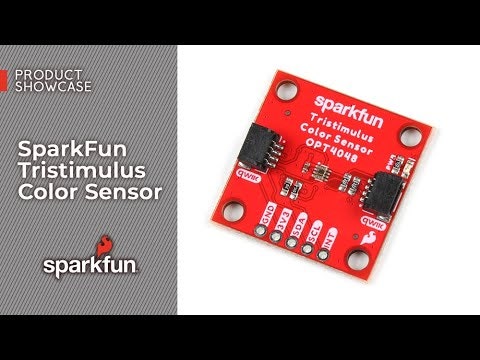

The SparkFun Qwiic Tristimulus Color Sensor is built around the OPT4048 High Speed High Precision Tristimulus XYZ Color Sensor from TI.
Features & Specs

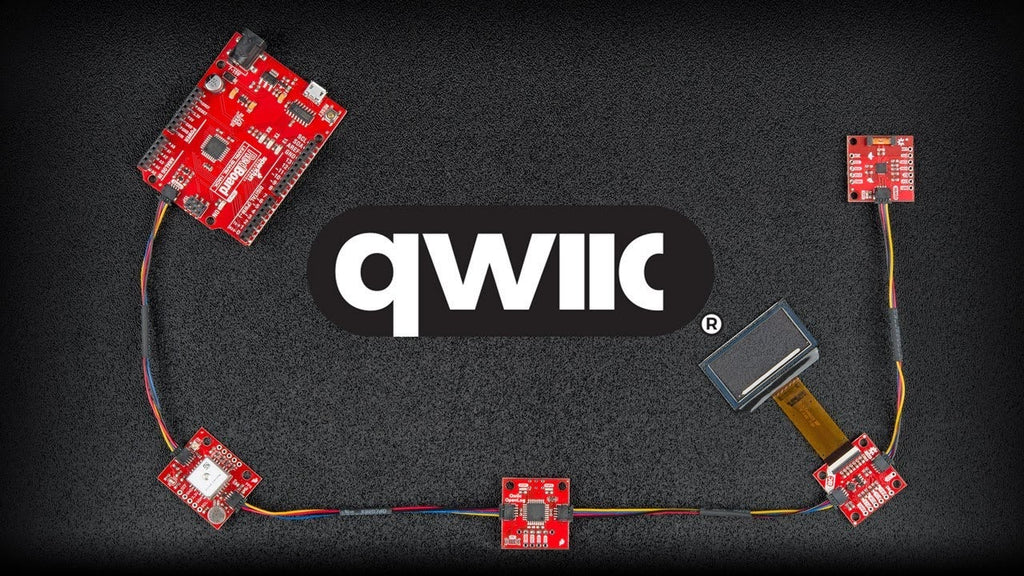

- I2C Interface (Qwiic-enabled)
- Selectable I2C Address: 0x44 (default), 0x45, 0x46
- 2x Horizontal Qwiic Connectors
- Standard 1in. x 1in. Footprint
- Supply Voltage Range: 1.71-3.6V
- Four-channel sensing using precision optical filters
- XYZ tristimulus channels with close matching to CIE 1931 spectra with excellent IR rejection
- Clear wide bandwidth channel
- High-resolution color measurement in CIE XY, LUV space, correlated color temperature (CCT) along with ambient lux measurement
- Semi-logarithmic output with seven binary logarithmic full-scale light ranges and highly linear response within each range
- Built-in automatic full-scale light range selection logic, which switches measurement range based on input light condition with excellent gain matching between ranges
- 26 bits of effective dynamic range from 2.15mlux to 144klux
- 12 configurable conversion times from 600µs to 800ms per channel is an excellent choice for a wide variety of high-speed and high-precision applications
- External pin interrupt for hardware synchronized trigger and interrupts
- 24µA (with ultra-low power standby (2µA)) low operating current
- –40°C to +85°C operating temperature range
Features & Specs
- I2C Interface (Qwiic-enabled)
- Selectable I2C Address: 0x44 (default), 0x45, 0x46
- 2x Horizontal Qwiic Connectors
- Standard 1in. x 1in. Footprint
- Supply Voltage Range: 1.71-3.6V
- Four-channel sensing using precision optical filters
- XYZ tristimulus channels with close matching to CIE 1931 spectra with excellent IR rejection
- Clear wide bandwidth channel
- High-resolution color measurement in CIE XY, LUV space, correlated color temperature (CCT) along with ambient lux measurement
- Semi-logarithmic output with seven binary logarithmic full-scale light ranges and highly linear response within each range
- Built-in automatic full-scale light range selection logic, which switches measurement range based on input light condition with excellent gain matching between ranges
- 26 bits of effective dynamic range from 2.15mlux to 144klux
- 12 configurable conversion times from 600µs to 800ms per channel is an excellent choice for a wide variety of high-speed and high-precision applications
- External pin interrupt for hardware synchronized trigger and interrupts
- 24µA (with ultra-low power standby (2µA)) low operating current
- –40°C to +85°C operating temperature range
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Datasheet (OPT4048)
- Arduino Library
- Qwiic Info Page
- GitHub Hardware Repository
