Description

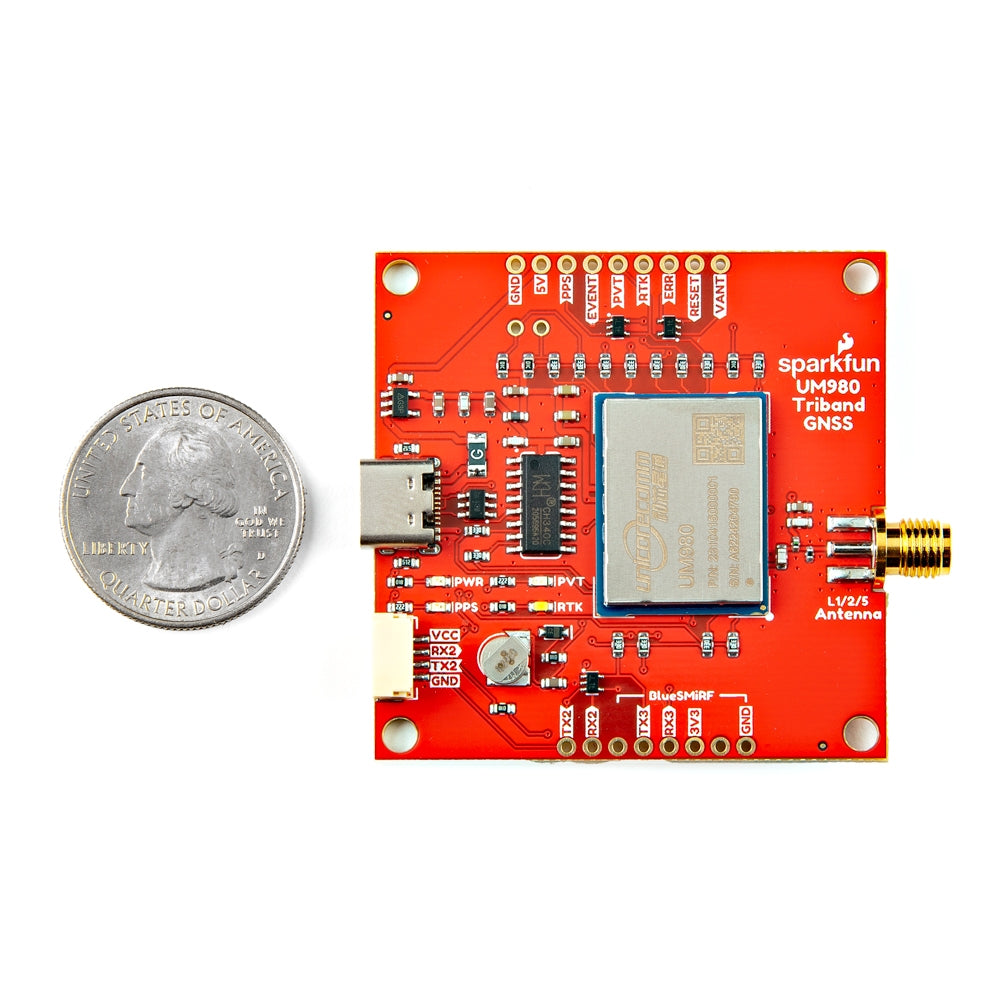

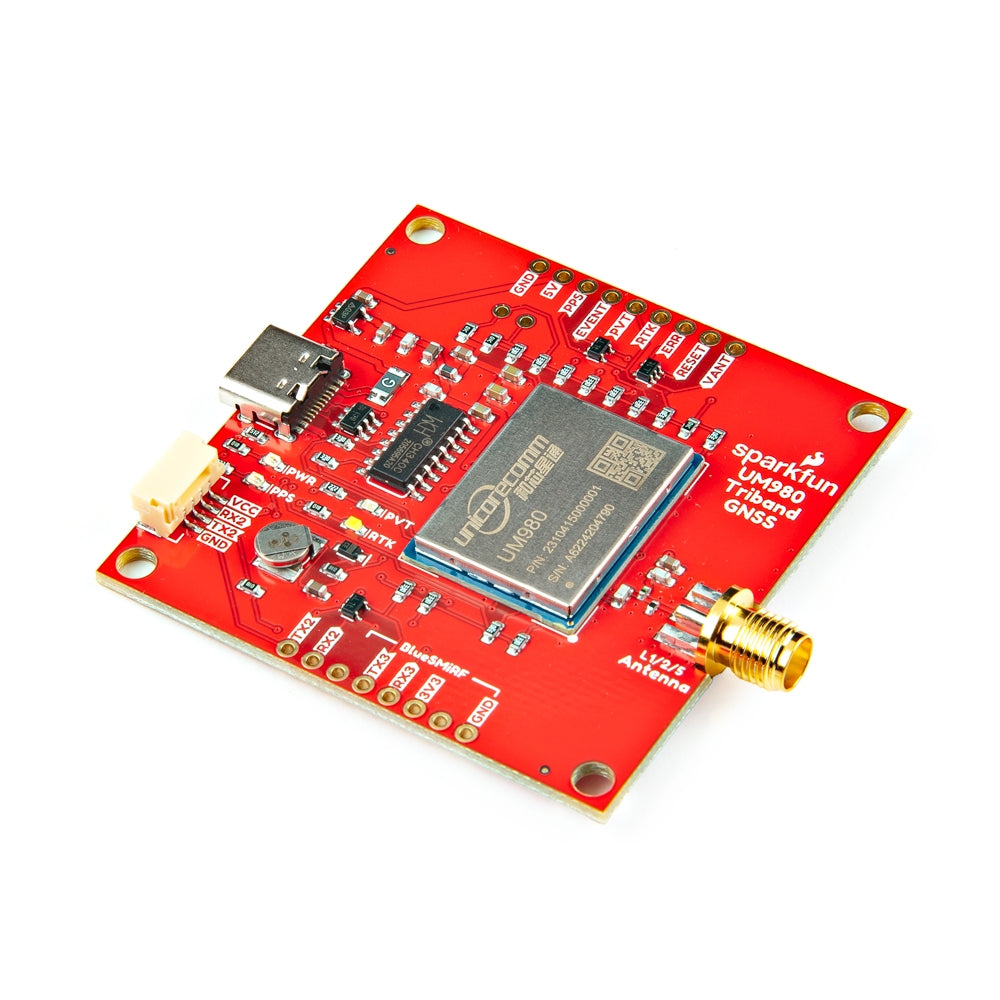

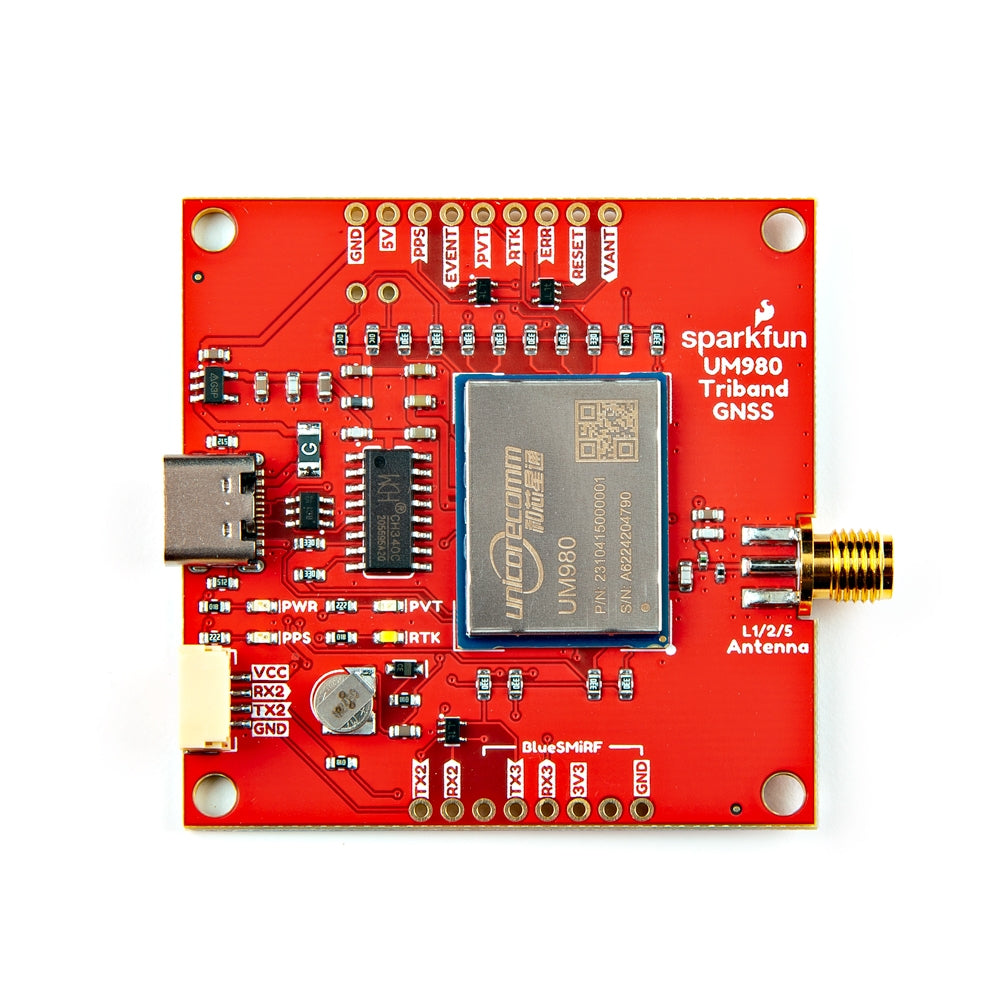

Achieve 8mm accuracy with the Unicore UM980. This 1408-channel, Tri-band RTK receiver tracks L1, L2, and L5 bands for superior performance in challenging environments.
Features & Specs
- Module has a typical low power consumption of ~480mW
- 1408-Channel GNSS Receiver based on the Nebulas IV™
- Concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS
- GPS: L1C/A, L1C*, L2P(Y), L2C, L5
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6*
- Beidou: B1I, B2I, B3I, B1C, B2a, B2b*
- QZSS: L1, L2, L5
- SBAS
- Horizontal Accuracy
- Autonomous: 1.5m
- DGPS: 0.4m
- RTK: 0.8cm + 1ppm
- Vertical Accuracy
- Autonomous: 2.5m
- DGPS: 0.8m
- RTK: 1.5cm + 1ppm
- 50Hz Data Update Rate*
- Time-To-First-Fix:
- Cold: 30s
- Warm: 20s
- Hot: 5s
- CoCom Limits
- Max Altitude: 18000m
- Max G: <5G
- Max Velocity: 515m/s
- Velocity Accuracy (RMS): 0.03m/s
- Time Accuracy (RMS): 20ns
- Supports NMEA, RTCM, and Unicore (w/ specific firmware) protocols over UART
- Integrated SMA connector for use with the multiband GNSS antenna of your choice
- Voltage: 5V or 3.3V but all logic is 3.3V
- USB Type C Connector
- ESD Protection Diodes for USB Data Lines
- Built-in Resettable PTC Fuse 6V/1.5A
- CH340 USB-to-serial converter on UART1 Port
- Locking JST Connector for UART2 Port
- BlueSMiRF Footprint for UART3 Port
- Backup Battery for Hot Start
- LEDs
- PWR: Power Indicator
- PVT: Position, Voltage, Time
- PPS: Pulse-Per-Second Indicator
- RTK: Real-Time Kinematic Fixed Solution Indicator

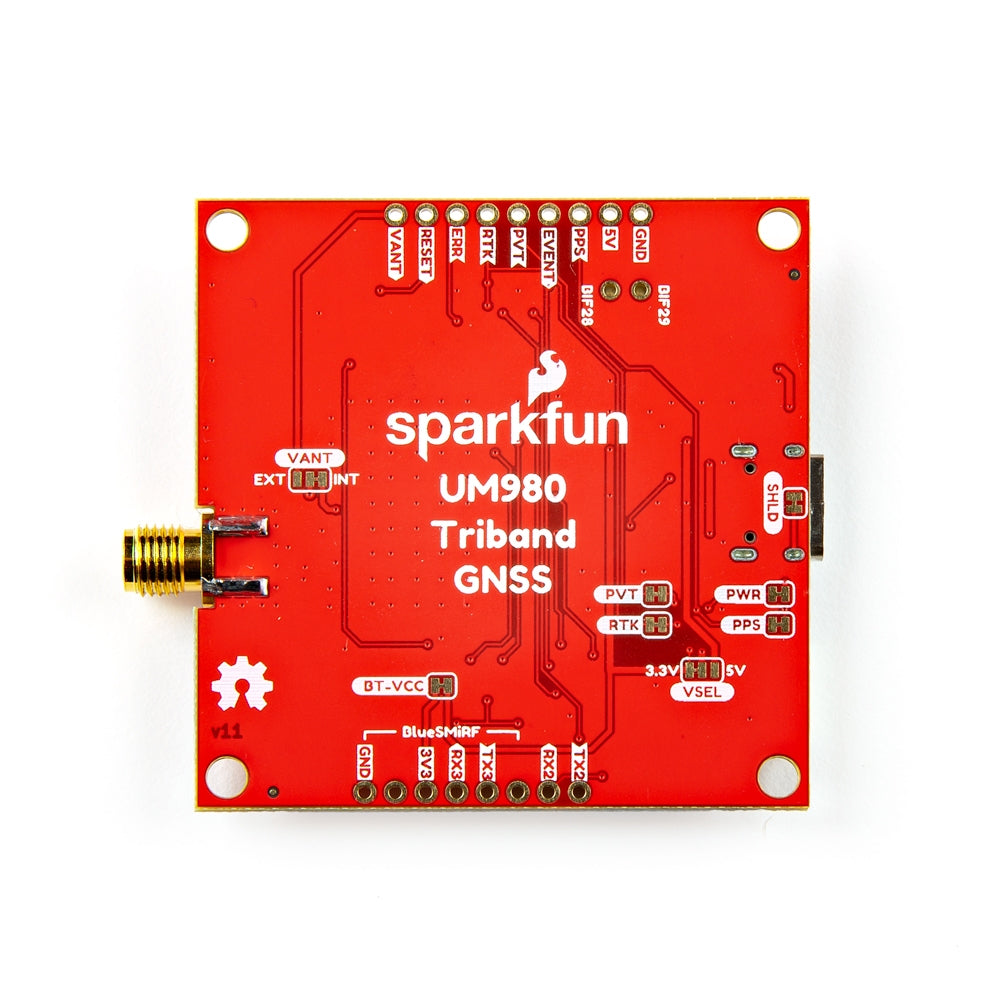

- Jumpers
- SHLD: USB Shield
- VSEL: Voltage Select for Locking JST Connector Port
- PWR: Power LED
- PVT: Position, Voltage, Time LED
- PPS: Pulse-Per-Second LED
- RTK: Real-Time Kinematic LED
- BT-VCC: Voltage Select for Bluetooth Port
- VANT: Voltage Antenna Select
- Dimensions: 2.0in. x 2.0in. (50.8mm x 50.8mm)
- Weight: 13.8g
*Items marked with * are only supported by specific firmware.
Features & Specs
- Module has a typical low power consumption of ~480mW
- 1408-Channel GNSS Receiver based on the Nebulas IV™
- Concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS
- GPS: L1C/A, L1C*, L2P(Y), L2C, L5
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6*
- Beidou: B1I, B2I, B3I, B1C, B2a, B2b*
- QZSS: L1, L2, L5
- SBAS
- Horizontal Accuracy
- Autonomous: 1.5m
- DGPS: 0.4m
- RTK: 0.8cm + 1ppm
- Vertical Accuracy
- Autonomous: 2.5m
- DGPS: 0.8m
- RTK: 1.5cm + 1ppm
- 50Hz Data Update Rate*
- Time-To-First-Fix:
- Cold: 30s
- Warm: 20s
- Hot: 5s
- CoCom Limits
- Max Altitude: 18000m
- Max G: <5G
- Max Velocity: 515m/s
- Velocity Accuracy (RMS): 0.03m/s
- Time Accuracy (RMS): 20ns
- Supports NMEA, RTCM, and Unicore (w/ specific firmware) protocols over UART
- Integrated SMA connector for use with the multiband GNSS antenna of your choice
- Voltage: 5V or 3.3V but all logic is 3.3V
- USB Type C Connector
- ESD Protection Diodes for USB Data Lines
- Built-in Resettable PTC Fuse 6V/1.5A
- CH340 USB-to-serial converter on UART1 Port
- Locking JST Connector for UART2 Port
- BlueSMiRF Footprint for UART3 Port
- Backup Battery for Hot Start
- LEDs
- PWR: Power Indicator
- PVT: Position, Voltage, Time
- PPS: Pulse-Per-Second Indicator
- RTK: Real-Time Kinematic Fixed Solution Indicator
- Jumpers
- SHLD: USB Shield
- VSEL: Voltage Select for Locking JST Connector Port
- PWR: Power LED
- PVT: Position, Voltage, Time LED
- PPS: Pulse-Per-Second LED
- RTK: Real-Time Kinematic LED
- BT-VCC: Voltage Select for Bluetooth Port
- VANT: Voltage Antenna Select
- Dimensions: 2.0in. x 2.0in. (50.8mm x 50.8mm)
- Weight: 13.8g
*Items marked with * are only supported by specific firmware.
Documentation
- Schematic
- KiCad Files
- 3D Model
- Board Dimensions
- Hookup Guide
- Unicore Communications UM980
- CH340 Drivers
- SparkFun RTK
- Arduino Library
- GitHub Hardware Repo
