Description

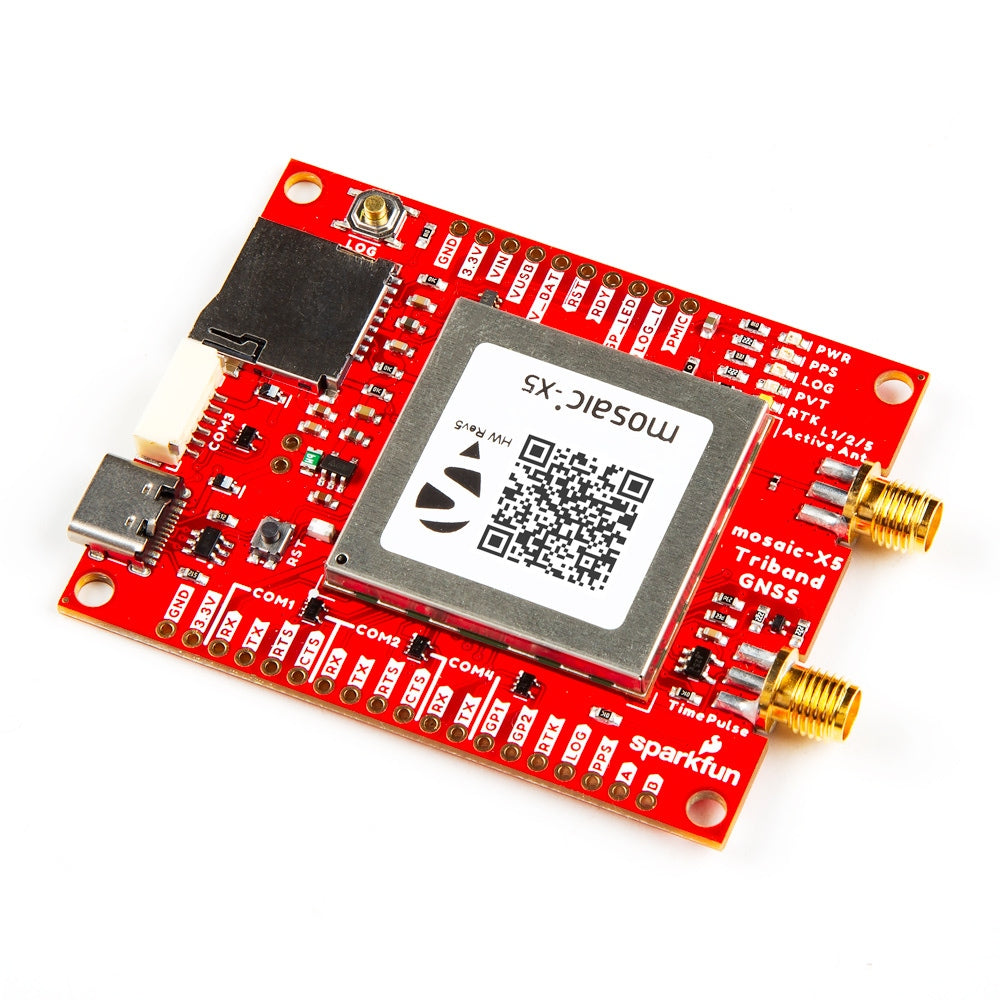

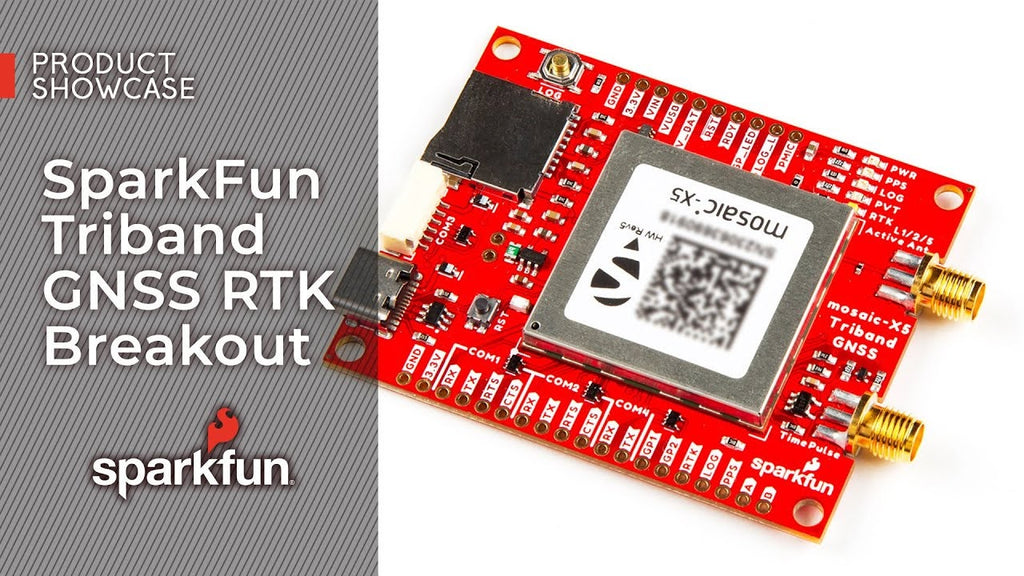

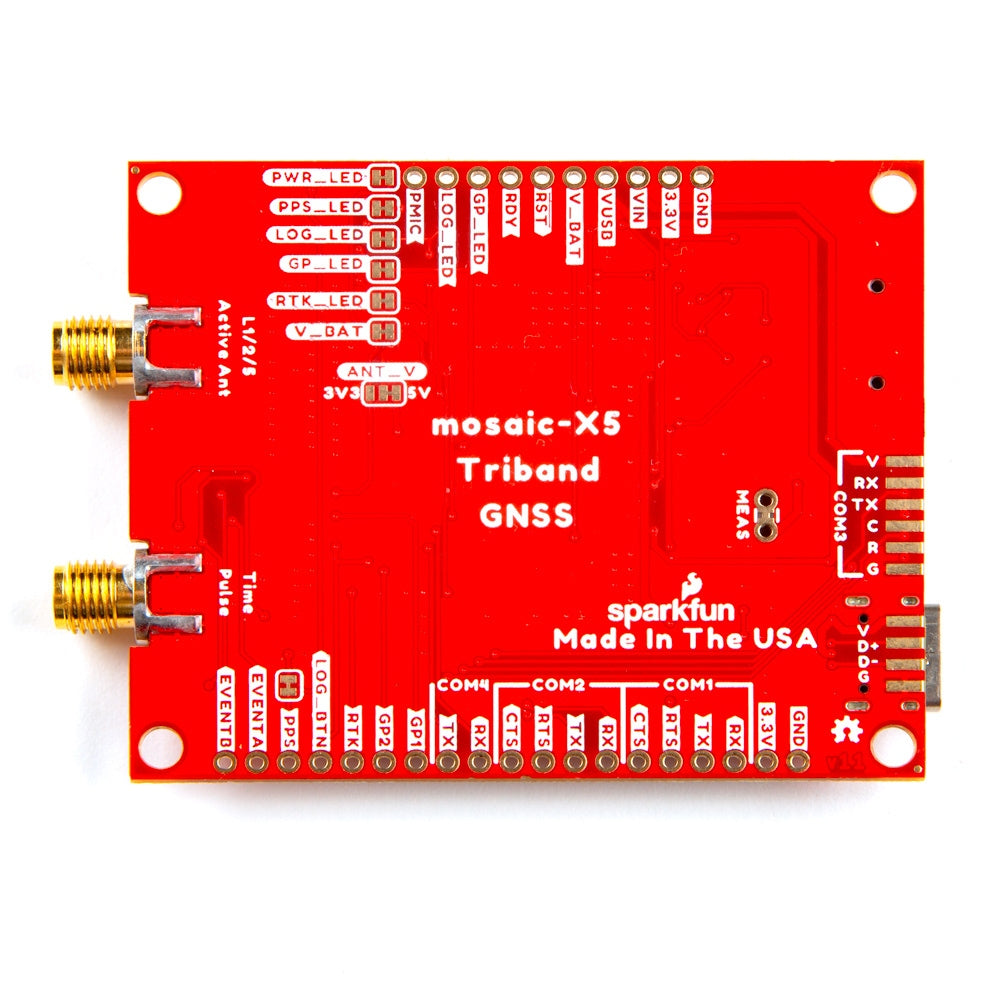

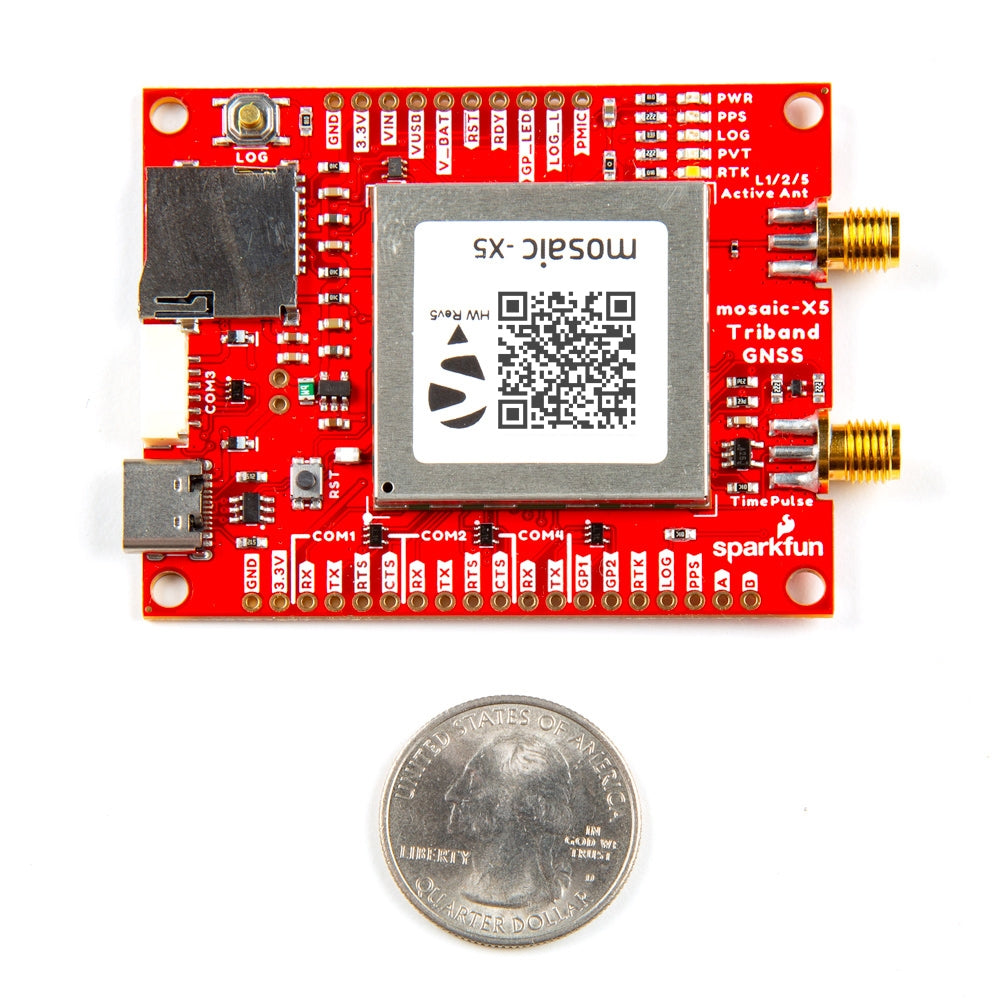

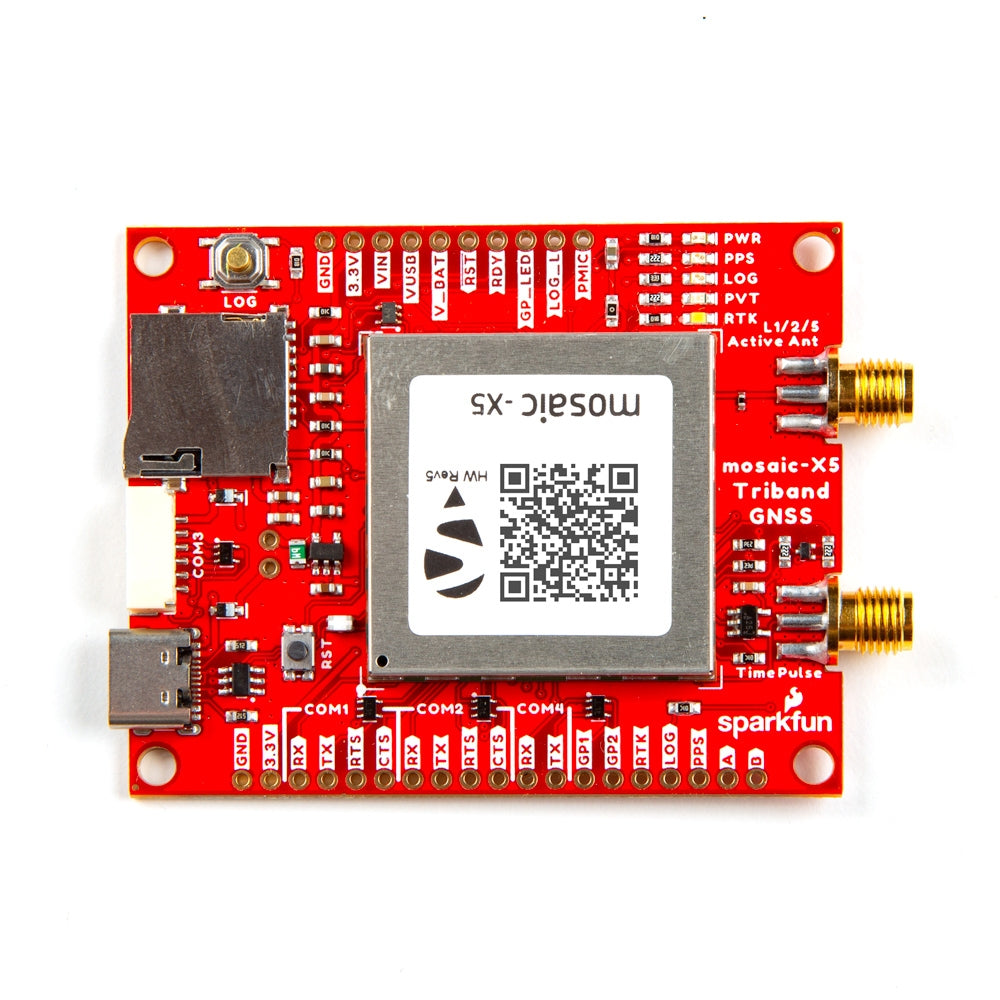

The SparkFun Triband GNSS RTK Breakout features the Septentrio mosaic-X5 for centimeter-level L1/L2/L5 accuracy, anti-jamming technology, and a web-based interface for easy configuration without coding.
Features & Specs
Triband GNSS RTK Breakout:
- mosaic-X5 GNSS Receiver
- USB-C Connector
- µSD Card Slot (up to 32GB w/ FAT32 file system)
- SMA Connectors:
- GPS Antenna (Active, Multi-band)
- PPS Output (3.3V)
- Status LEDs
- Power (Red)
- Pulse-Per-Second (Yellow)
- Data Logging (Green)
- Position/Velocity/Time Solution (Blue)
- RTK Mode (White)
- Buttons
- Log
- Reset
- I/O Logic-Level: 3.3V
- 6-pin JST GH connector (GHR-06V-S)
- Polarized
- Locking
- ESD Protection Diodes
mosaic-X5 Module:
- Voltage Range: 3.135 to 3.465V
- Max current: 500mA
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 448 (simultaneous tracking)
- GNSS Support
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- SBAS: Egnos, WA
- Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
- Timing Precision: 5ns
- Update Rate: 100Hz
- Latency: < 10ms
-
VANT Voltage Range: 3.0 to 5.0V
- Max current: 150mA
- Interfaces:
- UART (x4)
- Ethernet (Not available for this product)
- USB 2.0
- SD Card
- GPIO/LEDs
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
Features & Specs
Triband GNSS RTK Breakout:
- mosaic-X5 GNSS Receiver
- USB-C Connector
- µSD Card Slot (up to 32GB w/ FAT32 file system)
- SMA Connectors:
- GPS Antenna (Active, Multi-band)
- PPS Output (3.3V)
- Status LEDs
- Power (Red)
- Pulse-Per-Second (Yellow)
- Data Logging (Green)
- Position/Velocity/Time Solution (Blue)
- RTK Mode (White)
- Buttons
- Log
- Reset
- I/O Logic-Level: 3.3V
- 6-pin JST GH connector (GHR-06V-S)
- Polarized
- Locking
- ESD Protection Diodes
mosaic-X5 Module:
- Voltage Range: 3.135 to 3.465V
- Max current: 500mA
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 448 (simultaneous tracking)
- GNSS Support
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- SBAS: Egnos, WA
- Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
- Timing Precision: 5ns
- Update Rate: 100Hz
- Latency: < 10ms
-
VANT Voltage Range: 3.0 to 5.0V
- Max current: 150mA
- Interfaces:
- UART (x4)
- Ethernet (Not available for this product)
- USB 2.0
- SD Card
- GPIO/LEDs
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
Documentation
- Schematic
- Eagle Files
- Board Dimensions
-
Hookup Guide
- Software: RxTools
- Correction Service: Agnostic Corrections
- Component Datasheets:
- Septentrio's GNSS Modules
- Building a GNSS System
- GitHub Hardware Repository
