Description

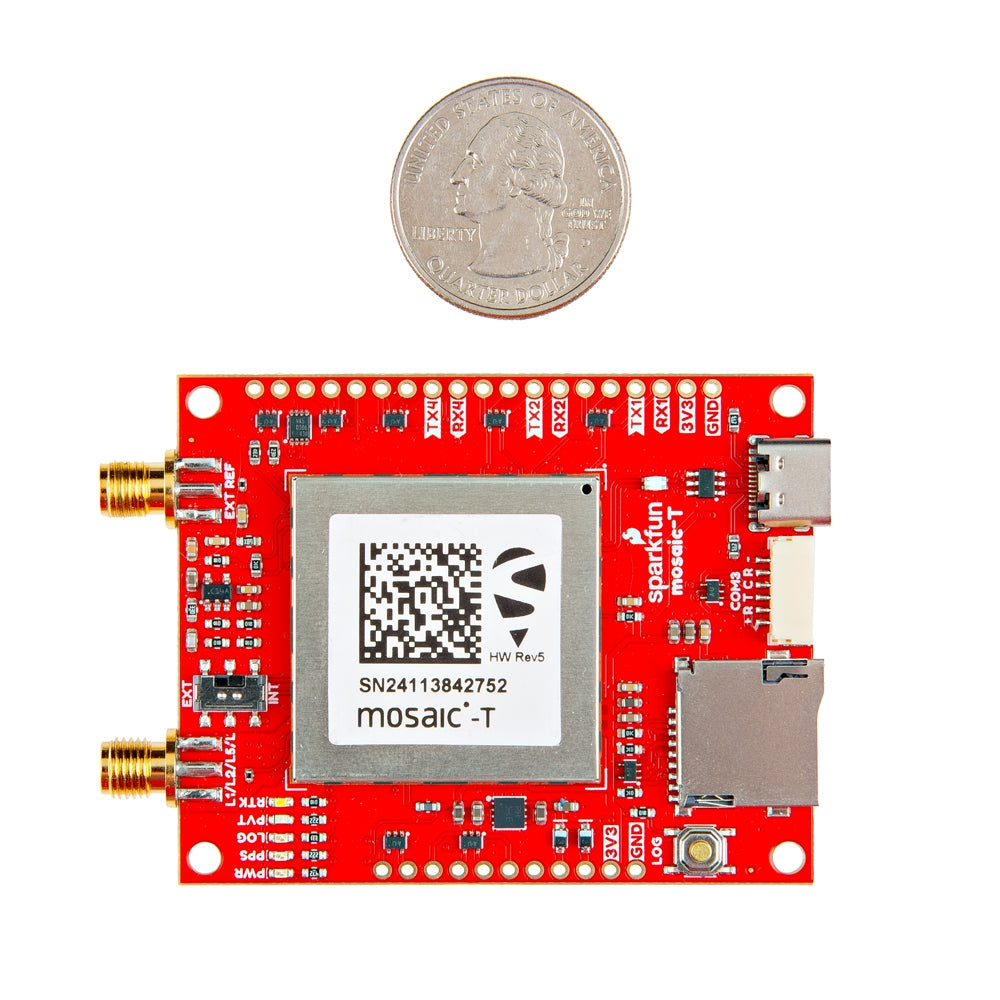

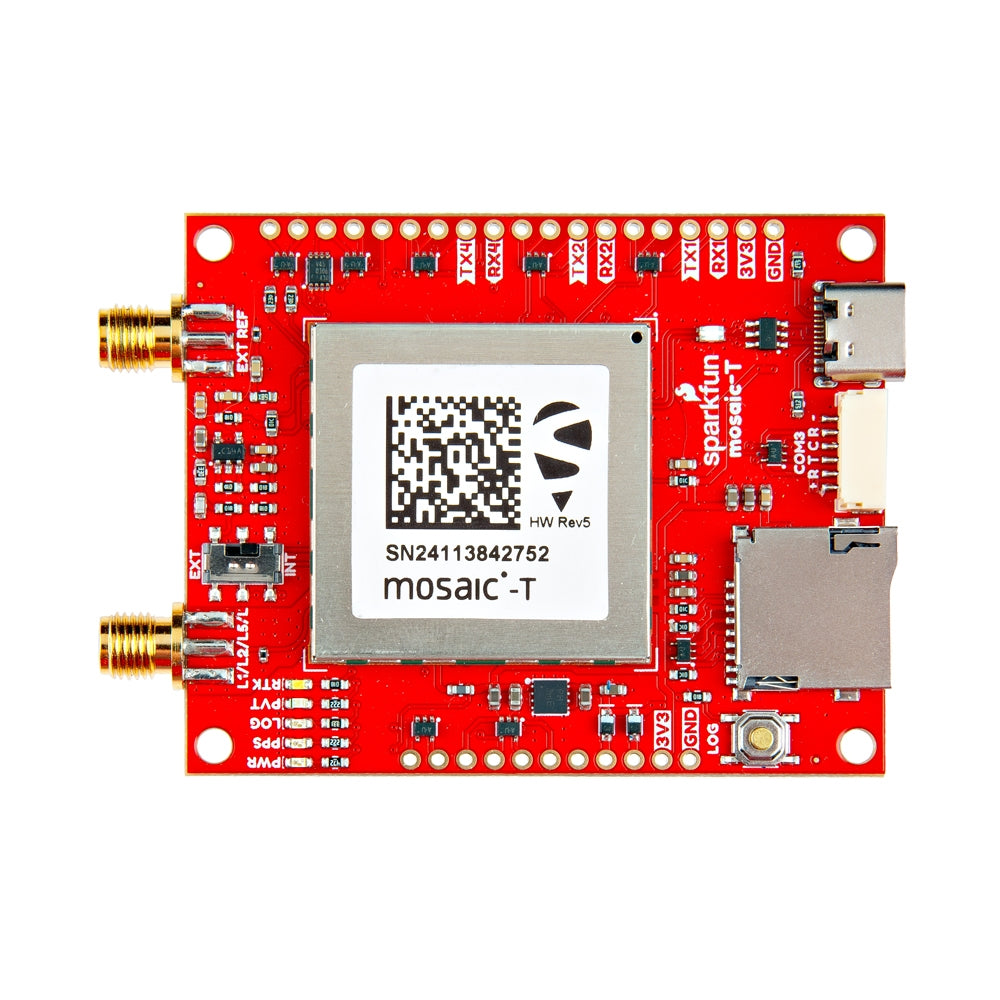

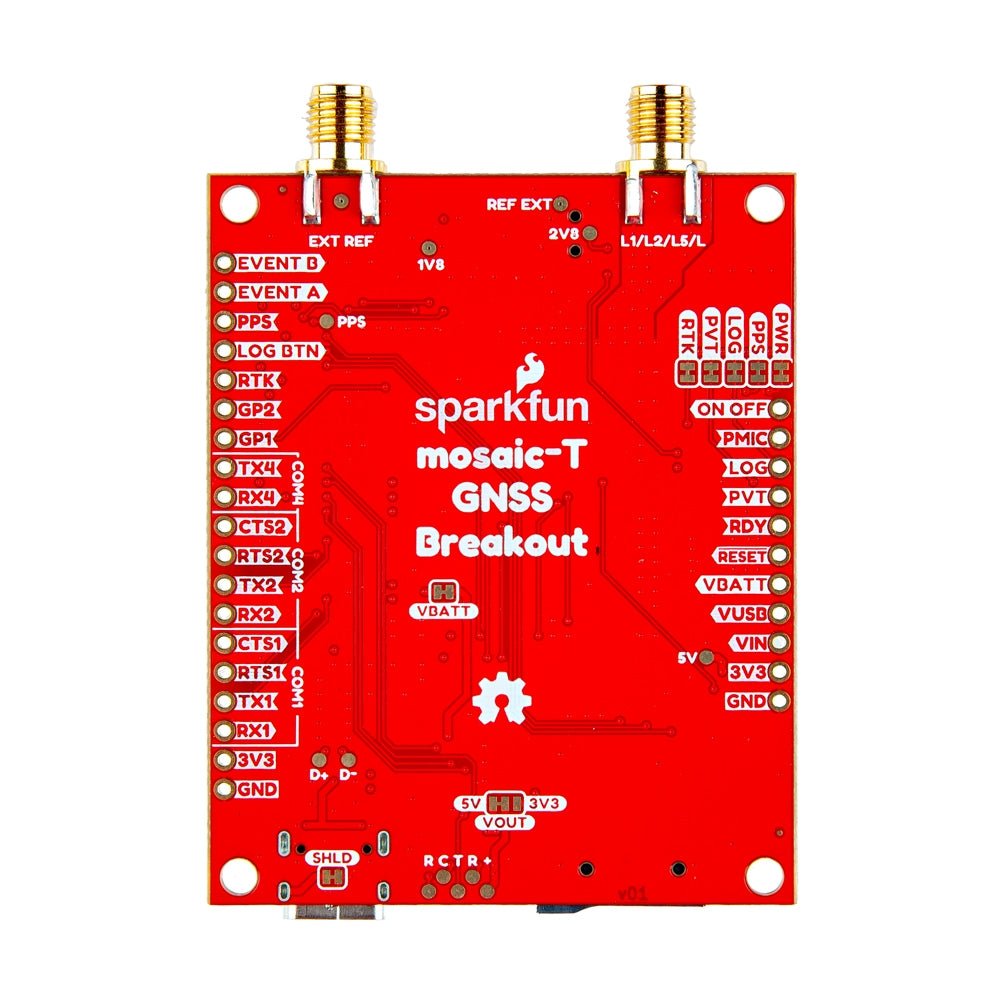

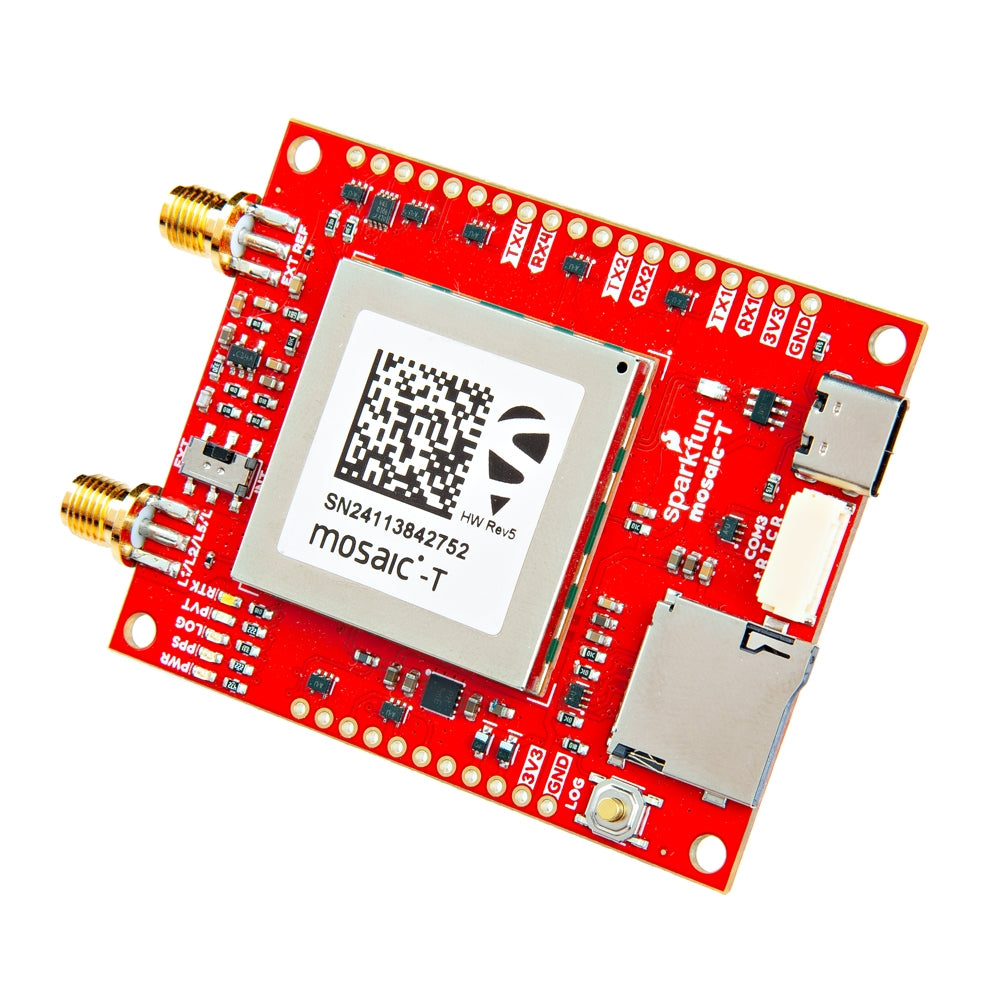

A high-precision breakout for the Septentrio mosaic-T, delivering robust, nanosecond-level timing for GPSDO and synchronization applications.
Features & Specs
Timing GNSS Breakout:
- mosaic-T GNSS Receiver
- USB-C Connector
- µSD Card Slot (up to 32GB with FAT32 file system)
- SMA Connectors:
- GPS Antenna (Active, Multi-band)
- External 10MHz Reference input (min: -14dBm, max: +14dBm)
- Status LEDs
- Power (Red)
- Pulse-Per-Second (Yellow)
- Data Logging (Green)
- Position/Velocity/Time Solution (Blue)
- RTK Mode (White) (RTK is not supported on the mosaic-T)
- Buttons
- Log
- I/O Logic-Level: 3.3V
- 6-pin JST GH connector (GHR-06V-S)
- Polarized
- Locking
- ESD Protection Diodes
mosaic-T Module:
- Voltage Range: 3.135 to 3.465V
- Max current: 500mA
- Channels: 448 (simultaneous tracking)
- GNSS Support
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- SBAS: Egnos, WA
- Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
- Timing Precision: 5ns
- Better than 1ns with an optional subscription to Fugro AtomiChron
- Event Accuracy: better than 20ns
- Update Rate: 10Hz
- Latency: < 10ms
- Antenna voltage: 3.3V
- Max current: 150mA
- Interfaces:
- UART (x4)
- USB 2.0 with Ethernet-over-USB and TCP/IP support
- SD Card
- GPIO/LEDs
Features & Specs
Timing GNSS Breakout:
- mosaic-T GNSS Receiver
- USB-C Connector
- µSD Card Slot (up to 32GB with FAT32 file system)
- SMA Connectors:
- GPS Antenna (Active, Multi-band)
- External 10MHz Reference input (min: -14dBm, max: +14dBm)
- Status LEDs
- Power (Red)
- Pulse-Per-Second (Yellow)
- Data Logging (Green)
- Position/Velocity/Time Solution (Blue)
- RTK Mode (White) (RTK is not supported on the mosaic-T)
- Buttons
- Log
- I/O Logic-Level: 3.3V
- 6-pin JST GH connector (GHR-06V-S)
- Polarized
- Locking
- ESD Protection Diodes
mosaic-T Module:
- Voltage Range: 3.135 to 3.465V
- Max current: 500mA
- Channels: 448 (simultaneous tracking)
- GNSS Support
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- SBAS: Egnos, WA
- Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
- Timing Precision: 5ns
- Better than 1ns with an optional subscription to Fugro AtomiChron
- Event Accuracy: better than 20ns
- Update Rate: 10Hz
- Latency: < 10ms
- Antenna voltage: 3.3V
- Max current: 150mA
- Interfaces:
- UART (x4)
- USB 2.0 with Ethernet-over-USB and TCP/IP support
- SD Card
- GPIO/LEDs
Documentation
- Schematic
- KiCad Files
- Board Dimensions
-
Hookup Guide
- Software: RxTools
- Component Datasheets:
- Septentrio's GNSS Modules
- Building a GNSS System
- GitHub Hardware Repository
