Description
Features & Specs

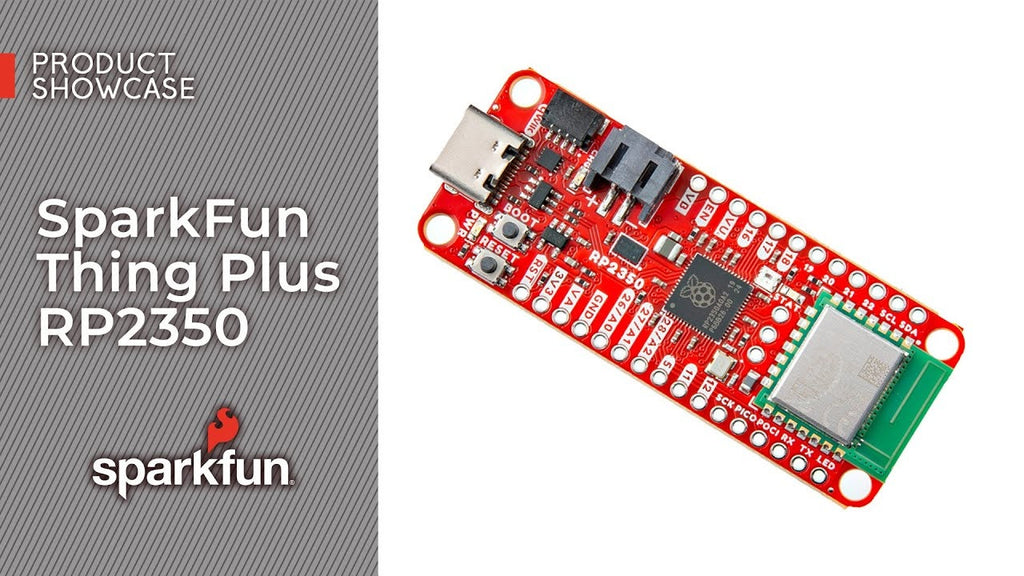

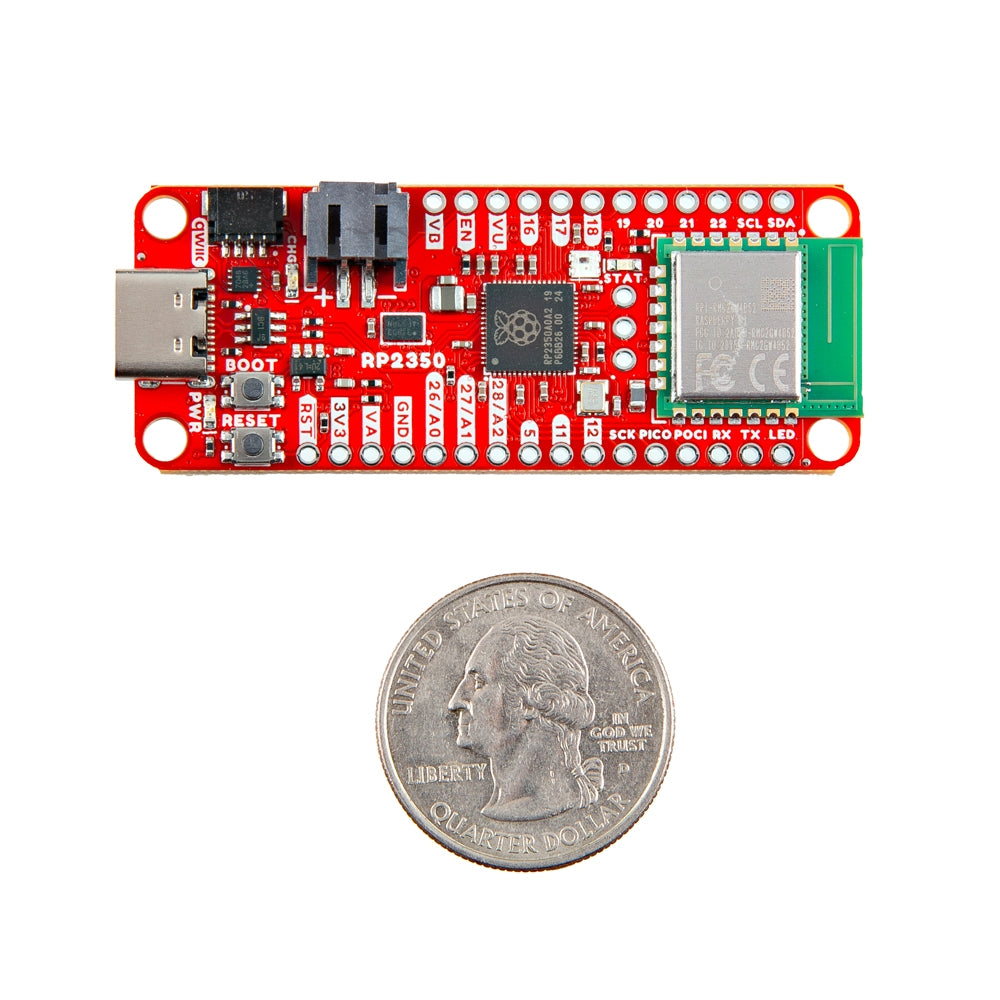

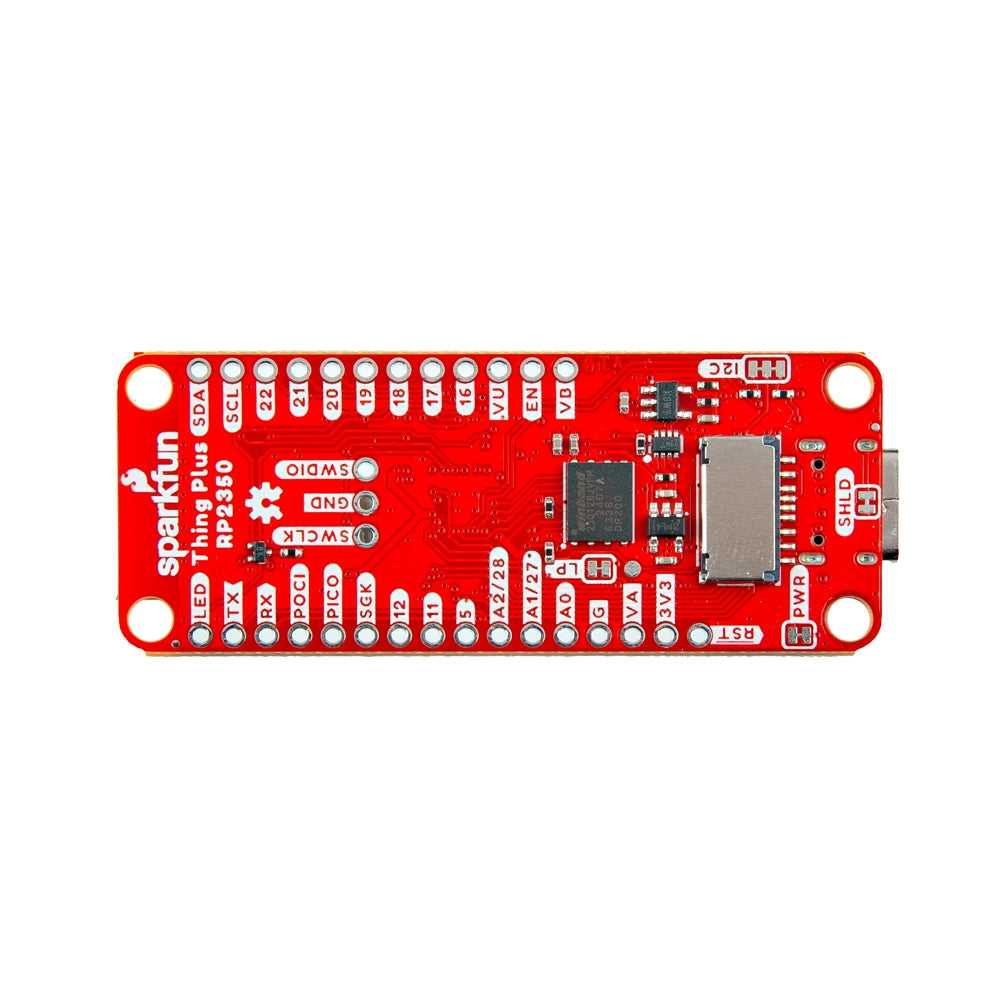

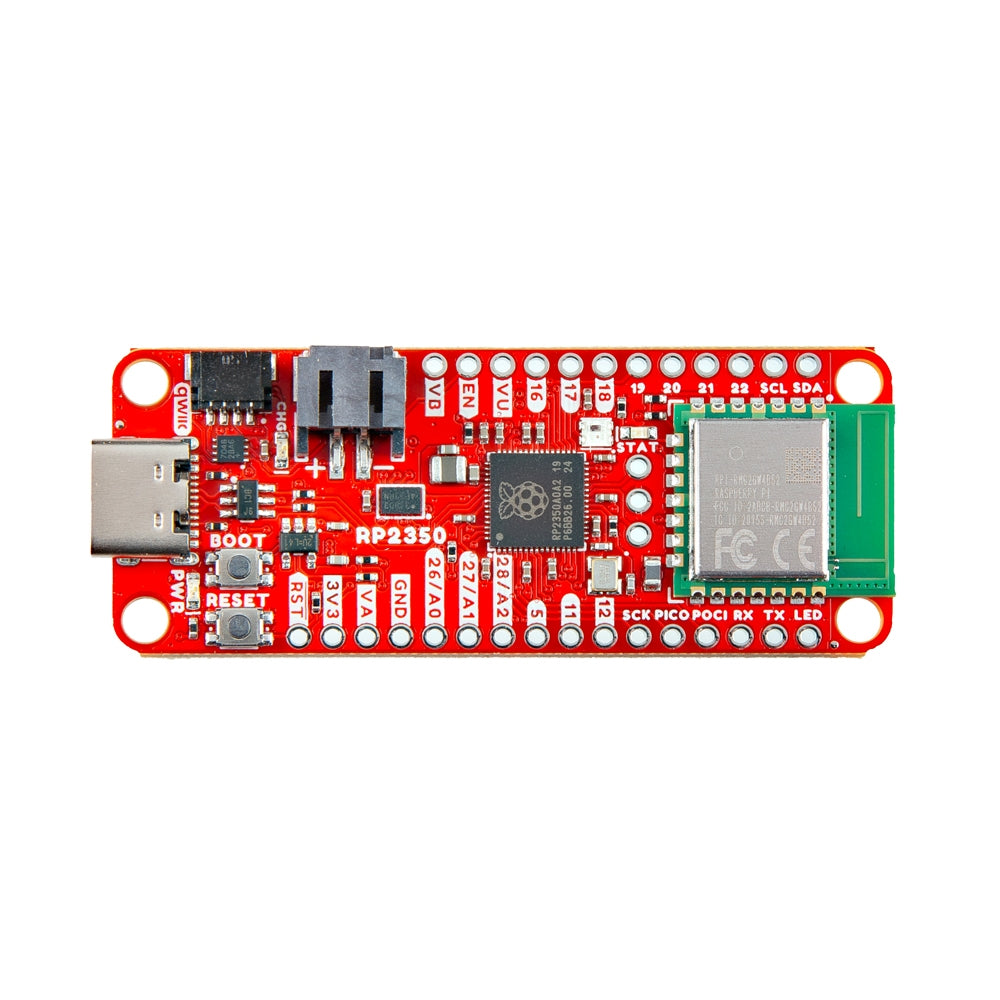

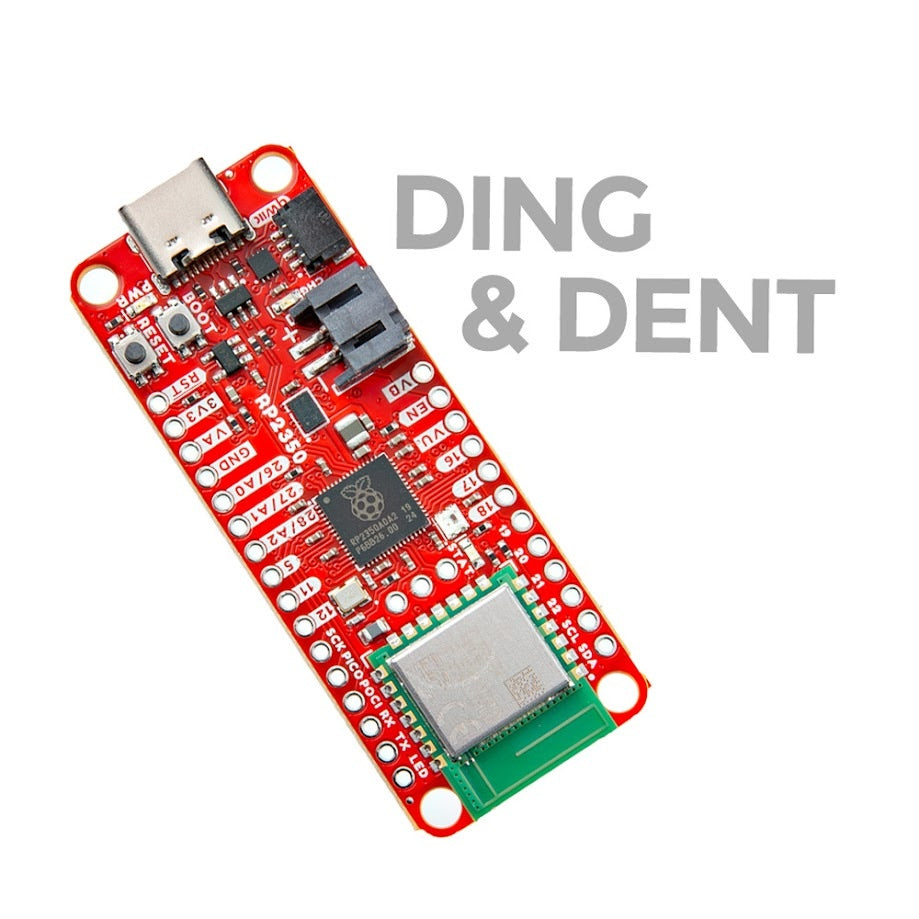

SparkFun Thing Plus - RP2350 Features
- RP2350
- 21 Multifunctional GPIO*
- *"Freebie" pin tied to WS2812 Data Out
- 13x GPIO (3 Analog-capable pins)
- 1x UART
- 1x I2C
- 1x SPI
- 21 Multifunctional GPIO*
- Raspberry Pi Radio Module (RM2)
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
- Thing Plus Form-Factor:
- Dimensions: 2.3" x 0.9"
- Four Mounting Holes:
- 4-40 screw compatible
- 28 PTH Pins
- USB-C Connector
- 2-pin JST Connector (Please read the Warning in the Description section about the LiPo battery connector polarity)
- 4-pin JST Qwiic Connector
- µSD Card Slot
- MCP73831 LiPo Battery Charger
- MAX17048 Fuel Gauge
- LEDs:
-
PWR - Red power LED
-
CHG - Yellow battery charge status LED
-
STAT - Blue status LED tied to the RM2's GPIO0
- WS2812 RGB LED - Data In tied to GPIO14
-
RP2350 General Features
- Dual ARM CortexM3 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 5V-tolerant GPIO (powered) with 3.3V failsafe (unpowered)
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 4 HSTX Pins (Rasbperry Pi's High-speed transmit interface)
- 24x PWM Channels
- 12x PIO State Machines
Features & Specs
SparkFun Thing Plus - RP2350 Features
- RP2350
- 21 Multifunctional GPIO*
- *"Freebie" pin tied to WS2812 Data Out
- 13x GPIO (3 Analog-capable pins)
- 1x UART
- 1x I2C
- 1x SPI
- 21 Multifunctional GPIO*
- Raspberry Pi Radio Module (RM2)
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
- Thing Plus Form-Factor:
- Dimensions: 2.3" x 0.9"
- Four Mounting Holes:
- 4-40 screw compatible
- 28 PTH Pins
- USB-C Connector
- 2-pin JST Connector (Please read the Warning in the Description section about the LiPo battery connector polarity)
- 4-pin JST Qwiic Connector
- µSD Card Slot
- MCP73831 LiPo Battery Charger
- MAX17048 Fuel Gauge
- LEDs:
-
PWR - Red power LED
-
CHG - Yellow battery charge status LED
-
STAT - Blue status LED tied to the RM2's GPIO0
- WS2812 RGB LED - Data In tied to GPIO14
-
RP2350 General Features
- Dual ARM CortexM3 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 5V-tolerant GPIO (powered) with 3.3V failsafe (unpowered)
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 4 HSTX Pins (Rasbperry Pi's High-speed transmit interface)
- 24x PWM Channels
- 12x PIO State Machines
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- SparkFun Pico SDK Library
- Arduino Pico Arduino Core
- MicroPython Firmware UF2 (Beta 04)
- MicroPython Documentation
- CircuitPython Downloads
- Datasheets
- RP2350 Product Brief
- Raspberry Pi RP2350 Microcontroller Documentation
- Qwiic Info Page
- GitHub Hardware Repository
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
