Description

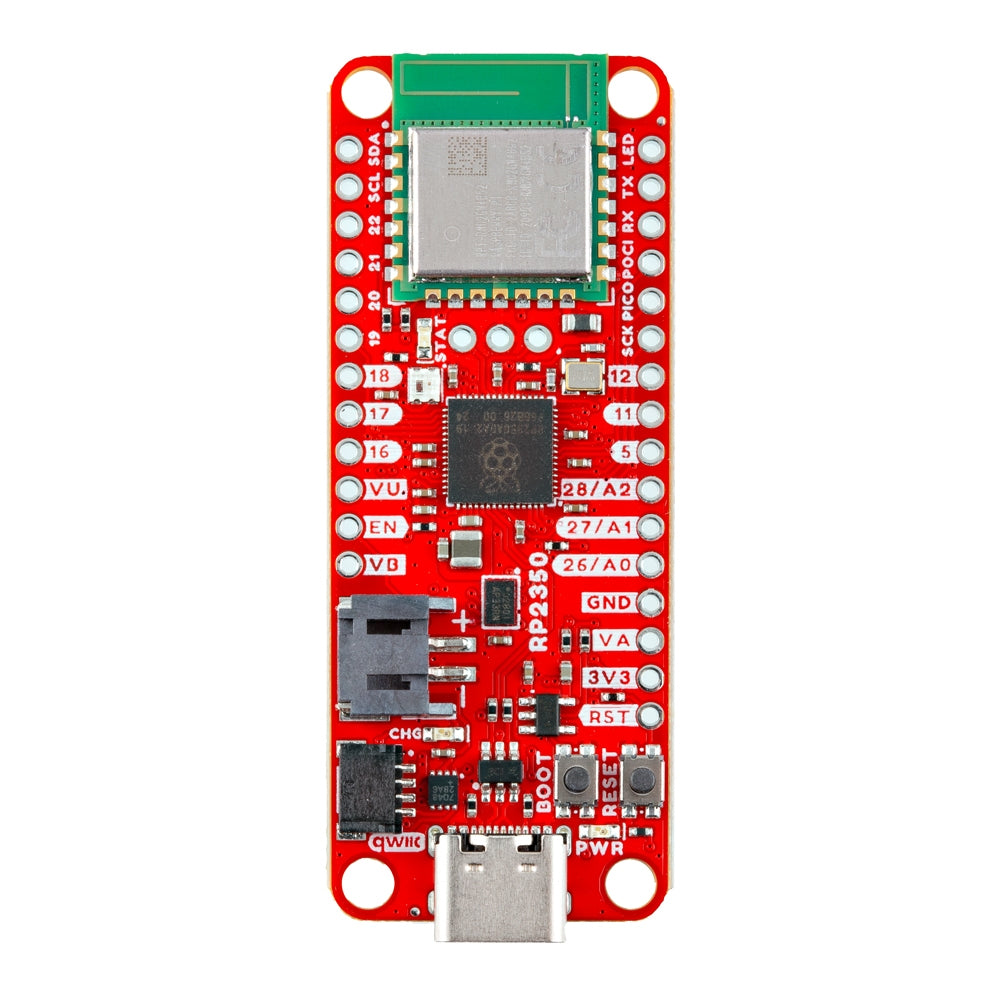

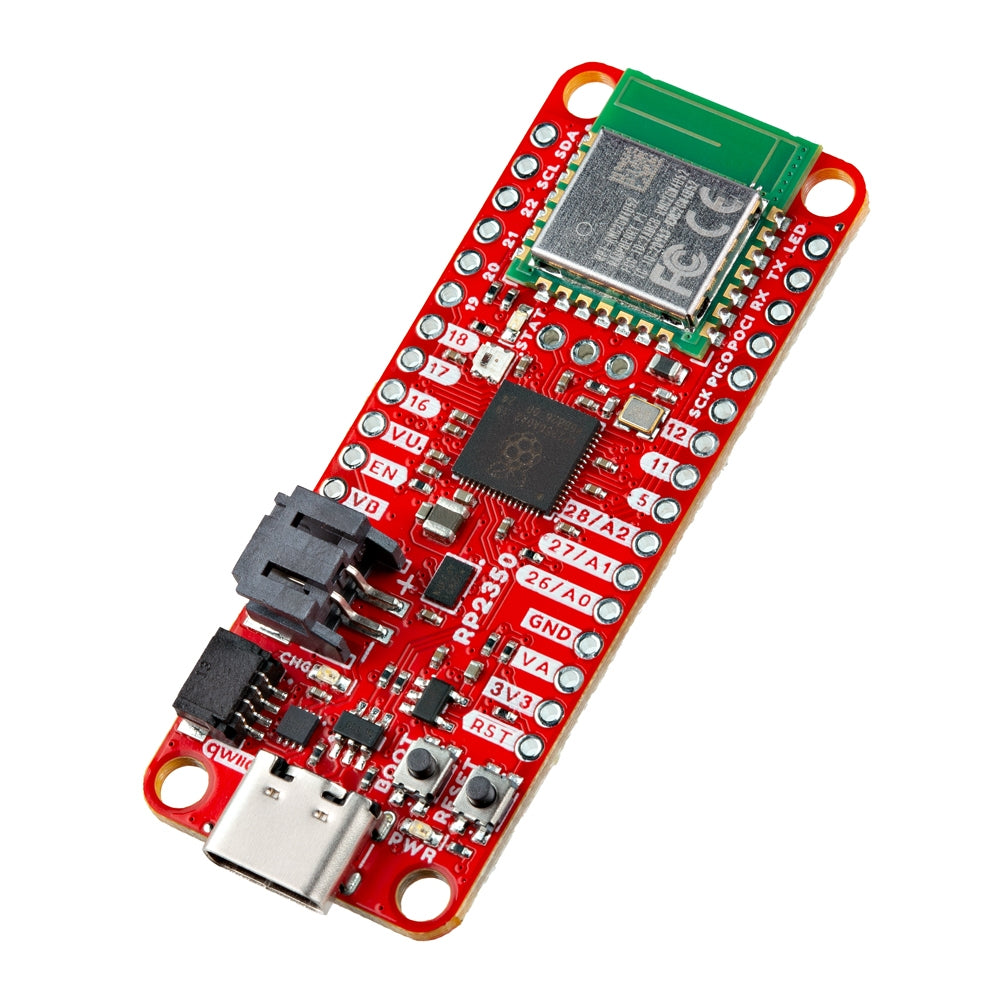

The SparkFun RP2350 Thing Plus is a powerful wireless IoT board featuring the selectable-core RP2350, WiFi 4, Bluetooth 5.2, LiPo battery charging, and a Qwiic connector.
Features & Specs
SparkFun Thing Plus - RP2350 Features
- RP2350
- 21 Multifunctional GPIO
- "Freebie" pin tied to WS2812 Data Out
- 13x GPIO (3 Analog-capable pins)
- 1x UART
- 1x I2C
- 1x SPI
- 21 Multifunctional GPIO
- Raspberry Pi Radio Module (RM2)
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
- Thing Plus Form-Factor:
- Dimensions: 2.3" x 0.9"
- Four Mounting Holes:
- 4-40 screw compatible
- 28 PTH Pins
- USB-C Connector
- 2-pin JST Connector for a LiPo Battery (not included)
- 4-pin JST Qwiic Connector
- µSD Card Slot
- MCP73831 LiPo Battery Charger
- MAX17048 Fuel Gauge
- LEDs:
-
PWR- Red power LED -
CHG- Yellow battery charge status LED -
STAT- Blue status LED tied to the RM2's GPIO0 -
WS2812 RGB LED- Data In tied to GPIO14
-
RP2350 General Features
- Dual ARM CortexM3 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 5V-tolerant GPIO (powered) with 3.3V failsafe (unpowered)
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 4 HSTX Pins (Raspberry Pi's High-speed transmit interface)
- 24x PWM Channels
- 12x PIO State Machines
Features & Specs
SparkFun Thing Plus - RP2350 Features
- RP2350
- 21 Multifunctional GPIO
- "Freebie" pin tied to WS2812 Data Out
- 13x GPIO (3 Analog-capable pins)
- 1x UART
- 1x I2C
- 1x SPI
- 21 Multifunctional GPIO
- Raspberry Pi Radio Module (RM2)
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
- Thing Plus Form-Factor:
- Dimensions: 2.3" x 0.9"
- Four Mounting Holes:
- 4-40 screw compatible
- 28 PTH Pins
- USB-C Connector
- 2-pin JST Connector for a LiPo Battery (not included)
- 4-pin JST Qwiic Connector
- µSD Card Slot
- MCP73831 LiPo Battery Charger
- MAX17048 Fuel Gauge
- LEDs:
-
PWR- Red power LED -
CHG- Yellow battery charge status LED -
STAT- Blue status LED tied to the RM2's GPIO0 -
WS2812 RGB LED- Data In tied to GPIO14
-
RP2350 General Features
- Dual ARM CortexM3 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 5V-tolerant GPIO (powered) with 3.3V failsafe (unpowered)
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 4 HSTX Pins (Raspberry Pi's High-speed transmit interface)
- 24x PWM Channels
- 12x PIO State Machines
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- SparkFun Pico SDK Library
- Arduino Pico Arduino Core
- Datasheets
- Raspberry Pi RP2350 Documents
- Python / MicroPython / CircuitPython Information
- Compare Thing Plus Boards
- Qwiic Info Page
- GitHub Hardware Repository
