Description

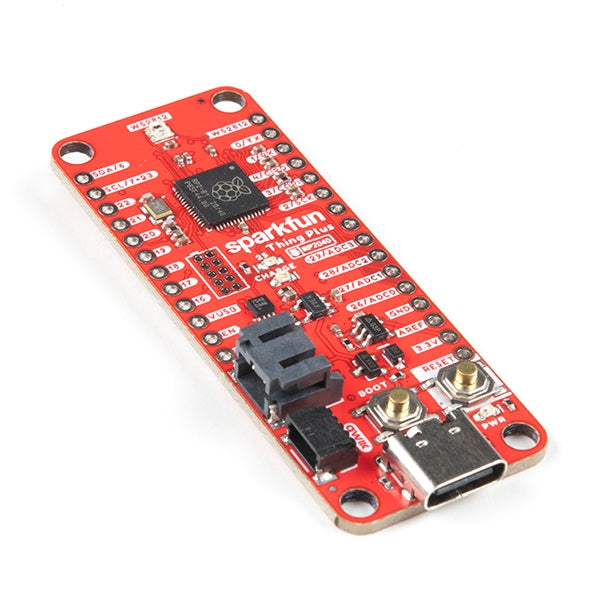

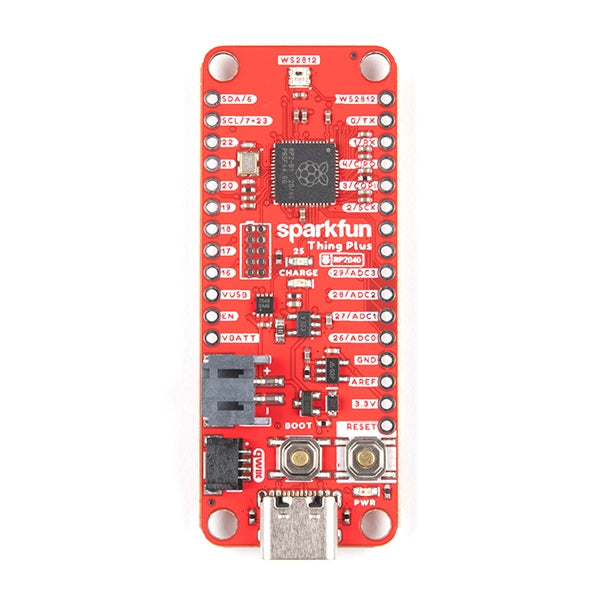

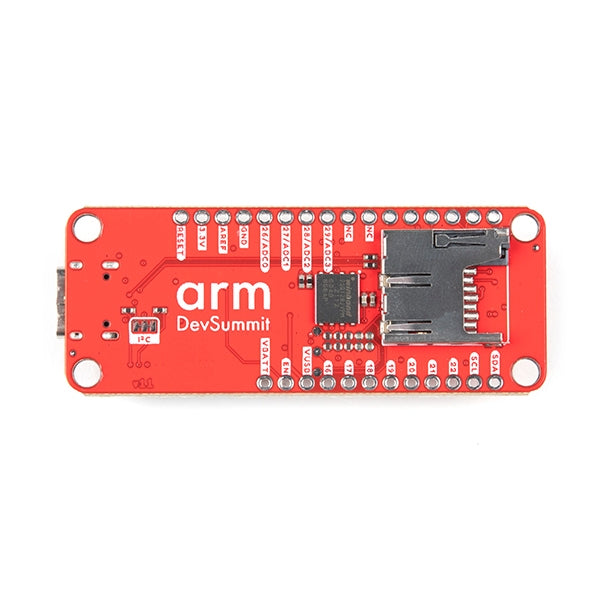

The SparkFun Thing Plus - RP2040 is a low-cost, high performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040.
Features & Specs
SparkFun Thing Plus - RP2040 Features
- Raspberry Pi Foundation's RP2040 microcontroller
- 16MB QSPI Flash Memory
- JTAG PTH Pins
- Thing Plus (or Feather) Form-Factor:
- 18[1]x Multifunctional GPIO Pins[2]
- Four available 12-bit ADC channels with internal temperature sensor (500kSa/s)
- Up to eight 2-channel PWM
- Up to two UARTs
- Up to two I2C buses
- Up to two SPI buses
- USB-C Connector:
- USB 1.1 Host/Device functionality
- 2-pin JST Connector for a LiPo Battery (not included):
- 500mA charging circuit
- Qwiic Connector
- Buttons:
- Boot
- Reset
- LEDs:
-
PWR- Red 3.3V power indicator -
CHG- Yellow battery charging indicator -
25- Blue status/test LED (GPIO 25) -
WS2812- Addressable RGB LED (GPIO 08) - Four Mounting Holes:
- 4-40 screw compatible

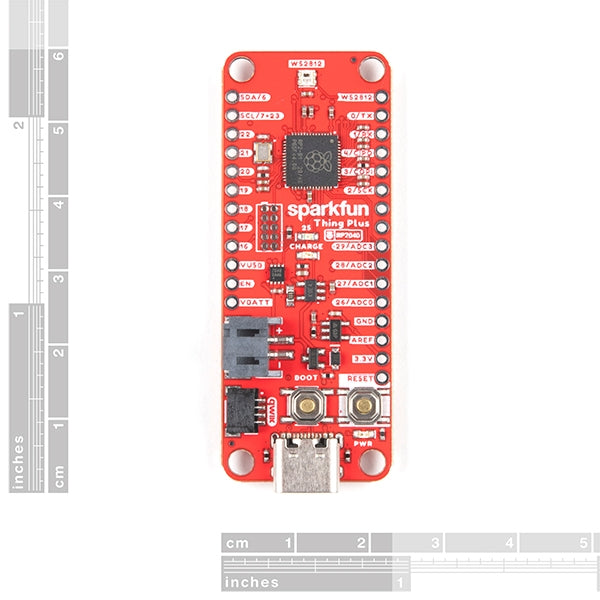

- Dimensions: 2.3" x 0.9"
RP2040 General Features:
- Dual Cortex M0+ processors, up to 133 MHz
- 264 kB of embedded SRAM in 6 banks
- 6 dedicated IO for QSPI flash, supporting execute in place (XIP)
- 30 programmable IO for extended peripheral support
- SWD interface
- Timer with 4 alarms
- Real time counter (RTC)
- USB 1.1 Host/Device functionality
- Supported programming languages
- MicroPython
- C/C++
1. Note: GPIO 08 is not included in this count, as it passes through the WS2812 addressable RGB LED first. GPIO 07 and GPIO 23 are counted as a single GPIO because they are tied together.↩
2. Note: The GPIO pins are programmable so you can reconfigure the pins! Check out the RP2040 datasheet for more information on the GPIO functionality.↩
Features & Specs
SparkFun Thing Plus - RP2040 Features
- Raspberry Pi Foundation's RP2040 microcontroller
- 16MB QSPI Flash Memory
- JTAG PTH Pins
- Thing Plus (or Feather) Form-Factor:
- 18[1]x Multifunctional GPIO Pins[2]
- Four available 12-bit ADC channels with internal temperature sensor (500kSa/s)
- Up to eight 2-channel PWM
- Up to two UARTs
- Up to two I2C buses
- Up to two SPI buses
- USB-C Connector:
- USB 1.1 Host/Device functionality
- 2-pin JST Connector for a LiPo Battery (not included):
- 500mA charging circuit
- Qwiic Connector
- Buttons:
- Boot
- Reset
- LEDs:
-
PWR- Red 3.3V power indicator -
CHG- Yellow battery charging indicator -
25- Blue status/test LED (GPIO 25) -
WS2812- Addressable RGB LED (GPIO 08) - Four Mounting Holes:
- 4-40 screw compatible
- Dimensions: 2.3" x 0.9"
RP2040 General Features:
- Dual Cortex M0+ processors, up to 133 MHz
- 264 kB of embedded SRAM in 6 banks
- 6 dedicated IO for QSPI flash, supporting execute in place (XIP)
- 30 programmable IO for extended peripheral support
- SWD interface
- Timer with 4 alarms
- Real time counter (RTC)
- USB 1.1 Host/Device functionality
- Supported programming languages
- MicroPython
- C/C++
1. Note: GPIO 08 is not included in this count, as it passes through the WS2812 addressable RGB LED first. GPIO 07 and GPIO 23 are counted as a single GPIO because they are tied together.↩
2. Note: The GPIO pins are programmable so you can reconfigure the pins! Check out the RP2040 datasheet for more information on the GPIO functionality.↩
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Thing Plus - RP2040 Hookup Guide
- Software (SDK) Documentation:
- Online SDK Documentation
- Raspberry Pi Pico C/C++ SDK - A guide on the libraries and tools for C++ development on RP2040 microcontrollers
- Raspberry Pi Pico Python SDK - A guide on the MicroPython environment for RP2040 microcontrollers
- Hardware Component Information:
- Raspberry Pi RP2040 Datasheet
- 16MB Flash (W25Q128) Datasheet
- Low Dropout (LOD) Voltage Regulator (AP2112) Datasheet
- Linear Charge Management Controller (MCP73831) Datasheet
- RGB LED (WS2812C) Datasheet
- Fuel Gauge (MAX17048) Datasheet
- SparkFun Qwiic Connect System
- GitHub Hardware Repository
- Software Development Platforms for the RP2040:
- MicroPython
- Example code to accompany the Get Started with MicroPython on Raspberry Pi Pico book
- Pico C/C++ SDK
- Example codes
- Beta Libraries
- Example code for the beta libraries
- Tools and Resources:
- RP2040 Boot ROM - Souce code for the USB mass storage device emulation
- Picotool - Inspecting RP2040 binaries in BOOTSEL mode
- Debugging Probe Configuration
- OpenOCD Debugger
- pico-project-generator - GUI tool to automatically generate a Pico C/C++ SDK project
- UF2 Files- Just drag-and-drop onto your RP2040 board
- C/C++ Files:
- Blink binary
- Hello World binary
- MicroPython Files:
- MicroPython firmware (build date: 05-Feb-2021)
- Utility Files: microcontroller
- Debugging w/ picoprobe - Debugging with another RP2040 microcontroller
- Reset flash memory - Clears flash memory from board
