Description

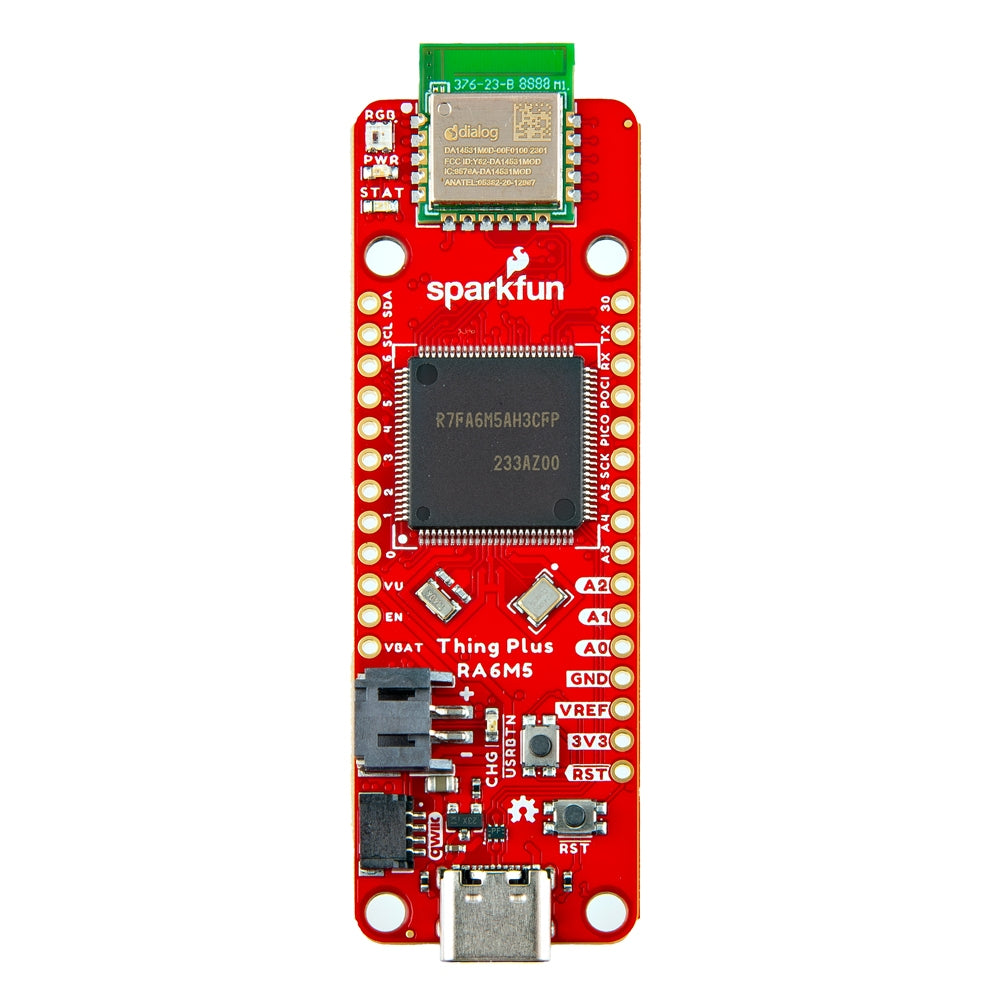

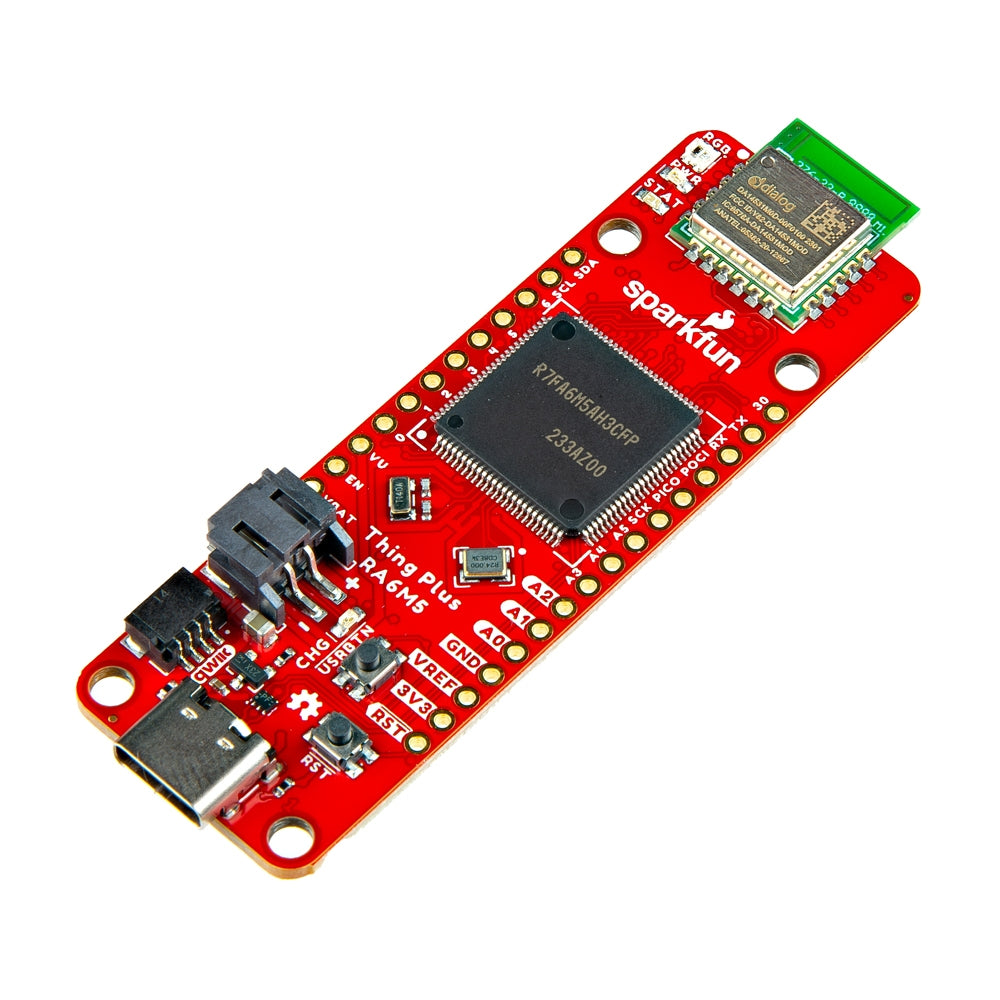

Clocking in at 200MHz, the SparkFun RA6M5 Thing+ is a high-performance development board perfect for real-time applications.
Features & Specs
SparkFun Thing Plus - RA6M5 Features
- Renesas RA6M5
- 21 Multifunctional GPIO Pins:
- Up to six 12-bit ADC channels
- Up to two 12-bit DAC outputs
- Up to two UARTs ports
- An available SPI Bus
- An available I2C Bus
- Renesas DA14531MOD
- Bluetooth® Low Energy (LE) Module
- Supports CodeLess™ AT command Datapump
- Thing Plus (or Feather) Form-Factor:

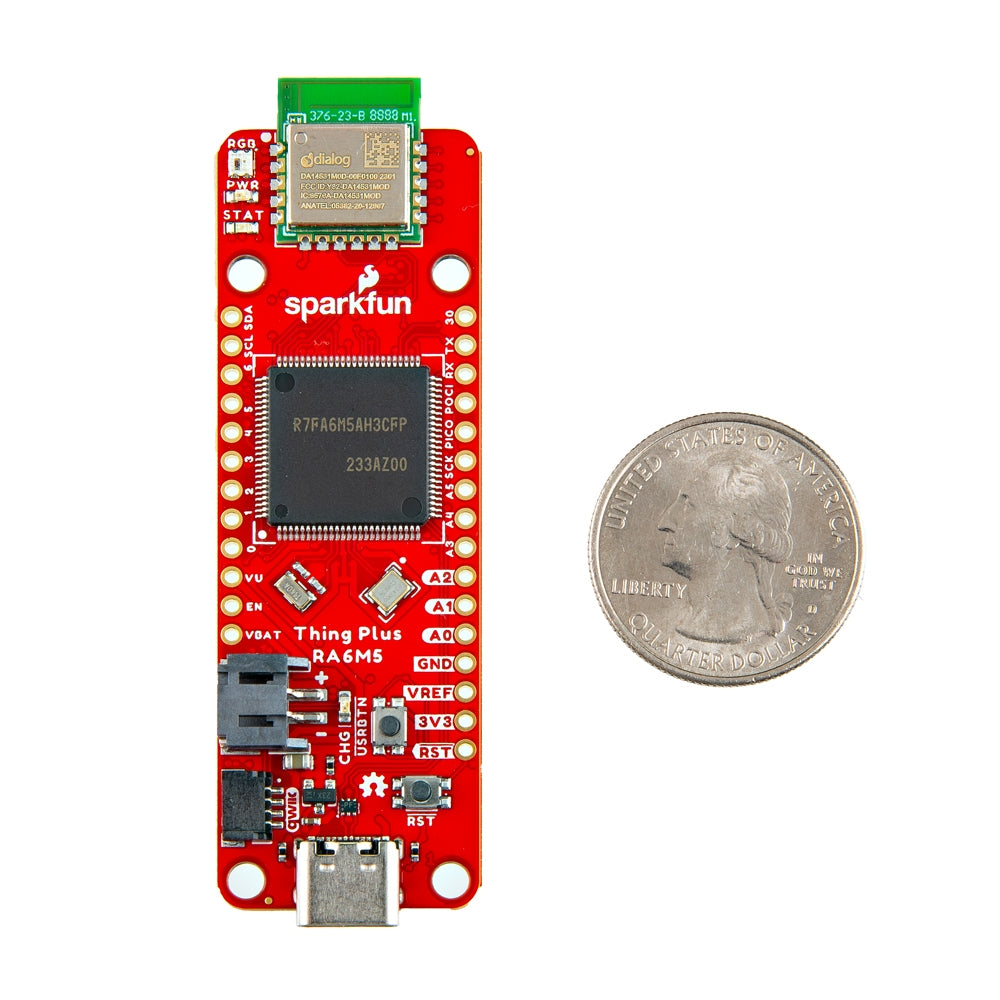

- Dimensions: 2.9" x 0.9"
- Four Mounting Holes:
- 4-40 screw compatible
- 28 PTH Pins
- USB-C Connector
- 2-pin JST Connector for a LiPo Battery (not included)
- 4-pin JST Qwiic Connector
- LiPo Charger:
- MC73831 Single-Cell LiPo Charger
- Charge rate: 213mA
- MAX17048 Single-Cell LiPo Fuel Gauge
- LEDs:
-
PWR- Red 3.3V power indicator -
CHG- Yellow battery charging indicator -
STAT- Blue status LED (D14) -
RGB- WS2812 RGB LED (D13) - Buttons:
-
USR(D31) RST- 2x JTAG/SWD PTH Pins
- 16 MB/128 Mbit QSPI Flash (MX25L12833F)
- µSD Card Slot
RA6M5 General Features:
- Arm® Cortex®-M33 Core
- Footprint: 100-pin LQFP
- Clock frequency: 200MHz
- Flash memory:
- 2MB (code)
- 8kB (data)
- SRAM: 512kB
- Error Correction Code (ECC) Support
- Arm Memory Protection Unit (Arm MPU)
- Secure Crypto Engine
- Two Watchdog Timers (WDT)
- Operating voltage: 3.0V to 3.6V
- Current Consumption:
- Maximum: 143mA
- Normal: 32mA
- Sleep: 11mA
- Deep Sleep: 0.9-131µA
- Operating modes:
- Single-chip
- SCI/USB boot
- 75 I/O Pins
- 5V Tolerant (x14)
- 12-bit ADC (x6)
- 12-bit DAC (x2)
- 32-bit PWM Channels (x4)
- 16-bit PWM Channels (x6)
- UART (x10)
- I2C Bus (x3)
- SPI Bus (x2)
- QSPI (x1)
- OSPI (x1)
- USB 2.0 (Full/High Speed)
- CAN Interface
- Ethernet MAC/DMA Controller
- SD/MMC Host Interface
- Serial Sound Interface Enhanced
- Consumer Electronics Control
- Realtime Clock (RTC) with calendar
- CRC Calculator
- Temperature Sensor
- Capacitive Touch Sensing
- Operating temperature: -40 to 85 °C
DA14531 General Features:
- Bluetooth 5.1 system-on-chip (SoC)
- Supports up to three connections
- 32-bit Arm® Cortex® M0+
- Clock frequency: 16 MHz
- Memory:
- Flash: 128 Kb
- RAM: 48 Kb
- ROM: 144 Kb
- OTP: 32 Kb
- Operating range (1.8 V - 3.6 V)
- Receive: 2mA
- Transmit: 4mA
- Sleep: 1.8 µA
- Radio
- Transmit Power: -19 to +2.2 dBm
- Receiver Sensitivity: -93 dBm
Features & Specs
SparkFun Thing Plus - RA6M5 Features
- Renesas RA6M5
- 21 Multifunctional GPIO Pins:
- Up to six 12-bit ADC channels
- Up to two 12-bit DAC outputs
- Up to two UARTs ports
- An available SPI Bus
- An available I2C Bus
- Renesas DA14531MOD
- Bluetooth® Low Energy (LE) Module
- Supports CodeLess™ AT command Datapump
- Thing Plus (or Feather) Form-Factor:
- Dimensions: 2.9" x 0.9"
- Four Mounting Holes:
- 4-40 screw compatible
- 28 PTH Pins
- USB-C Connector
- 2-pin JST Connector for a LiPo Battery (not included)
- 4-pin JST Qwiic Connector
- LiPo Charger:
- MC73831 Single-Cell LiPo Charger
- Charge rate: 213mA
- MAX17048 Single-Cell LiPo Fuel Gauge
- LEDs:
-
PWR- Red 3.3V power indicator -
CHG- Yellow battery charging indicator -
STAT- Blue status LED (D14) -
RGB- WS2812 RGB LED (D13) - Buttons:
-
USR(D31) RST- 2x JTAG/SWD PTH Pins
- 16 MB/128 Mbit QSPI Flash (MX25L12833F)
- µSD Card Slot
RA6M5 General Features:
- Arm® Cortex®-M33 Core
- Footprint: 100-pin LQFP
- Clock frequency: 200MHz
- Flash memory:
- 2MB (code)
- 8kB (data)
- SRAM: 512kB
- Error Correction Code (ECC) Support
- Arm Memory Protection Unit (Arm MPU)
- Secure Crypto Engine
- Two Watchdog Timers (WDT)
- Operating voltage: 3.0V to 3.6V
- Current Consumption:
- Maximum: 143mA
- Normal: 32mA
- Sleep: 11mA
- Deep Sleep: 0.9-131µA
- Operating modes:
- Single-chip
- SCI/USB boot
- 75 I/O Pins
- 5V Tolerant (x14)
- 12-bit ADC (x6)
- 12-bit DAC (x2)
- 32-bit PWM Channels (x4)
- 16-bit PWM Channels (x6)
- UART (x10)
- I2C Bus (x3)
- SPI Bus (x2)
- QSPI (x1)
- OSPI (x1)
- USB 2.0 (Full/High Speed)
- CAN Interface
- Ethernet MAC/DMA Controller
- SD/MMC Host Interface
- Serial Sound Interface Enhanced
- Consumer Electronics Control
- Realtime Clock (RTC) with calendar
- CRC Calculator
- Temperature Sensor
- Capacitive Touch Sensing
- Operating temperature: -40 to 85 °C
DA14531 General Features:
- Bluetooth 5.1 system-on-chip (SoC)
- Supports up to three connections
- 32-bit Arm® Cortex® M0+
- Clock frequency: 16 MHz
- Memory:
- Flash: 128 Kb
- RAM: 48 Kb
- ROM: 144 Kb
- OTP: 32 Kb
- Operating range (1.8 V - 3.6 V)
- Receive: 2mA
- Transmit: 4mA
- Sleep: 1.8 µA
- Radio
- Transmit Power: -19 to +2.2 dBm
- Receiver Sensitivity: -93 dBm
Documentation
- Renesas-Arduino Core (unofficial)
- Arduino Libraries:
- FastLED Arduino library
- SparkFun MAX1704x Fuel Gauge Arduino library
- CodeLess Arduino Library (unofficial)
- Datasheets:
- RT9080 Datasheet
- LM66200 Datasheet
- MCP73831 Datasheet
- MAX17048 Datasheet
- WS2812 Datasheet
- MX25L12833F Datasheet
- Renesas Components:
- RA6M5 Product Page
- Documentation
- RA6M5 Group Datasheet
- RA6M5 Group User Manual: Hardware
- Software and Tools
- DA14531MOD Product Page
- Documentation
- DA14531MOD Datasheet
- Software and Tools
- DA14531MOD AT Commands
- RenesasRulz Forum
- Thing Plus Comparison Guide
- Qwiic Information Page
- GitHub Hardware Repo
