| ₹ 5250.0 includes GST and import duties. | |
| B2B customers can avail ₹ 800.63 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

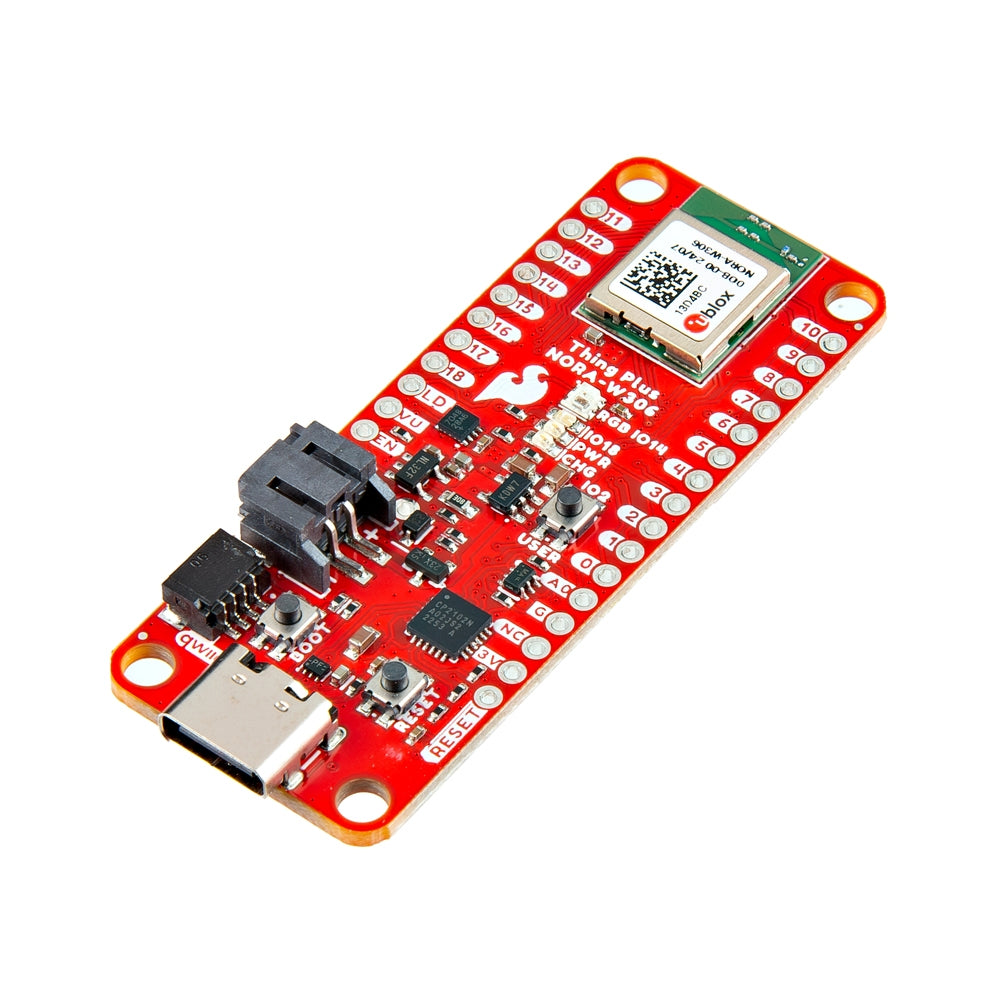

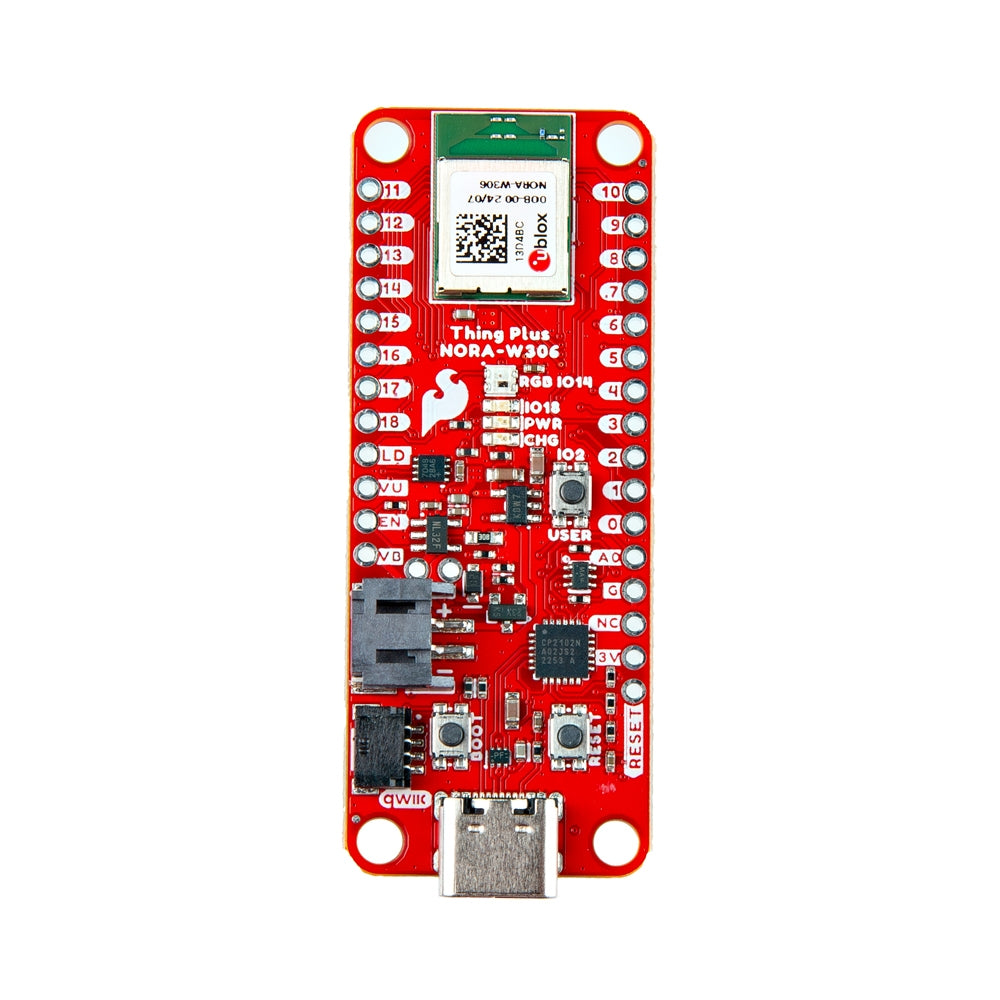

This SparkFun Thing Plus is a development board featuring the u-blox NORA-W306 module and a dual processor core with 2.4GHz / 5GHz WiFi and BLE.
Features & Specs
- u-blox NORA-W306 Module
- Dual-band Wi-Fi 4 (802.11a/b/g/n)
- 2.4GHz and 5GHz WiFi Frequency Bands
- WPA2/WPA3 Authentication
- Bluetooth® Low Energy V5.3
- 2.4GHz Frequency Band
- Bluetooth LE secure connection pairing
- Built-in PCB antenna
- Realtek RTL8720DF Dual Processor Core
- 200MHz Arm® Cortex®-M33 (Main Core)
- 20MHz Arm Cortex-M2 (Low Power Core)
- Arm TrustZone™ Hardware Encryption
- Cryptographic Hardware Accelerator Engine
- Secure Boot
- Secure Debug Interface
- Encrypted 4MB Flash
- 512kB RAM (Main Core)
- 64kB RAM (Low Power Core)
- Small Form Factor
- 14.3mm x 10.4mm x 1.9mm
- Thing Plus (or Feather) Form-Factor
- Breadboard-compatible 0.1" (2.54 mm) pitch headers

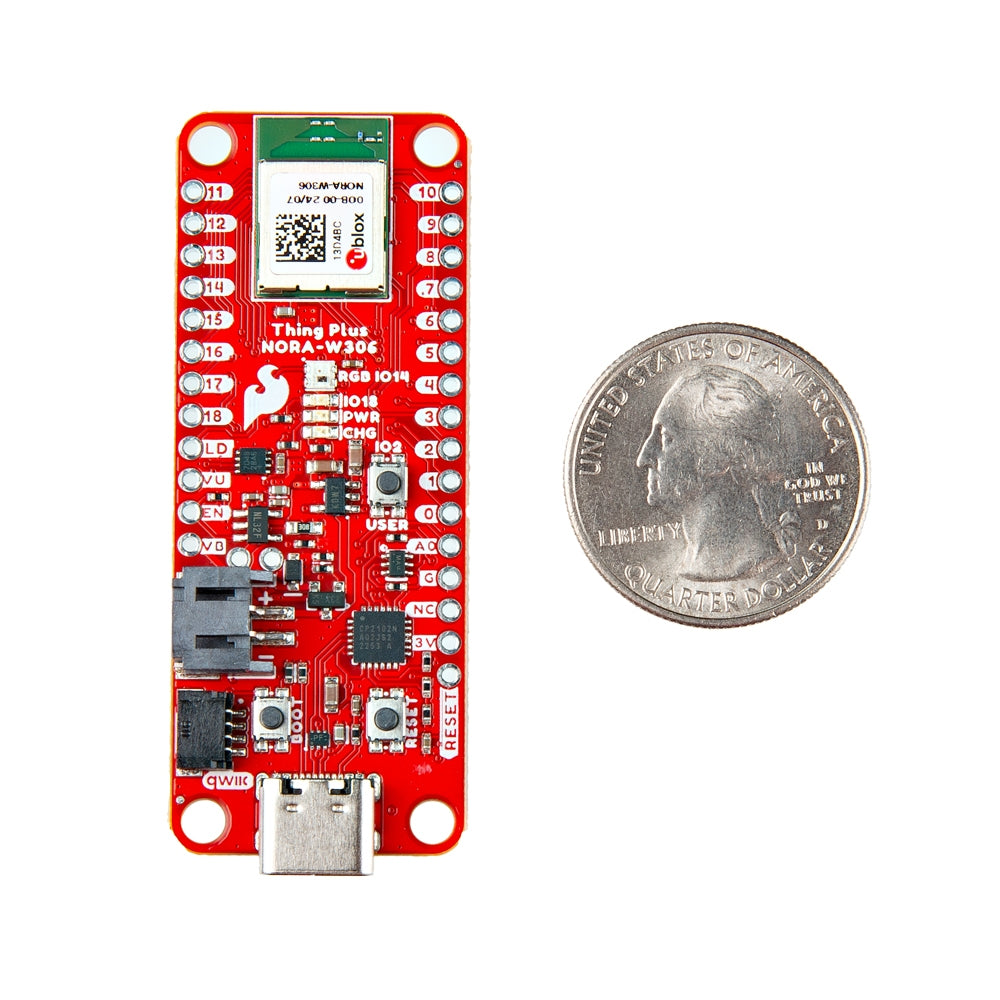

- Board Dimensions: 0.9" x 2.3" (22.86mm x 58.42mm)
- 20x Available GPIO
- Up to 20x Interrupts
- Up to 3x 12-bit ADC
- Up to 12x PWM
- Up to 2x UARTs
- Up to 2x SPI
- Up to 1x I2C
- Four Mounting Holes
- 4-40 screw compatible
- 30x PTHs
- 1x USB Type C Connector
- 1x 2-pin JST-style Connector for a LiPo Battery (not included)
- 1x 2x5 SWD Programming Port Footprint
- 1x MicroSD Card Socket
- 1x 4-pin Qwiic Connector
- ESD Protected USB Data Pins
- CP210X USB-to-Serial Converter
- Automatically depowered when USB-C is not connected (Ideal for low-power battery powered applications).
- XC6222 3.3V/700mA Voltage Regulator
- MCP73831 Single Cell, LiPo Charge IC
- Charge Rate Set to 500mA (default)

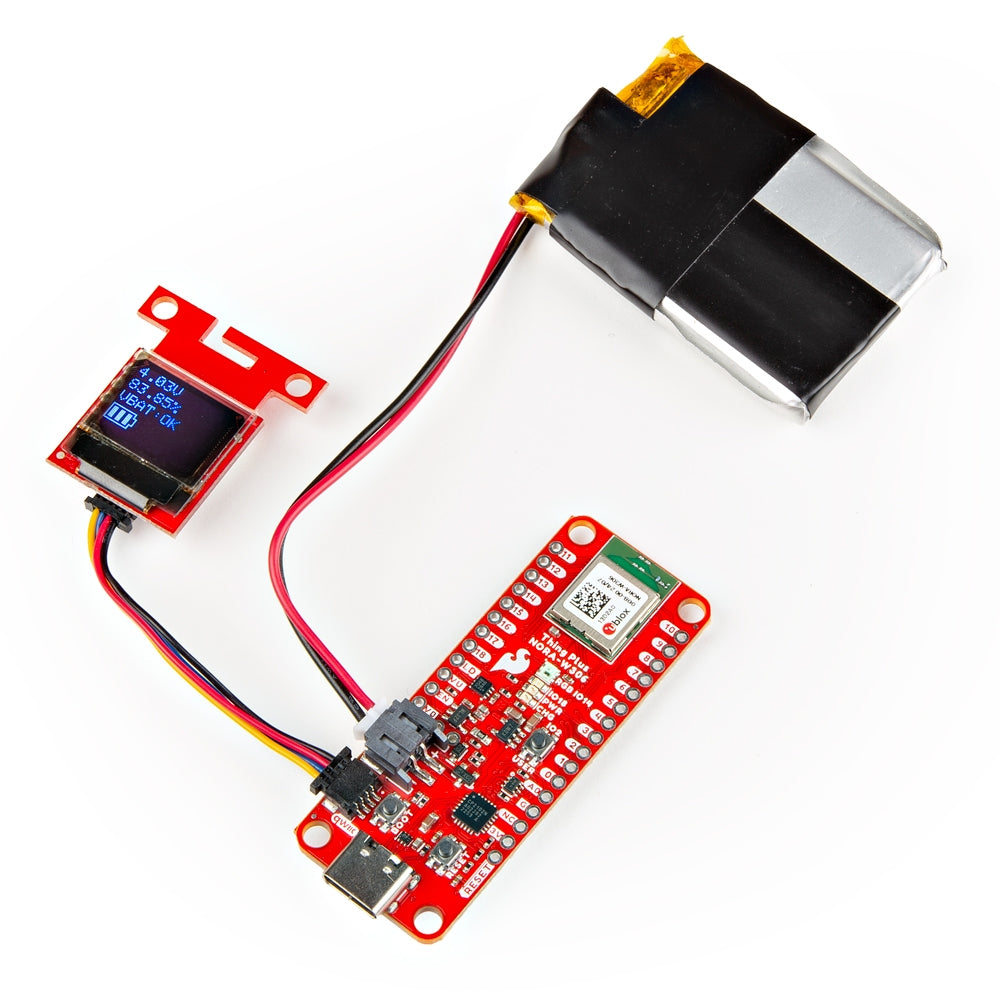

- MAX17048 Single Cell LiPo Fuel Gauge
- 2.2kΩ I2C Pull-Up Resistors
- Buttons
- Boot (
BOOT) - Reset (
RESET) - User (
USR IO2) - LEDs
- 3.3V Power (
PWR) - Charger (
CHG) - Status (
IO18) - RGB Addressable WS2812-2020 (
RGB IO14) - Jumpers
- Measurement
- Power LED
- Charge LED
- Status LED
- 3.3V RGB Addressable LED WS2812-2020
- Data In RGB Addressable LED WS2812-2020
- microSD Card Power Control
- LiPo Charge Rate (500mA/100mA)
- USB Shielding
- I2C Pull-Up Resistors
- Weight: 6.60g
Features & Specs
- u-blox NORA-W306 Module
- Dual-band Wi-Fi 4 (802.11a/b/g/n)
- 2.4GHz and 5GHz WiFi Frequency Bands
- WPA2/WPA3 Authentication
- Bluetooth® Low Energy V5.3
- 2.4GHz Frequency Band
- Bluetooth LE secure connection pairing
- Built-in PCB antenna
- Realtek RTL8720DF Dual Processor Core
- 200MHz Arm® Cortex®-M33 (Main Core)
- 20MHz Arm Cortex-M2 (Low Power Core)
- Arm TrustZone™ Hardware Encryption
- Cryptographic Hardware Accelerator Engine
- Secure Boot
- Secure Debug Interface
- Encrypted 4MB Flash
- 512kB RAM (Main Core)
- 64kB RAM (Low Power Core)
- Small Form Factor
- 14.3mm x 10.4mm x 1.9mm
- Thing Plus (or Feather) Form-Factor
- Breadboard-compatible 0.1" (2.54 mm) pitch headers
- Board Dimensions: 0.9" x 2.3" (22.86mm x 58.42mm)
- 20x Available GPIO
- Up to 20x Interrupts
- Up to 3x 12-bit ADC
- Up to 12x PWM
- Up to 2x UARTs
- Up to 2x SPI
- Up to 1x I2C
- Four Mounting Holes
- 4-40 screw compatible
- 30x PTHs
- 1x USB Type C Connector
- 1x 2-pin JST-style Connector for a LiPo Battery (not included)
- 1x 2x5 SWD Programming Port Footprint
- 1x MicroSD Card Socket
- 1x 4-pin Qwiic Connector
- ESD Protected USB Data Pins
- CP210X USB-to-Serial Converter
- Automatically depowered when USB-C is not connected (Ideal for low-power battery powered applications).
- XC6222 3.3V/700mA Voltage Regulator
- MCP73831 Single Cell, LiPo Charge IC
- Charge Rate Set to 500mA (default)
- MAX17048 Single Cell LiPo Fuel Gauge
- 2.2kΩ I2C Pull-Up Resistors
- Buttons
- Boot (
BOOT) - Reset (
RESET) - User (
USR IO2) - LEDs
- 3.3V Power (
PWR) - Charger (
CHG) - Status (
IO18) - RGB Addressable WS2812-2020 (
RGB IO14) - Jumpers
- Measurement
- Power LED
- Charge LED
- Status LED
- 3.3V RGB Addressable LED WS2812-2020
- Data In RGB Addressable LED WS2812-2020
- microSD Card Power Control
- LiPo Charge Rate (500mA/100mA)
- USB Shielding
- I2C Pull-Up Resistors
- Weight: 6.60g
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Component Datasheet
- u-blox NORA-W306
- Product Summary
- Datasheet
- Integration Manual
- XC6222 3.3V/700mA Voltage Regulator
- MCP73831 LiPo Charger
- MAX17048 LiPo Fuel Gauge
- WS2812C-2020 RGB Addressable LED
- Graphical Datasheet
- Fritzing Part
- Qwiic Info Page
- Compare Thing Plus Boards
- CP2102 Drivers
- Realtek: Arduino Board Support Files
- Arduino Libraries
- MAX17048
- SdFat
- GitHub Hardware Repo
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5145.0 |
| 3-5 | ₹ 5092.5 |
| 5-10 | ₹ 4987.5 |
| 10+ | ₹ 4882.5 |
Bulk discount will be automatically applied during checkout based on quantity.
