Description

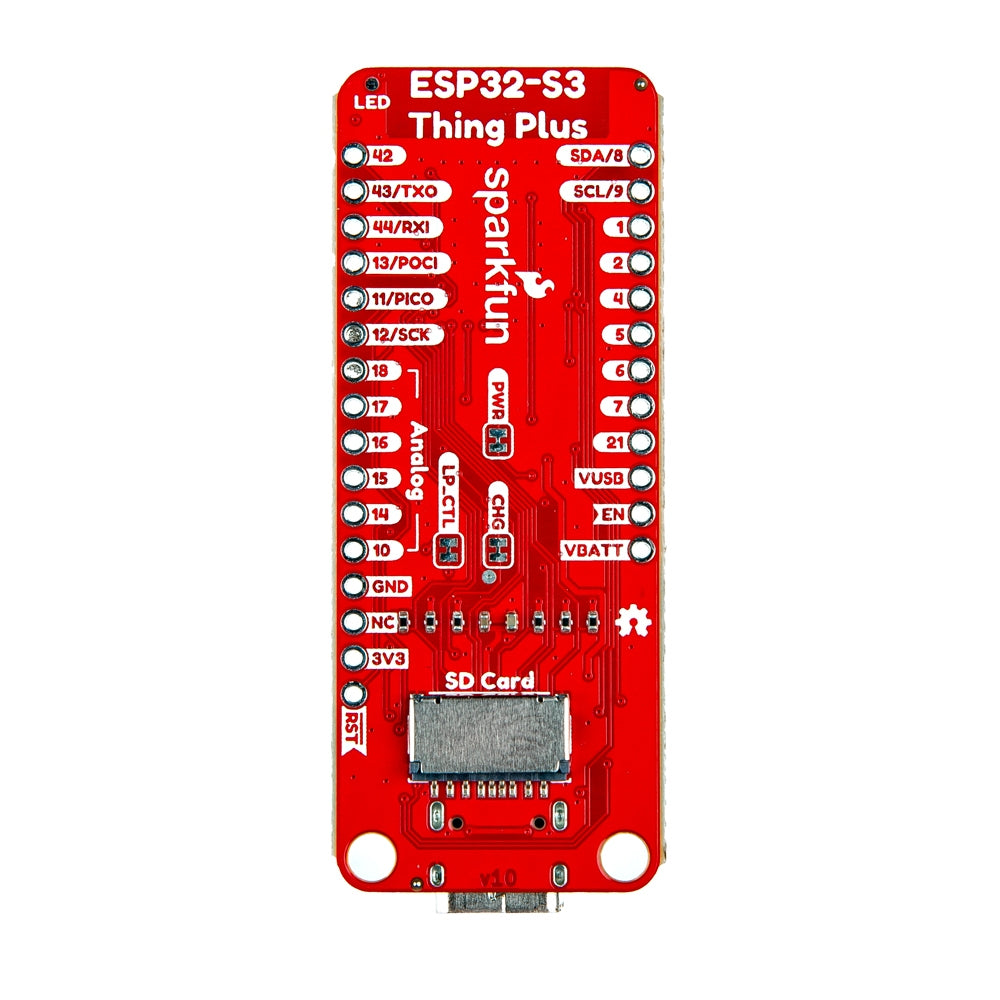

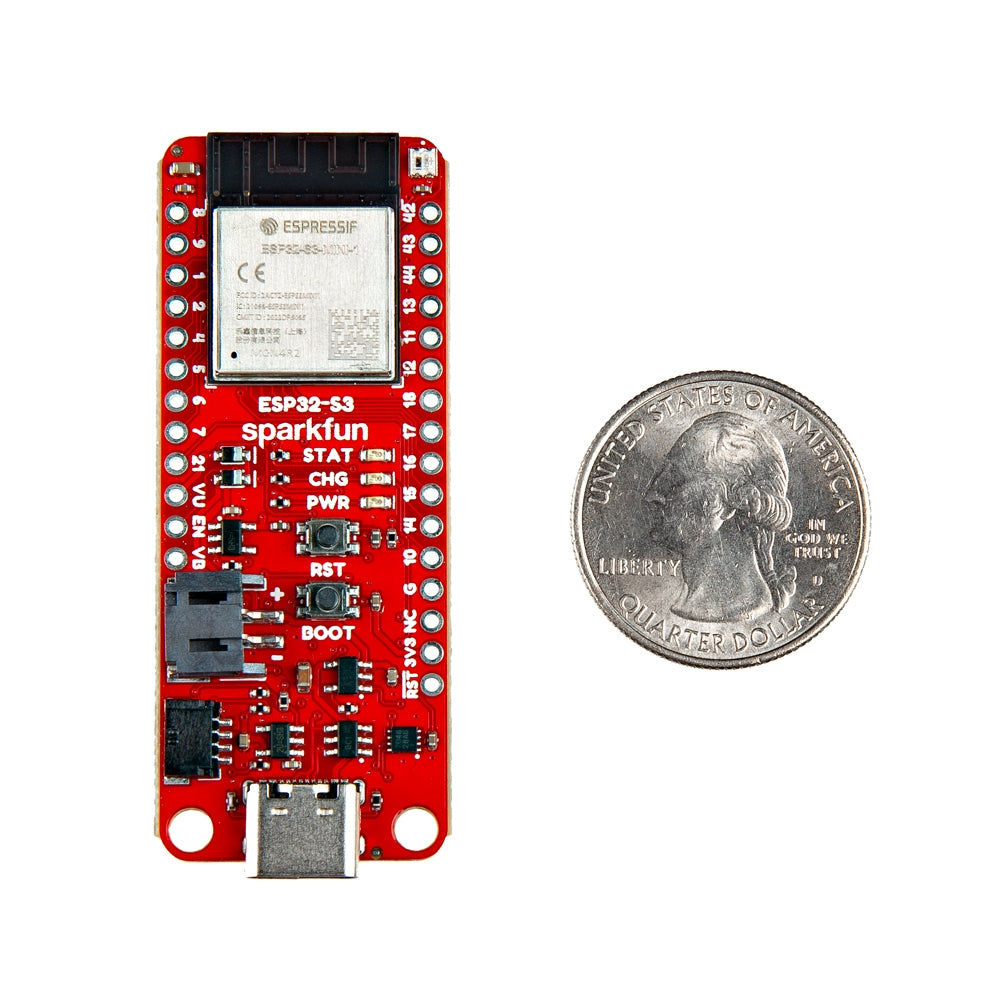

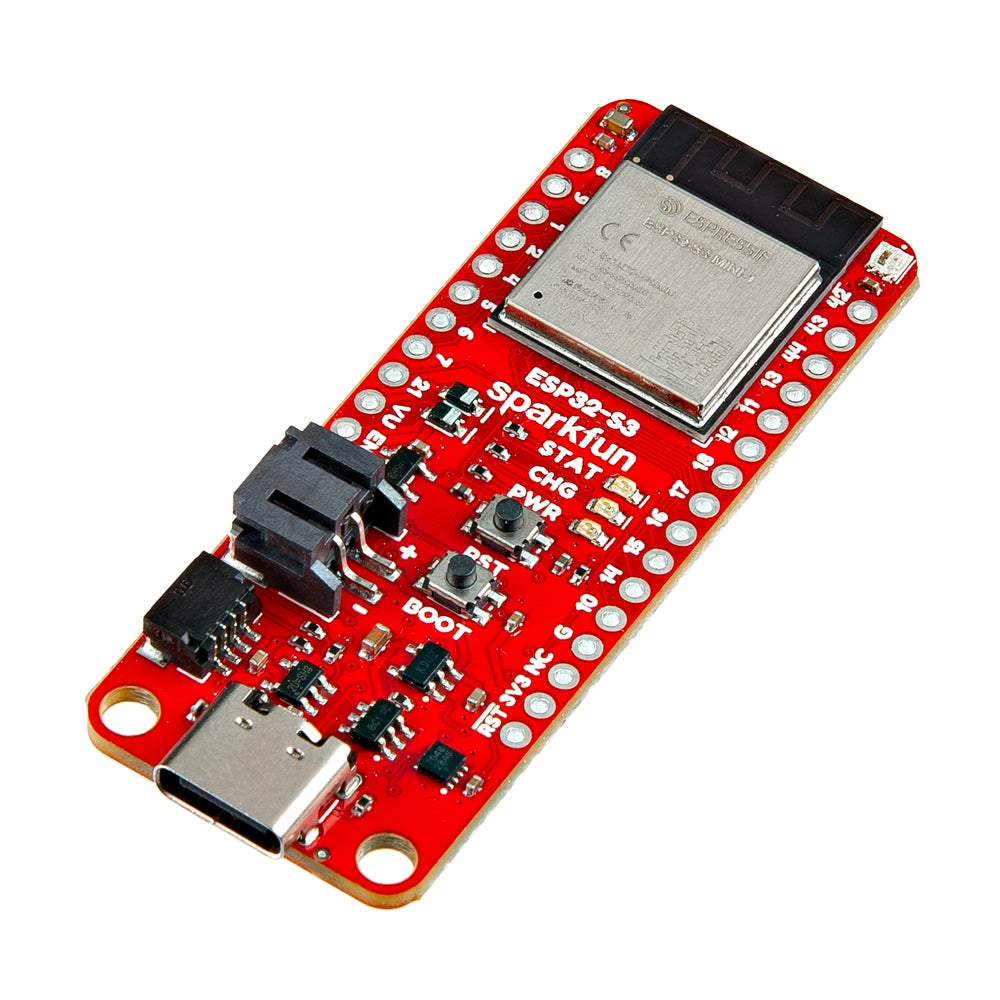

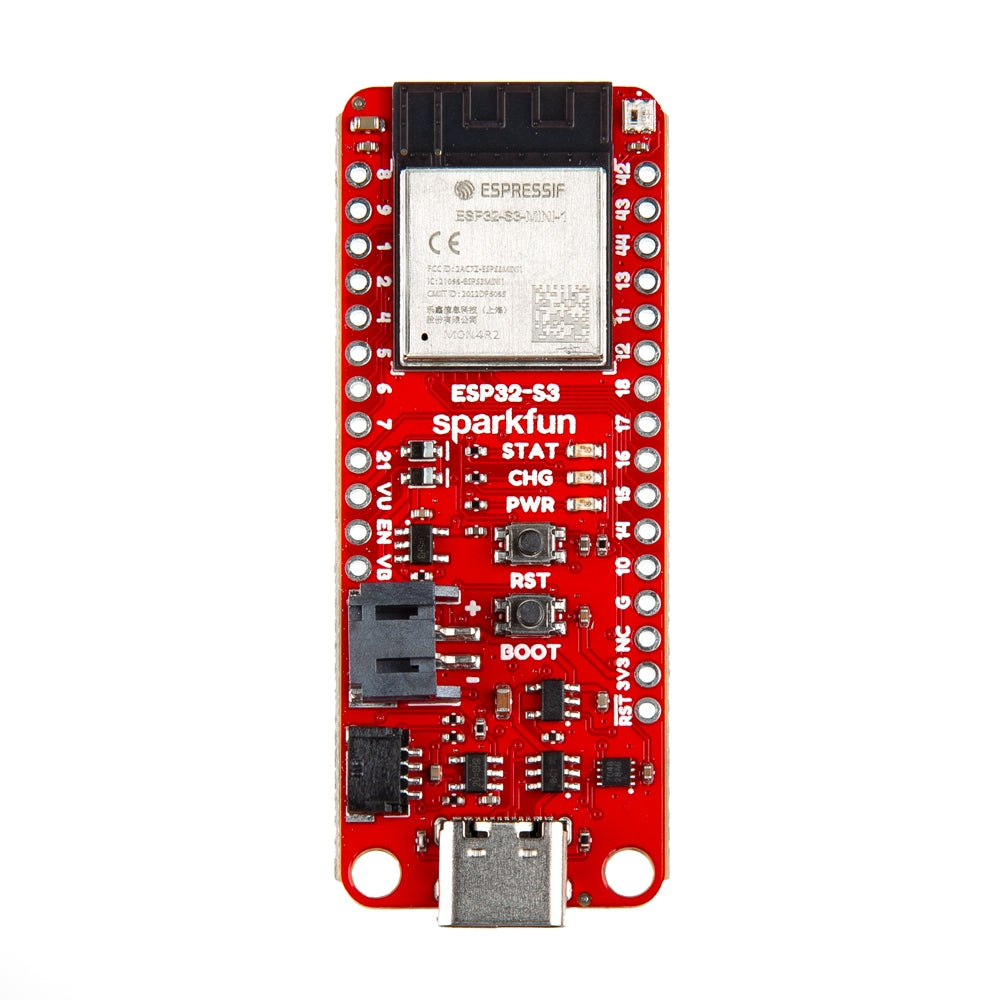

The board we rely on for demanding IoT projects with the ESP32-S3, this Feather-compatible board features a 240MHz dual-core processor, 2MB PSRAM, WiFi, and Bluetooth 5 LE.
Features & Specs
- ESP32-S3 Mini Module
- Dual-Core Xtensa® 32-bit LX7 Processor
- 45 Programmable GPIO (21 pins broken out on Thing Plus, 17 analog input capable)
- Up to 3 UART Channels
- 1 Full-Speed USB OTG
- 1 USB Serial/JTAG Controller
- Up to 4 SPI
- Up to 2 I2C
- Up to 2 I2S
- 1 LCD Interface
- Up to 8 LED PWM Controller Channels
- 1 TWAI® Controller (Compatible with ISO 11898-1 CAN Spec. 2.0)
- 4MB Flash
- 2MB PSRAM
- 2.4GHz WiFi 6
- Bluetooth® 5 LE
- PCB Antenna
- Thing Plus Form-Factor:
- Dimensions: 2.55" x 0.9"
- Two Mounting Holes
- 28 PTH pins
- USB-C Connector
- 2-pin JST Connector for LiPo Battery (not included)

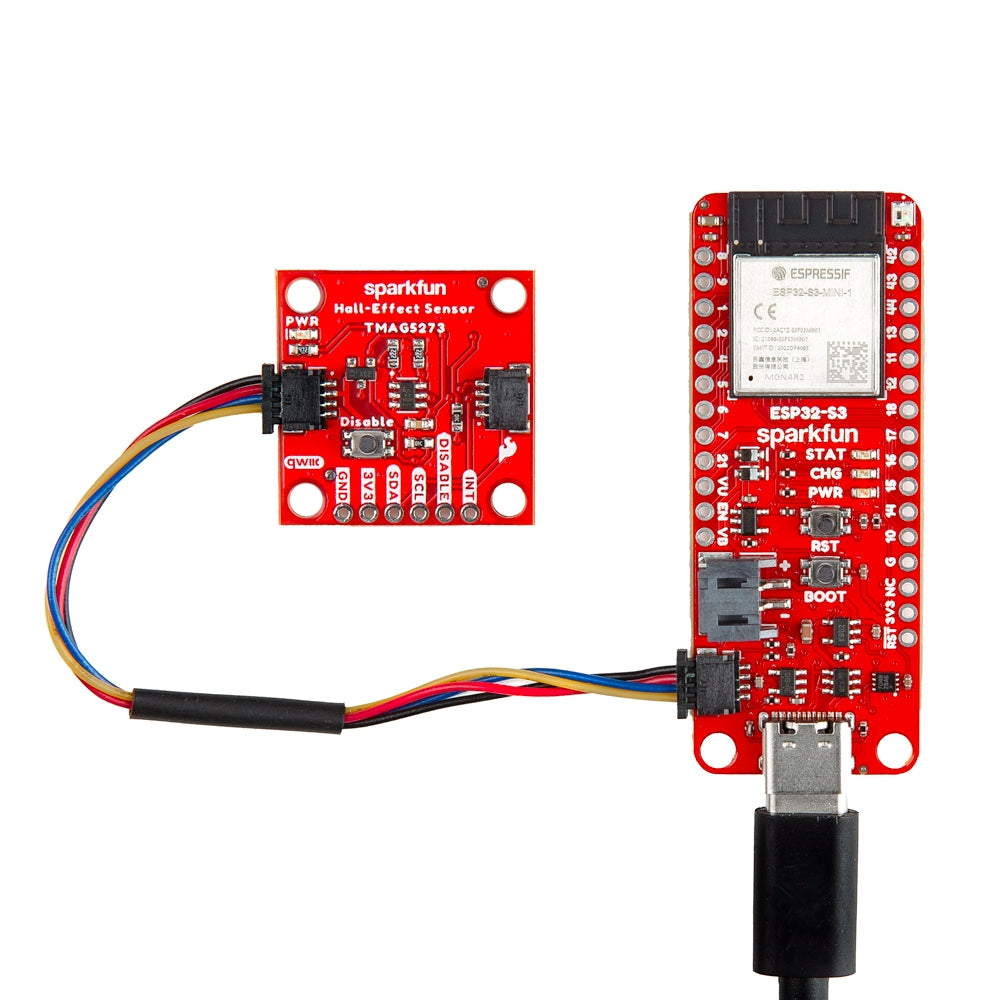

- 4-pin Qwiic Connector
- µSD Card Slot
- MCP73831 Battery Charger
- Charge Rate: 213mA@3.3V
- MAX17048 Fuel Gauge
- I2C Address: 0x36

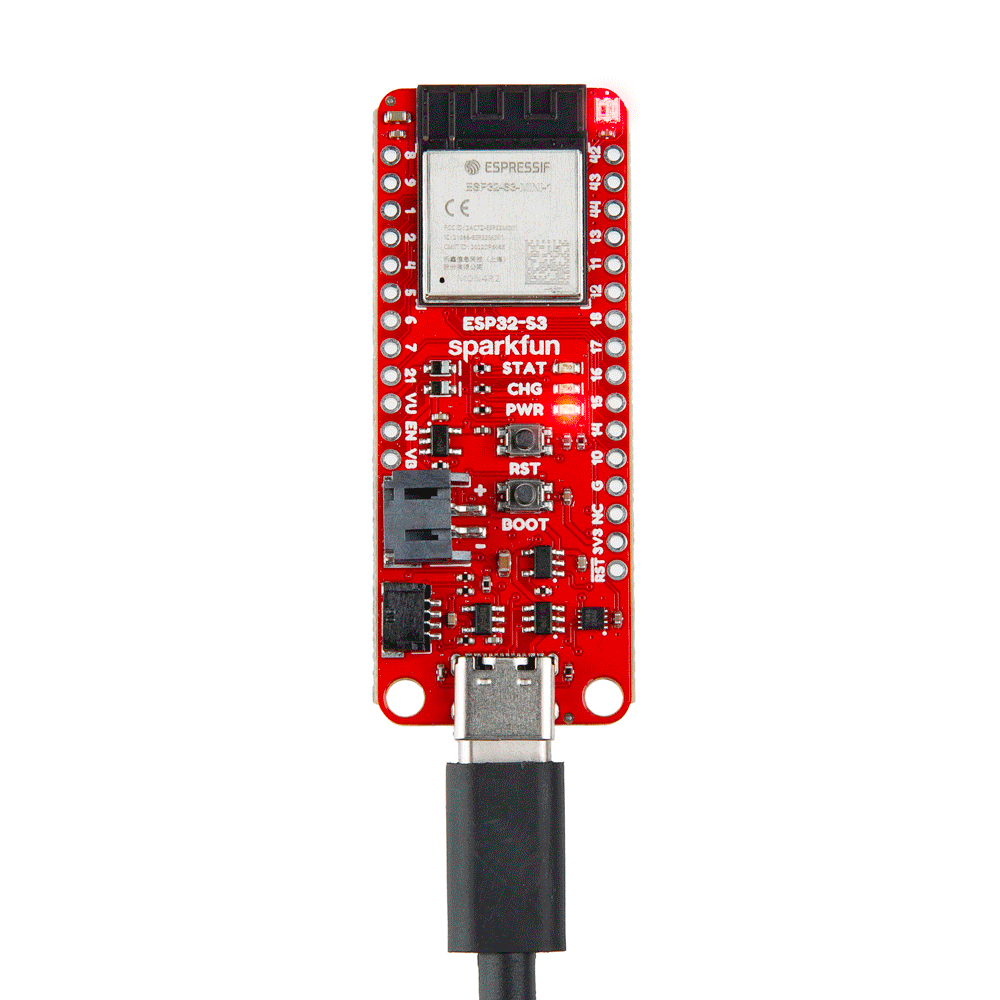

- LEDs:
-
PWR- Red Power LED -
CHG- Yellow Battery Charging Indicator -
STAT- Blue LED -
WS2812- RGB LED (Data In tied to ESP46)
-
- Buttons:
BOOTRESET
Features & Specs
- ESP32-S3 Mini Module
- Dual-Core Xtensa® 32-bit LX7 Processor
- 45 Programmable GPIO (21 pins broken out on Thing Plus, 17 analog input capable)
- Up to 3 UART Channels
- 1 Full-Speed USB OTG
- 1 USB Serial/JTAG Controller
- Up to 4 SPI
- Up to 2 I2C
- Up to 2 I2S
- 1 LCD Interface
- Up to 8 LED PWM Controller Channels
- 1 TWAI® Controller (Compatible with ISO 11898-1 CAN Spec. 2.0)
- 4MB Flash
- 2MB PSRAM
- 2.4GHz WiFi 6
- Bluetooth® 5 LE
- PCB Antenna
- Thing Plus Form-Factor:
- Dimensions: 2.55" x 0.9"
- Two Mounting Holes
- 28 PTH pins
- USB-C Connector
- 2-pin JST Connector for LiPo Battery (not included)
- 4-pin Qwiic Connector
- µSD Card Slot
- MCP73831 Battery Charger
- Charge Rate: 213mA@3.3V
- MAX17048 Fuel Gauge
- I2C Address: 0x36
- LEDs:
-
PWR- Red Power LED -
CHG- Yellow Battery Charging Indicator -
STAT- Blue LED -
WS2812- RGB LED (Data In tied to ESP46)
-
- Buttons:
BOOTRESET
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- Hookup Guide
- Datasheet (ESP32-S3 MINI-1)
- Thing Plus Info Page
- Qwiic Info Page
- GitHub Hardware Repo
