Description

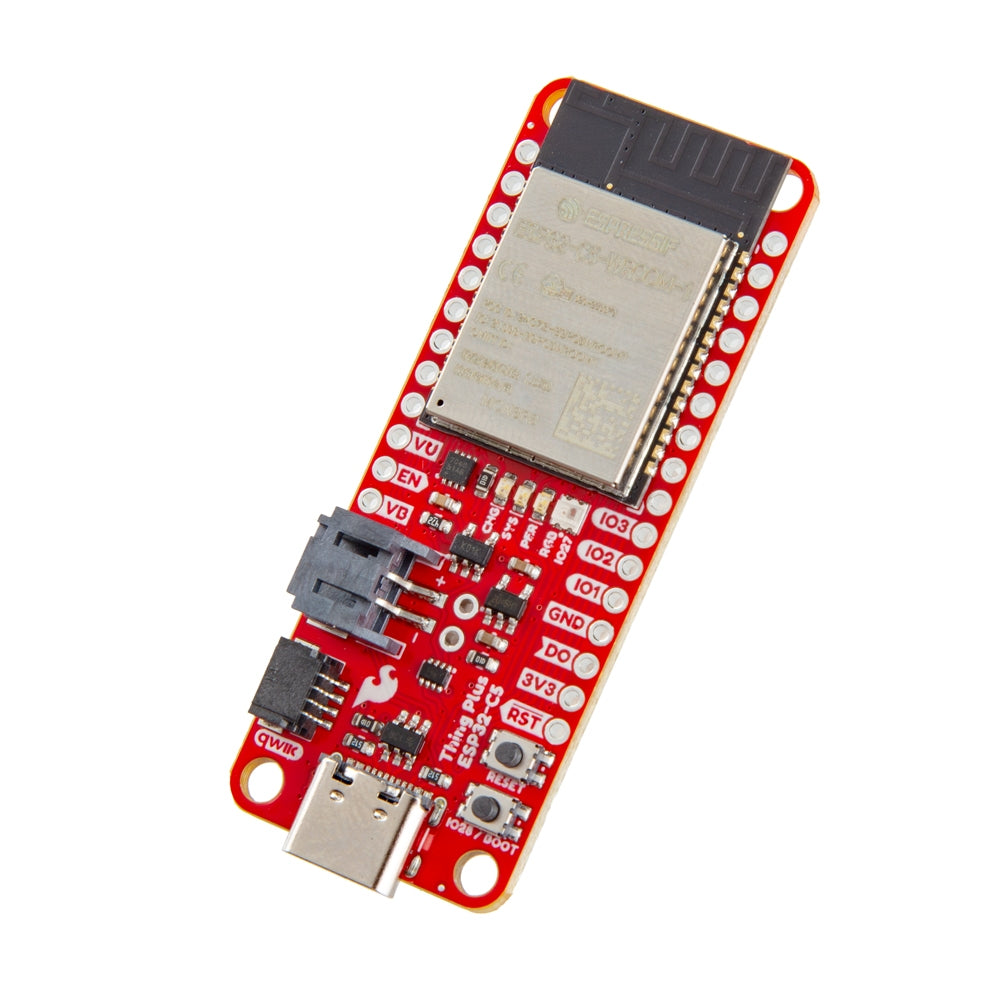

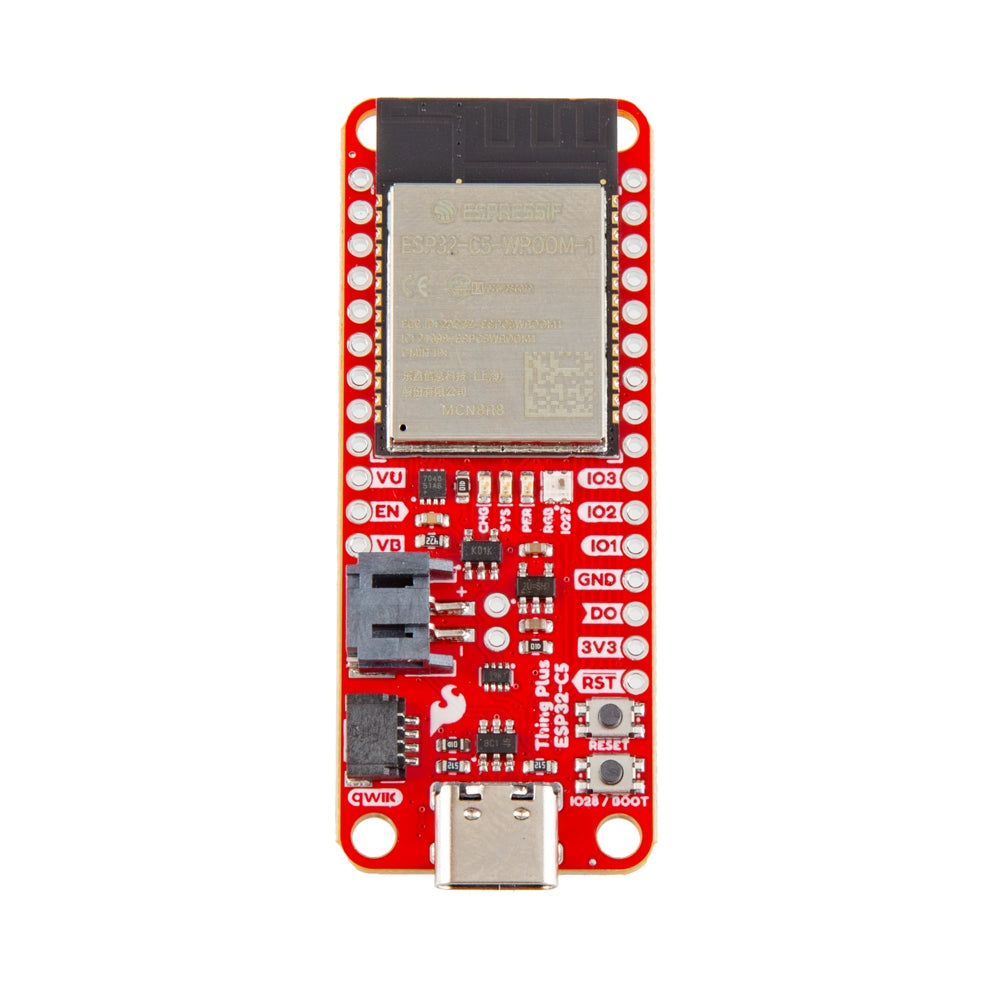

Break into the 5GHz spectrum with this Feather-compatible board featuring the ESP32-C5 with Dual-Band WiFi 6, Bluetooth 5, 8MB Flash, and 8MB PSRAM.
Features & Specs
- ESP32-C5-WROOM-1 Module
- 32-bit RISC-V Single-Core Microprocessor
- 2.4 and 5GHz Dual Band WiFi
- Bluetooth® 5
- Zigbee
- Thread (802.15.4)
- 8MB Flash
- 8MB PSRAM
- 19 GPIOs
- Thing Plus Form-Factor:

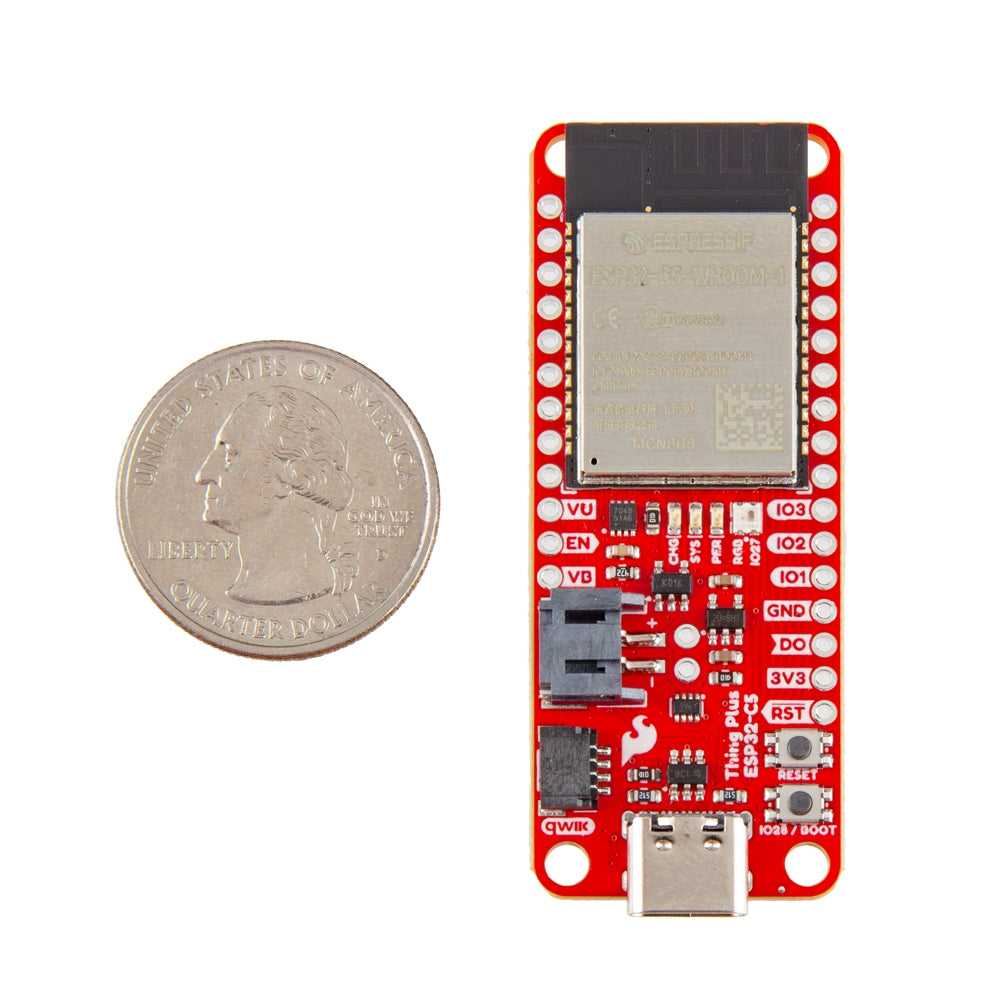

- Dimensions: 2.3" x 0.9" (not including USB-C connector stickout)
- Four Mounting Holes

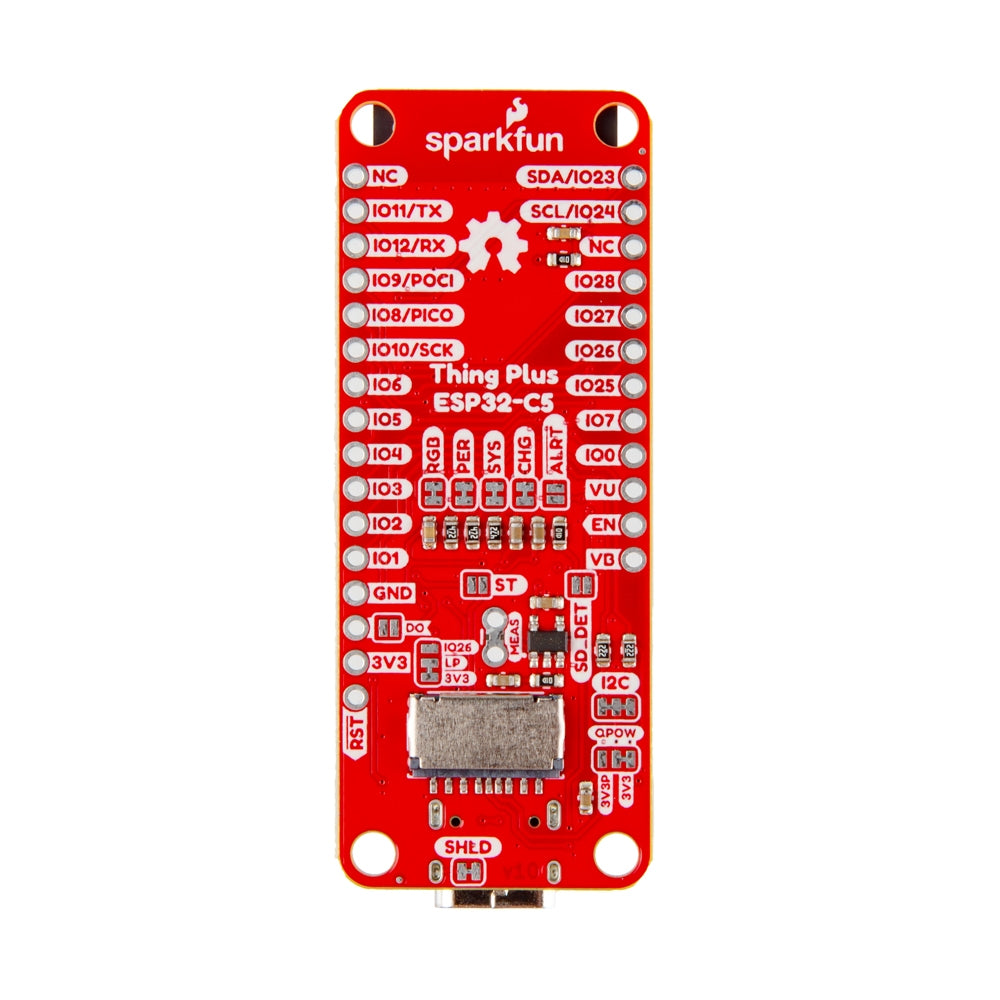

- 28 PTH pins (2 No Connect)
- USB-C Connector
- 2-pin JST Connector for LiPo Battery (not included)
- 4-pin Qwiic Connector
- µSD Card Slot
- MCP73831 Battery Charger
- Charge Rate: 213mA@3.3V
- MAX17048 Fuel Gauge
- I2C Address: 0x36
- LEDs
- Red Power LEDs
- System and Peripheral
- WS2812 RGB LED
- Data In connected to IO27
- Yellow LiPo Charge LED
- Red Power LEDs
Features & Specs
- ESP32-C5-WROOM-1 Module
- 32-bit RISC-V Single-Core Microprocessor
- 2.4 and 5GHz Dual Band WiFi
- Bluetooth® 5
- Zigbee
- Thread (802.15.4)
- 8MB Flash
- 8MB PSRAM
- 19 GPIOs
- Thing Plus Form-Factor:
- Dimensions: 2.3" x 0.9" (not including USB-C connector stickout)
- Four Mounting Holes
- 28 PTH pins (2 No Connect)
- USB-C Connector
- 2-pin JST Connector for LiPo Battery (not included)
- 4-pin Qwiic Connector
- µSD Card Slot
- MCP73831 Battery Charger
- Charge Rate: 213mA@3.3V
- MAX17048 Fuel Gauge
- I2C Address: 0x36
- LEDs
- Red Power LEDs
- System and Peripheral
- WS2812 RGB LED
- Data In connected to IO27
- Yellow LiPo Charge LED
- Red Power LEDs
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- Hookup Guide
- Datasheet (ESP32-C5-WROOM-1)
- Technical Reference Manual (ESP32-C5)
- GitHub Repository
