Description
Measure visible and near-infrared in any light with exceptional sensitivity across its entire sensing spectrum (~380nm to 1000nm).
Features & Specs
AS7343 Spectral Sensor Features
- 14-Channel Multi-Spectral Sensor
- Wavelength Range: ~380nm - 1000nm
- Measures both Visible Spectrum and Near-Infrared
- 11 Channels on the Visible Spectrum
- 1 Channel on Near-Infrared
- 1 "Clear" Channel for entire Visible Spectrum
- Flicker Detection
- High Sensitivity
- Operates in low-light or behind dark glass/other external filters
- Integrated LED Driver
- 1 GPIO for measurement/LED synchronizing (Defaults as Output)
- 1.8V Supply Voltage
- Ultra-Low Power Consumption (Sensor Only)
- Active: 210µA (Typ.) - 280µA (Max.)
- Idle: 40µA (Typ.) - 60µA (Max.)
- Sleep: 0.7µA (Typ.) - 5µA (Max.)

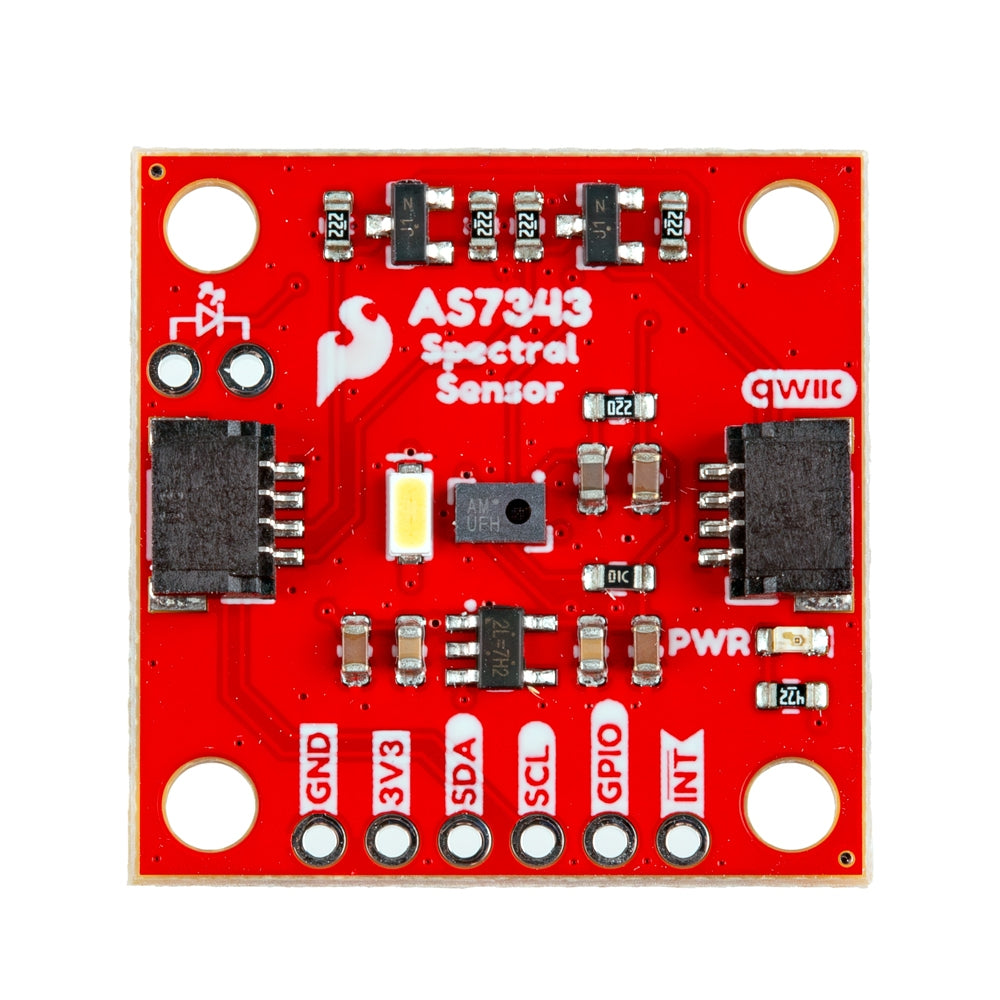

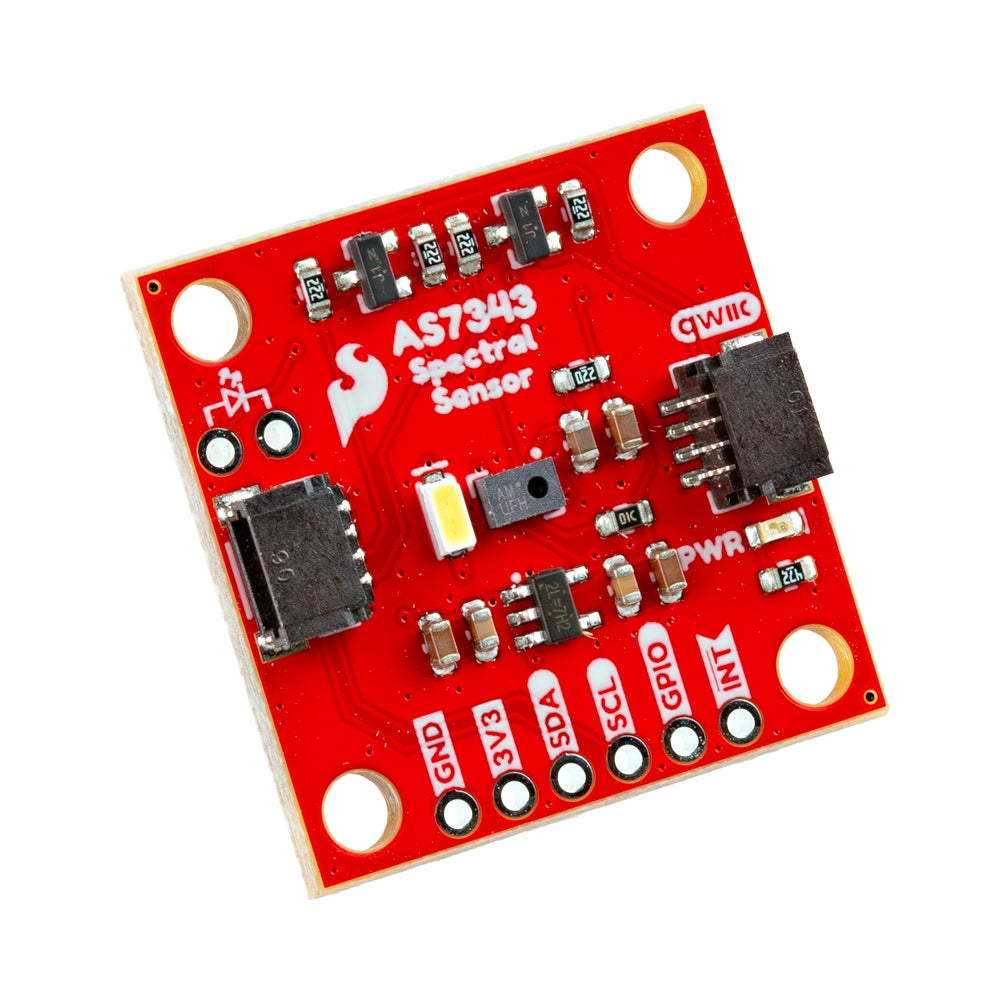

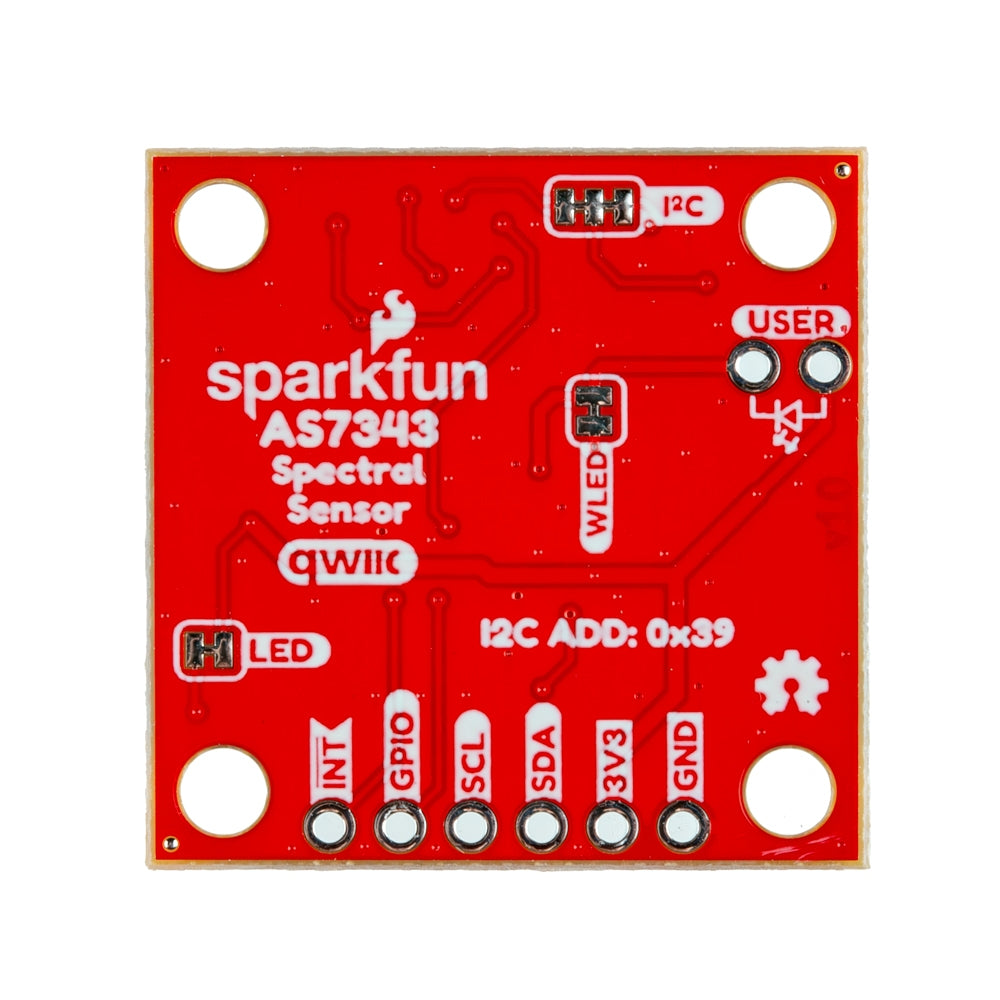

Spectral Sensor Breakout Features
- 2x Qwiic Connectors
- 0.1"-Spaced PTHs
- SDA/SCL
- INT (Active Low)
- GPIO
- 3.3V
- GND
- LEDs
- Power (Red)
- White (Sensing)
- PTHs for User-Populated Sensing LED (Optional)
- 1.8V Voltage Regulator
- Power Consumption (Average)
- Active: 697µA@3.3V
- Idle: 264µA@3.3V
- Sleep: 3µA@3.3V
Features & Specs
AS7343 Spectral Sensor Features
- 14-Channel Multi-Spectral Sensor
- Wavelength Range: ~380nm - 1000nm
- Measures both Visible Spectrum and Near-Infrared
- 11 Channels on the Visible Spectrum
- 1 Channel on Near-Infrared
- 1 "Clear" Channel for entire Visible Spectrum
- Flicker Detection
- High Sensitivity
- Operates in low-light or behind dark glass/other external filters
- Integrated LED Driver
- 1 GPIO for measurement/LED synchronizing (Defaults as Output)
- 1.8V Supply Voltage
- Ultra-Low Power Consumption (Sensor Only)
- Active: 210µA (Typ.) - 280µA (Max.)
- Idle: 40µA (Typ.) - 60µA (Max.)
- Sleep: 0.7µA (Typ.) - 5µA (Max.)
Spectral Sensor Breakout Features
- 2x Qwiic Connectors
- 0.1"-Spaced PTHs
- SDA/SCL
- INT (Active Low)
- GPIO
- 3.3V
- GND
- LEDs
- Power (Red)
- White (Sensing)
- PTHs for User-Populated Sensing LED (Optional)
- 1.8V Voltage Regulator
- Power Consumption (Average)
- Active: 697µA@3.3V
- Idle: 264µA@3.3V
- Sleep: 3µA@3.3V
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- Datasheet (AS7343)
- Hookup Guide
- SparkFun AS7343 Arduino Library
- SparkFun AS7343 Python Package
- GitHub Repository
