Description

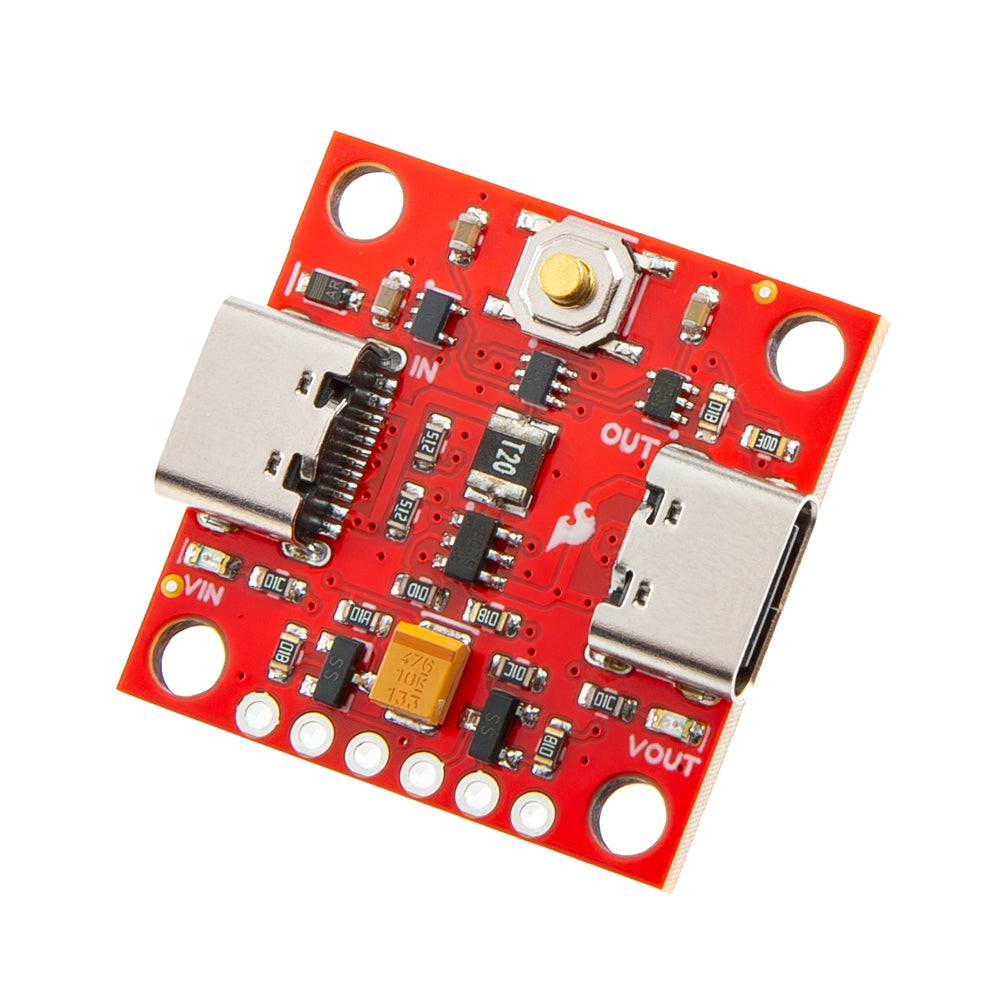

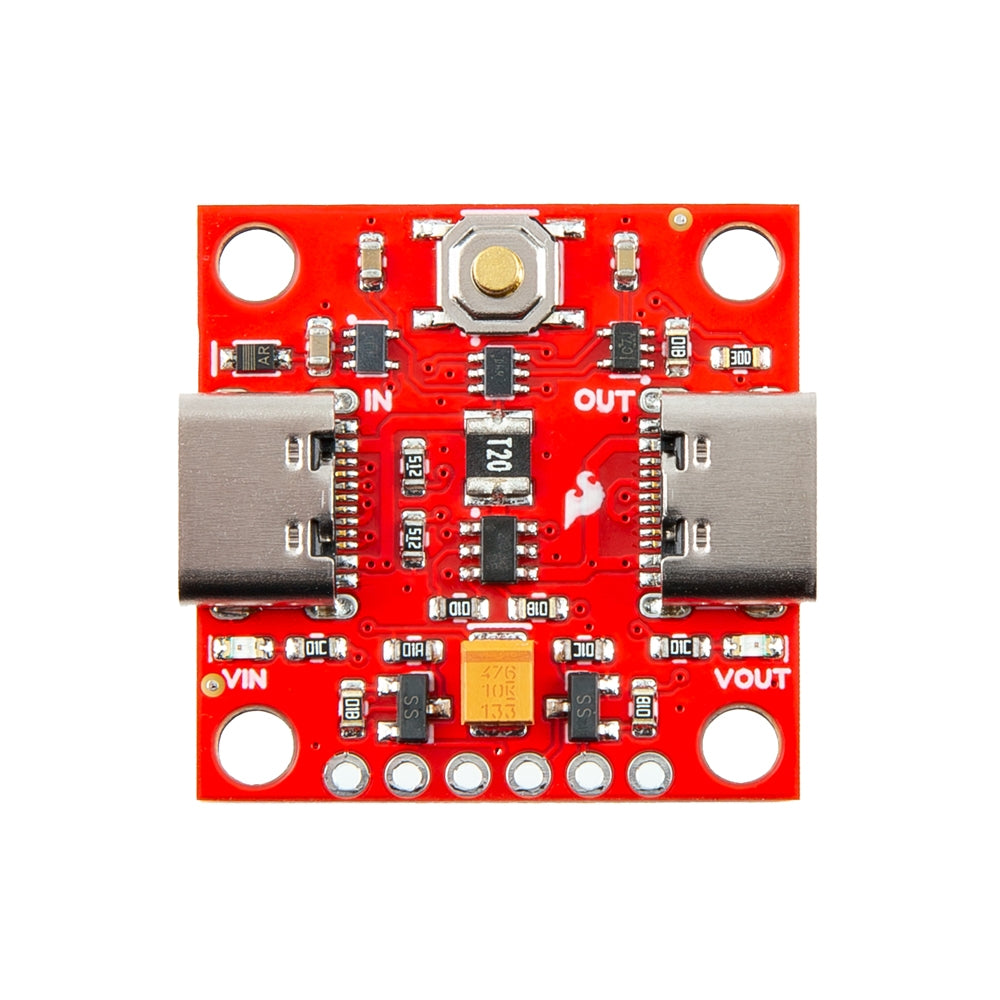

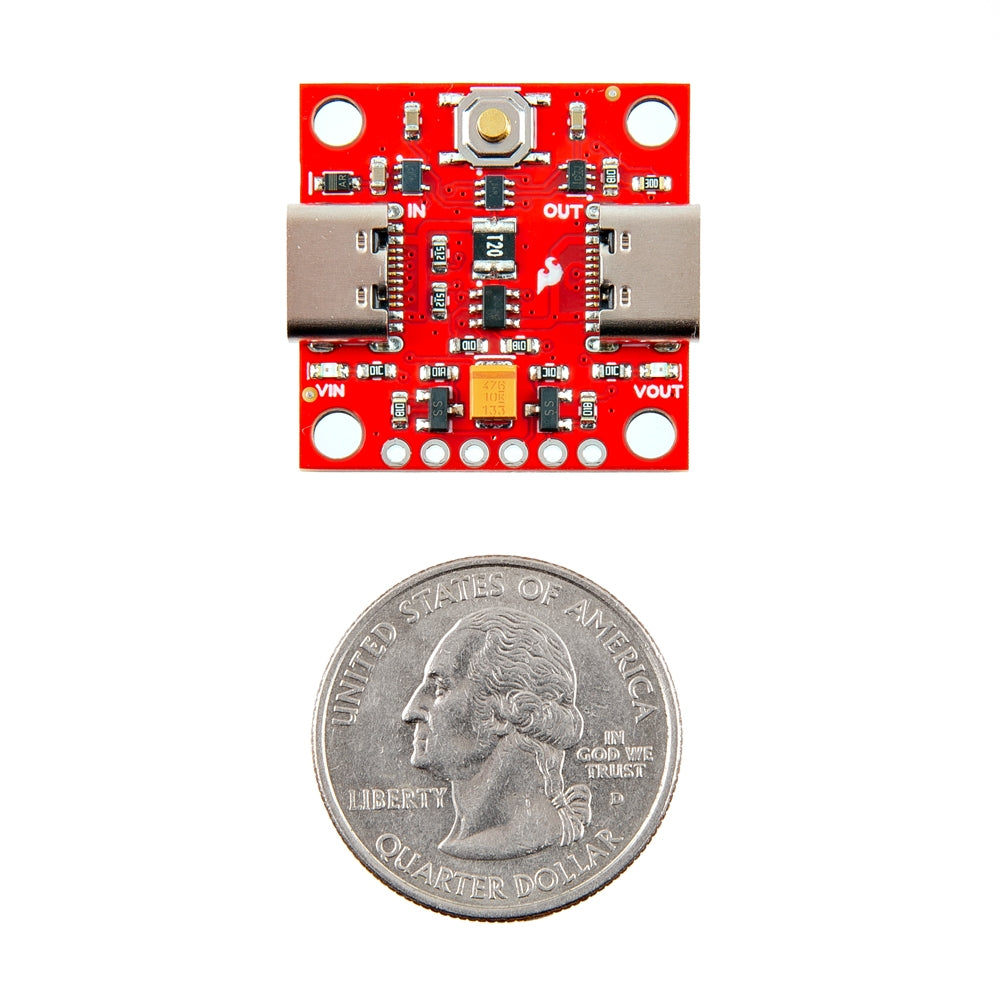

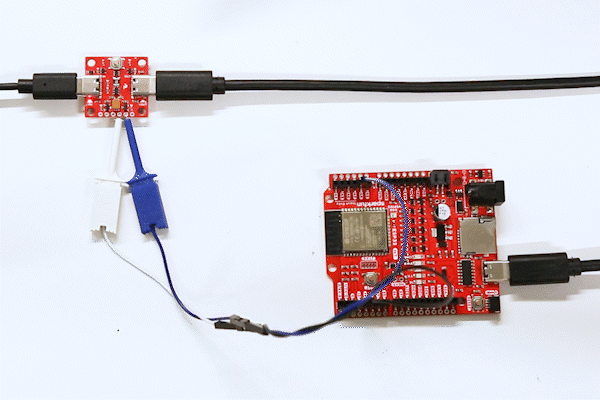

The SparkFun Soft Power Switch is a passive, hard on/off switch with software feedback and control via USB-C connectors.
Features & Specs

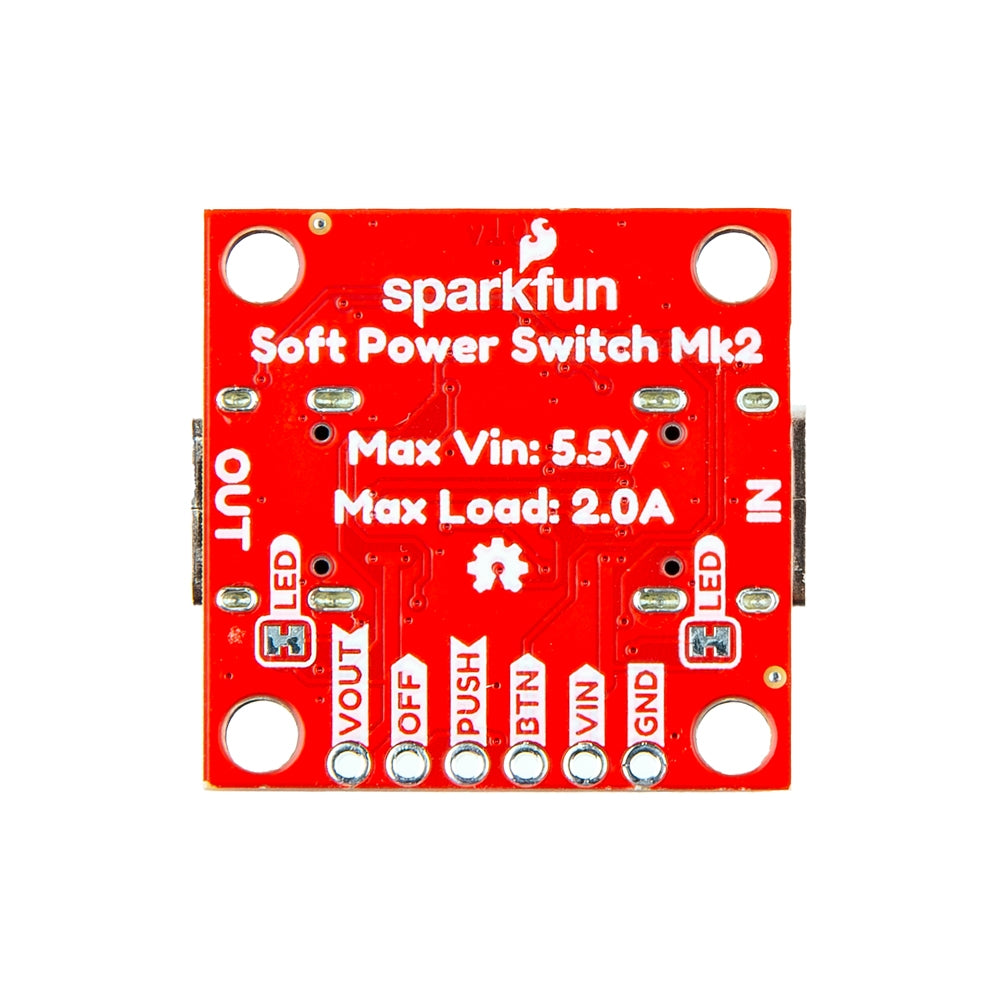

Input voltage: 5.5V maximum, 1.8V minimum Typically 5V from USB Maximum current draw: 2A continuous, 4A peak (fuse protected) SIL2308 N&P-Channel MOSFET 70mΩ (0.070 Ohm) typical P-Channel on-resistance Very low quiescent current: <1µA @ 3.75V, with VIN LED disabled 2x USB Type C Connectors VIN VOUT USB data feed-through Built-in momentary push button Hard override: push and hold the button for ~10 seconds Breakout PTH: GND, VIN, VOUT BTN: if desired, connect an external button between BTN and GND PUSH: open-drain output, requires pull-up, low indicates button is pushed OFF: drive high to turn the output off LEDs: VIN and VOUT (can be disabled if desired) Jumpers Input power LED Output power LED Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm) Weight: 3.25g
Features & Specs
Input voltage: 5.5V maximum, 1.8V minimum Typically 5V from USB Maximum current draw: 2A continuous, 4A peak (fuse protected) SIL2308 N&P-Channel MOSFET 70mΩ (0.070 Ohm) typical P-Channel on-resistance Very low quiescent current: <1µA @ 3.75V, with VIN LED disabled 2x USB Type C Connectors VIN VOUT USB data feed-through Built-in momentary push button Hard override: push and hold the button for ~10 seconds Breakout PTH: GND, VIN, VOUT BTN: if desired, connect an external button between BTN and GND PUSH: open-drain output, requires pull-up, low indicates button is pushed OFF: drive high to turn the output off LEDs: VIN and VOUT (can be disabled if desired) Jumpers Input power LED Output power LED Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm) Weight: 3.25g
Documentation
- Schematic
- KiCad Files
- 3D Model
- Board Dimensions
- Hookup Guide
- Component Datasheets
- SN74LVC1G14
- SN74LVC1G17
- SN74LVC1G175
- Texas Instruments Application Report: Push-Button Circuit SCEA048B
- Example Sketch
- GitHub Hardware Repo
