Description
The SparkFun Soft Power Switch - JST 2mm is like the power button on your laptop, but for your own electronic creations!
Features & Specs
- Input voltage: 5.5V maximum, 1.8V minimum
- Typically ~3.7V from a single cell LiPo Battery
- Maximum current draw: 2A continuous, 4A peak (fuse protected)
- SIL2308 N&P-Channel MOSFET
- 70mΩ (0.070 Ohm) typical P-Channel on-resistance
- Very low quiescent current: <1µA @ 3.75V, with VIN LED disabled

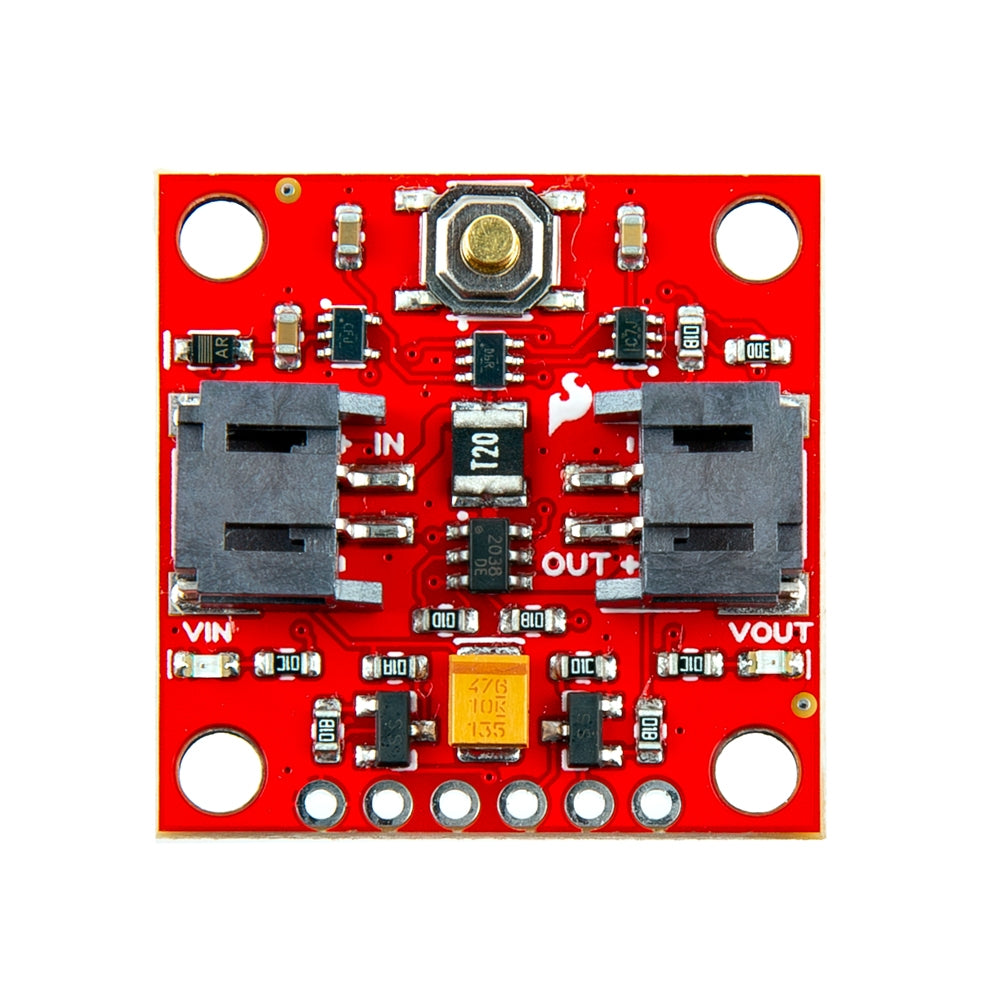

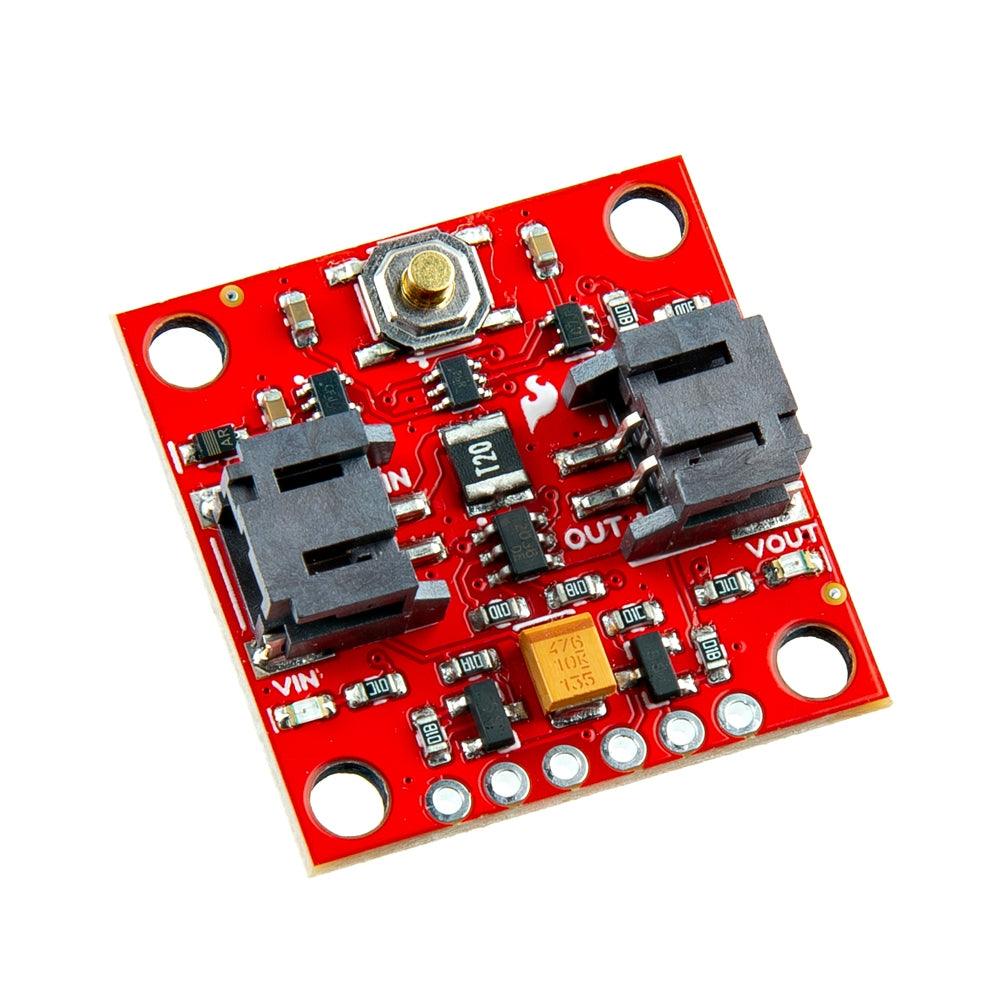

- 2x 2-Pin JST Right-Angle Connectors
- VIN
- VOUT
- Supports battery charging
- Built-in momentary push button
- Hard override: push and hold the button for ~10 seconds

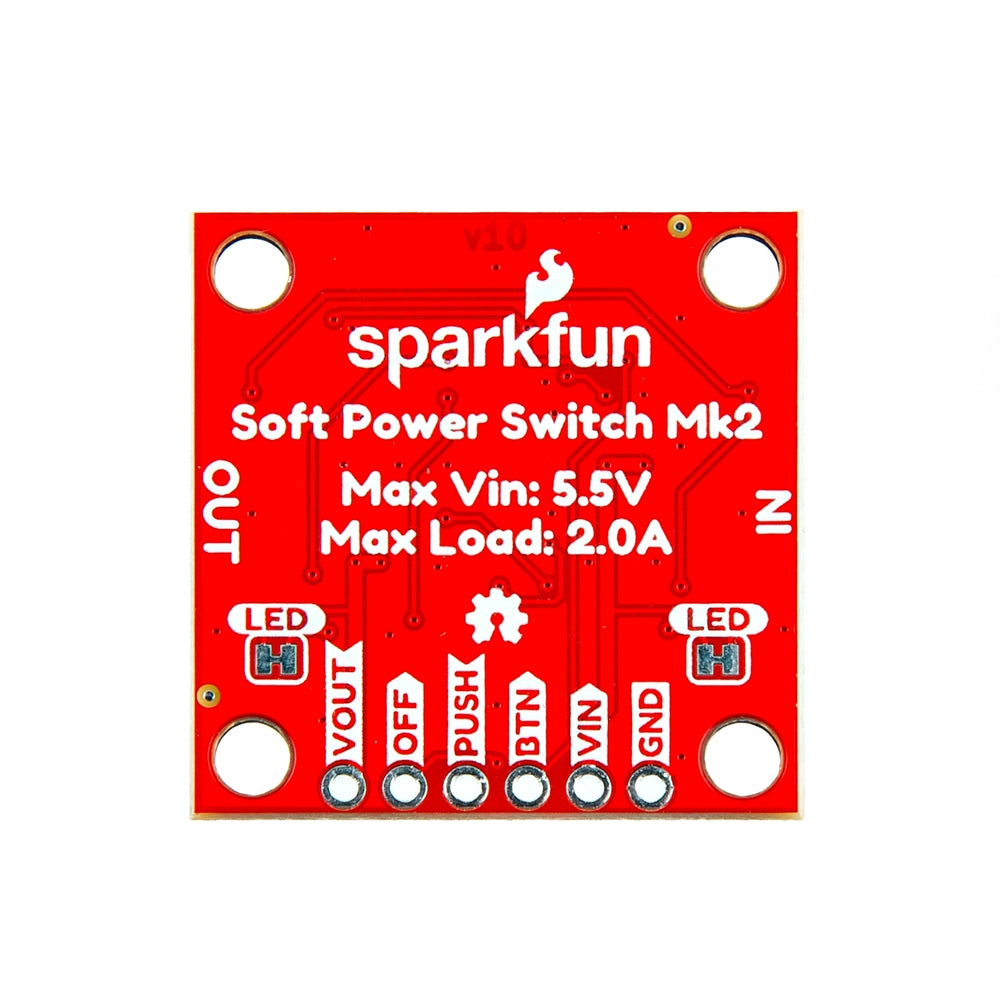

- Breakout PTH:
- GND, VIN, VOUT
- BTN: if desired, connect an external button between BTN and GND
- PUSH: open-drain output, requires pull-up, low indicates button is pushed
- OFF: drive high to turn the output off
- LEDs: VIN and VOUT (can be disabled if desired)
- Jumpers
- Input power LED
- Output power LED

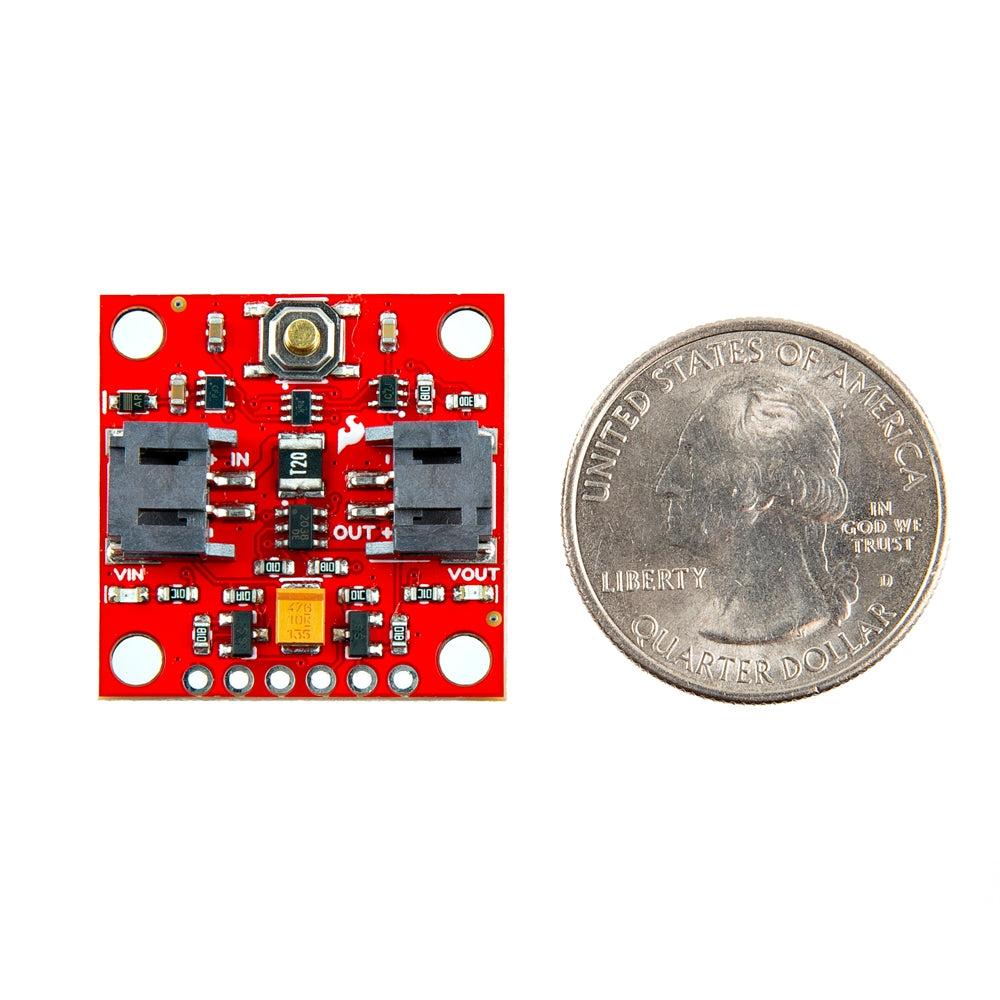

- Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
- Weight: 3.10g
Features & Specs
- Input voltage: 5.5V maximum, 1.8V minimum
- Typically ~3.7V from a single cell LiPo Battery
- Maximum current draw: 2A continuous, 4A peak (fuse protected)
- SIL2308 N&P-Channel MOSFET
- 70mΩ (0.070 Ohm) typical P-Channel on-resistance
- Very low quiescent current: <1µA @ 3.75V, with VIN LED disabled
- 2x 2-Pin JST Right-Angle Connectors
- VIN
- VOUT
- Supports battery charging
- Built-in momentary push button
- Hard override: push and hold the button for ~10 seconds
- Breakout PTH:
- GND, VIN, VOUT
- BTN: if desired, connect an external button between BTN and GND
- PUSH: open-drain output, requires pull-up, low indicates button is pushed
- OFF: drive high to turn the output off
- LEDs: VIN and VOUT (can be disabled if desired)
- Jumpers
- Input power LED
- Output power LED
- Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
- Weight: 3.10g
Documentation
- Schematic
- KiCad Files
- 3D Model
- Board Dimensions
- Hookup Guide
- Component Datasheets
- SN74LVC1G14
- SN74LVC1G17
- SN74LVC1G175
- Texas Instruments Application Report: Push-Button Circuit SCEA048B
- Example Sketch
- GitHub Hardware Repo
