SparkFun sm�´l Header

Our RedBoards are great. But don't they sometimes seem a little BIG?!

Enter sm�´l, a new range of boards which are both small in size and small on current draw. It's a sm�´l world!

sm�´l boards are designed to stack one on top of the other, using 16-way 0.5mm-pitch Flexible Printed Circuits (FPCs). We really like FPCs and we're using them on more and more of our products. But they can be a bit tricky when it comes to prototyping or if you want to connect other devices to your sm�´l stack. The sm�´l Header is here to help!

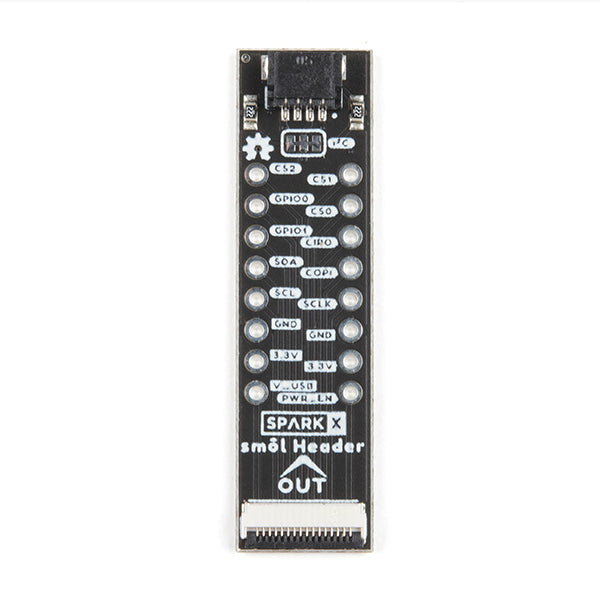

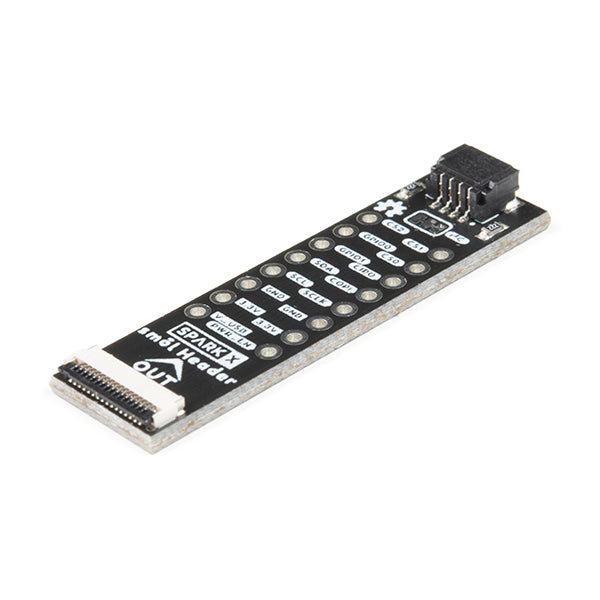

The sm�´l Header breaks out all 16 sm�´l connections in good old 0.1" format. The hole pattern is the same as an old school 16-pin 0.3" Dual-In line Package (DIP). Perfect for soldering header pins to and then pushing into standard breadboard.

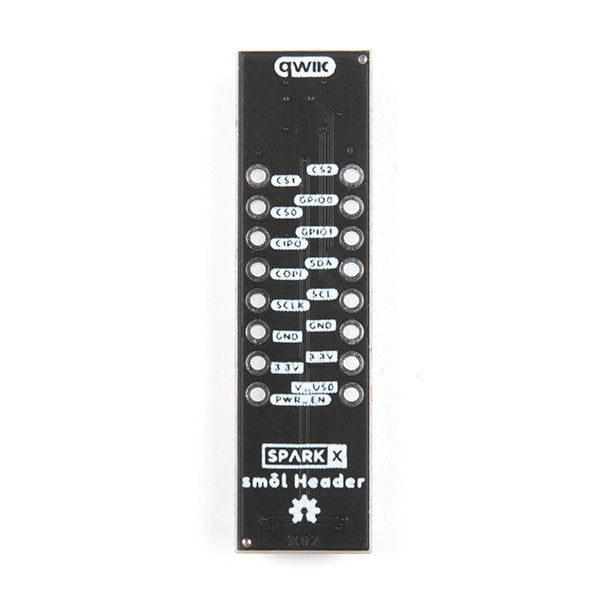

You've got full access to all the sm�´l pins, so connecting your favorite SPI board to sm�´l is as easy as plug-and-play! We've included a Qwiic connector too, so you can attach your favorite Qwiic boards to your sm�´l stack qwiicly and easily.

sm�´l is an ecosystem of miniature processor boards, peripheral boards, power boards and accessories. Designed to be both physically small and to have the smallest possible current draw, sm�´l is the perfect choice for applications like wildlife tracking or discrete long-term monitoring. sm�´l boards are designed to stack one on top of the other, using 16-way 0.5mm-pitch Flexible Printed Circuits (FPCs) to provide the interconnect from one board to the next. Looking for a really compact solution for your next project? This is it!

We will be adding new sm�´l boards over the coming months. Don't see the board you need for your application? Reach out to us via the SparkX Forum and tell us which board(s) we should add next!

Features:

• Converts the smÃ�´l 16-way FPC to 16-pin 0.3" Dual-In line Package (DIP) format
• Qwiic connector
• Configurable I²C pull-up resistors

Properties:

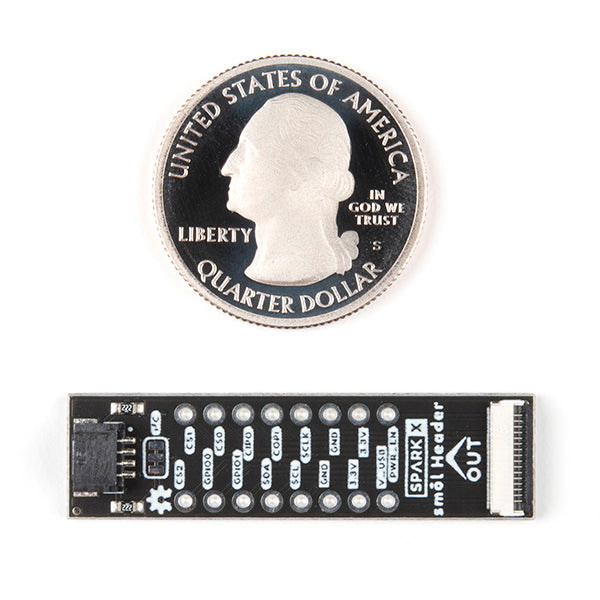

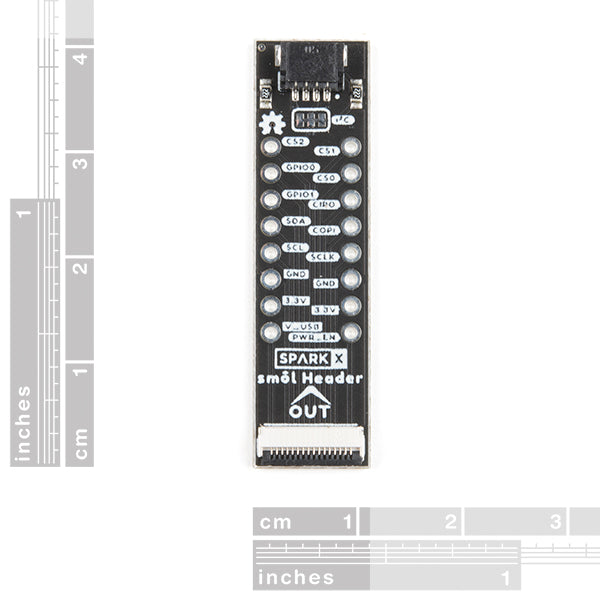

• Length: 1.60" (40.6mm)
• Width: 0.42" (10.7mm)
• Height: 0.18" (4.7mm) max.
• Weight: 1.6g (0.06oz)
• PCB thickness: 1.6mm

Documents:

sm�´l Header Documentation:

• Schematic
• Eagle Files
• Hookup Guide
• GitHub Hardware Repo

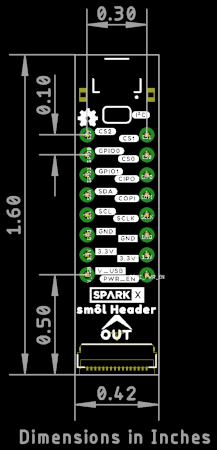

• Dimensions

sm�´l Documentation:

• smÃ�´l Hookup Guide
