Description

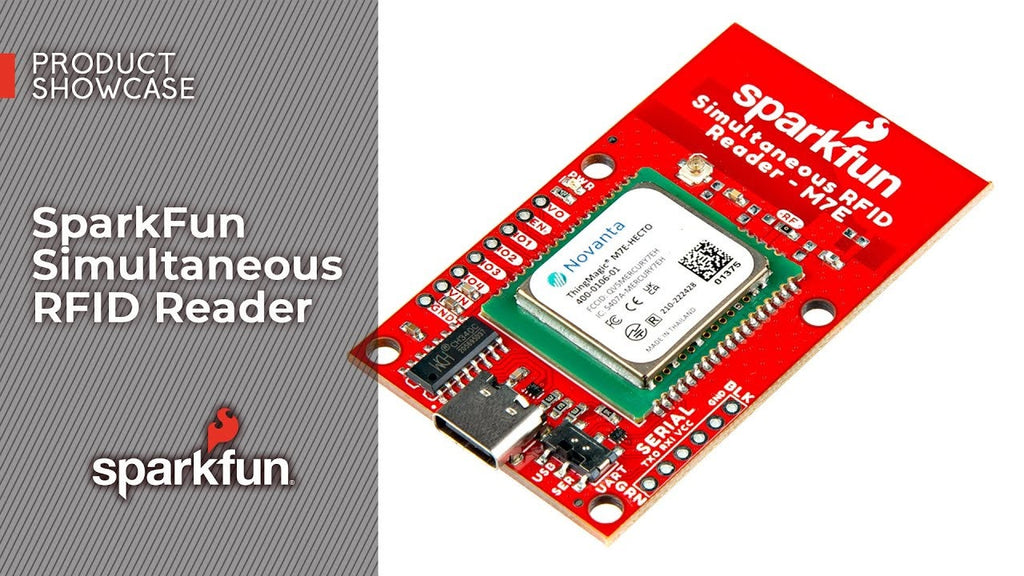

The SparkFun M7E Hecto Simultaneous RFID Reader brings industrial UHF technology to your project, capable of scanning up to 300 tags per second from 16ft away.
Features & Specs
- M7E Hecto UHF RAIN® RFID Reader
- EPCglobal Gen 2 (ISO 18000-6C) with nominal backscatter rate of 250kbps
- Separate read and write power levels, command adjustable from 0dBm to 27dBm in 0.01 dB steps
- Up to 300 tags/sec to read 96-bit EPC
- 80msec typical for standard write of 96-bit EPC
- Supply Voltage: 3.3V-5V
- Supply Current: 1A Max
- Internal current limiting circuit
- Power Mode Consumption (@5V):
- Full: 0.665W
- Minsave: 0.140W
- Sleep: 0.080W
- Operating Temperature Range: -40°C to 60°C
- Built-in thermal-management
- Serial Interfaces :
- USB-C Connector
- 0.1"-Spaced PTH Header (3.3V logic)
- 2-way Switch for Serial Interface Selection
- Enable & GPIO PTH Pins
- Antenna Options
- Integrated PCB Trace Antenna (Default)

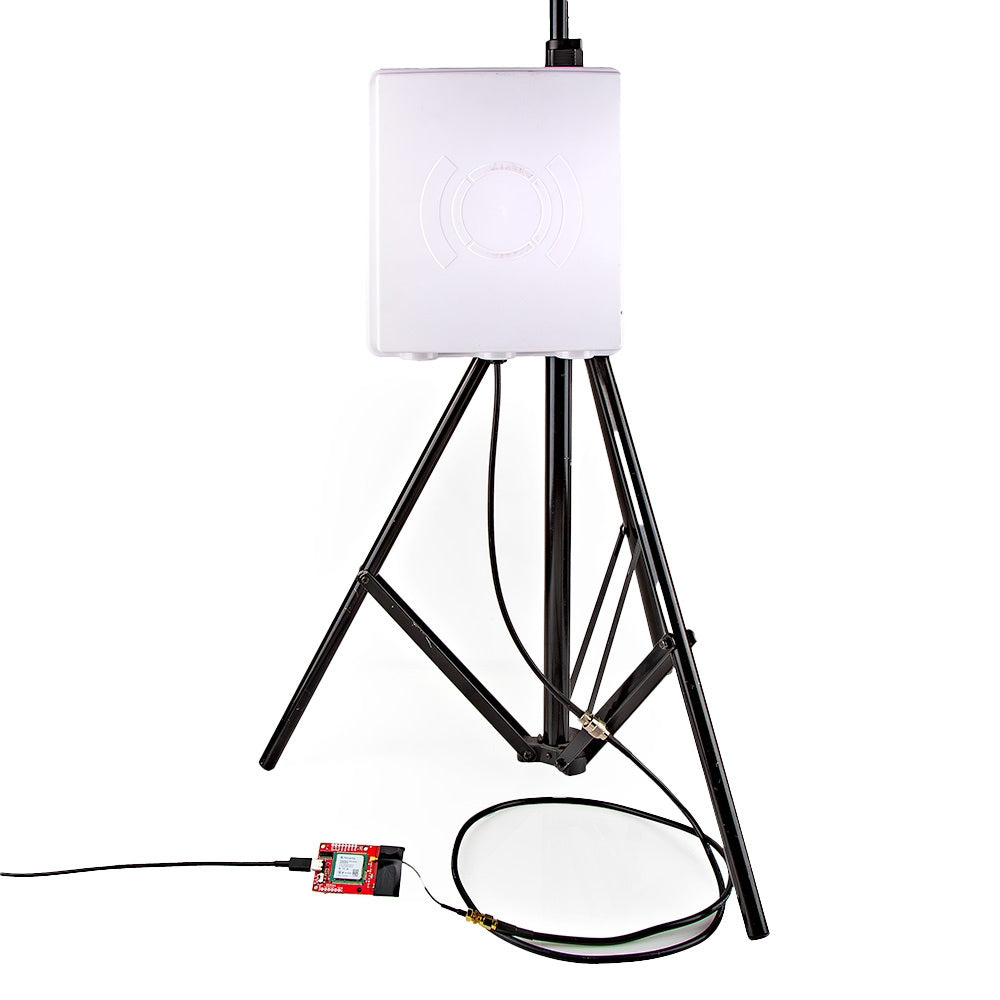

- U.FL Connector for External Antenna Connection
Features & Specs
- M7E Hecto UHF RAIN® RFID Reader
- EPCglobal Gen 2 (ISO 18000-6C) with nominal backscatter rate of 250kbps
- Separate read and write power levels, command adjustable from 0dBm to 27dBm in 0.01 dB steps
- Up to 300 tags/sec to read 96-bit EPC
- 80msec typical for standard write of 96-bit EPC
- Supply Voltage: 3.3V-5V
- Supply Current: 1A Max
- Internal current limiting circuit
- Power Mode Consumption (@5V):
- Full: 0.665W
- Minsave: 0.140W
- Sleep: 0.080W
- Operating Temperature Range: -40°C to 60°C
- Built-in thermal-management
- Serial Interfaces :
- USB-C Connector
- 0.1"-Spaced PTH Header (3.3V logic)
- 2-way Switch for Serial Interface Selection
- Enable & GPIO PTH Pins
- Antenna Options
- Integrated PCB Trace Antenna (Default)
- U.FL Connector for External Antenna Connection
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- M7E Hecto User Guide
- Using RFID Tags an Readers
- SparkFun Simultaneous RFID Tag Reader Arduino Library
- GitHub Hardware Repo
