Description

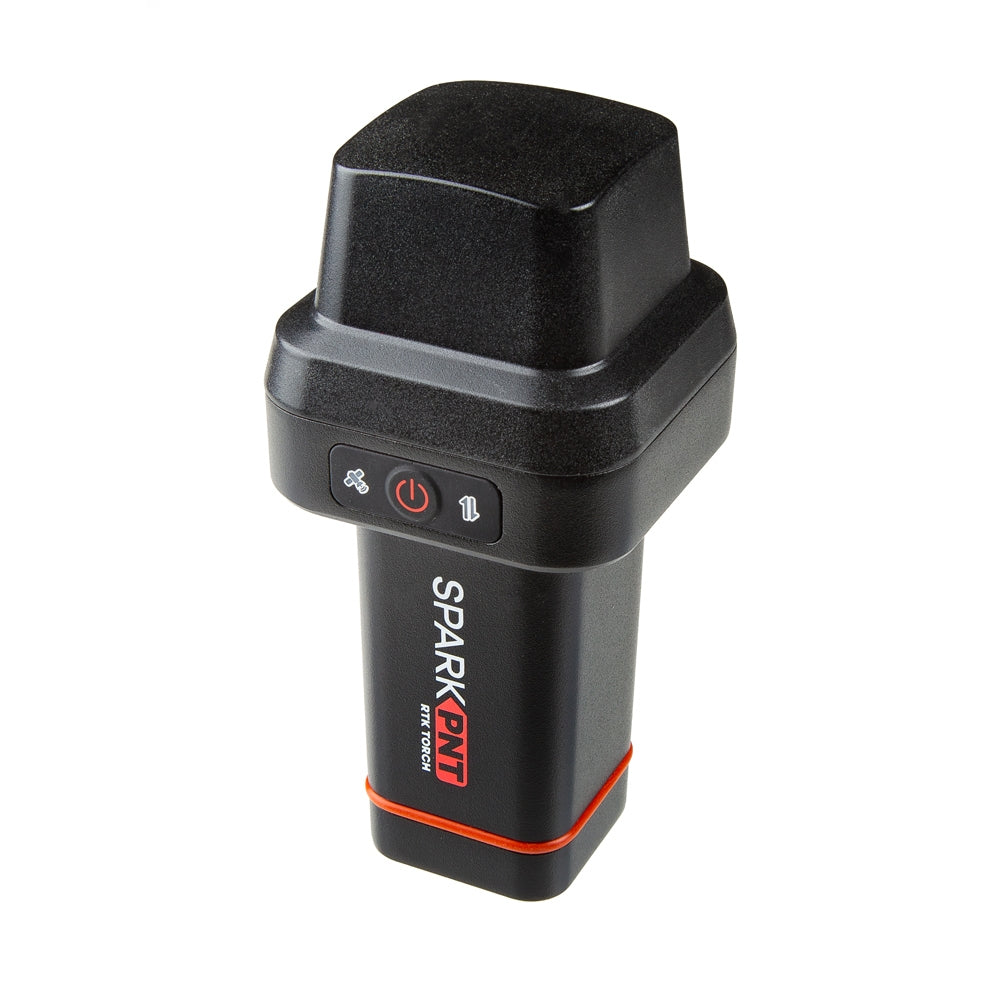

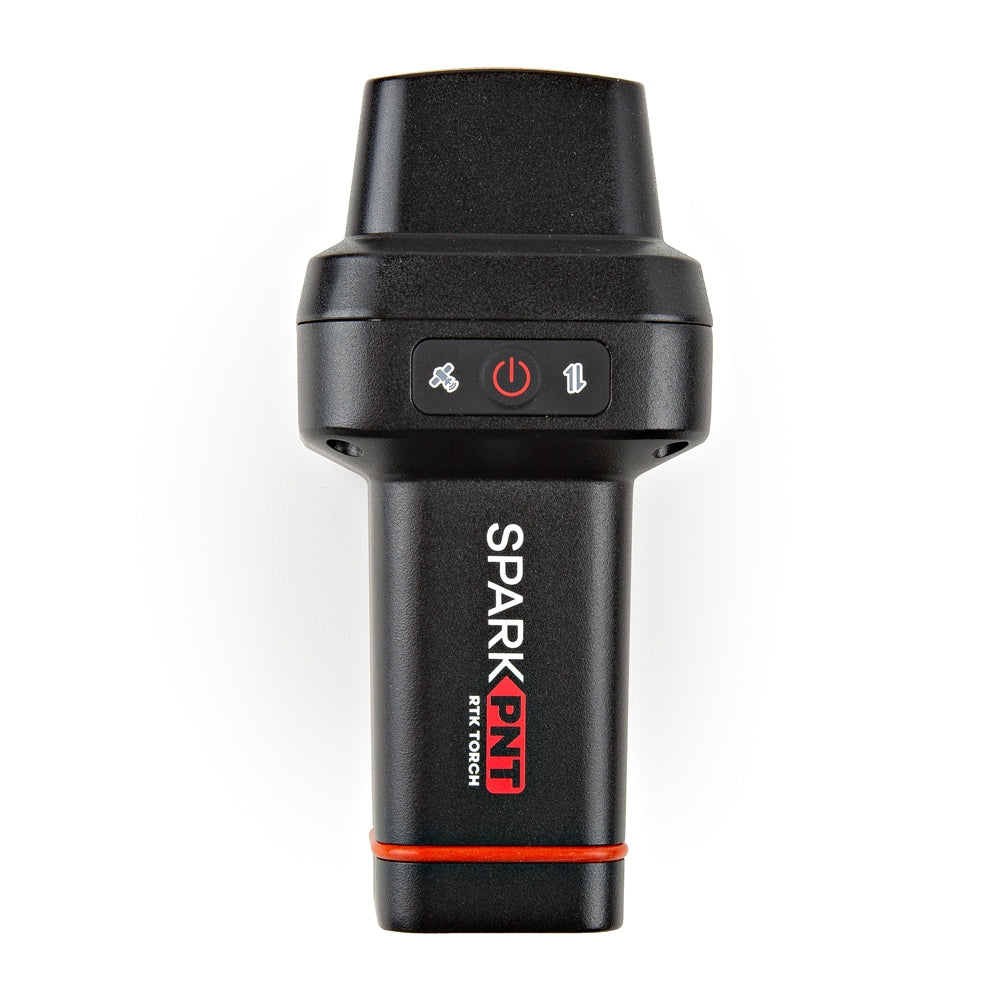

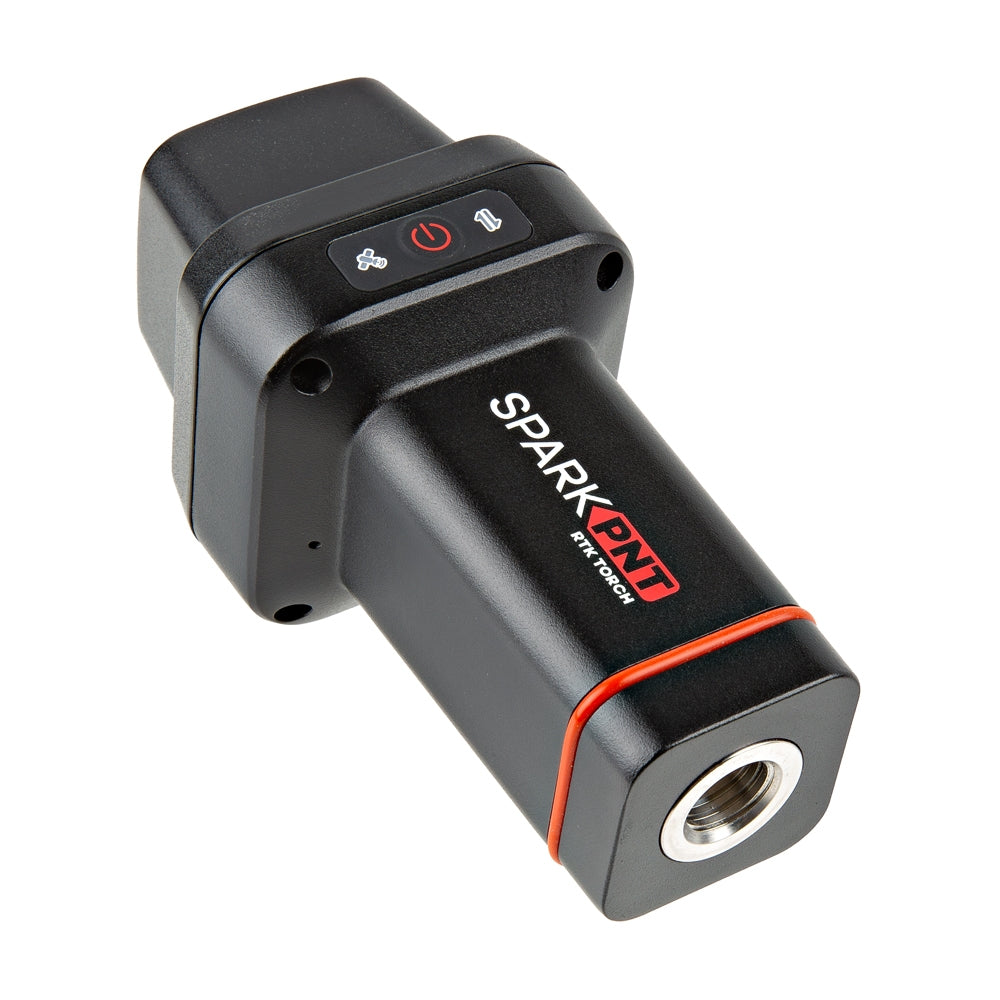

The Torch is a quad-band receiver housed in a waterproof aluminum enclosure with tilt compensation, onboard LoRa radio and Galileo-HAS support.
Features & Specs
NGS Calibrated:
Antenna Phase Center (APC):
- L1: 131.7mm
- L2: 126.2mm
- Average: 129.0mm
- NGS Calibration Data
Supported GIS Data Collector Software:
Android:
- Field Genius
- QField
- QGIS
- Survey Master
- SurPad
- SurvPC
- SW Maps
- Vespucci
- Any GIS software that supports NMEA over Bluetooth or TCP.
iOS:
- ArcGIS Survey123
- QField
- SW Maps
- Any GIS software that supports NMEA over TCP.
Overall Device
- Enclosed Aluminum and Plastic Design IP67 - Protected from water up to 1 meter for 30 minutes

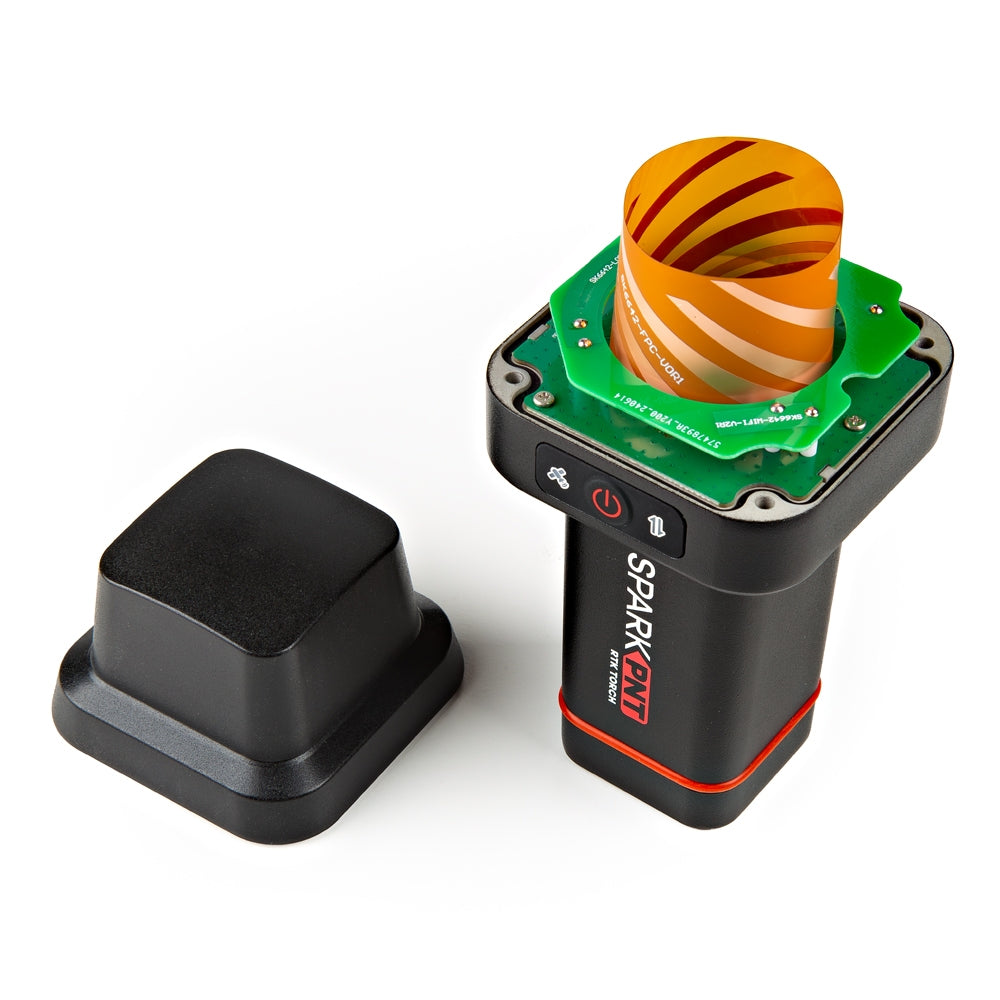

- Internal Antenna: L1/L2/L5 with ≥2.3dBi gain
- Internal Battery: LiPo 7.2V 6.8Ah 48.96Wh with fast 10W charging
- Run time: 26+ hours on a full charge
- Single push button control
- Weight: 428g (0.94 lbs)
- Dimensions: 71 x 71 x 147mm (2.8 x 2.8 x 5.8in)

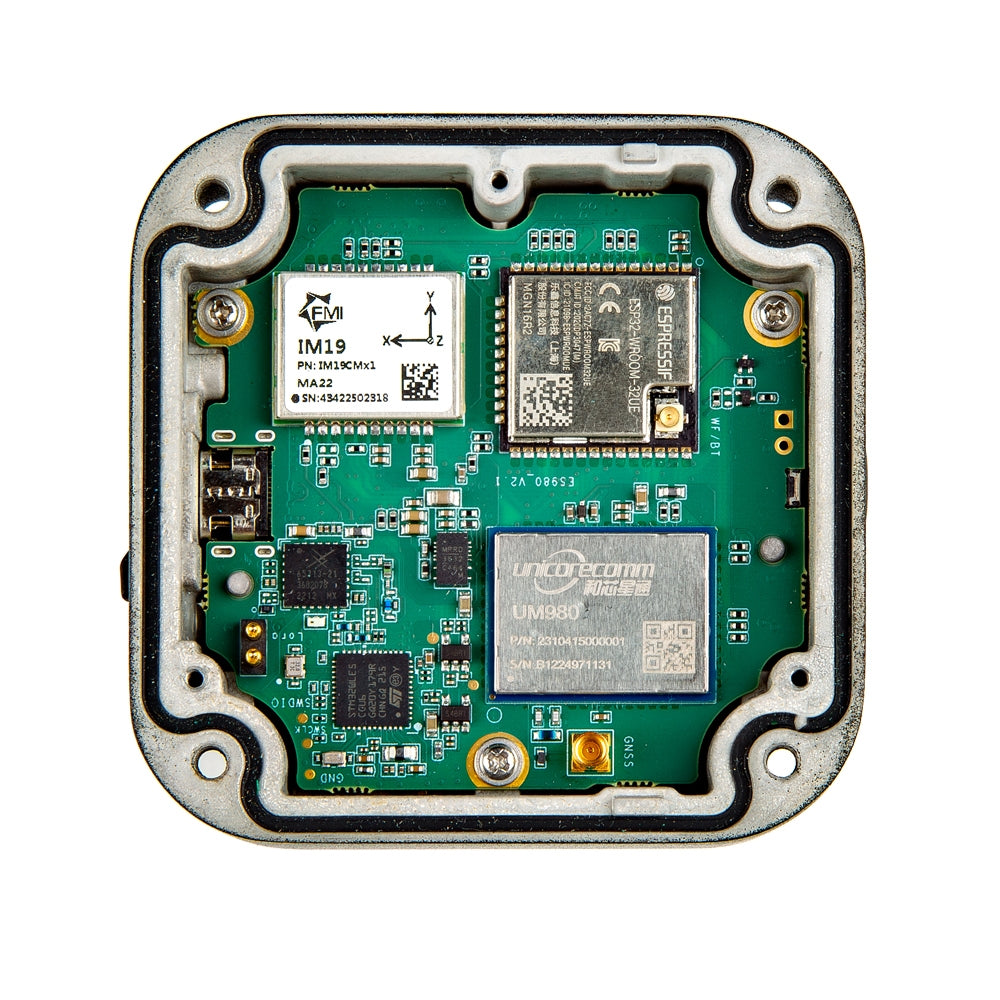

GNSS Receiver: UM980
- 1408-Channel concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS
- GPS: L1C/A, L1C*, L2P(Y), L2C, L5
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6*
- Beidou: B1I, B2I, B3I, B1C, B2a, B2b*
- QZSS: L1, L2, L5
- SBAS
- Horizontal Accuracy
- Autonomous: 1.5m
- DGPS: 0.4m
- RTK: 0.8cm + 1ppm
- Vertical Accuracy
- Autonomous: 2.5m
- DGPS: 0.8m
- RTK: 1.5cm + 1ppm
- Max Altitude: 18km (11 miles)
- Max Velocity: 515m/s (1152mph)
- Bands marked with * are only supported by specific firmware.
Bluetooth® Transceiver: ESP32 WROOM
- Xtensa® dual-core 32-bit LX6 microprocessor
- Up to 240MHz clock frequency
- 16MB of flash storage
- 2MB of PSRAM
- 520kB internal SRAM
- Integrated 802.11 BGN WiFi transceiver
- Integrated dual-mode Bluetooth® (classic and BLE)
915MHz LoRa Radio: STM32WLE
- Cortex-M4 microcontroller running at 48MHz with built-in LoRa radio
- 900MHz SKY65313-21 RF front end 1 Watt amplifier
- Multipoint support (one Base to multiple Rovers)
- Supports FHSS 902 to 928MHz
- Compliant in North America and South America
Features & Specs
NGS Calibrated:
Antenna Phase Center (APC):
- L1: 131.7mm
- L2: 126.2mm
- Average: 129.0mm
- NGS Calibration Data
Supported GIS Data Collector Software:
Android:
- Field Genius
- QField
- QGIS
- Survey Master
- SurPad
- SurvPC
- SW Maps
- Vespucci
- Any GIS software that supports NMEA over Bluetooth or TCP.
iOS:
- ArcGIS Survey123
- QField
- SW Maps
- Any GIS software that supports NMEA over TCP.
Overall Device
- Enclosed Aluminum and Plastic Design IP67 - Protected from water up to 1 meter for 30 minutes
- Internal Antenna: L1/L2/L5 with ≥2.3dBi gain
- Internal Battery: LiPo 7.2V 6.8Ah 48.96Wh with fast 10W charging
- Run time: 26+ hours on a full charge
- Single push button control
- Weight: 428g (0.94 lbs)
- Dimensions: 71 x 71 x 147mm (2.8 x 2.8 x 5.8in)
GNSS Receiver: UM980
- 1408-Channel concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS
- GPS: L1C/A, L1C*, L2P(Y), L2C, L5
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6*
- Beidou: B1I, B2I, B3I, B1C, B2a, B2b*
- QZSS: L1, L2, L5
- SBAS
- Horizontal Accuracy
- Autonomous: 1.5m
- DGPS: 0.4m
- RTK: 0.8cm + 1ppm
- Vertical Accuracy
- Autonomous: 2.5m
- DGPS: 0.8m
- RTK: 1.5cm + 1ppm
- Max Altitude: 18km (11 miles)
- Max Velocity: 515m/s (1152mph)
- Bands marked with * are only supported by specific firmware.
Bluetooth® Transceiver: ESP32 WROOM
- Xtensa® dual-core 32-bit LX6 microprocessor
- Up to 240MHz clock frequency
- 16MB of flash storage
- 2MB of PSRAM
- 520kB internal SRAM
- Integrated 802.11 BGN WiFi transceiver
- Integrated dual-mode Bluetooth® (classic and BLE)
915MHz LoRa Radio: STM32WLE
- Cortex-M4 microcontroller running at 48MHz with built-in LoRa radio
- 900MHz SKY65313-21 RF front end 1 Watt amplifier
- Multipoint support (one Base to multiple Rovers)
- Supports FHSS 902 to 928MHz
- Compliant in North America and South America
