Description

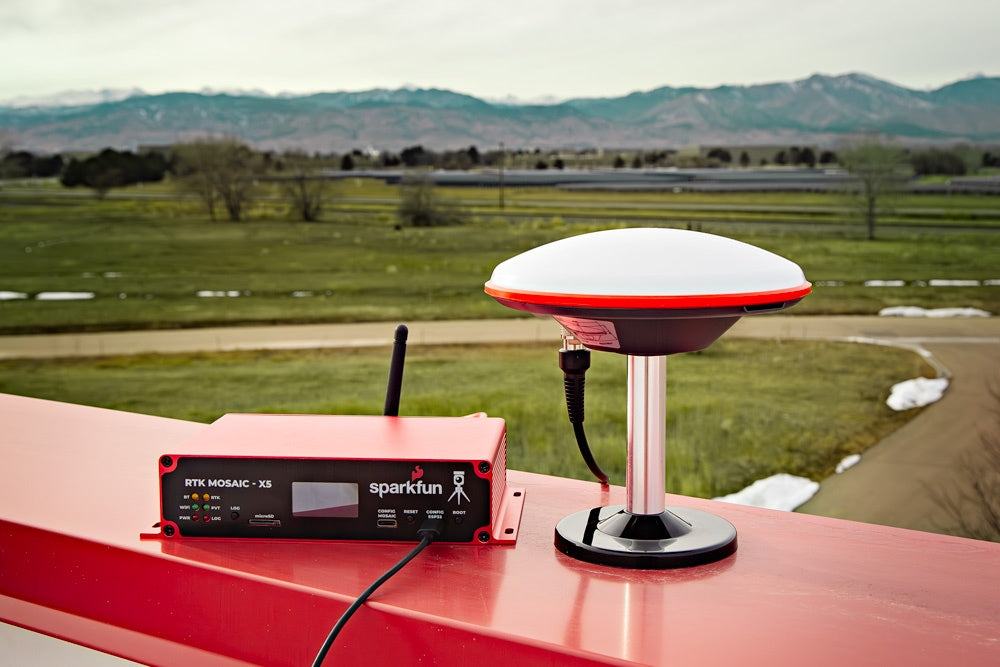

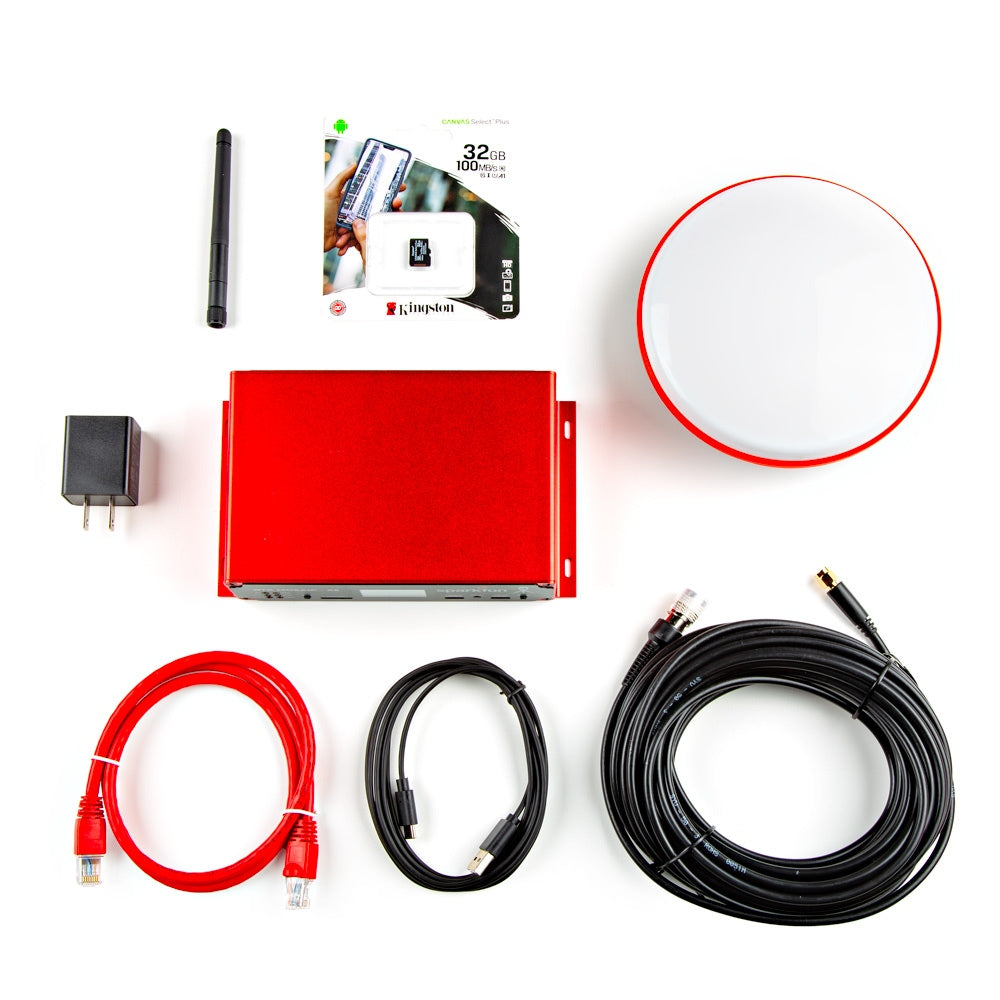

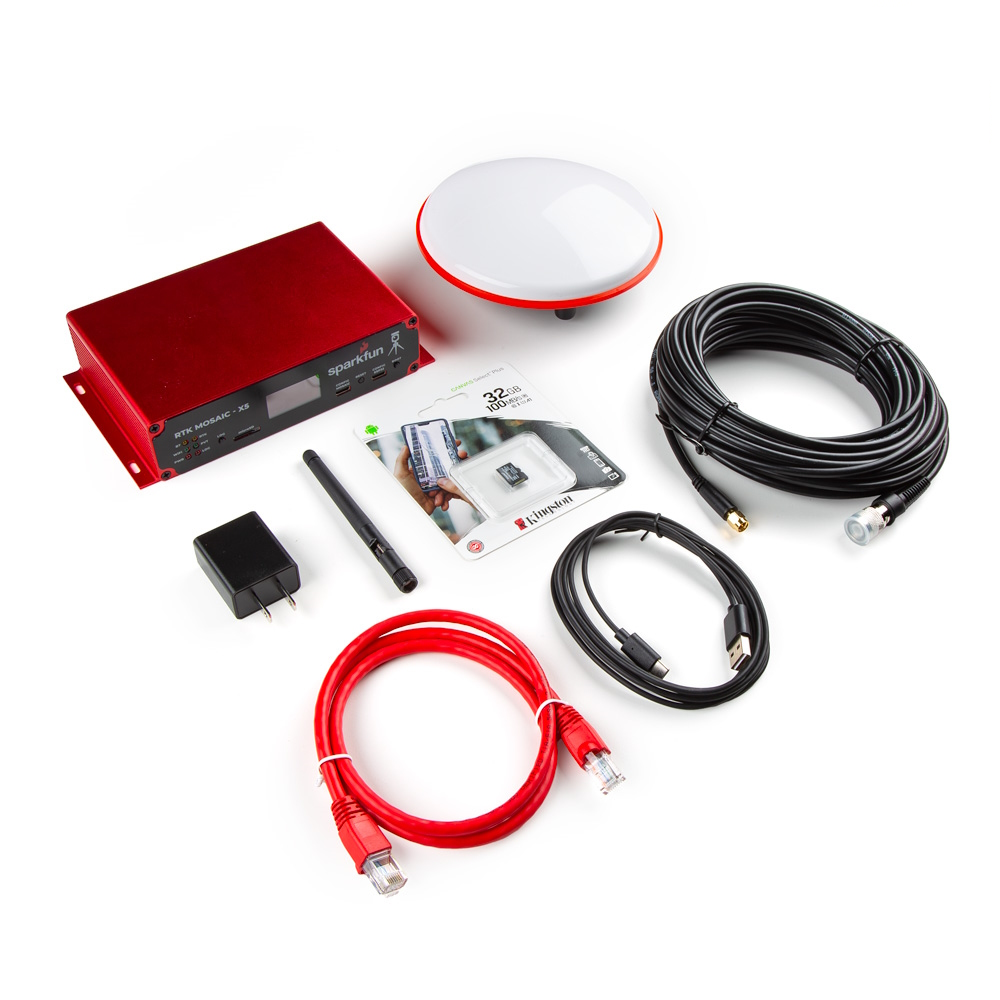

The mosaic-X5 is a high precision dedicated base station with an advanced web-based control interface that can act as a fully fledged NTRIP Caster.
Features & Specs
| MODULE | RECEPTION | CONSTELLATIONS | INTERNAL ANTENNA | COMMUNICATIONS HARDWARE | APPLICATION | CORRECTIONS SOURCE |
|---|---|---|---|---|---|---|
| Septentrio mosaic-X5 | L1/L2/L5 | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS | No | Bluetooth, WiFi, Ethernet, Radio | Base, Rover or NTRIP Caster | NTRIP, SBAS |
Septentrio mosaic-X5 Specs:
- Future proof: supporting current and future satellite signals
- AIM+ unique interference mitigation and monitoring system as part of the advanced GNSS+ algorithm.
- Update rate of 100 Hz
- 448 hardware channels for simultaneous tracking of all visible supported satellite signals:
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- On-module L-band
- Supports SBF, NMEA, RINEX, RTCM and CMR message formats
- 5 constellation RTK (base and rover)
- USB-C interface (UART and Ethernet-over-USB)

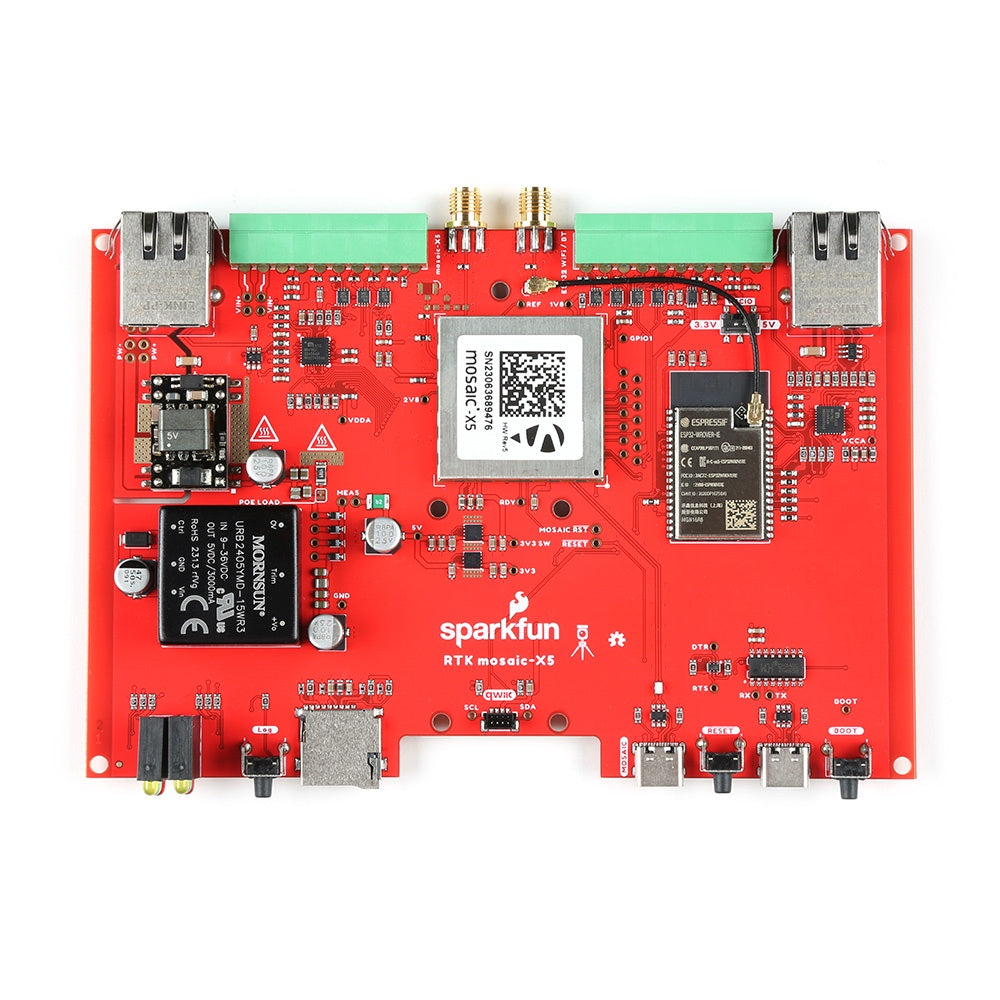

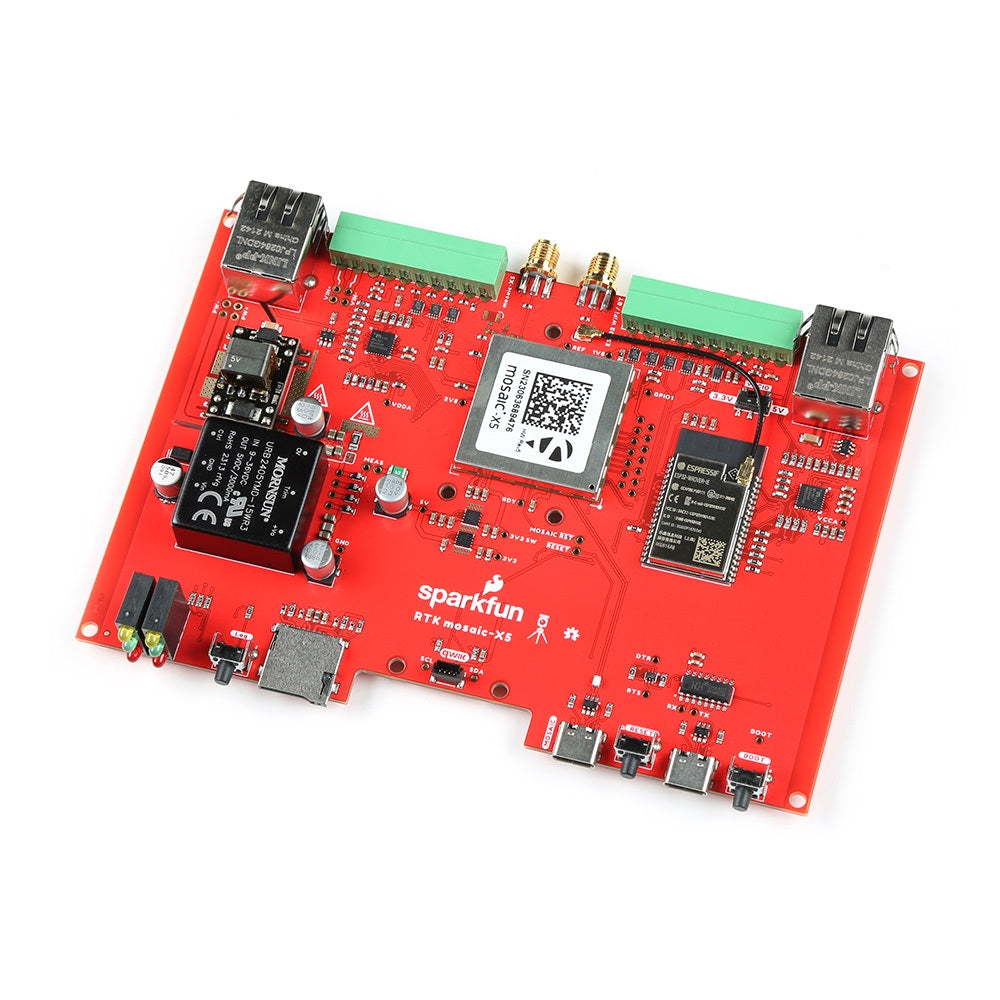

Overall Device Specs:
- ESP32-WROVER processor
- Reverse Polarity (RP) SMA WiFi / BT antenna connection
- Provides WiFi connectivity for the mosaic-X5
- USB-C interface (UART via CH340)
- Dual KSZ8041NLI Ethernet PHY interfaces
- 10Base-T / 100Base-TX with auto-negotiate and Auto MDI/MDI-X
- mosaic-X5 and ESP32 have independent Ethernet interfaces
- mosaic-X5 can be linked directly to an external Ethernet network - optionally with PoE
- mosaic-X5 can be linked to the ESP32 for WiFi connectivity
- microSD socket
- Connected directly to the mosaic-X5 for fast data logging
- OLED display (128x64 pixels)
- SMA GNSS antenna connection
- 5V power for an active antenna

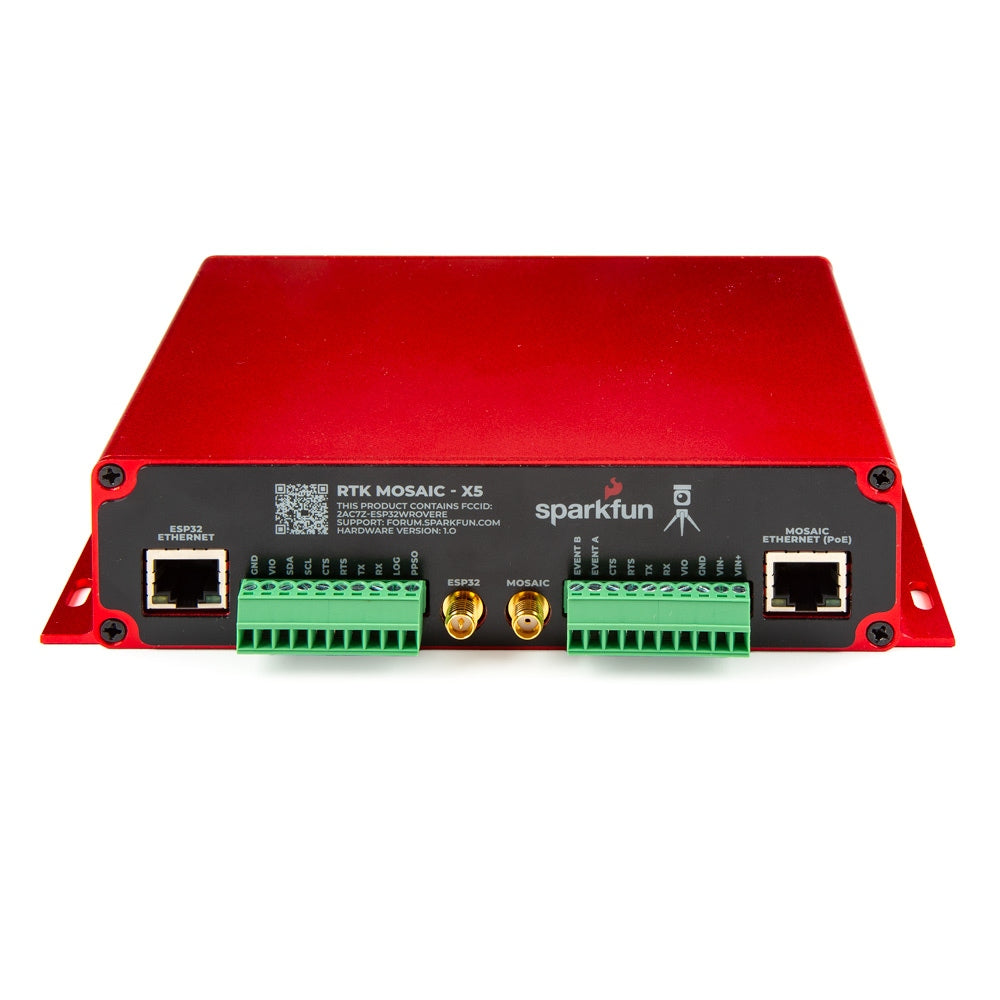

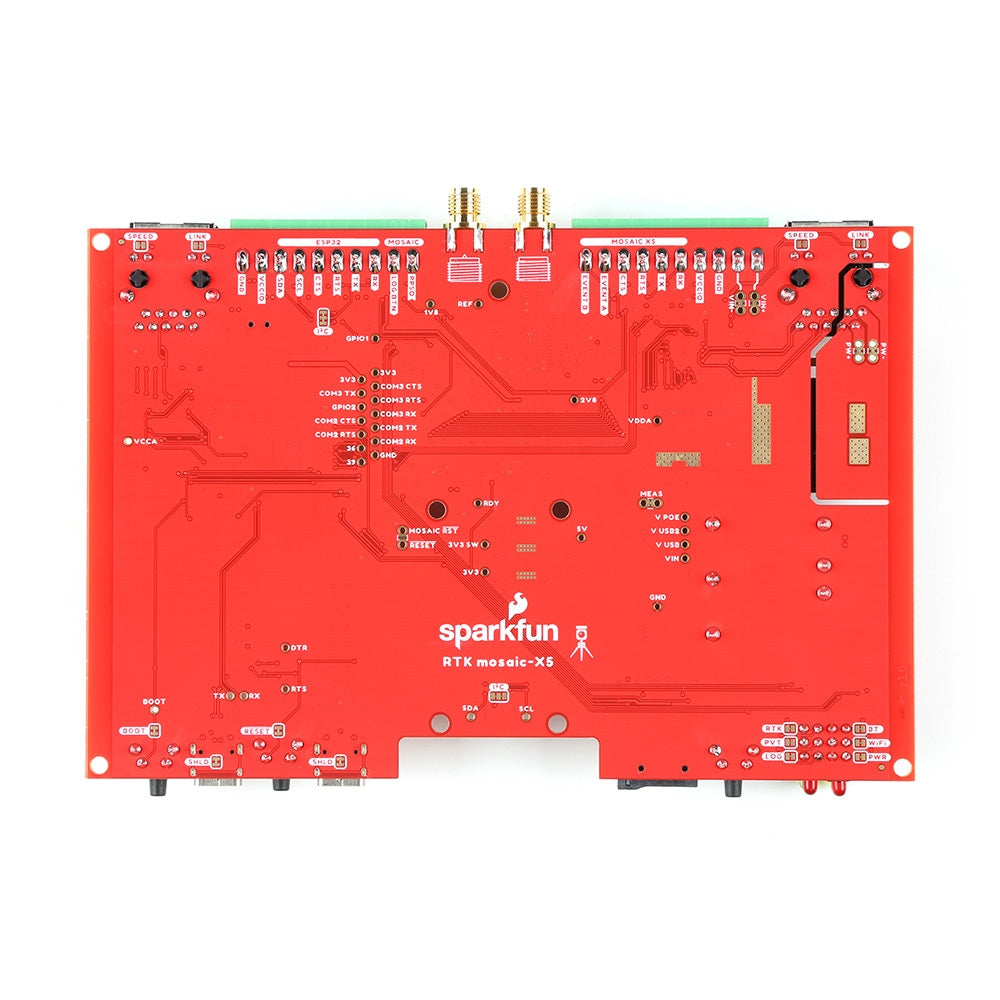

- I/O Connections
- Robust 3.5mm screw terminals
- Fully isolated external DC power input (9V - 36V)
- Switchable 3.3V or 5V I/O voltage
- mosaic-X5 COM1 UART: TX, RX, RTS, CTS
- mosaic-X5 EVENT-A and EVENT-B inputs
- mosaic-X5 PPSO timing pulse output
- mosaic-X5 Log button input
- ESP32 UART: TX, RX, RTS, CTS (currently unused)
- ESP32 I2C with level-shifting

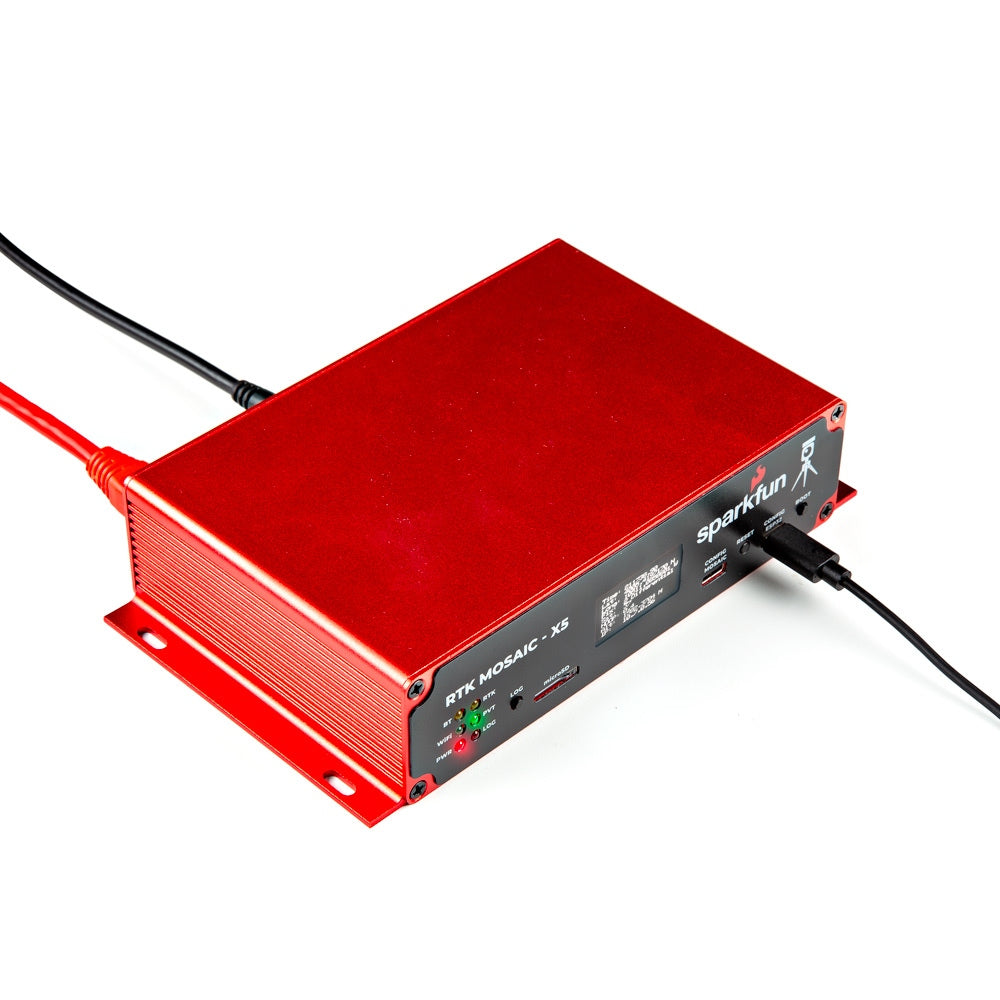

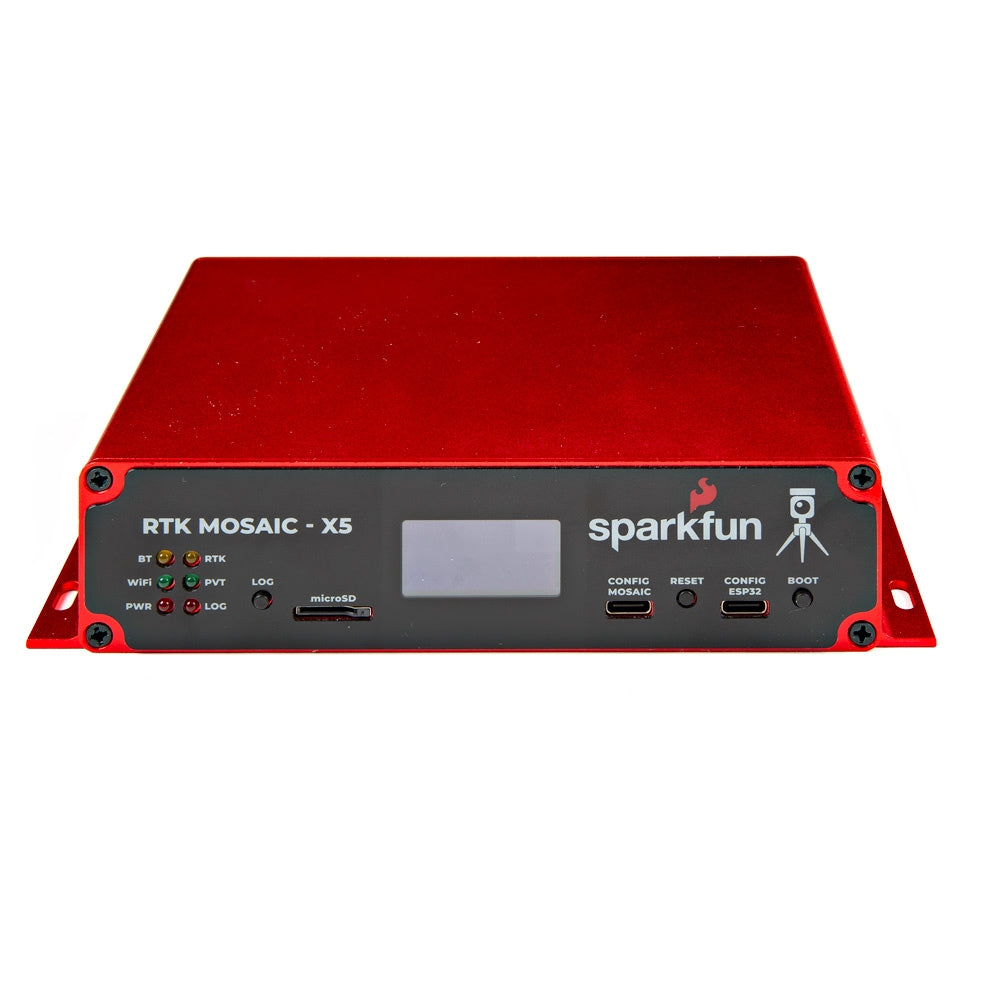

- Custom extruded aluminum case with machined end panel.
- IP42 ingress protection
- A weatherproof enclosure is required for outdoor use
- Matte-effect front and rear stickers

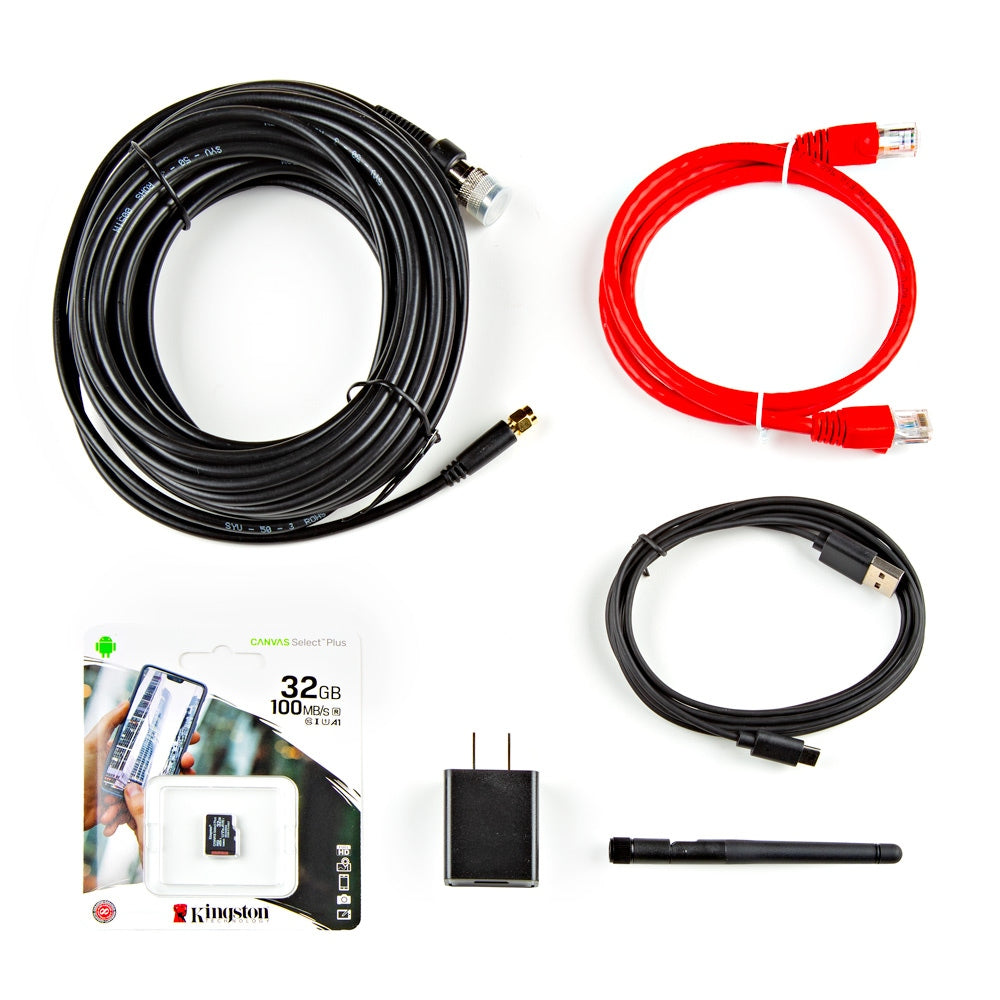

- Power options:
- mosaic-X5 USB-C connector
- ESP32 USB-C connector
- Power-over-Ethernet (36V - 57V)
- External DC power (9VDC - 36VDC via screw terminals) (Fully isolated)
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
Features & Specs
| MODULE | RECEPTION | CONSTELLATIONS | INTERNAL ANTENNA | COMMUNICATIONS HARDWARE | APPLICATION | CORRECTIONS SOURCE |
|---|---|---|---|---|---|---|
| Septentrio mosaic-X5 | L1/L2/L5 | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS | No | Bluetooth, WiFi, Ethernet, Radio | Base, Rover or NTRIP Caster | NTRIP, SBAS |
Septentrio mosaic-X5 Specs:
- Future proof: supporting current and future satellite signals
- AIM+ unique interference mitigation and monitoring system as part of the advanced GNSS+ algorithm.
- Update rate of 100 Hz
- 448 hardware channels for simultaneous tracking of all visible supported satellite signals:
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- On-module L-band
- Supports SBF, NMEA, RINEX, RTCM and CMR message formats
- 5 constellation RTK (base and rover)
- USB-C interface (UART and Ethernet-over-USB)
Overall Device Specs:
- ESP32-WROVER processor
- Reverse Polarity (RP) SMA WiFi / BT antenna connection
- Provides WiFi connectivity for the mosaic-X5
- USB-C interface (UART via CH340)
- Dual KSZ8041NLI Ethernet PHY interfaces
- 10Base-T / 100Base-TX with auto-negotiate and Auto MDI/MDI-X
- mosaic-X5 and ESP32 have independent Ethernet interfaces
- mosaic-X5 can be linked directly to an external Ethernet network - optionally with PoE
- mosaic-X5 can be linked to the ESP32 for WiFi connectivity
- microSD socket
- Connected directly to the mosaic-X5 for fast data logging
- OLED display (128x64 pixels)
- SMA GNSS antenna connection
- 5V power for an active antenna
- I/O Connections
- Robust 3.5mm screw terminals
- Fully isolated external DC power input (9V - 36V)
- Switchable 3.3V or 5V I/O voltage
- mosaic-X5 COM1 UART: TX, RX, RTS, CTS
- mosaic-X5 EVENT-A and EVENT-B inputs
- mosaic-X5 PPSO timing pulse output
- mosaic-X5 Log button input
- ESP32 UART: TX, RX, RTS, CTS (currently unused)
- ESP32 I2C with level-shifting
- Custom extruded aluminum case with machined end panel.
- IP42 ingress protection
- A weatherproof enclosure is required for outdoor use
- Matte-effect front and rear stickers
- Power options:
- mosaic-X5 USB-C connector
- ESP32 USB-C connector
- Power-over-Ethernet (36V - 57V)
- External DC power (9VDC - 36VDC via screw terminals) (Fully isolated)
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
Documentation
SparkFun RTK mosaic-X5
- Quick Start Guide
- Schematic
- PCB Dimensions
- Case Dimensions
- RTK mosaic-X5 Product Manual
- mosaic-X5 Datasheet
- Hardware GitHub Repo
- ESP32 Firmware
Septentrio mosaic-X5
- Septentrio product page
- Septentrio resources: datasheet, firmware, manual, software tools, USB driver
- mowi open-source design
- mowi GitHub Repository
