Description

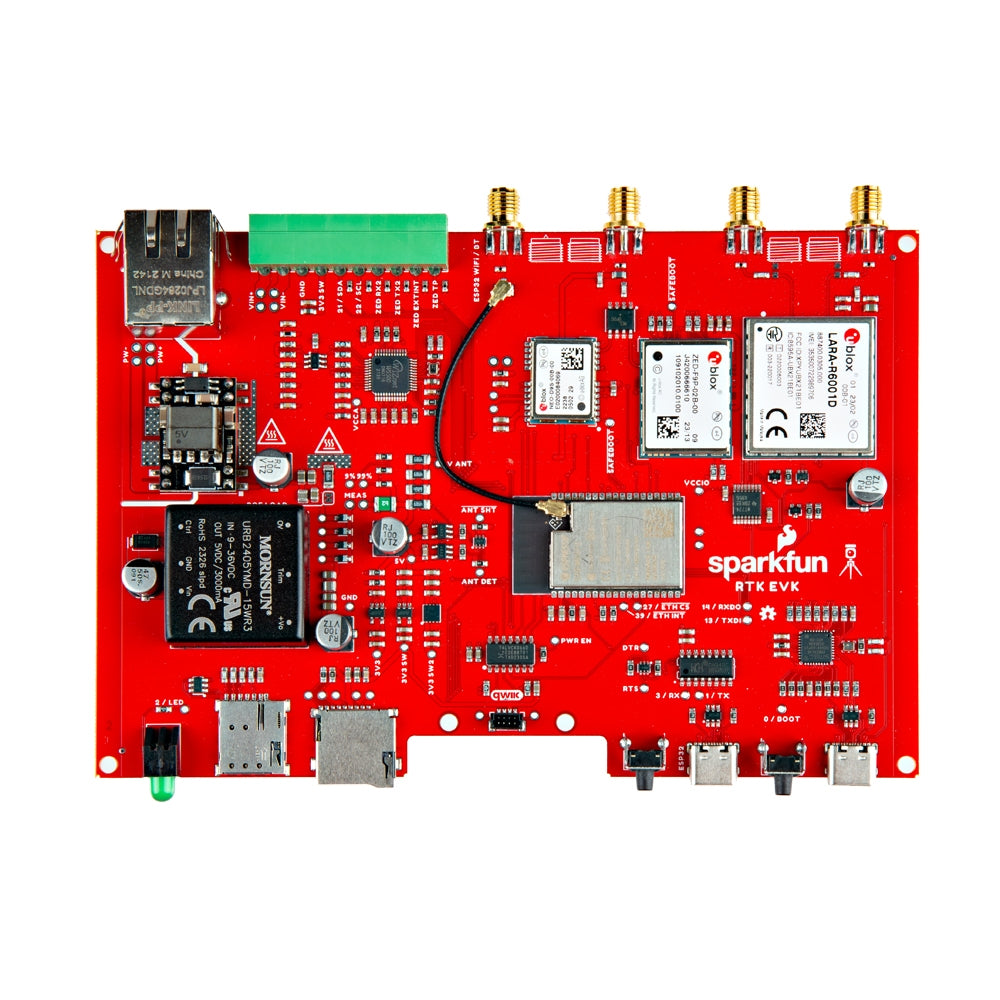

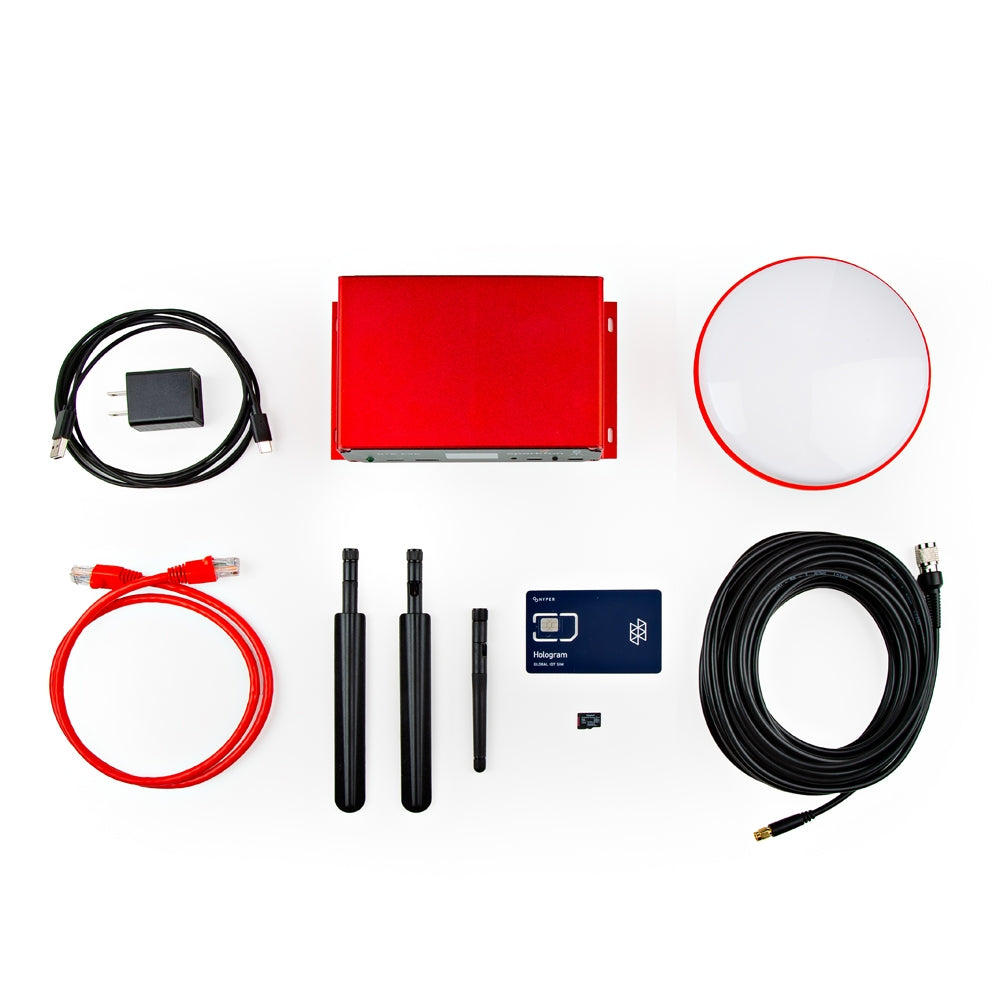

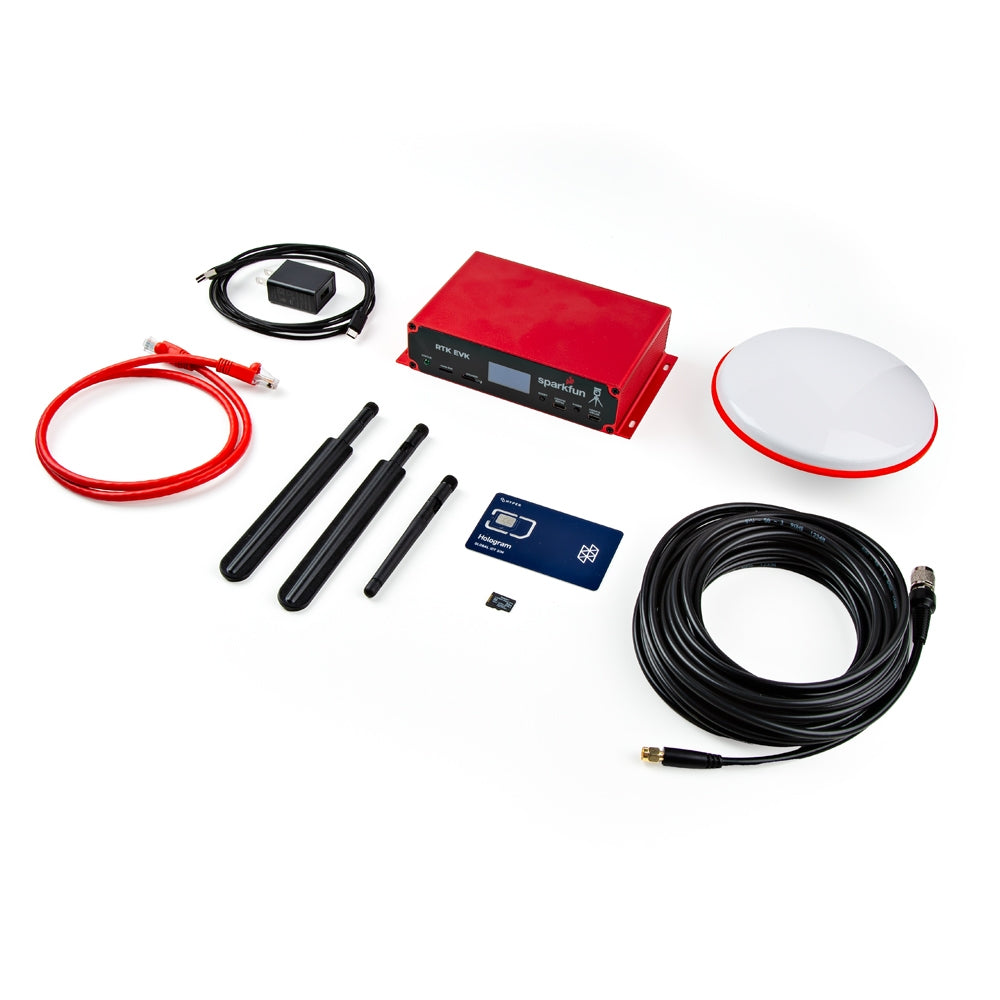

The EVK is a platform for testing out RTK applications, and can communicate over cellular LTE, Wifi, and Ethernet, and receive satellite-based corrections.
Features & Specs
| MODULE | RECEPTION | CONSTELLATIONS | INTERNAL ANTENNA | COMMUNICATIONS HARDWARE | APPLICATION | CORRECTIONS SOURCE |
|---|---|---|---|---|---|---|
| u-blox ZED-F9P, NEO-D9S | L1/L2 | GPS, GLONASS, Galileo, BeiDou | No | Bluetooth, WiFi, LTE, Ethernet, | Base or Rover | PointPerfect L-Band+IP, NTRIP |

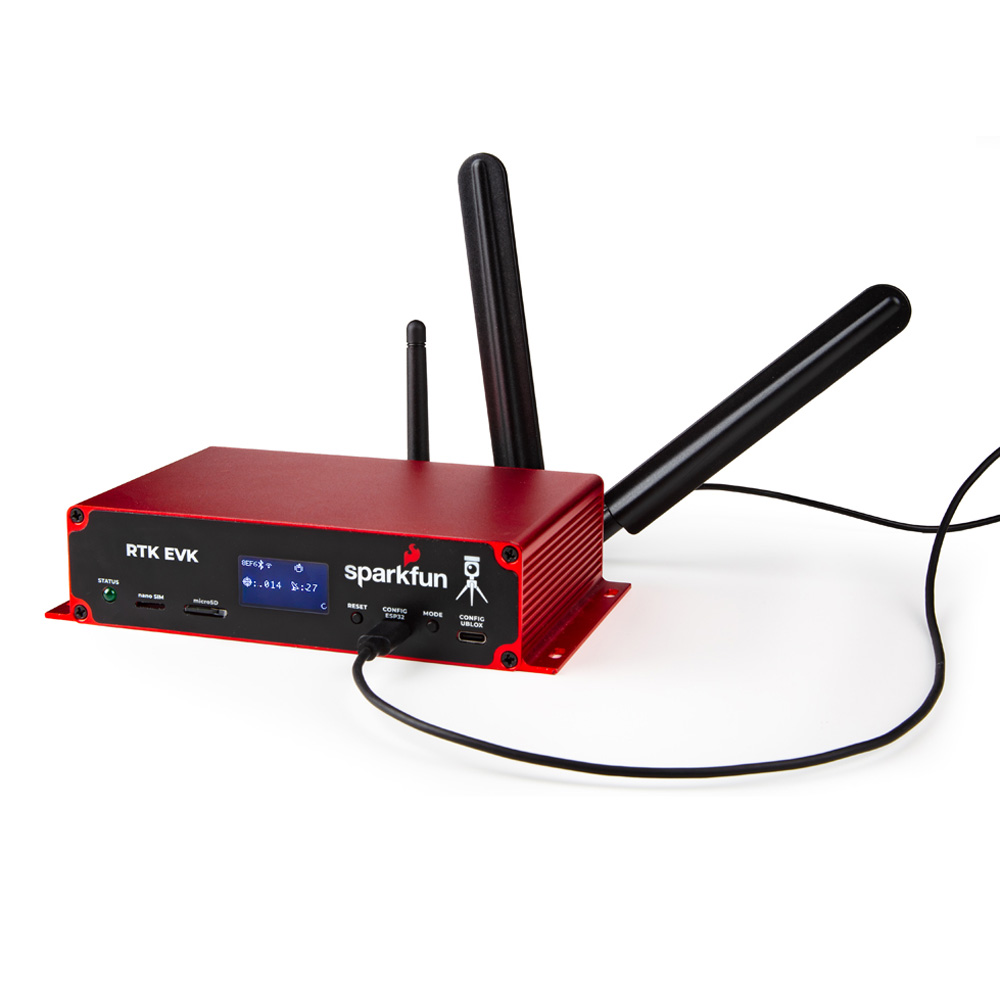

Overall Device Specs:
- microSD socket
- Nano SIM Card Slot

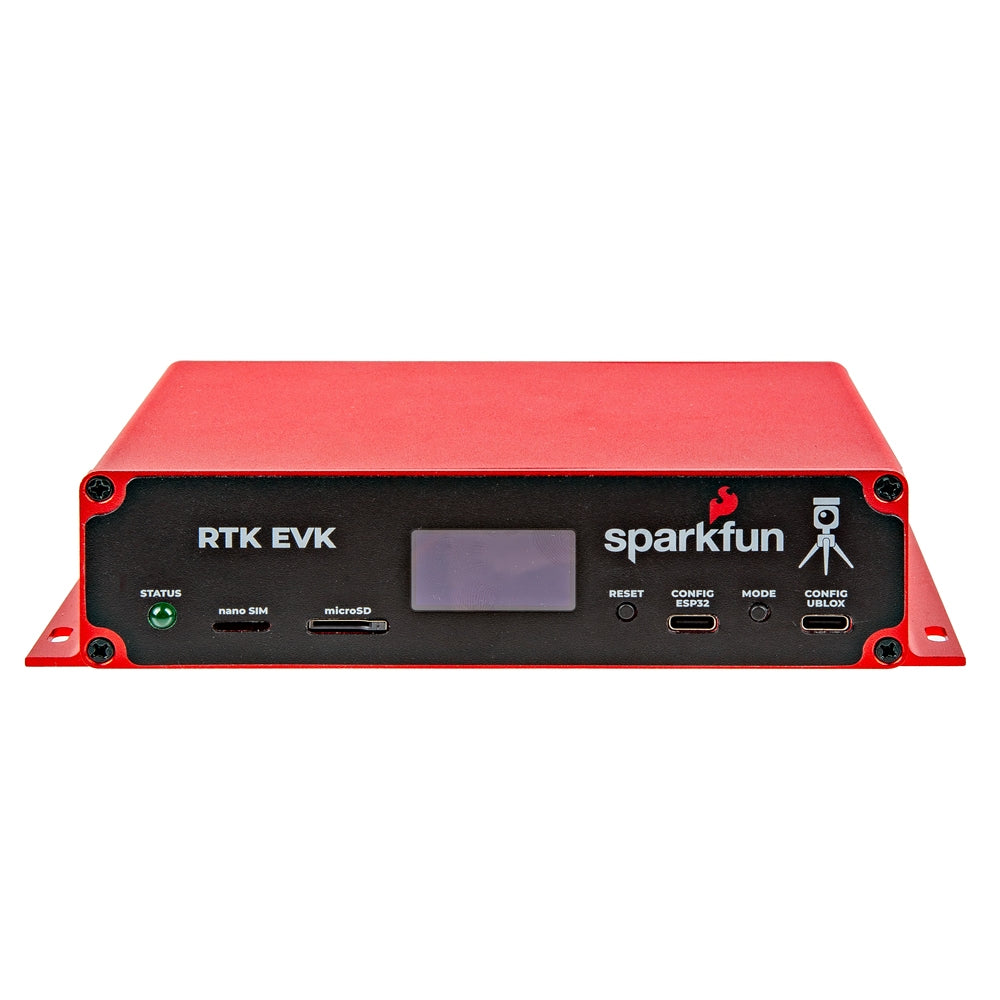

- OLED 1.3” display
- 128x64 pixels
- GNSS antenna connection
- SMA with antenna short and disconnect detection
- 5V power for an active antenna

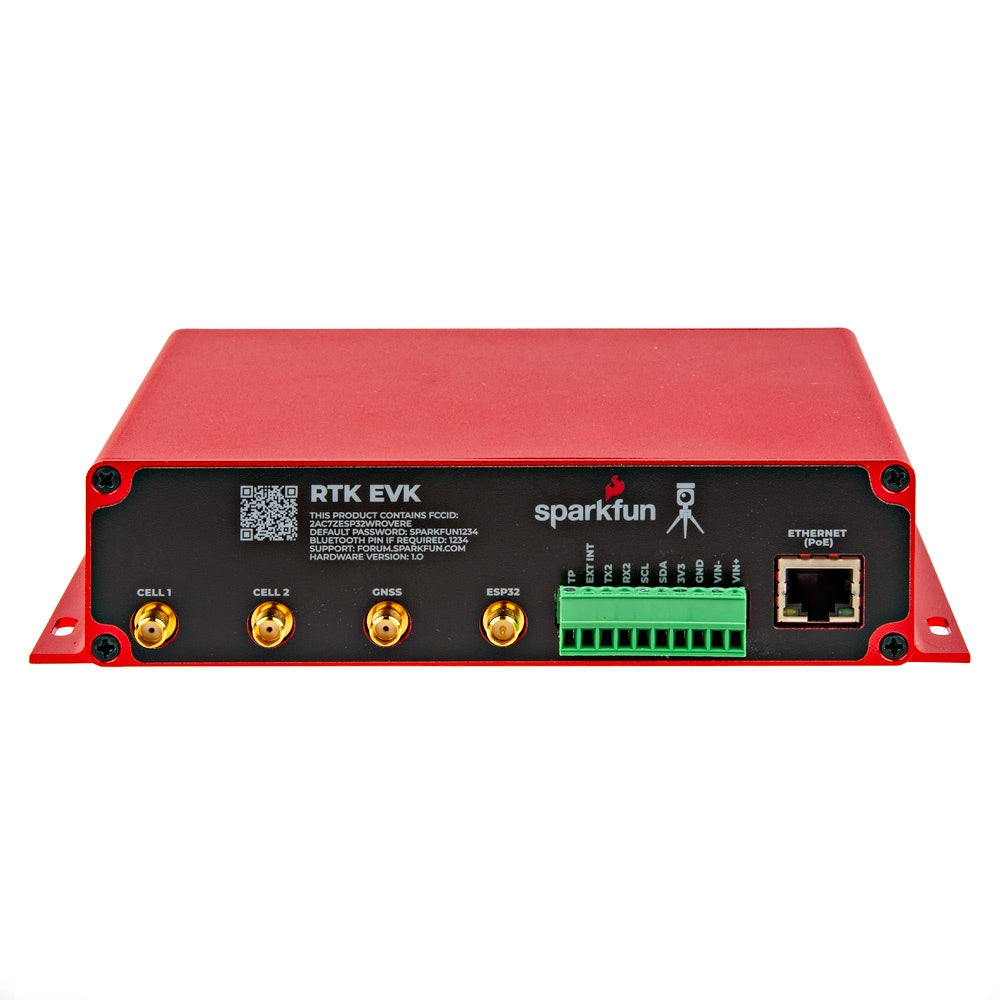

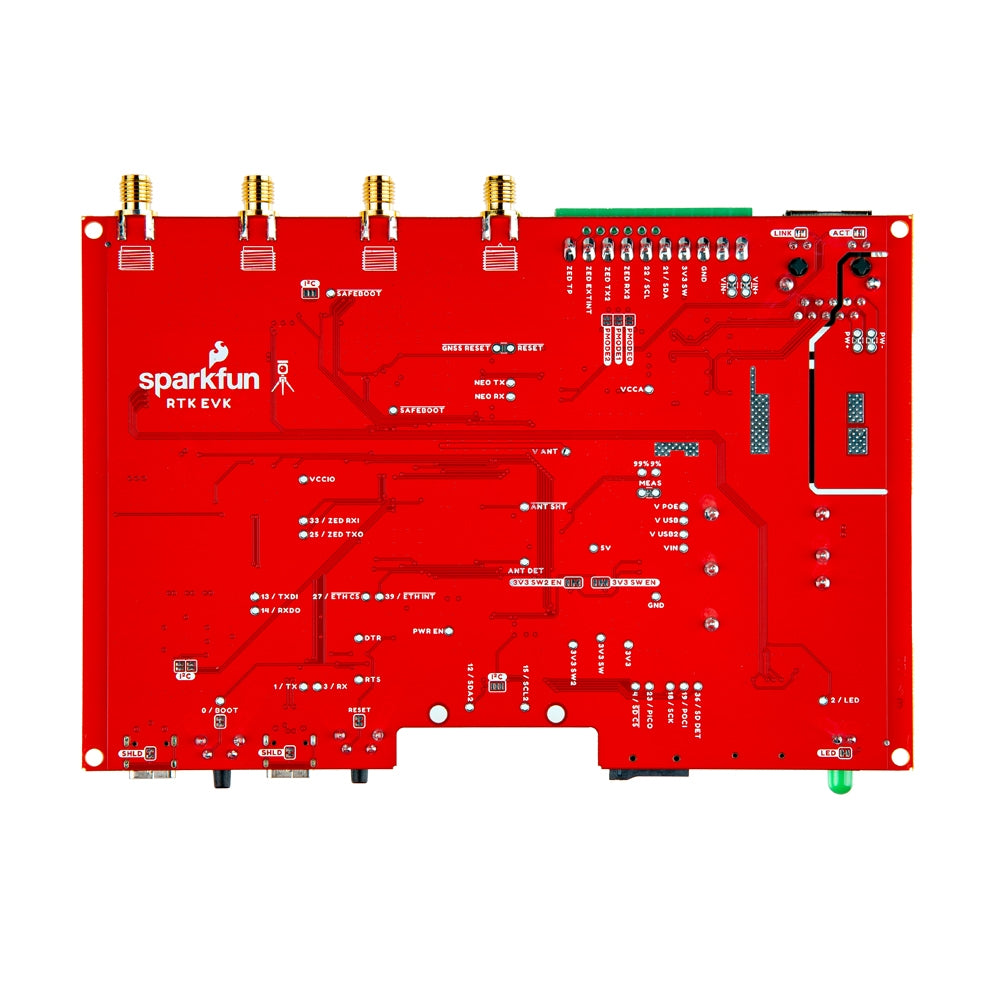

- I/O Connections
- Robust 3.5mm screw terminals
- Fully isolated external DC power input (9V - 36V)
- ZED-F9P UART2: TX, RX (3.3V)
- ZED-F9P EXT-INT input (3.3V)
- ZED-F9P timing pulse output (3.3V)
- I2C (3.3V)

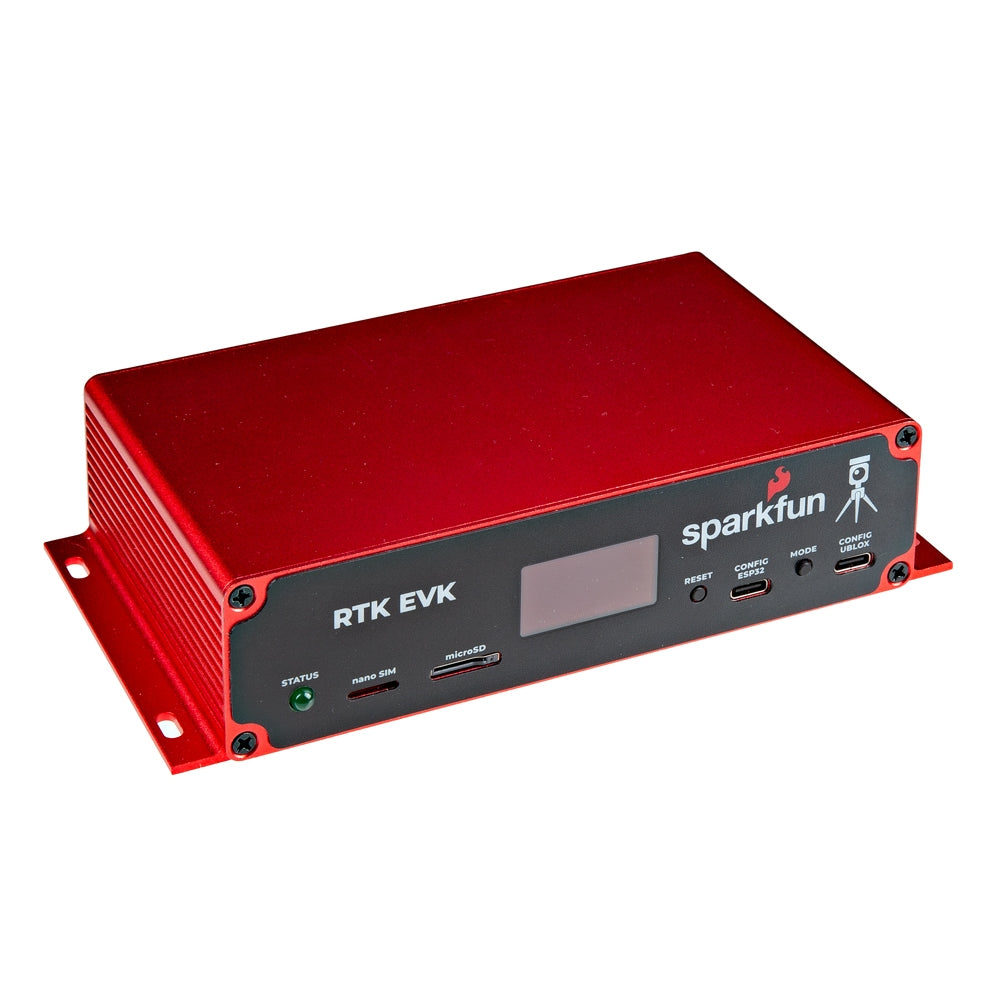

- Custom extruded aluminum case with machined end panels
- Ingress protection: designed to IP42
- A weatherproof enclosure is required for outdoor use
- Matte-effect front and rear stickers
- Power options:
- u-blox USB-C connector
- ESP32 USB-C connector
- Power-over-Ethernet (36V - 57V)
- External DC power (9VDC - 36VDC via screw terminals) (Fully isolated)
- Enclosure Dimensions: 180.60mm x 101.8mm x 41.00mm
- Weight (without antennas attached): 0.8929 lbs (~405.0g)
Module Specs:
GNSS Receiver: ZED-F9P
- Concurrent reception of GPS, GLONASS, Galileo, and BeiDou
- Receives both L1C/A and L2C bands
- 184-channel u-blox F9 engine
- Time to First Fix:
- 25s (cold)
- 2s (hot)
- Max Navigation Rate: 20Hz / 25Hz depending on mode
- Horizontal Position Accuracy:
- 2.5m without RTK
- 0.010m with RTK
- Max Altitude: 50km (31 miles)
- Max Velocity: 500m/s (1118mph)
Correction Data Receiver: NEO-D9S
- L-Band data receiver compliance: SESTB28A
- Frequency range: 1525 to 1559MHz
- Sensitivity: -133dBm
- Time to First Frame: <10s
- Receives PMP messages from Inmarsat Geosynchronous Satellites
LTE Cat 1 Cellular Module: LARA-R6001D
- Region: Global
- LTE FDD Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, & 28
- Certifications and approvals:
- PTCRB, GCF, FCC, ISED, RED, UKCA, NCC, RCM, Giteki, Anatel, KC, AT&T,
Verizon, T-Mobile, Deutsche Telekom, Telefonica, NTT DoCoMo, SBM, KDDI, Telstra
- PTCRB, GCF, FCC, ISED, RED, UKCA, NCC, RCM, Giteki, Anatel, KC, AT&T,
- Note: Although the LARA supports GSM/GPRS, the RTK EVK does not due to the high current required.
Features & Specs
| MODULE | RECEPTION | CONSTELLATIONS | INTERNAL ANTENNA | COMMUNICATIONS HARDWARE | APPLICATION | CORRECTIONS SOURCE |
|---|---|---|---|---|---|---|
| u-blox ZED-F9P, NEO-D9S | L1/L2 | GPS, GLONASS, Galileo, BeiDou | No | Bluetooth, WiFi, LTE, Ethernet, | Base or Rover | PointPerfect L-Band+IP, NTRIP |
Overall Device Specs:
- microSD socket
- Nano SIM Card Slot
- OLED 1.3” display
- 128x64 pixels
- GNSS antenna connection
- SMA with antenna short and disconnect detection
- 5V power for an active antenna
- I/O Connections
- Robust 3.5mm screw terminals
- Fully isolated external DC power input (9V - 36V)
- ZED-F9P UART2: TX, RX (3.3V)
- ZED-F9P EXT-INT input (3.3V)
- ZED-F9P timing pulse output (3.3V)
- I2C (3.3V)
- Custom extruded aluminum case with machined end panels
- Ingress protection: designed to IP42
- A weatherproof enclosure is required for outdoor use
- Matte-effect front and rear stickers
- Power options:
- u-blox USB-C connector
- ESP32 USB-C connector
- Power-over-Ethernet (36V - 57V)
- External DC power (9VDC - 36VDC via screw terminals) (Fully isolated)
- Enclosure Dimensions: 180.60mm x 101.8mm x 41.00mm
- Weight (without antennas attached): 0.8929 lbs (~405.0g)
Module Specs:
GNSS Receiver: ZED-F9P
- Concurrent reception of GPS, GLONASS, Galileo, and BeiDou
- Receives both L1C/A and L2C bands
- 184-channel u-blox F9 engine
- Time to First Fix:
- 25s (cold)
- 2s (hot)
- Max Navigation Rate: 20Hz / 25Hz depending on mode
- Horizontal Position Accuracy:
- 2.5m without RTK
- 0.010m with RTK
- Max Altitude: 50km (31 miles)
- Max Velocity: 500m/s (1118mph)
Correction Data Receiver: NEO-D9S
- L-Band data receiver compliance: SESTB28A
- Frequency range: 1525 to 1559MHz
- Sensitivity: -133dBm
- Time to First Frame: <10s
- Receives PMP messages from Inmarsat Geosynchronous Satellites
LTE Cat 1 Cellular Module: LARA-R6001D
- Region: Global
- LTE FDD Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, & 28
- Certifications and approvals:
- PTCRB, GCF, FCC, ISED, RED, UKCA, NCC, RCM, Giteki, Anatel, KC, AT&T,
Verizon, T-Mobile, Deutsche Telekom, Telefonica, NTT DoCoMo, SBM, KDDI, Telstra
- PTCRB, GCF, FCC, ISED, RED, UKCA, NCC, RCM, Giteki, Anatel, KC, AT&T,
- Note: Although the LARA supports GSM/GPRS, the RTK EVK does not due to the high current required.
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Case Dimensions
- RTK EVK Hookup Guide
- RTK Everywhere Product Manual
- RTK Everywhere Firmware
- RTK Everywhere Firmware Binaries
- Additional ESP32 Code Examples
- GitHub Hardware Repo
Datasheets
Integration Manuals
- ZED-F9P
- NEO-D9S
- LARA-R6
- LARA-R6 AT Commands Manual
- LARA-R6 firmware update package links and instructions
- LARA-R6 documentation
