Description

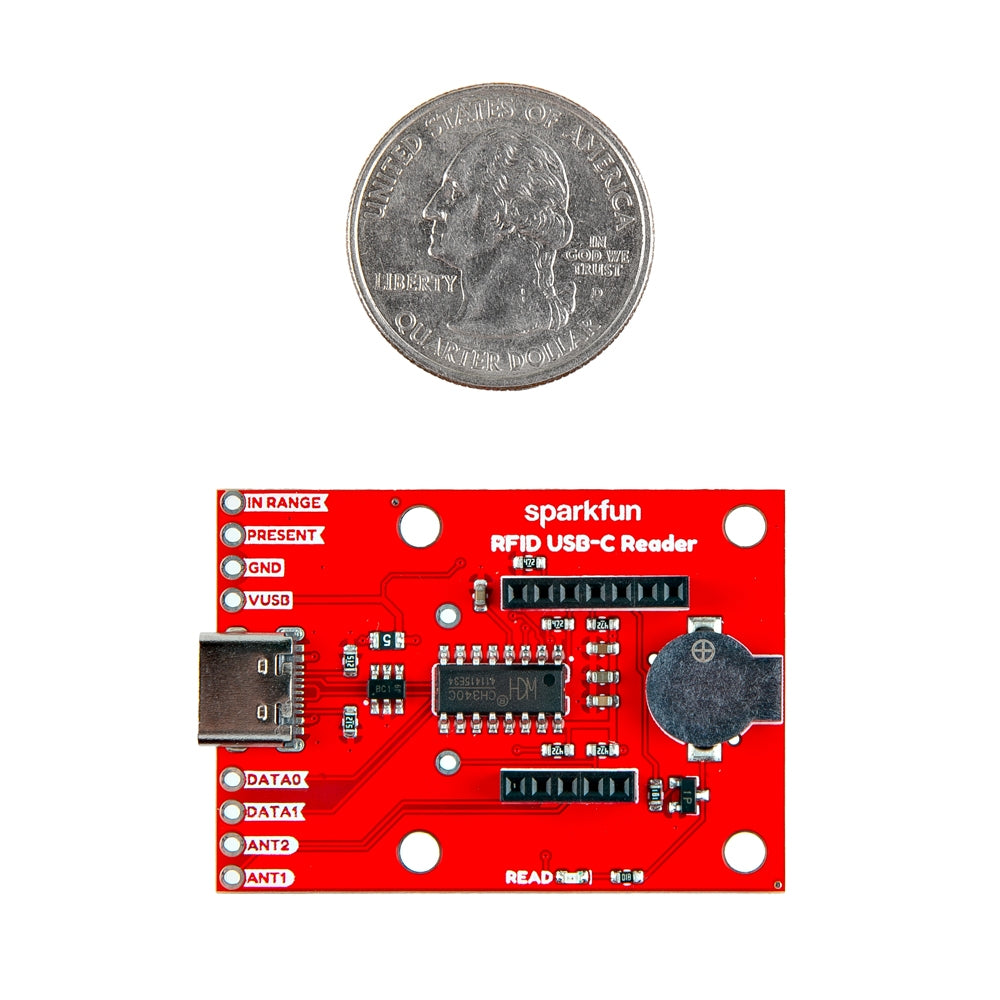

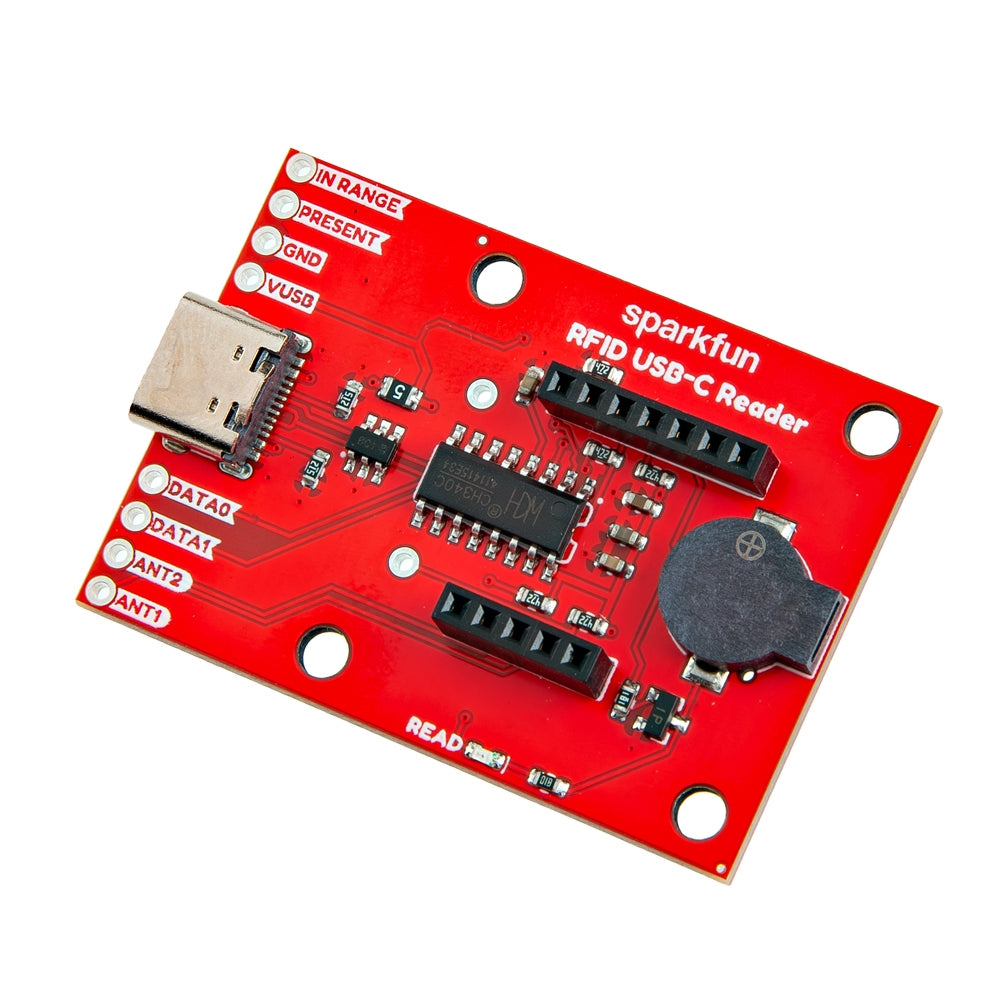

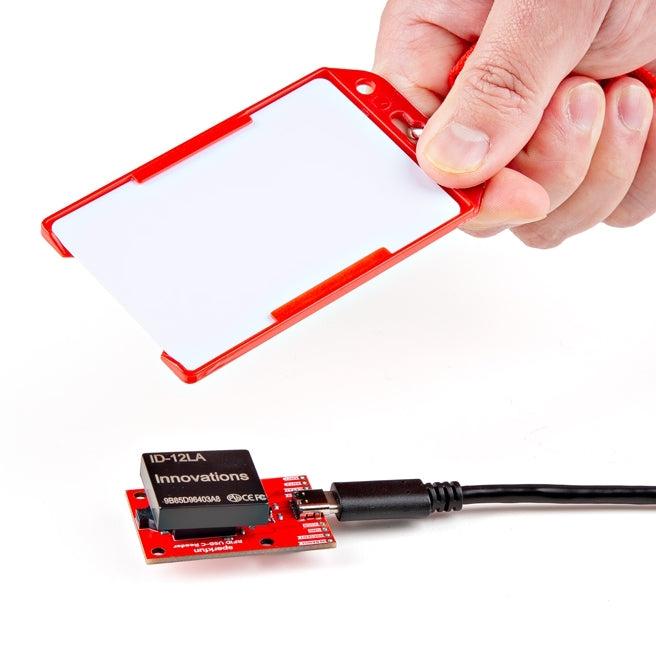

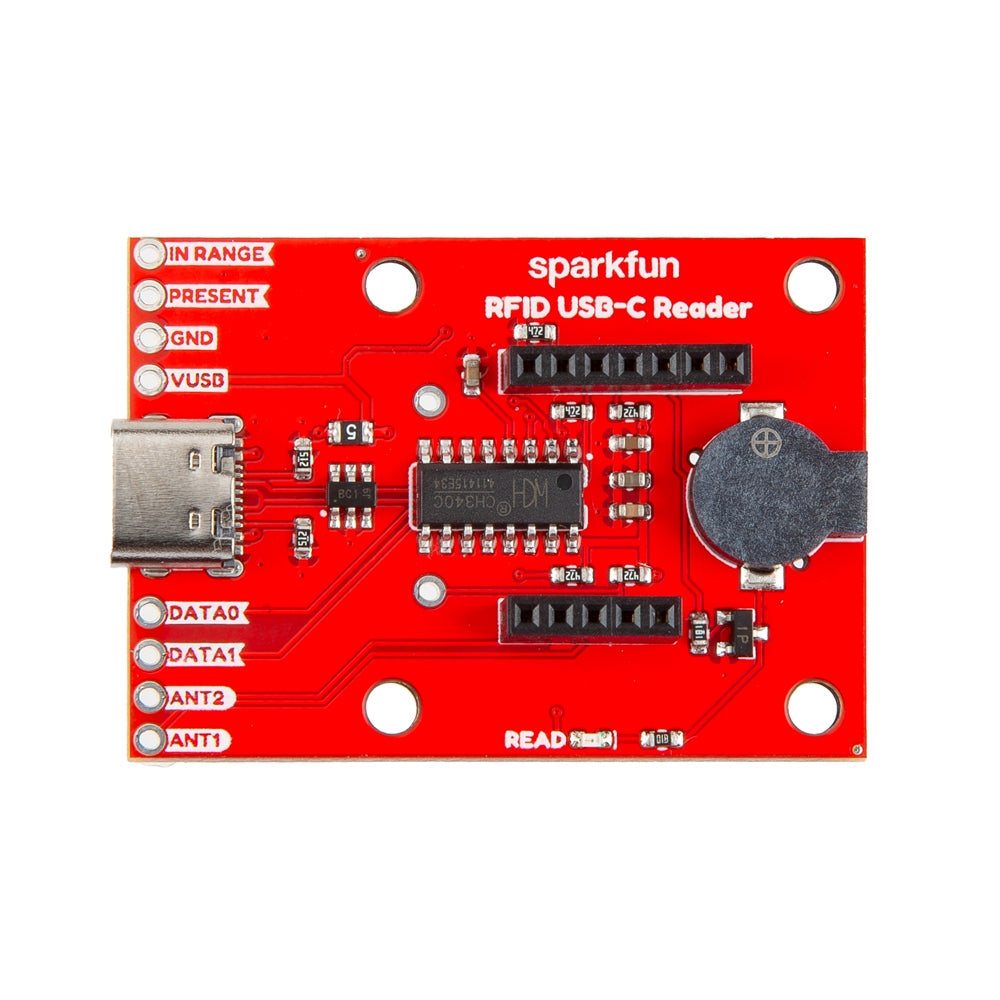

An updated USB-C RFID Reader for ID Innovations modules. Features a CH340C converter, selectable output formats, and customizable audio/visual feedback.
Features & Specs
- Voltage In: Typically 5V via USB
- USB-C Connector
- 5V/1A Resettable Fuse
- ESD Protection Diodes for USB Data Pins
- CH340 USB-to-Serial Converter
- ID-Innovations RFID Read Module Footprint
- Read LED
- Magnetic Buzzer

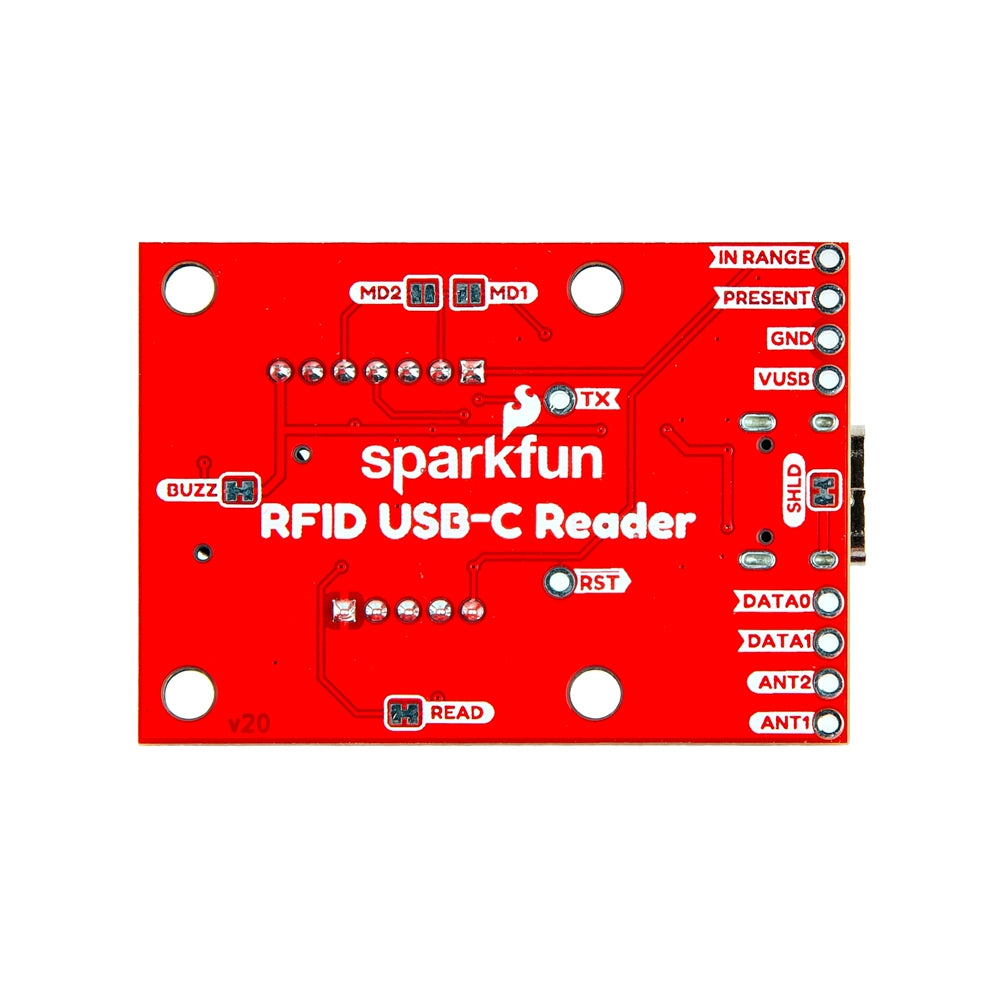

- Jumpers
- USB Shield:
SHLD - Read LED:
LED - Buzzer:
BUZZ - Output Format Select:
MD1andMD2
- USB Shield:
- Board Dimensions: 1.75" x 1.25" (44.45mm x 31.75mm)
- Weight: .225oz (6.4g)
Features & Specs
- Voltage In: Typically 5V via USB
- USB-C Connector
- 5V/1A Resettable Fuse
- ESD Protection Diodes for USB Data Pins
- CH340 USB-to-Serial Converter
- ID-Innovations RFID Read Module Footprint
- Read LED
- Magnetic Buzzer
- Jumpers
- USB Shield:
SHLD - Read LED:
LED - Buzzer:
BUZZ - Output Format Select:
MD1andMD2
- USB Shield:
- Board Dimensions: 1.75" x 1.25" (44.45mm x 31.75mm)
- Weight: .225oz (6.4g)
Documentation
- Schematic
- KiCad Files
- Hookup Guide
- Using RFID Tags And Readers
- RFID Tutorials
- Board Dimensions
- 3D Model
- GitHub Hardware Repo
