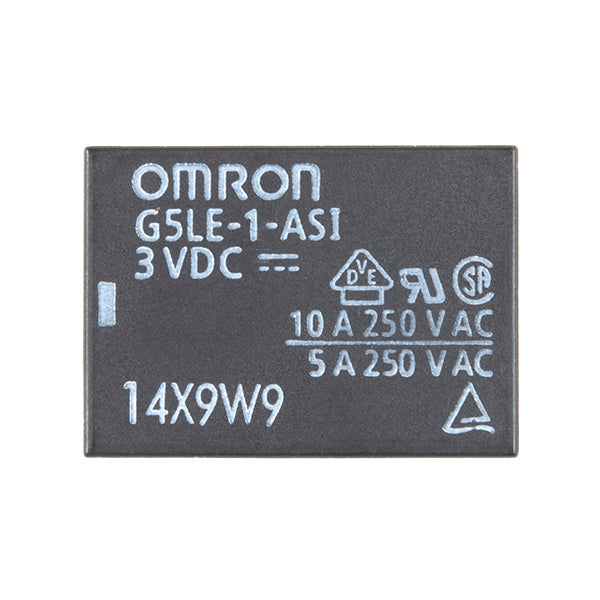

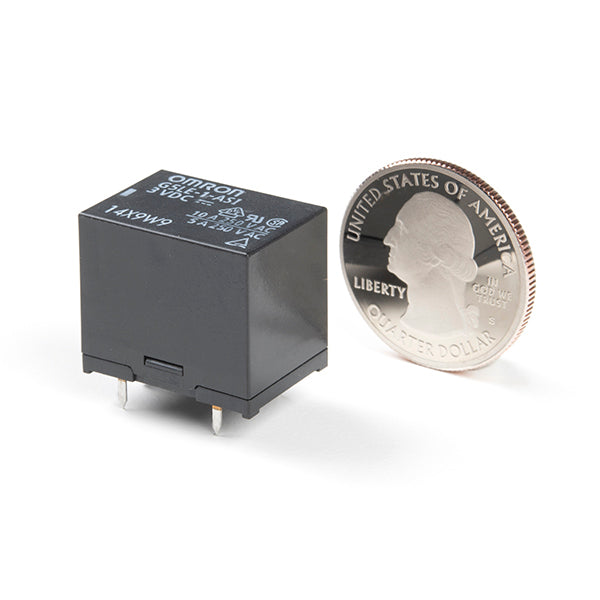

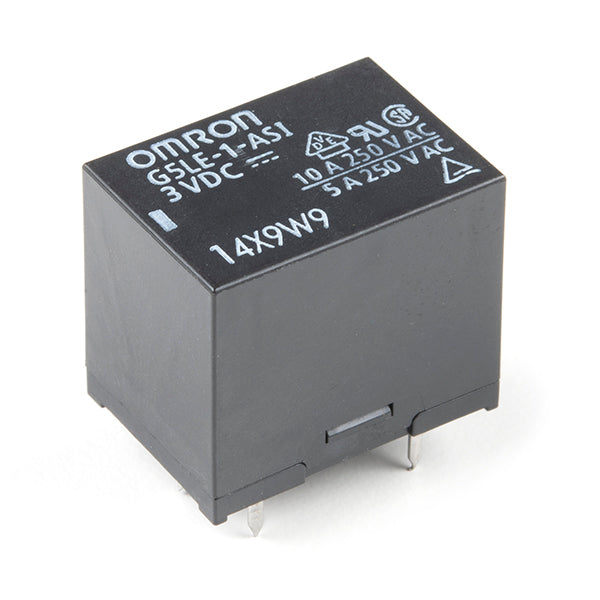

SparkFun Relay SPDT Sealed - 10A (G5LE-1 DC3)

DC Power Relays interrupt high-capacity DC loads and high-voltage DC circuits in a compact, low-noise design. The switching section and driving section are gas-injected and hermetically sealed, allowing these compact relays to interrupt high-capacity loads. The sealed construction also requires no arc space, saves space, and helps ensure safe applications.

These are high quality Single Pole - Double Throw (SPDT) sealed flux protection relays. Use them to switch high voltage, and/or high current devices.

This relay's coil is rated up to 3V, with a maximum switching voltage of 250VAC, 125VDC. The contacts are rated up to 10A (@120VAC; 8A @30VDC).

Features:

• Coil Voltage: 3VDC
• Contact Form: SPDT (1 Form C)
• Contact Rating (Current): 10A
• Switching Voltage: 250VAC, 125VDC - Max
• Coil Current: 133mA
• Coil Type: Non Latching
• Termination Style: PC Pin
• Seal Rating: Sealed - Flux Protection
• Coil Insulation: Class B
• Must Operate Voltage: 2.25VDC
• Must Release Voltage: 0.3VDC
• Operate Time: 10ms
• Release Time: 5ms
• Operating Temperature: -25C ~ 85C
• Coil Resistance: 22.5 Ohms

Documents:

• Datasheet
