Description

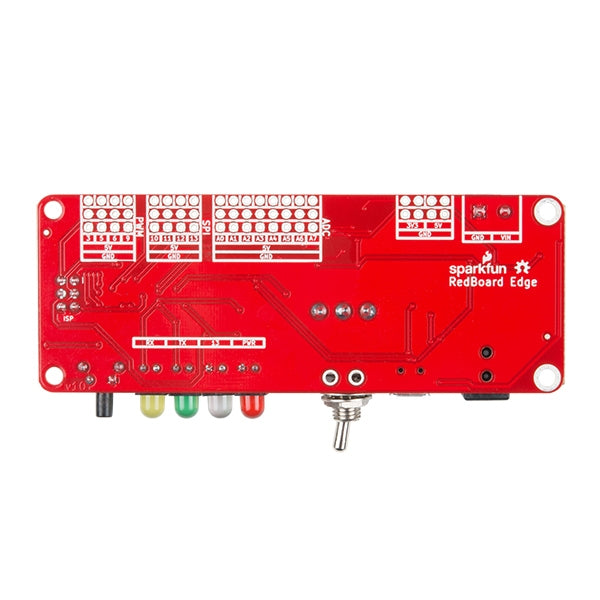

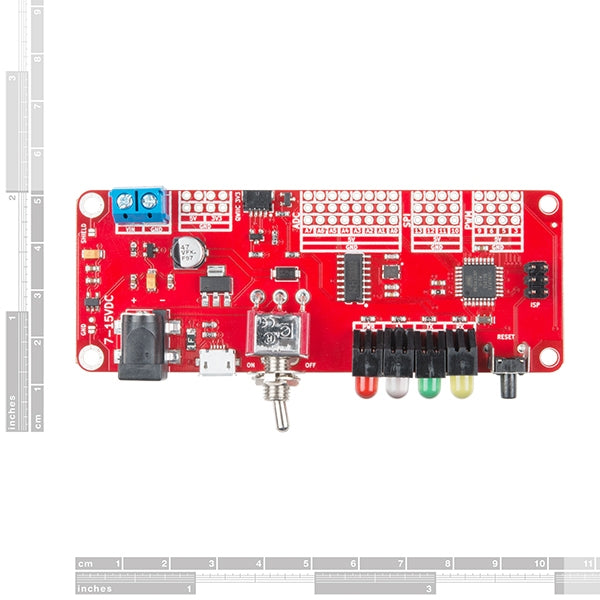

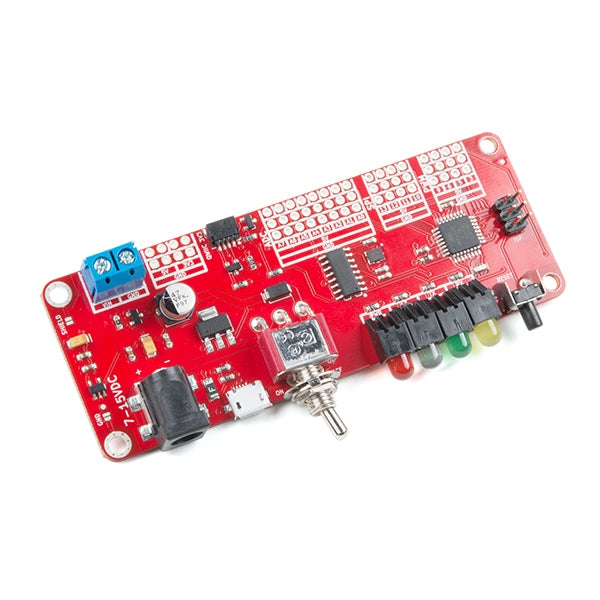

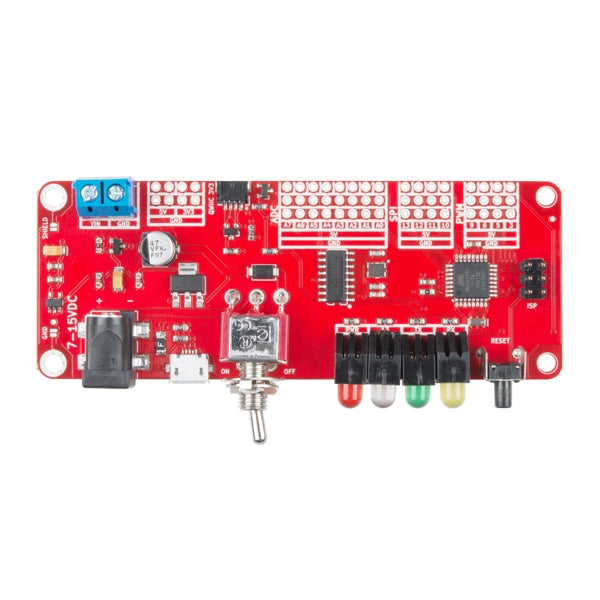

The SparkFun RedBoard Edge is a nifty little rework of the SparkFun RedBoard designed to be panel mounted in your custom project enclosure to allow for an easy way to make a clean, finished looking product. It has all the features of a normal RedBoard and is just as easy to use, even allowing you to prototype on a RedBoard and easily move your project over to a RedBoard Edge without complication. If you want an excellent learning platform for physical computing the SparkFun RedBoard Edge is still a cutting-edge choice!
Features & Specs
- ATmega328 microcontroller with Optiboot (UNO) Bootloader
- Input voltage - 7-15V
- 0-5V outputs with 3.3V compatible inputs
- 14 Digital I/O Pins (6 PWM outputs)
- 6 Analog Inputs
- ISP Header
- 32k Flash Memory
- 16MHz Clock Speed
- Panel Mount Design
- micro USB Port
- Qwiic Connector
Features & Specs
- ATmega328 microcontroller with Optiboot (UNO) Bootloader
- Input voltage - 7-15V
- 0-5V outputs with 3.3V compatible inputs
- 14 Digital I/O Pins (6 PWM outputs)
- 6 Analog Inputs
- ISP Header
- 32k Flash Memory
- 16MHz Clock Speed
- Panel Mount Design
- micro USB Port
- Qwiic Connector
Documentation
- Schematic
- KiCad Files
- Hookup Guide
- Arduino IDE Download
- Panel Mounting Files
- Qwiic Page
- GitHub
- Compare SparkFun RedBoards
