Description

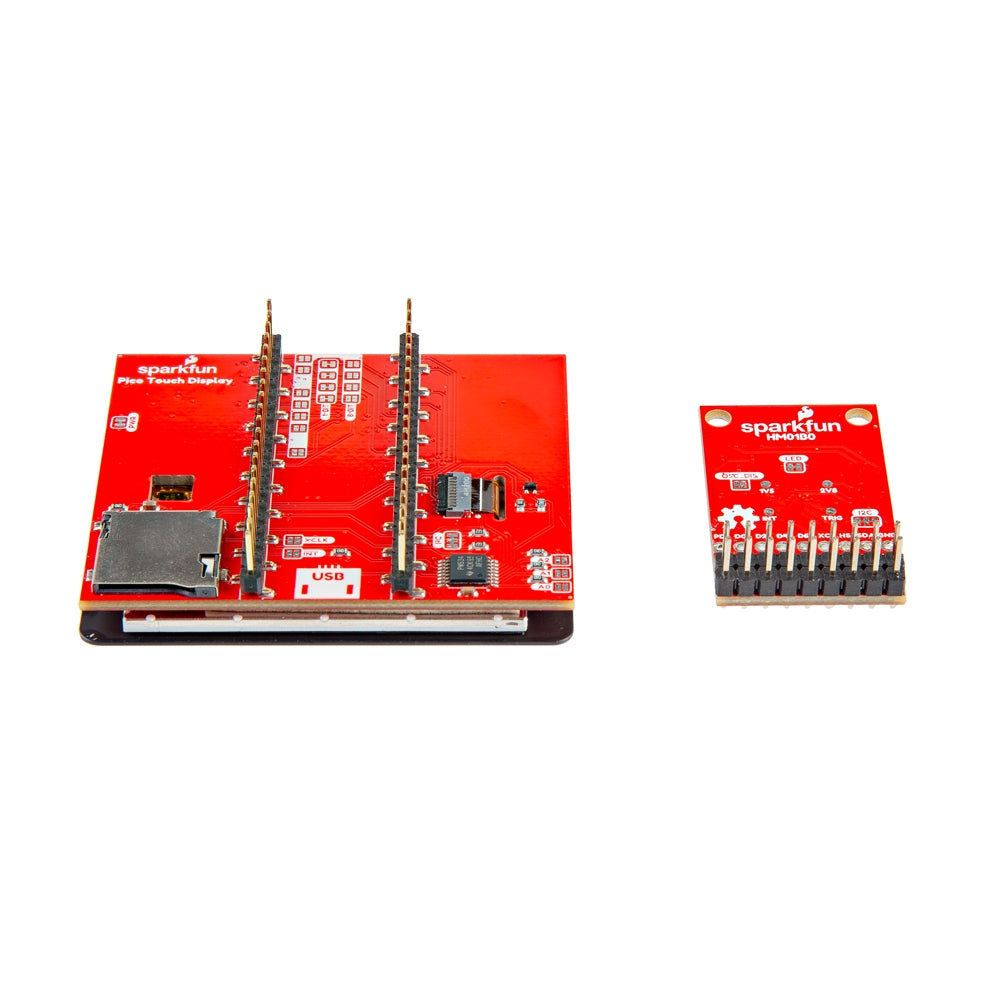

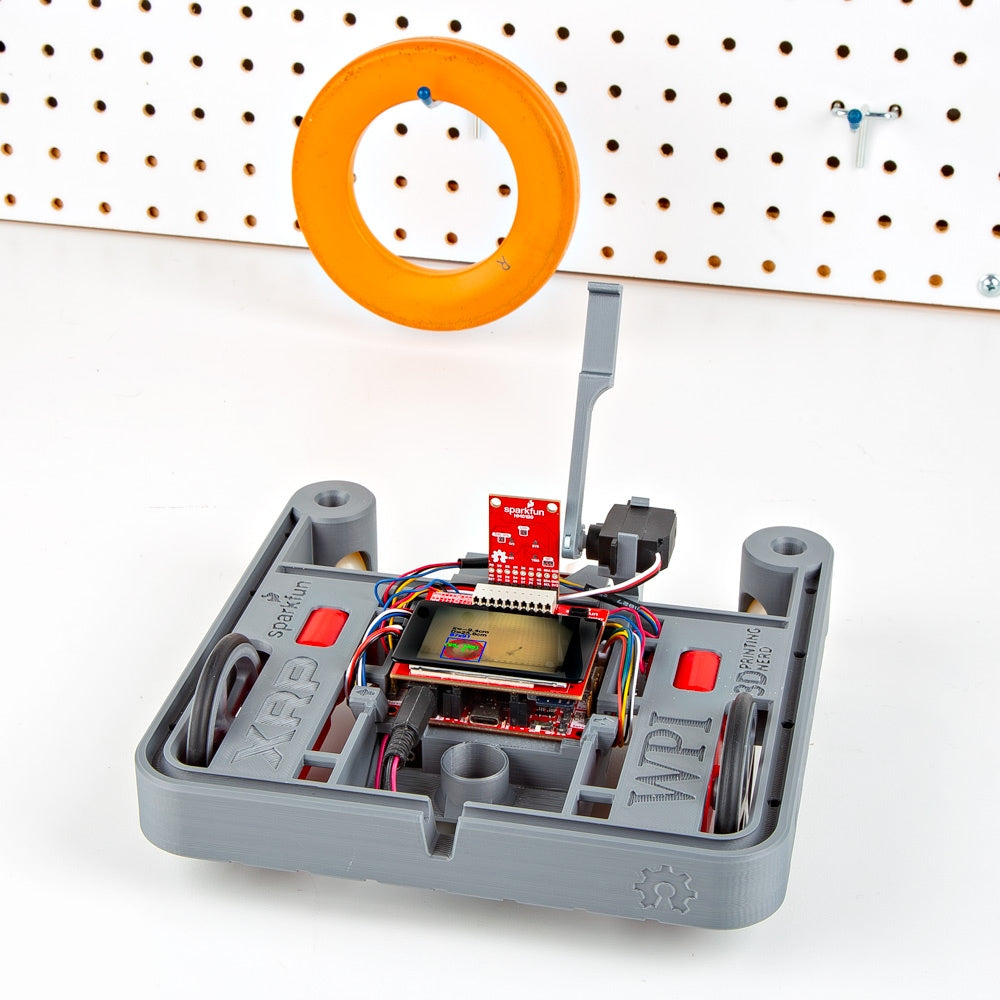

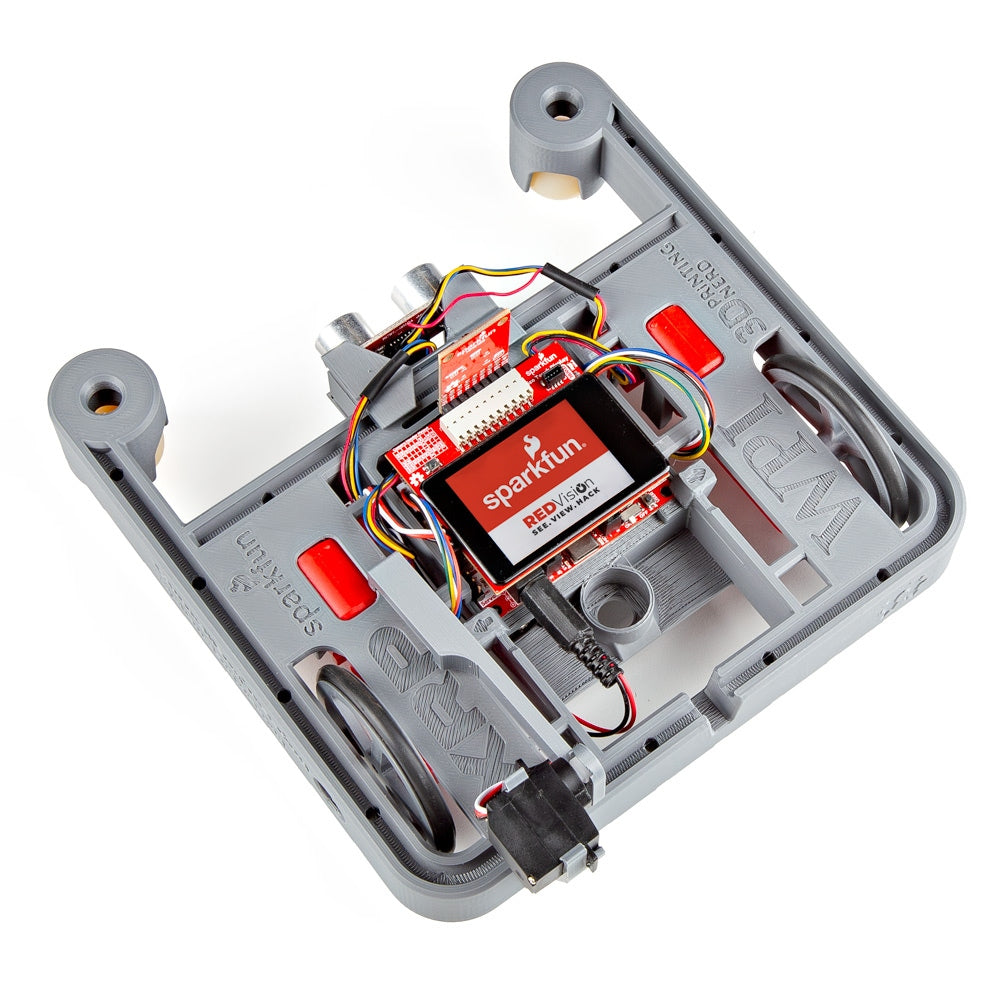

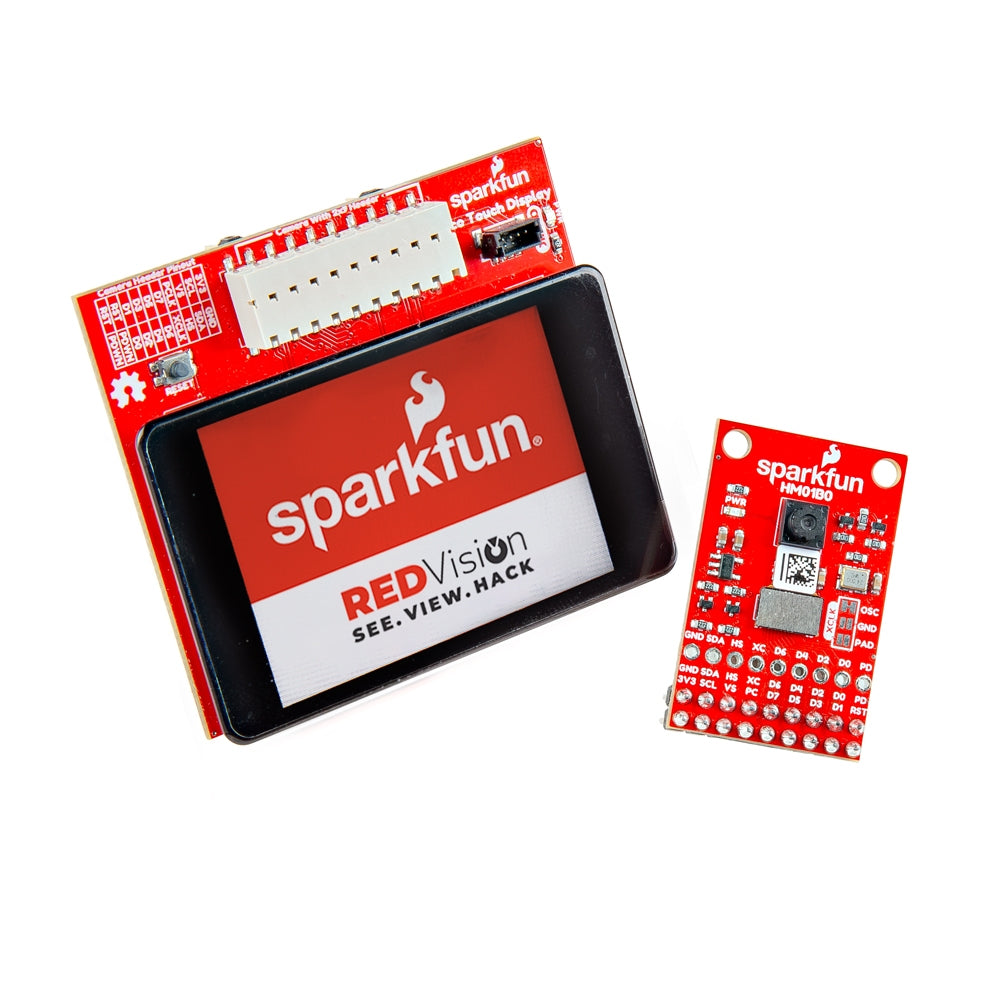

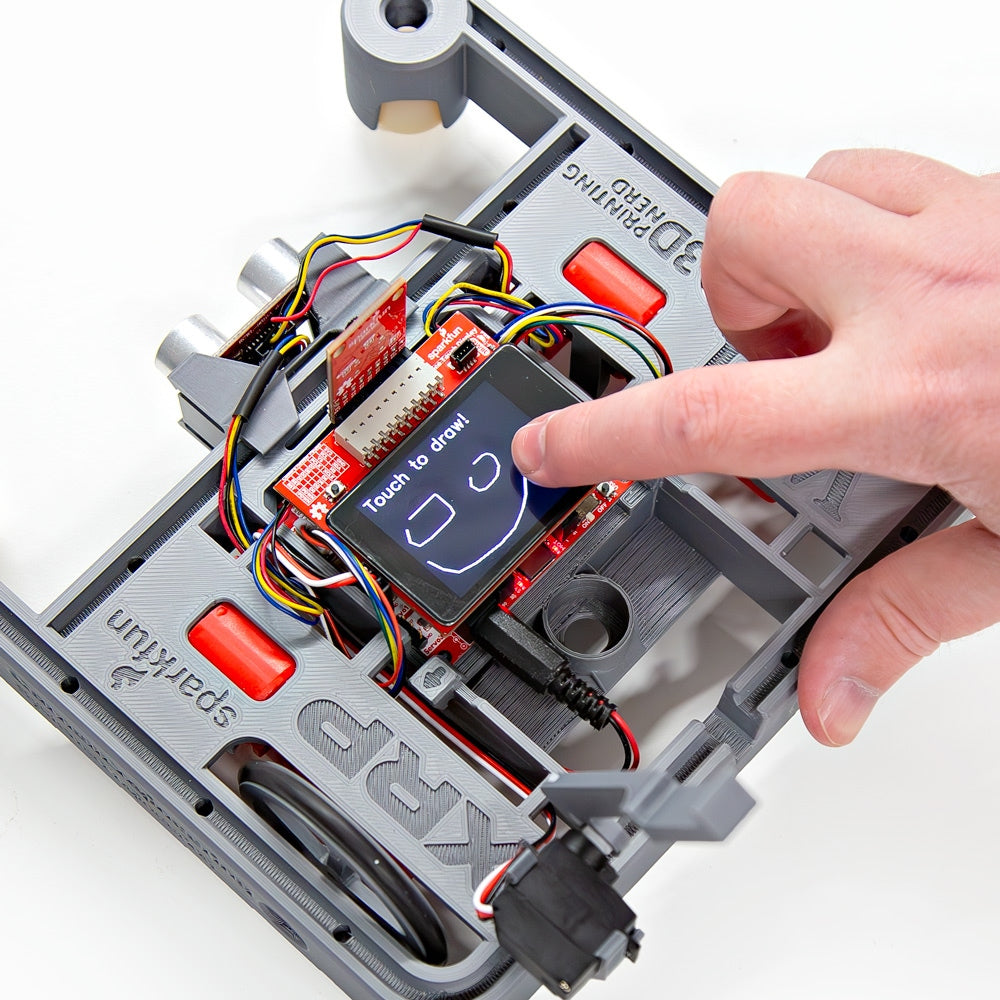

Effortlessly add a camera and touchscreen to your XRP Robot for machine vision capabilities with the SparkFun Red Vision Kit —no soldering required.
Features & Specs

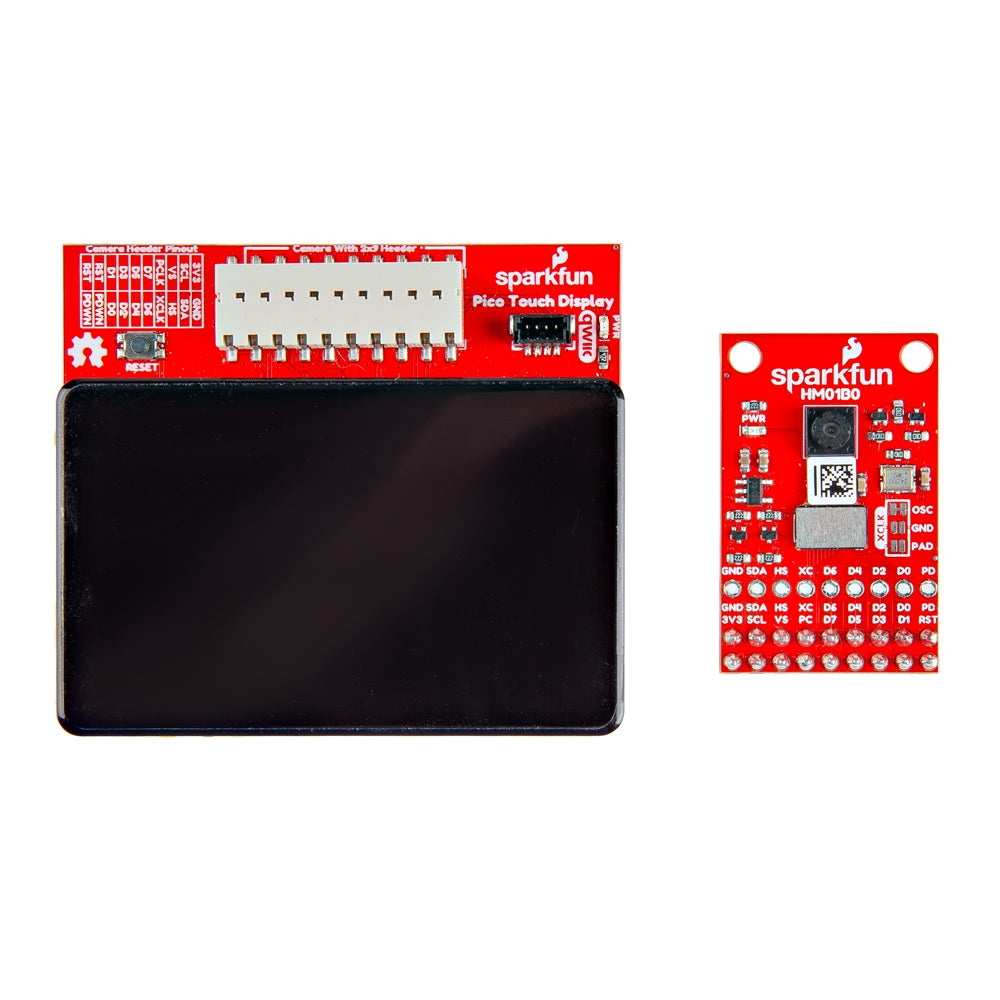

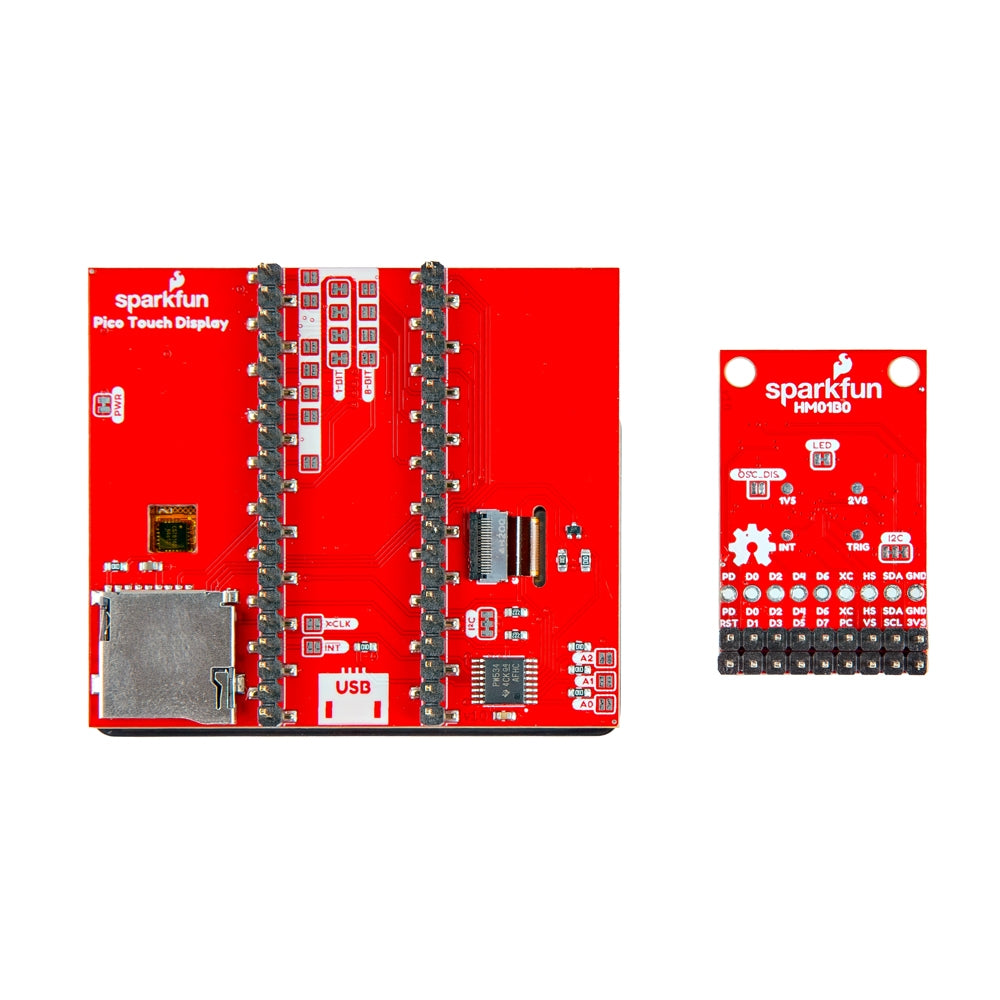

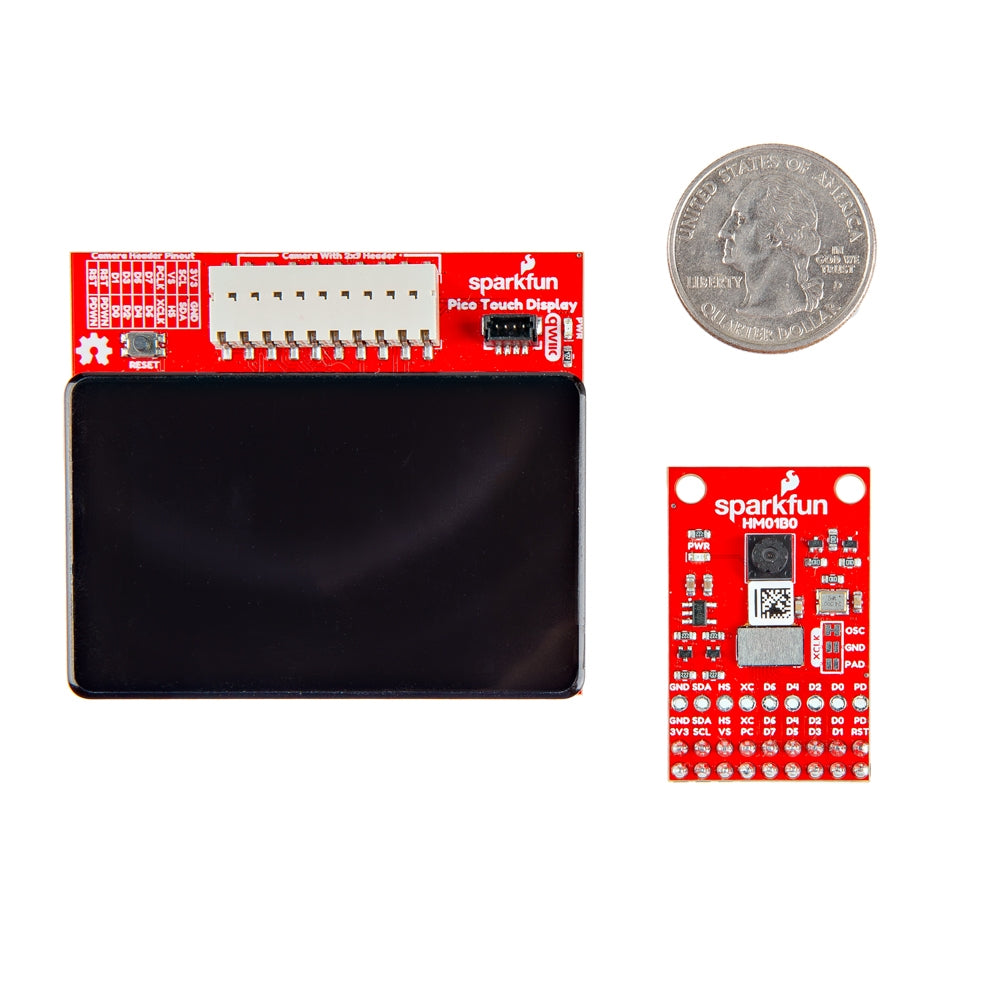

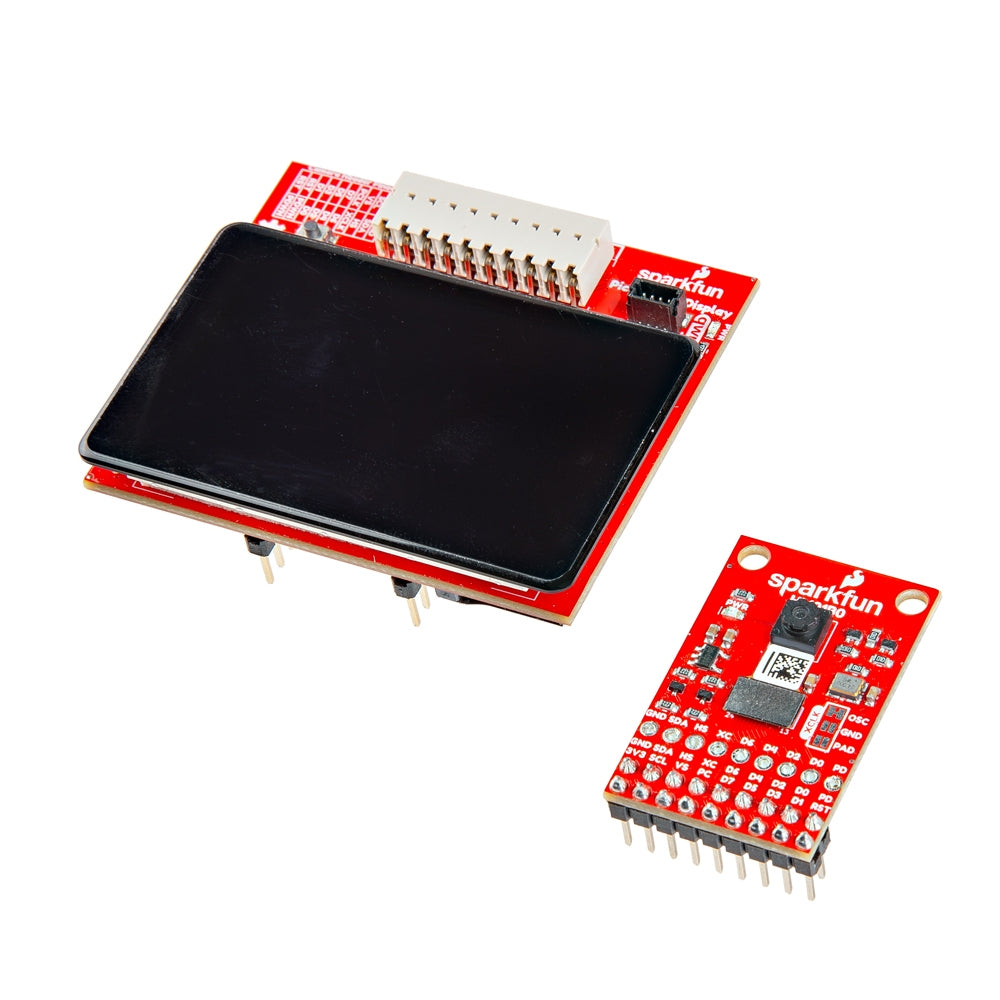

Red Vision Touch Display Features
- 2" Touch Screen Display
- 320 x 240px Resolution
- 2 1 x 20 Male Headers (for connecting to XRP/Pico)
- 1 2 x 10 Socket (for connecting a Camera Board)
- I/O Expander
- 1 Qwiic Connector
- µSD Card Slot
- Reset Button
Red Vision Camera Board - HM0B10 (Color) Features
- 320 x 320 pixel array
- Pixel Size: 3.6µm x 3.6µm
- Max Frame Rates:
- Full Resolution: 51 FPS (320 x 320)
- Windowed/QVGA Mode: 60 FPS (320 x 240)
- 2 x 2 Monochrome Binning Mode: 120 FPS
- Video Data Interface: 1, 4 or 8bit with frame/line sync
- I2C Interface @400 kHz (max)
- I2C Address: 0 x 24
- Supply Voltage:
- Analog: 2.8V
- Digital: 1.5V (internally regulated)
- I/O: 1.5V - 2.8V
- 48MHz Internal Oscillator (Bypassed by default on Camera Board)
- 3x 0.1"-spaced PTH Headers
- Breaks out all HM01B0 pins
- Pair of 2x8 Male Headers pre-soldered
- Supply Voltage: 3.3V (regulated to 2.8V for HM01B0)
- 28MHz Oscillator (Default)
- Customizable to use internal or external oscillator
- Red Power LED
Features & Specs
Red Vision Touch Display Features
- 2" Touch Screen Display
- 320 x 240px Resolution
- 2 1 x 20 Male Headers (for connecting to XRP/Pico)
- 1 2 x 10 Socket (for connecting a Camera Board)
- I/O Expander
- 1 Qwiic Connector
- µSD Card Slot
- Reset Button
Red Vision Camera Board - HM0B10 (Color) Features
- 320 x 320 pixel array
- Pixel Size: 3.6µm x 3.6µm
- Max Frame Rates:
- Full Resolution: 51 FPS (320 x 320)
- Windowed/QVGA Mode: 60 FPS (320 x 240)
- 2 x 2 Monochrome Binning Mode: 120 FPS
- Video Data Interface: 1, 4 or 8bit with frame/line sync
- I2C Interface @400 kHz (max)
- I2C Address: 0 x 24
- Supply Voltage:
- Analog: 2.8V
- Digital: 1.5V (internally regulated)
- I/O: 1.5V - 2.8V
- 48MHz Internal Oscillator (Bypassed by default on Camera Board)
- 3x 0.1"-spaced PTH Headers
- Breaks out all HM01B0 pins
- Pair of 2x8 Male Headers pre-soldered
- Supply Voltage: 3.3V (regulated to 2.8V for HM01B0)
- 28MHz Oscillator (Default)
- Customizable to use internal or external oscillator
- Red Power LED
Documentation
- Camera Board Schematic
- Camera Board KiCad Files
- Touch Display Schematic
- Touch Display KiCad Files
- SparkFun Red Vision MicroPython Package
- SparkFun MicroPython OpenCV
- SparkFun MicroPython Firmware Releases
- Hookup Guide
- GitHub Repo
