Description

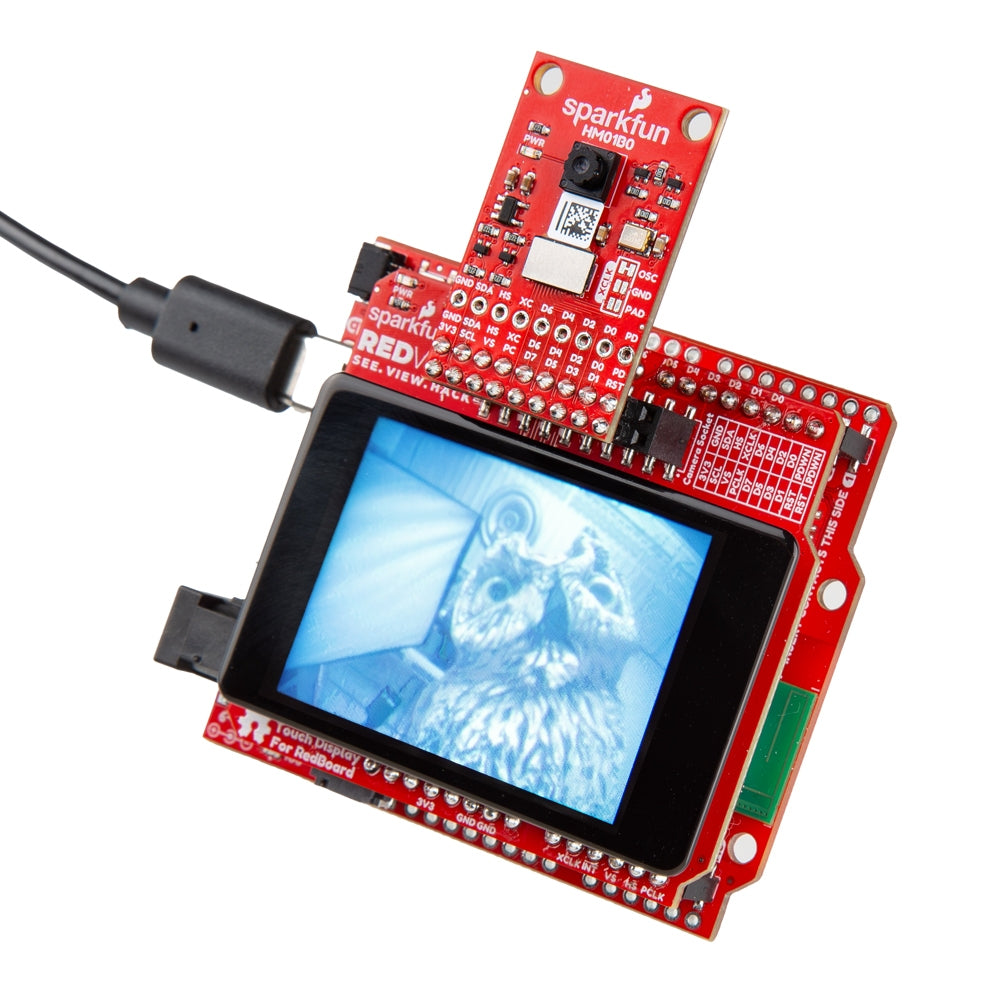

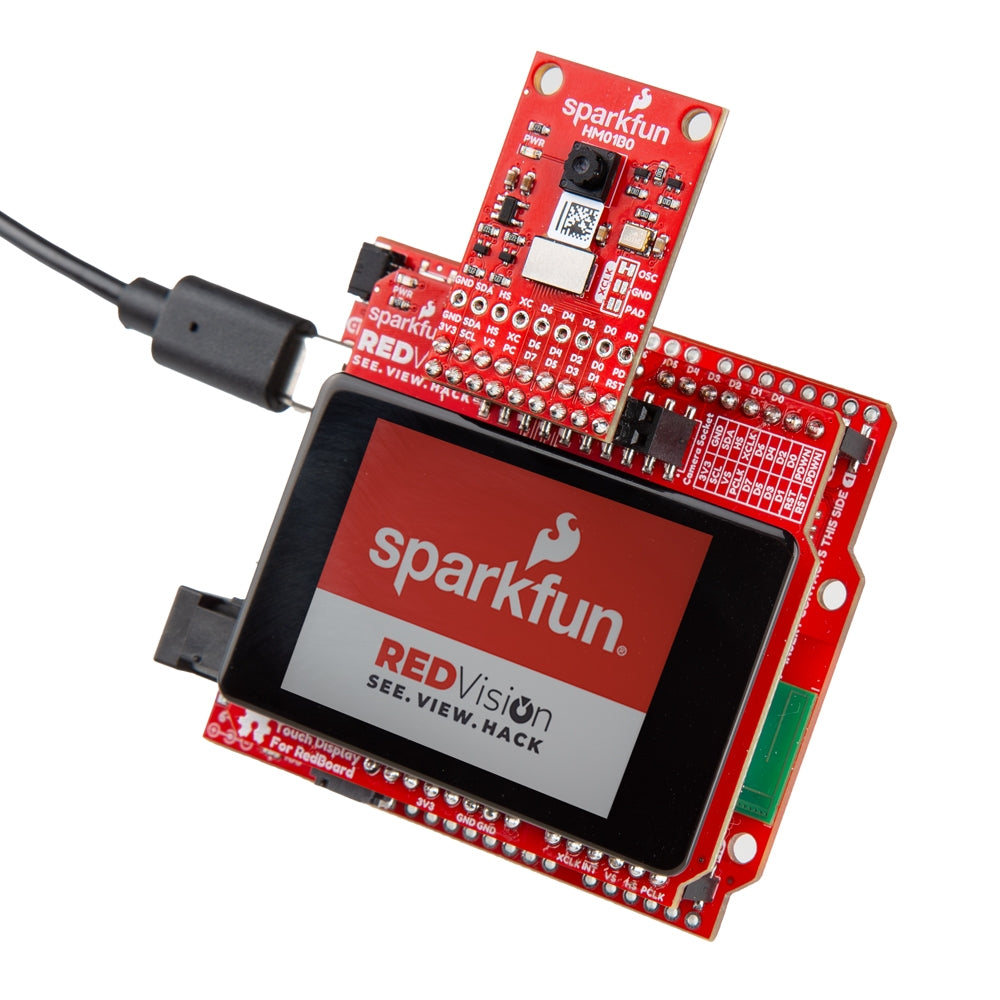

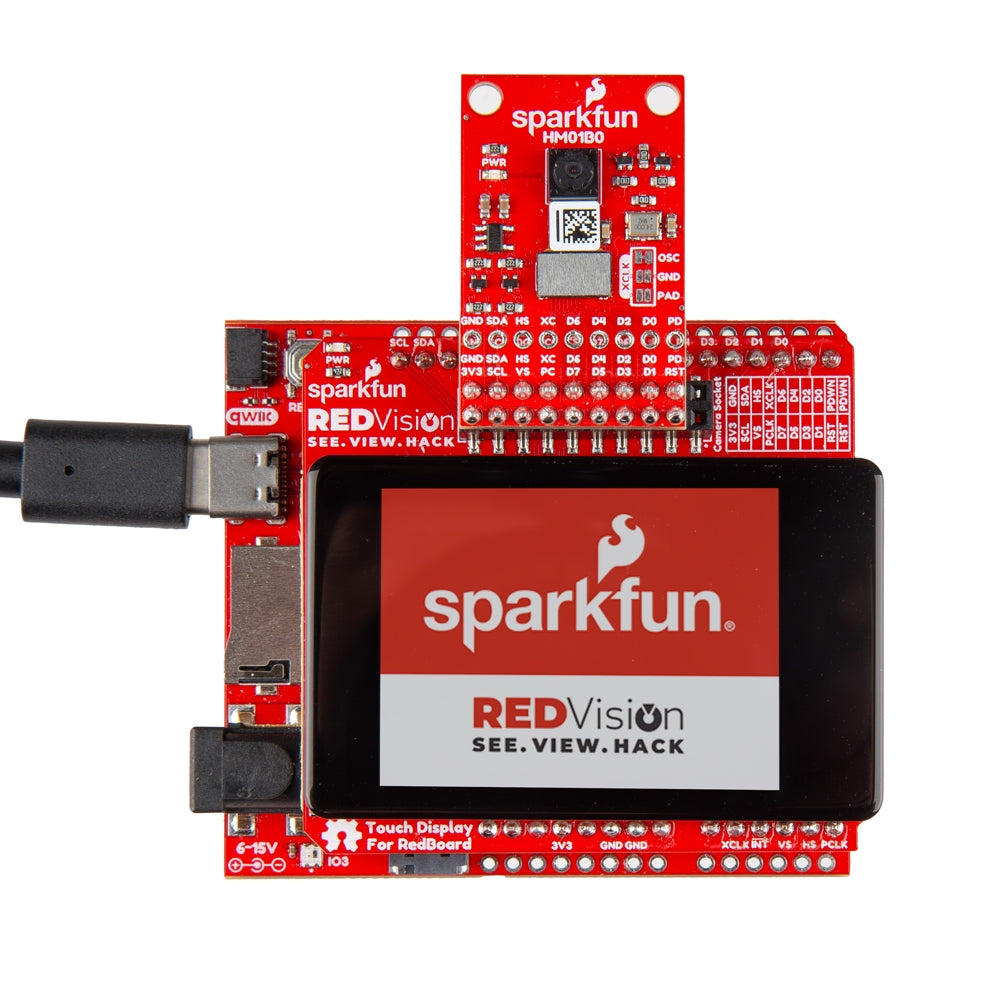

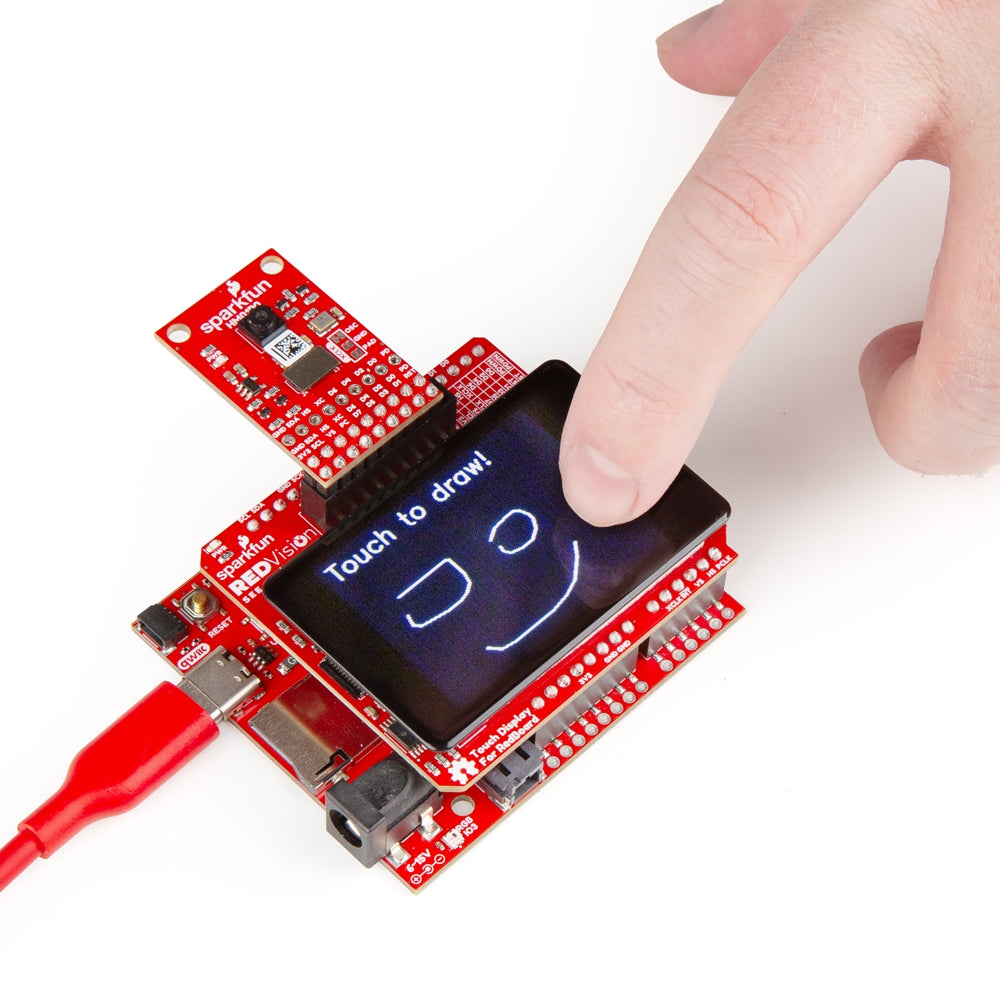

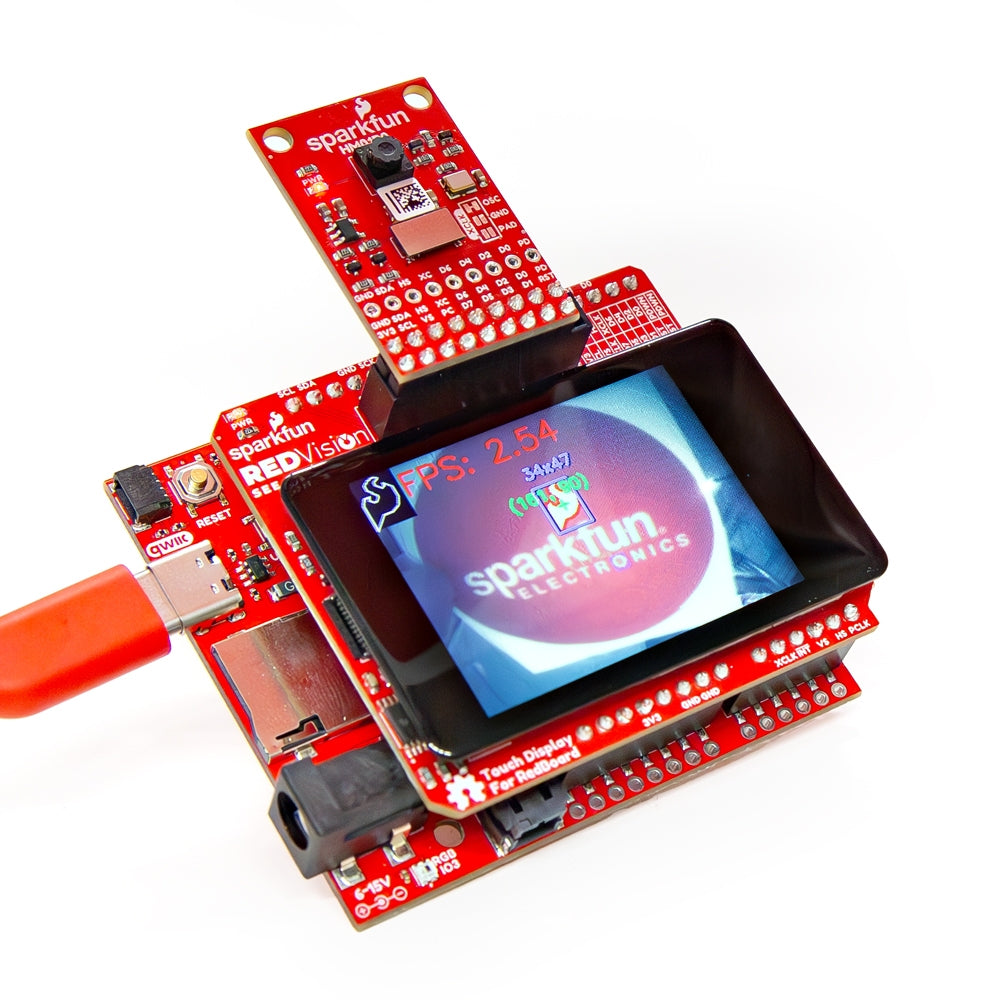

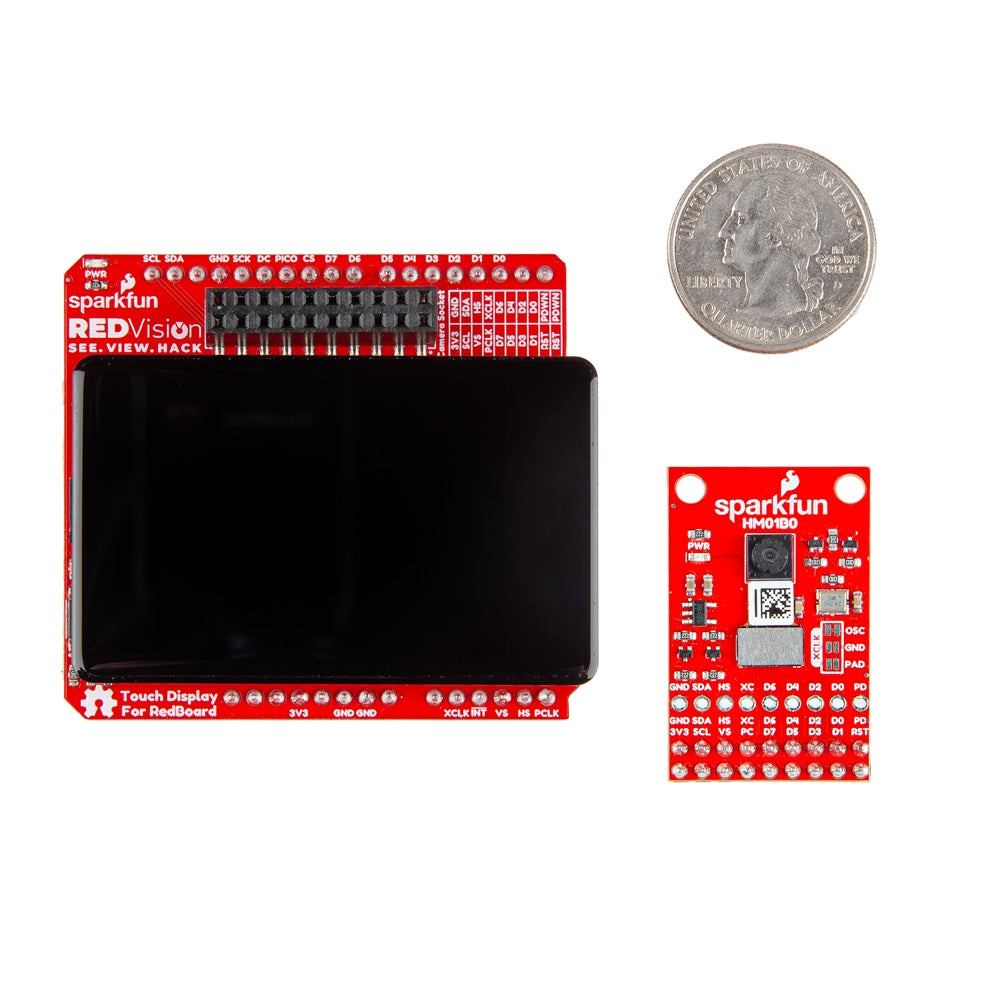

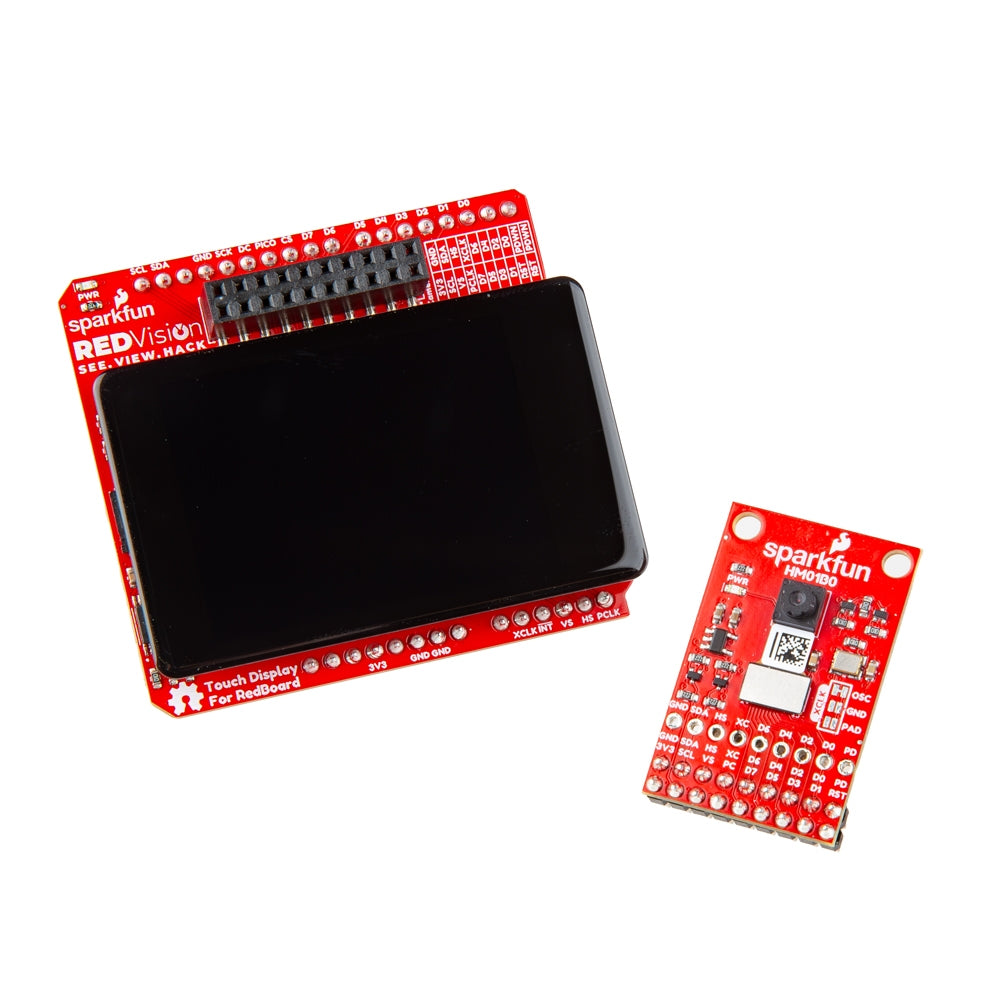

Unlock advanced machine vision on the RP2350 RedBoard IoT with this solder-free kit, featuring a 2.0" capacitive touch display and the HM01B0 color camera for instant object and contour detection.
Features & Specs

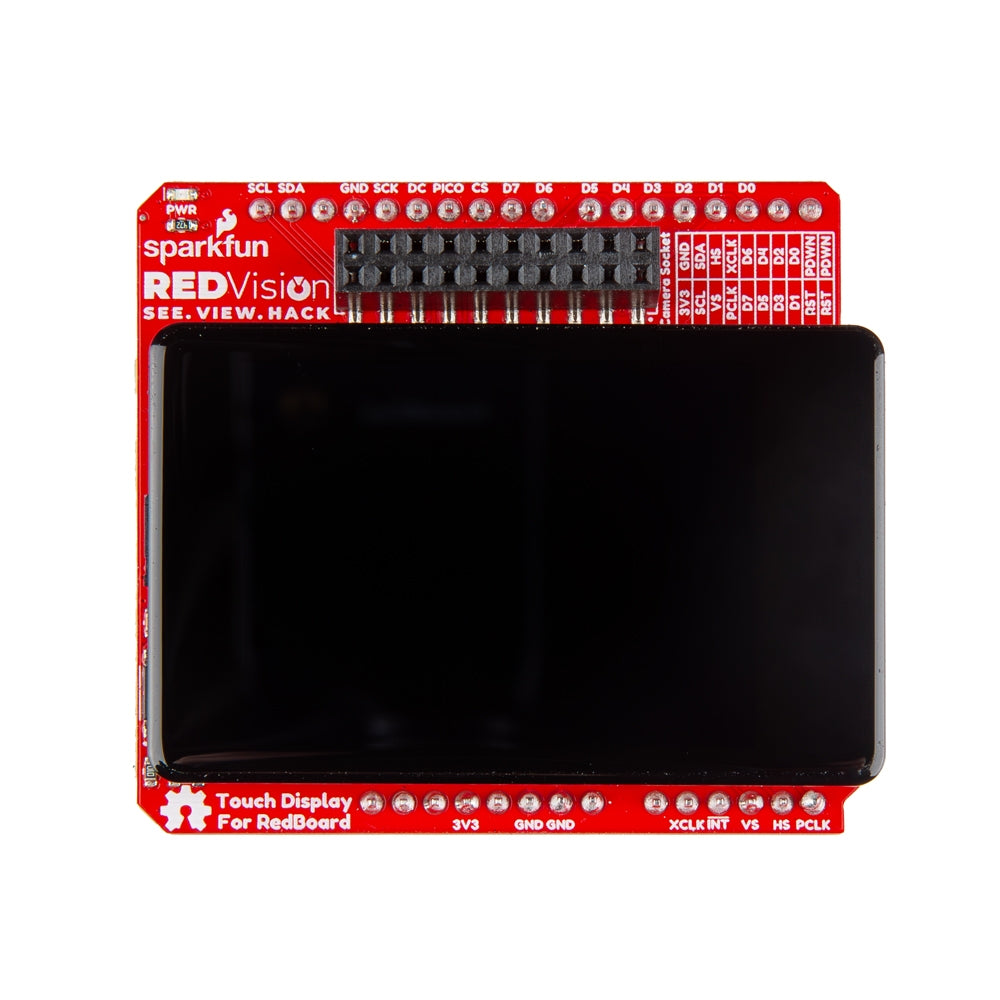

Red Vision Touch Display Features:
- 2" Touch Screen Display
- 320x240px Resolution
- Male R3 Headers (2x 8 pin, 1x 10 pin, 1x 6 pin)
- 2x10 Socket (for connecting a Camera Board)
- I/O Expander

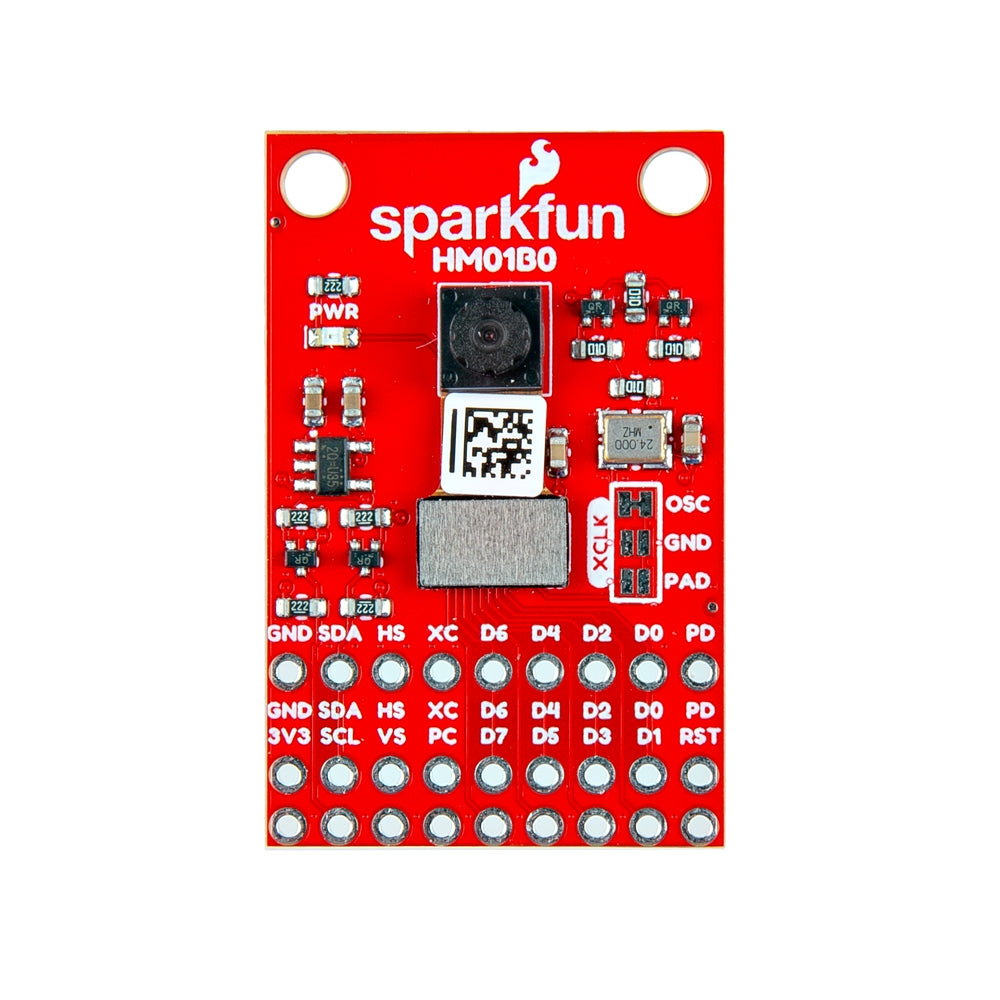

Red Vision Camera Board - HM0B10 (Color) Features:
- 320 x 320 pixel array
- Pixel Size: 3.6µm x 3.6µm
- Max Frame Rates:
- Full Resolution: 51 FPS (320 x 320)
- Windowed/QVGA Mode: 60 FPS (320 x 240)
- 2x2 Monochrome Binning Mode: 120 FPS
- Video Data Interface: 1, 4 or 8bit with frame/line sync
- I2C Interface @400 KHz (max)
- I2C Address: 0x24
- Supply Voltage:
- Analog: 2.8V
- Digital: 1.5V (internally regulated)
- I/O: 1.5V - 2.8V
- 48MHz Internal Oscillator (Bypassed by default on Camera Board)
- 3x 0.1"-spaced PTH Headers
- Breaks out all HM01B0 pins
- Pair of 2x8 Male Headers pre-soldered
- Supply Voltage: 3.3V (regulated to 2.8V for HM01B0)
- 28MHz Oscillator (Default)
- Customizable to use internal or external oscillator
- Red Power LED
Features & Specs
Red Vision Touch Display Features:
- 2" Touch Screen Display
- 320x240px Resolution
- Male R3 Headers (2x 8 pin, 1x 10 pin, 1x 6 pin)
- 2x10 Socket (for connecting a Camera Board)
- I/O Expander
Red Vision Camera Board - HM0B10 (Color) Features:
- 320 x 320 pixel array
- Pixel Size: 3.6µm x 3.6µm
- Max Frame Rates:
- Full Resolution: 51 FPS (320 x 320)
- Windowed/QVGA Mode: 60 FPS (320 x 240)
- 2x2 Monochrome Binning Mode: 120 FPS
- Video Data Interface: 1, 4 or 8bit with frame/line sync
- I2C Interface @400 KHz (max)
- I2C Address: 0x24
- Supply Voltage:
- Analog: 2.8V
- Digital: 1.5V (internally regulated)
- I/O: 1.5V - 2.8V
- 48MHz Internal Oscillator (Bypassed by default on Camera Board)
- 3x 0.1"-spaced PTH Headers
- Breaks out all HM01B0 pins
- Pair of 2x8 Male Headers pre-soldered
- Supply Voltage: 3.3V (regulated to 2.8V for HM01B0)
- 28MHz Oscillator (Default)
- Customizable to use internal or external oscillator
- Red Power LED
Documentation
- Camera Board Documents
- Touch Display Documents
- Hookup Guide
- MicroPython Files
- GitHub Repo
