Description

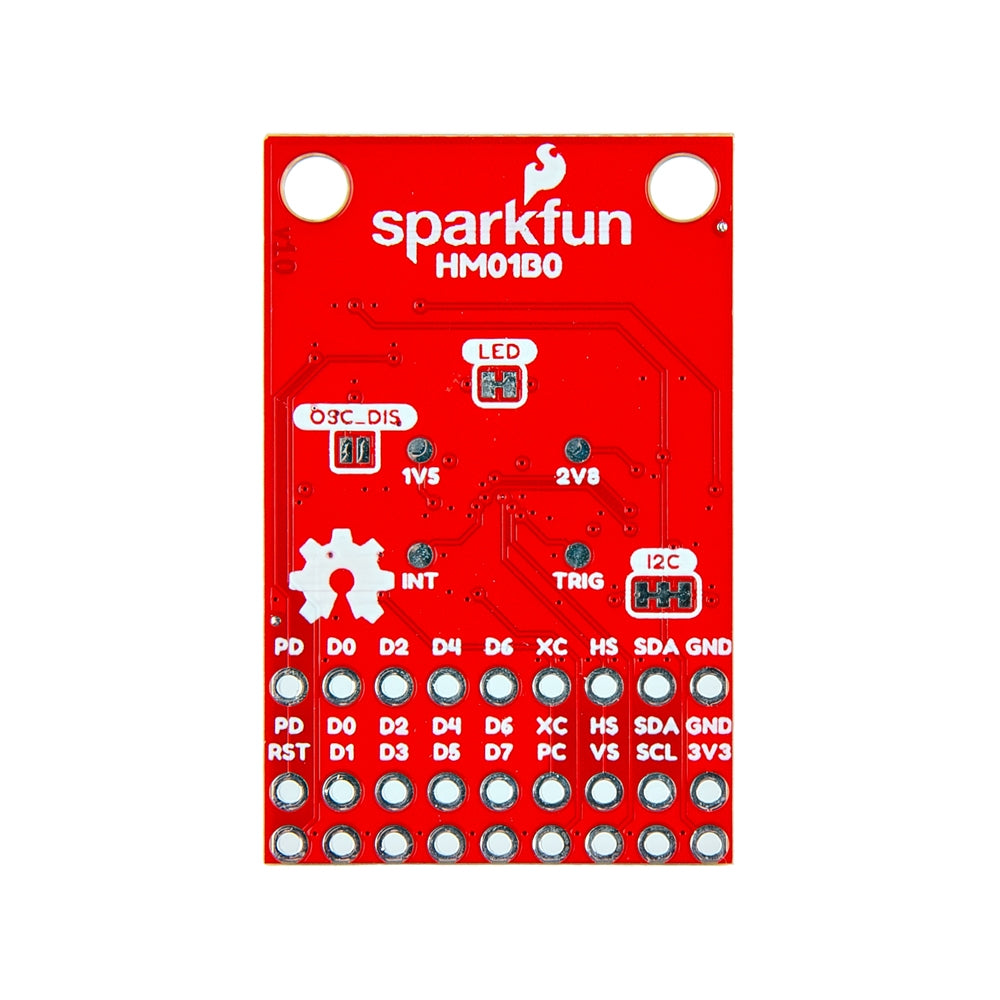

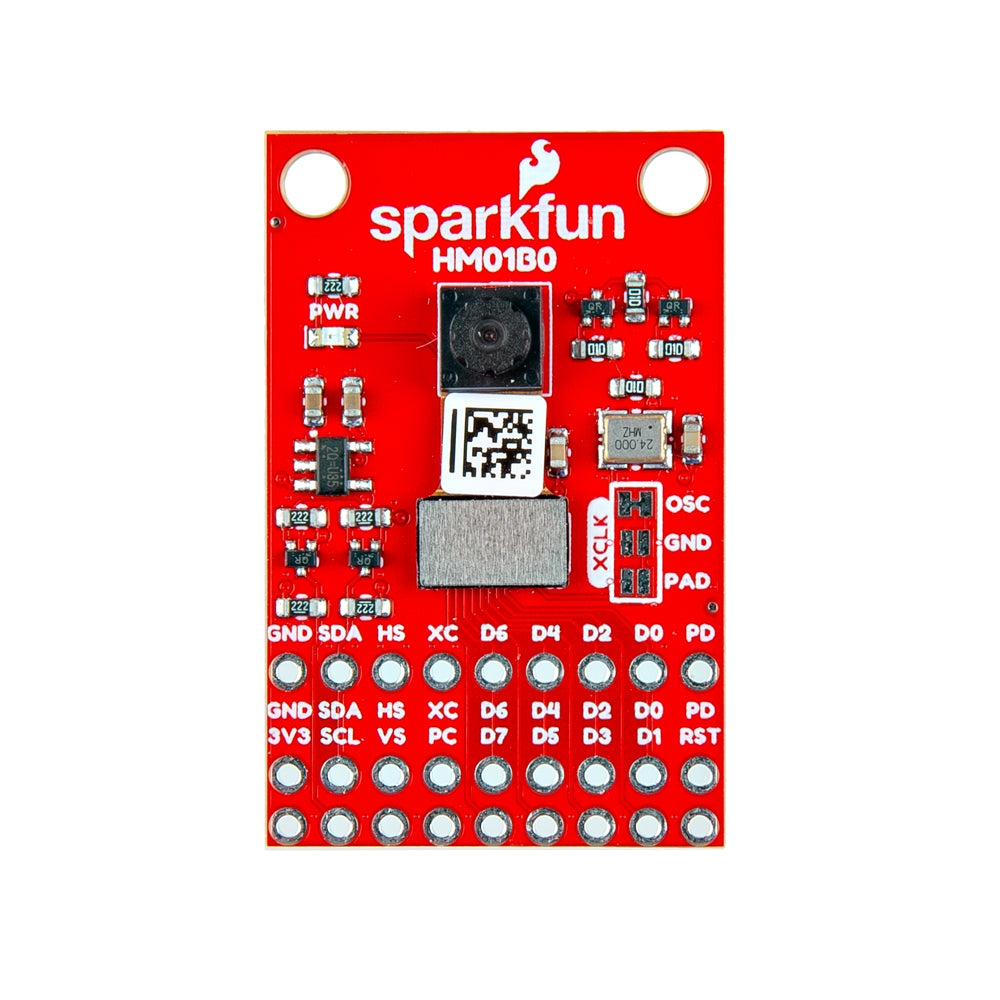

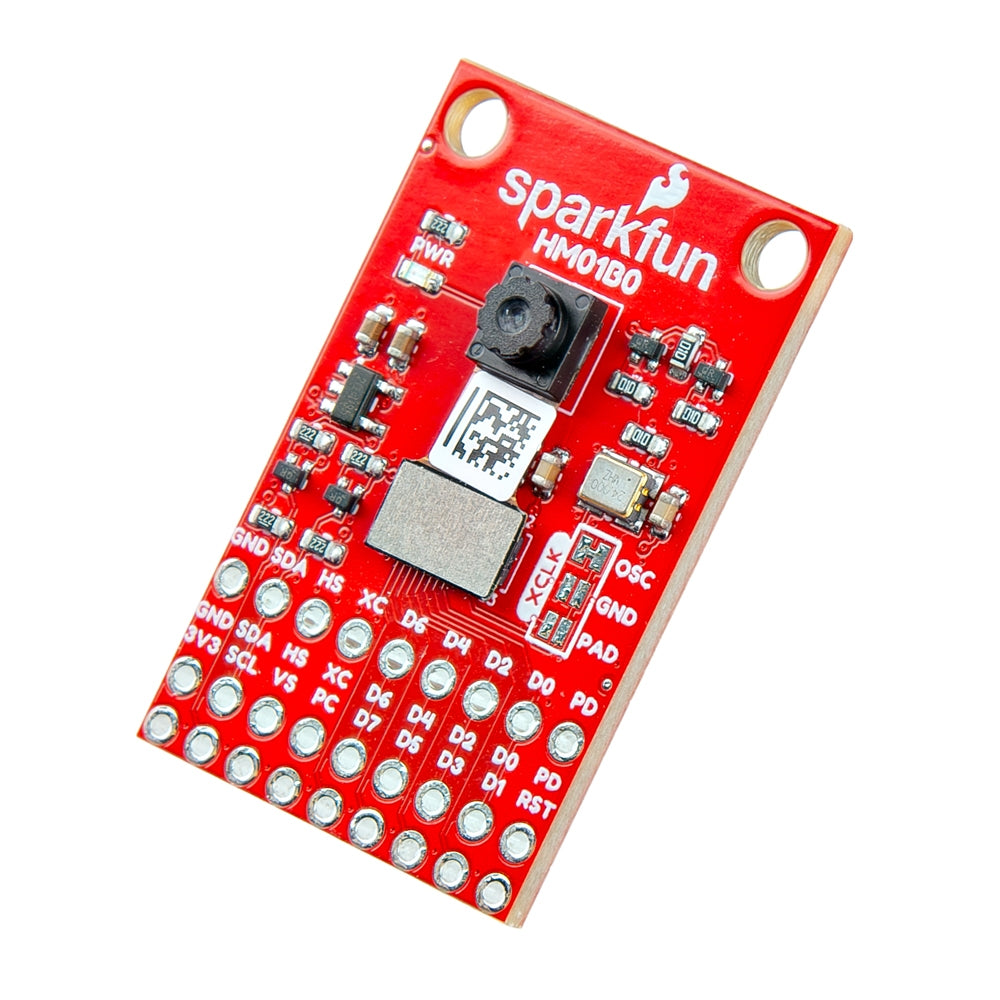

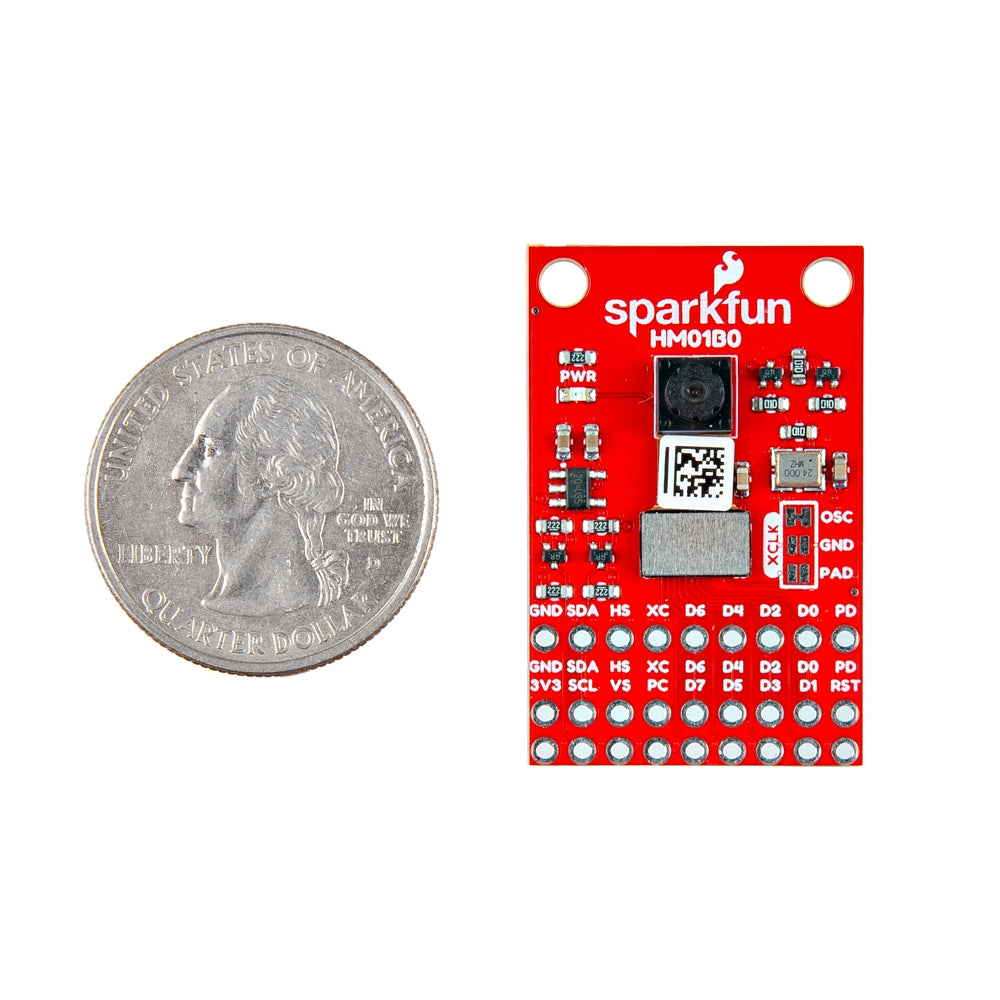

The SparkFun Red Vision Camera Board makes the 320x320 Himax© HM01B0 camera module simple to use by converting its pins to three sets of standard PTH headers.
Features & Specs
HM01B0 Camera Module Features
- 320 x 320 pixel array
- Pixel Size: 3.6µm x 3.6µm
- Max Frame Rates:
- Full Resolution: 51 FPS (320 x 320)
- Windowed/QVGA Mode: 60 FPS (320 x 240)
- 2x2 Monochrome Binning Mode: 120 FPS
- Video Data Interface: 1, 4 or 8bit with frame/line sync
- I2C Interface @400 KHz (max)
- I2C Address: 0x24
- Supply Voltage:
- Analog: 2.8V
- Digital: 1.5V (internally regulated)
- I/O: 1.5V - 2.8V
- 48MHz Internal Oscillator (Bypassed by default on Camera Board)
SparkFun Camera Board Features
- 3x 0.1"-spaced PTH Headers
- Breaks out all HM01B0 pins
- Supply Voltage: 3.3V (regulated to 2.8V for HM01B0)
- 28MHz Oscillator (Default)
- Customizable to use internal or external oscillator
- Red Power LED
Features & Specs
HM01B0 Camera Module Features
- 320 x 320 pixel array
- Pixel Size: 3.6µm x 3.6µm
- Max Frame Rates:
- Full Resolution: 51 FPS (320 x 320)
- Windowed/QVGA Mode: 60 FPS (320 x 240)
- 2x2 Monochrome Binning Mode: 120 FPS
- Video Data Interface: 1, 4 or 8bit with frame/line sync
- I2C Interface @400 KHz (max)
- I2C Address: 0x24
- Supply Voltage:
- Analog: 2.8V
- Digital: 1.5V (internally regulated)
- I/O: 1.5V - 2.8V
- 48MHz Internal Oscillator (Bypassed by default on Camera Board)
SparkFun Camera Board Features
- 3x 0.1"-spaced PTH Headers
- Breaks out all HM01B0 pins
- Supply Voltage: 3.3V (regulated to 2.8V for HM01B0)
- 28MHz Oscillator (Default)
- Customizable to use internal or external oscillator
- Red Power LED
Documentation
- Schematic
- KiCad Files
- Datasheet (HM01B0)
- SparkFun Red Vision MicroPython Package
- SparkFun MicroPython OpenCV
- SparkFun MicroPython Firmware Releases
- Hookup Guide
- GitHub Hardware Repository
