SparkFun Raspberry Pi Build HAT

The Raspberry Pi Build HAT is an add-on board that connects to the 40-pin GPIO header of your Raspberry Pi, which was designed in collaboration with LEGO�® Education to make it easy to control LEGO�® Technicâ�¢ motors and sensors with Raspberry Pi computers.

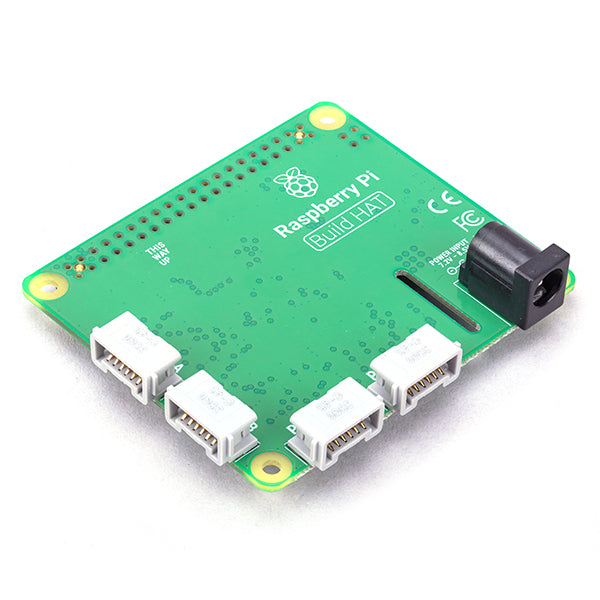

It provides four connectors for LEGO�® Technicâ�¢ motors and sensors from the SPIKEâ�¢ Portfolio. The available sensors include a distance sensor, a color sensor, and a versatile force sensor. The angular motors come in a range of sizes and include integrated encoders that can be queried to find their position.

The Build HAT fits all Raspberry Pi computers with a 40-pin GPIO header, including â�� with the addition of a ribbon cable or other extension device â�� Raspberry Pi 400. Connected LEGO�® Technicâ�¢ devices can easily be controlled in Python, alongside standard Raspberry Pi accessories such as a camera module.

The Raspberry Pi Build HAT power supply, available separately, is designed to power both the Build HAT and Raspberry Pi computer along with all connected LEGO�® Technicâ�¢ devices.

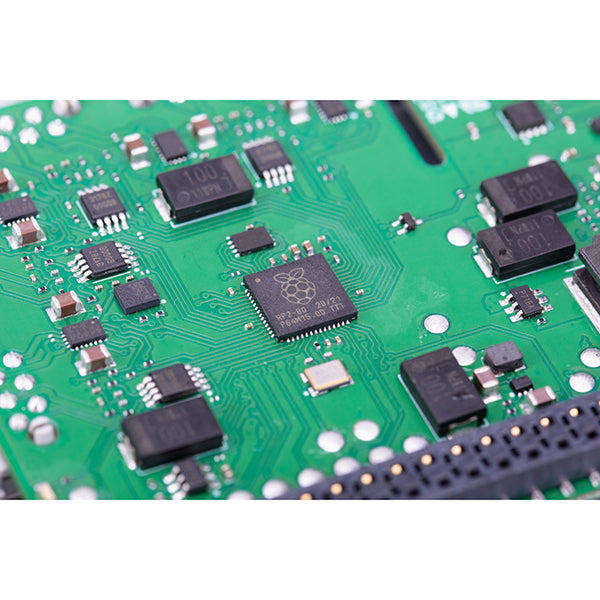

The Build HAT is the second Raspberry Pi product, after Raspberry Pi Pico, to be powered by the Raspberry Pi RP2040 microcontroller. It fits all Raspberry Pi boards with the 40 pin I/O header (though the Pi 400 needs a ribbon cable or our Qwiic pHAT Extension).

Features:

• Controls up to four LEGOÃ�® Technicââ��¢ motors and sensors included in the SPIKEââ��¢ Portfolio
• Easy-to-use Python library to control your LEGOÃ�® Technicââ��¢ devices
• Fits onto any Raspberry Pi computer with a 40-pin GPIO header
• On board RP2040 microcontroller manages low-level control of LEGOÃ�® Technicââ��¢ devices
• External 8V PSU available separately to power both Build HAT and Raspberry Pi

Documents:

• Product Brief
• Getting Started Guide
• Python Library
• Build HAT Projects
