Description

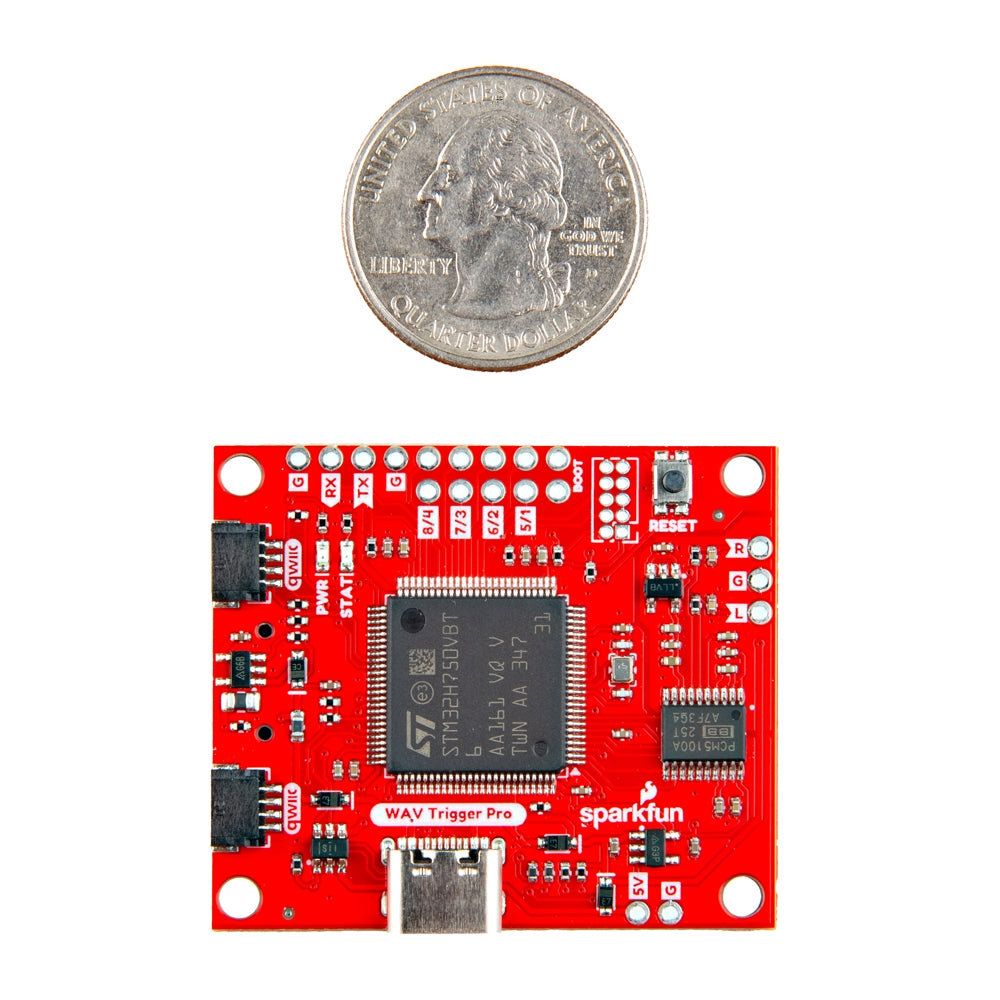

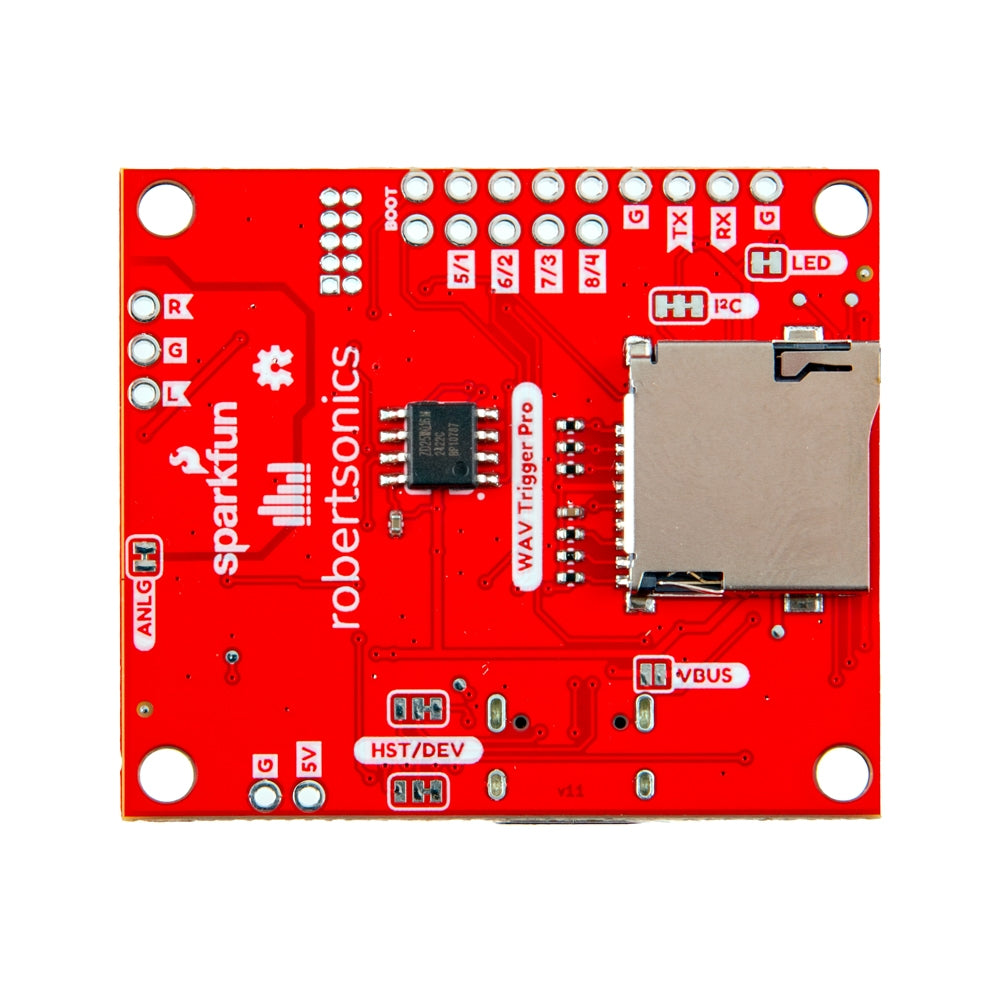

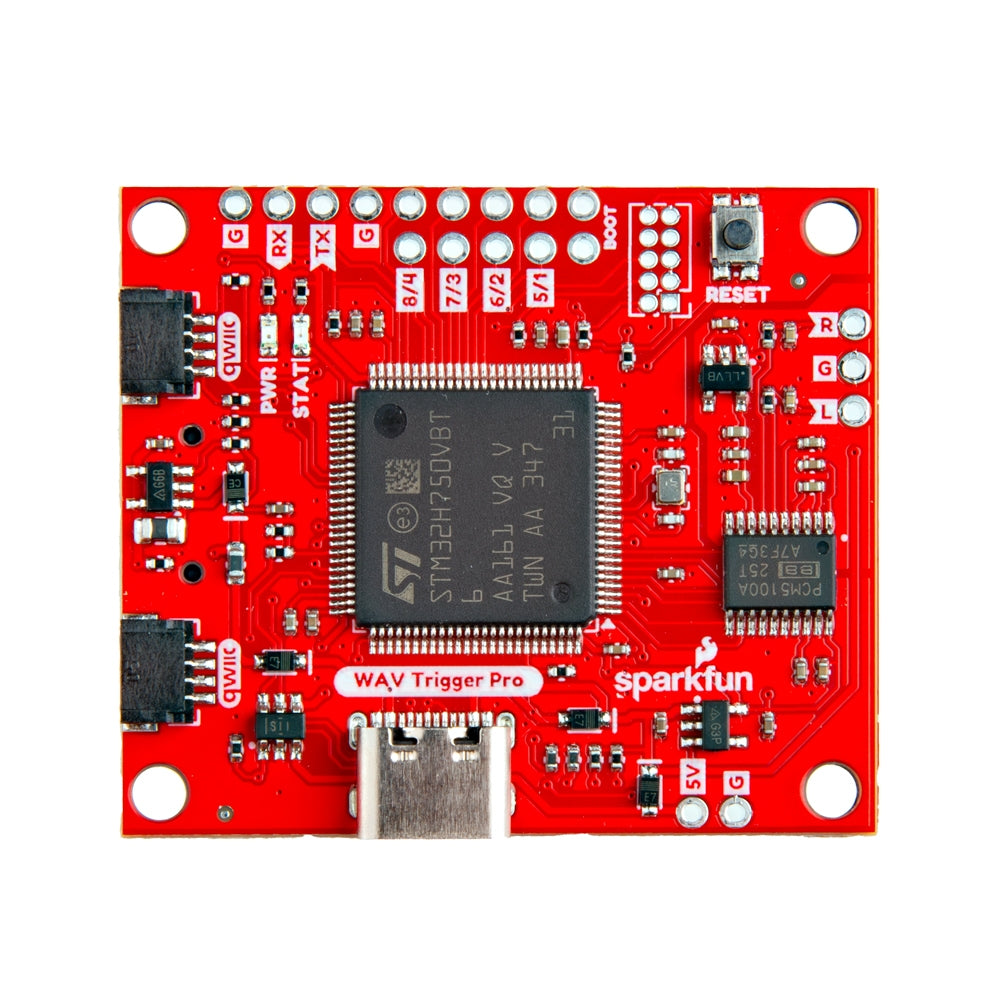

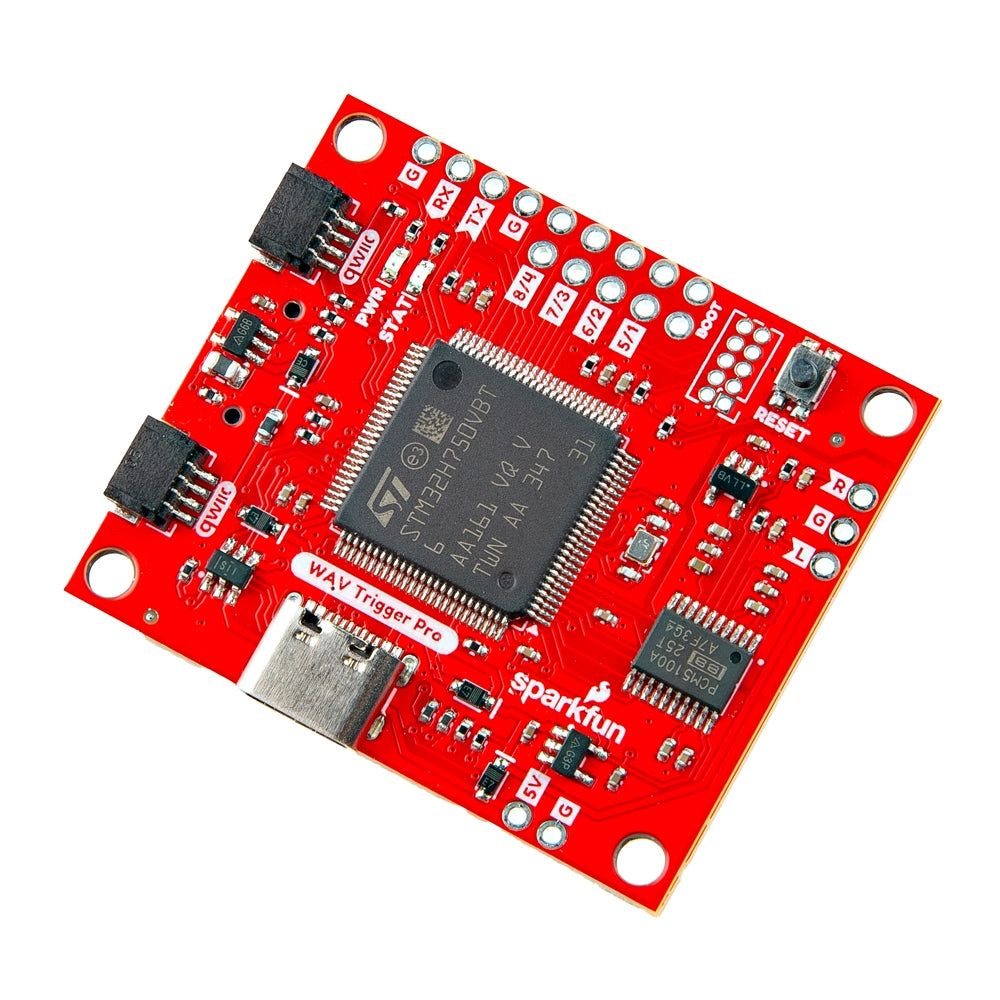

The Qwiic WAV Trigger Pro is the latest evolution of the line of high-fidelity polyphonic audio players.
Features & Specs
- Support for up to 4096 uncompressed 16-bit, 44.1kHz mono and stereo WAV files - CD quality
- Polyphonic - Play and mix up to 24 tracks independently and simultaneously with independent pitch control
- Trigger-to-sound latency: 2-3msecs (Typ.), 5msecs (Max)
- Direct Line Level 2.1-V RMS Output
- True Line-Level Stereo Output
- MIDI-USB Support
- Functions as both MIDI-USB Device and MIDI-USB Host
- MIDI Control for up to 8 Independent Actions per note
- Route tracks to any combination of outputs
- 8 Individually Configurable Trigger Inputs
- Can be inverted (active LOW or HIGH)
- Can be set to edge, latched, or level-sensitive
- 3.3V tolerant
- Serial Console Interface (3.3V Only)
- Connected to STM32's TX/RX pins
- Qwiic (I2C) control support through Arduino Library
Features & Specs
- Support for up to 4096 uncompressed 16-bit, 44.1kHz mono and stereo WAV files - CD quality
- Polyphonic - Play and mix up to 24 tracks independently and simultaneously with independent pitch control
- Trigger-to-sound latency: 2-3msecs (Typ.), 5msecs (Max)
- Direct Line Level 2.1-V RMS Output
- True Line-Level Stereo Output
- MIDI-USB Support
- Functions as both MIDI-USB Device and MIDI-USB Host
- MIDI Control for up to 8 Independent Actions per note
- Route tracks to any combination of outputs
- 8 Individually Configurable Trigger Inputs
- Can be inverted (active LOW or HIGH)
- Can be set to edge, latched, or level-sensitive
- 3.3V tolerant
- Serial Console Interface (3.3V Only)
- Connected to STM32's TX/RX pins
- Qwiic (I2C) control support through Arduino Library
Documentation
| Hardware | Datasheet(s) | Guide(s) | Other Documentation |
|---|---|---|---|
| Schematic | STM32H | Hookup Guide | GitHub Hardware Repo |
| KiCade Files | PCM5100A | WTPro Overview | Firmware Downloads |
| Board Dimensions | Qwiic Info Page |
