Description

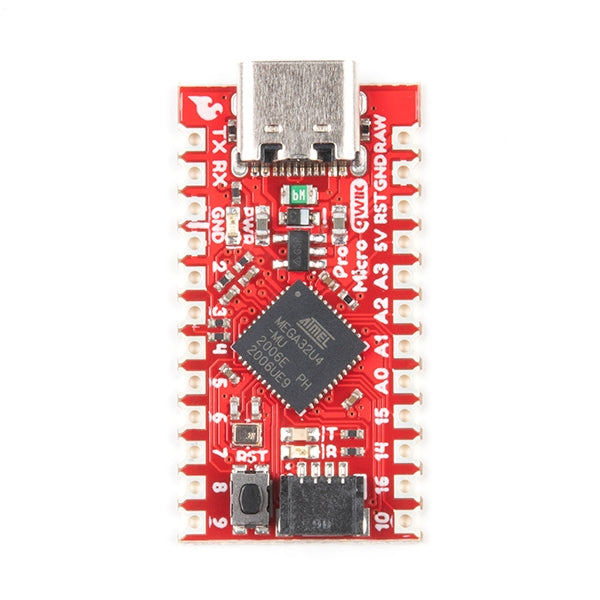

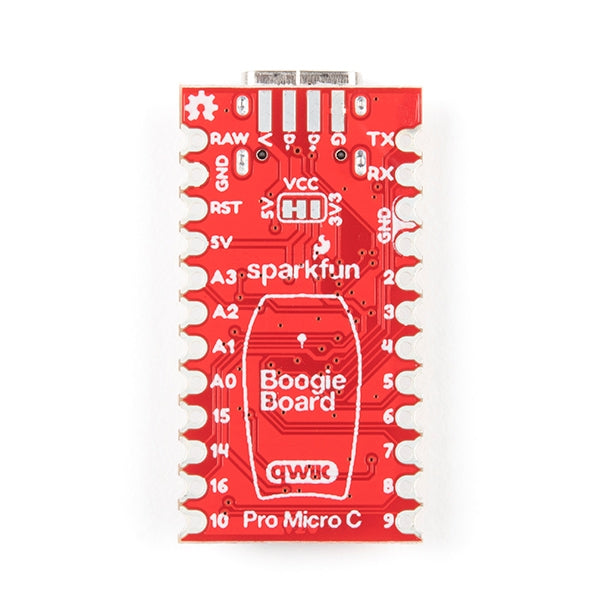

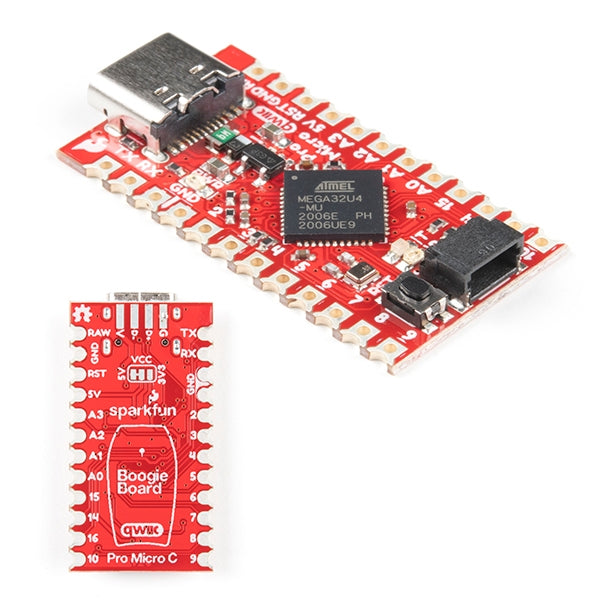

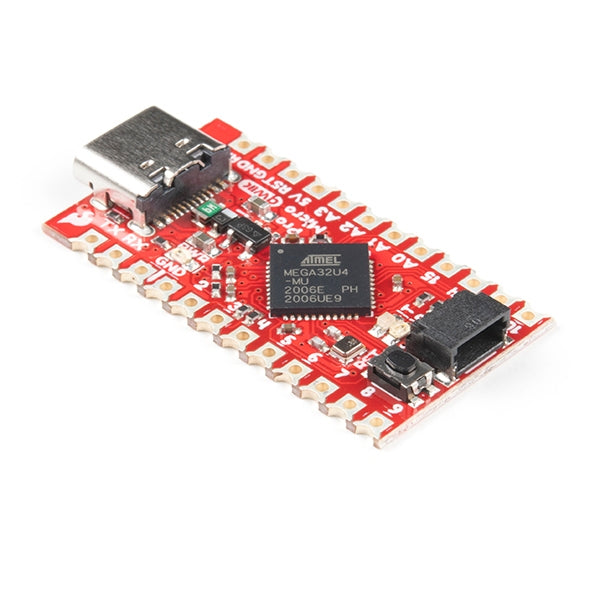

The SparkFun Qwiic Pro Micro adds a reset button, Qwiic connector, USB-C, and castellated pads to the miniaturized Arduino board!
Features & Specs
- ATmega32U4 running at 5V/16MHz
- AP2112 3.3V Voltage Regulator
- Supported under Arduino IDE v1.0.1+
- On-Board USB-C connector for programming
- PTH Pads w/ Castellated Edges
- 9x 10-bit ADC pins
- 12x Digital I/Os (5 are PWM capable)
- Hardware Serial Connections
- UART (i.e. Rx and Tx)
- Qwiic Connector for I2C
- SPI
- Small Arduino-Compatible Board
- Reset Button

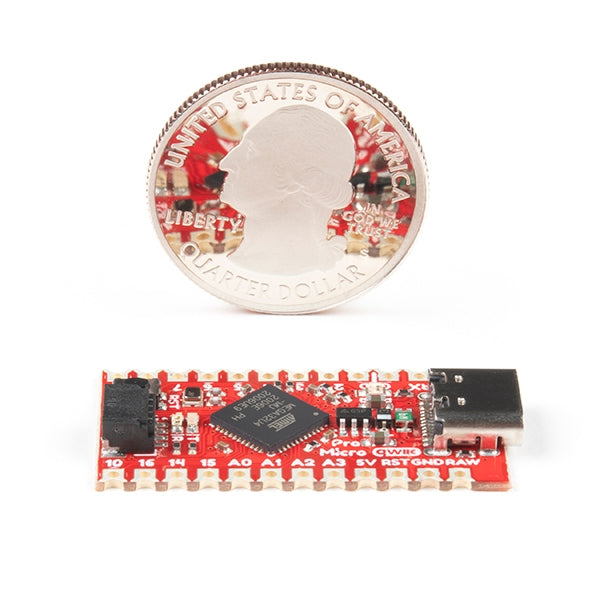

- Dimensions: 1.3in x 0.7in
Features & Specs
- ATmega32U4 running at 5V/16MHz
- AP2112 3.3V Voltage Regulator
- Supported under Arduino IDE v1.0.1+
- On-Board USB-C connector for programming
- PTH Pads w/ Castellated Edges
- 9x 10-bit ADC pins
- 12x Digital I/Os (5 are PWM capable)
- Hardware Serial Connections
- UART (i.e. Rx and Tx)
- Qwiic Connector for I2C
- SPI
- Small Arduino-Compatible Board
- Reset Button
- Dimensions: 1.3in x 0.7in
Documentation
- Schematic
- Eagle Files
- Hookup Guide
- Board Dimensions
- Graphical Datasheet
- ATmega32U4 Firmware Notes
- ATmega32U4 Datasheet
- Arduino Comparison Guide
- Arduino Board Add-on
- GitHub Hardware Repo
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3307.5 |
| 3-5 | ₹ 3273.75 |
| 5-10 | ₹ 3206.25 |
| 10+ | ₹ 3138.75 |
Bulk discount will be automatically applied during checkout based on quantity.
