Description

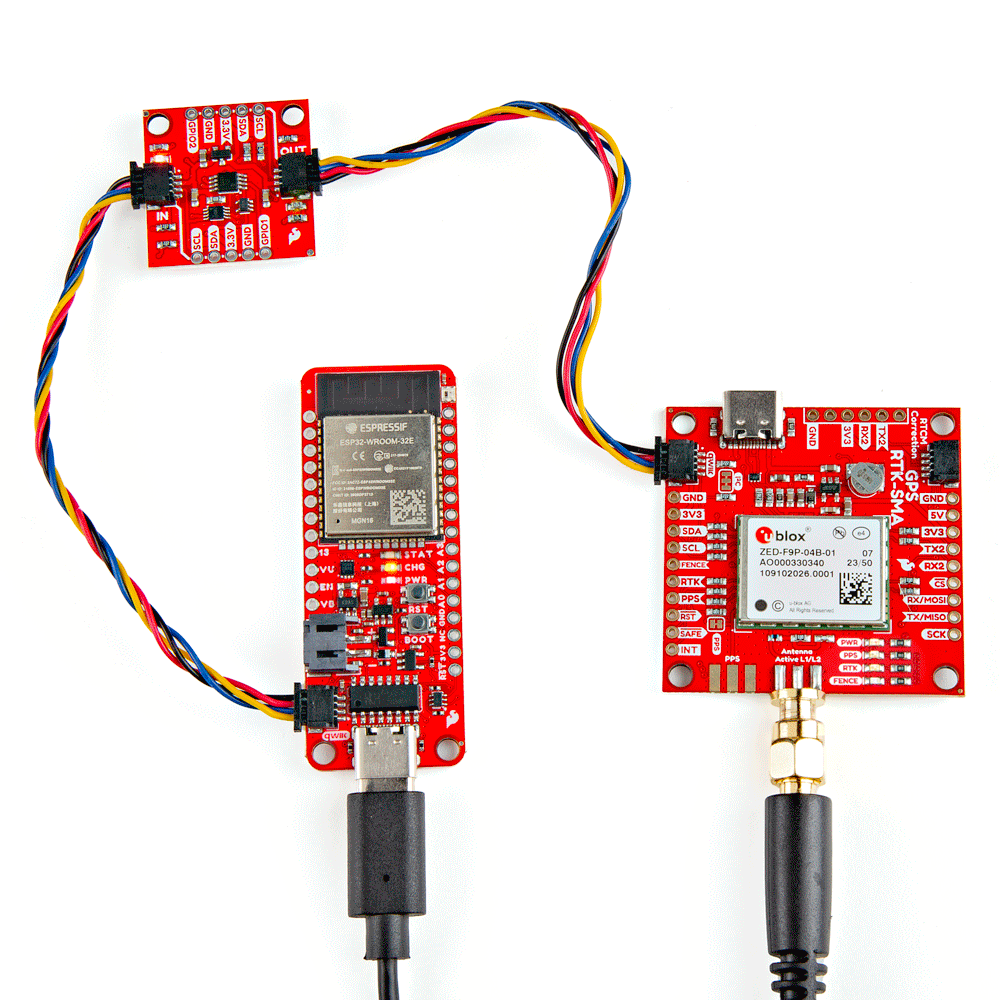

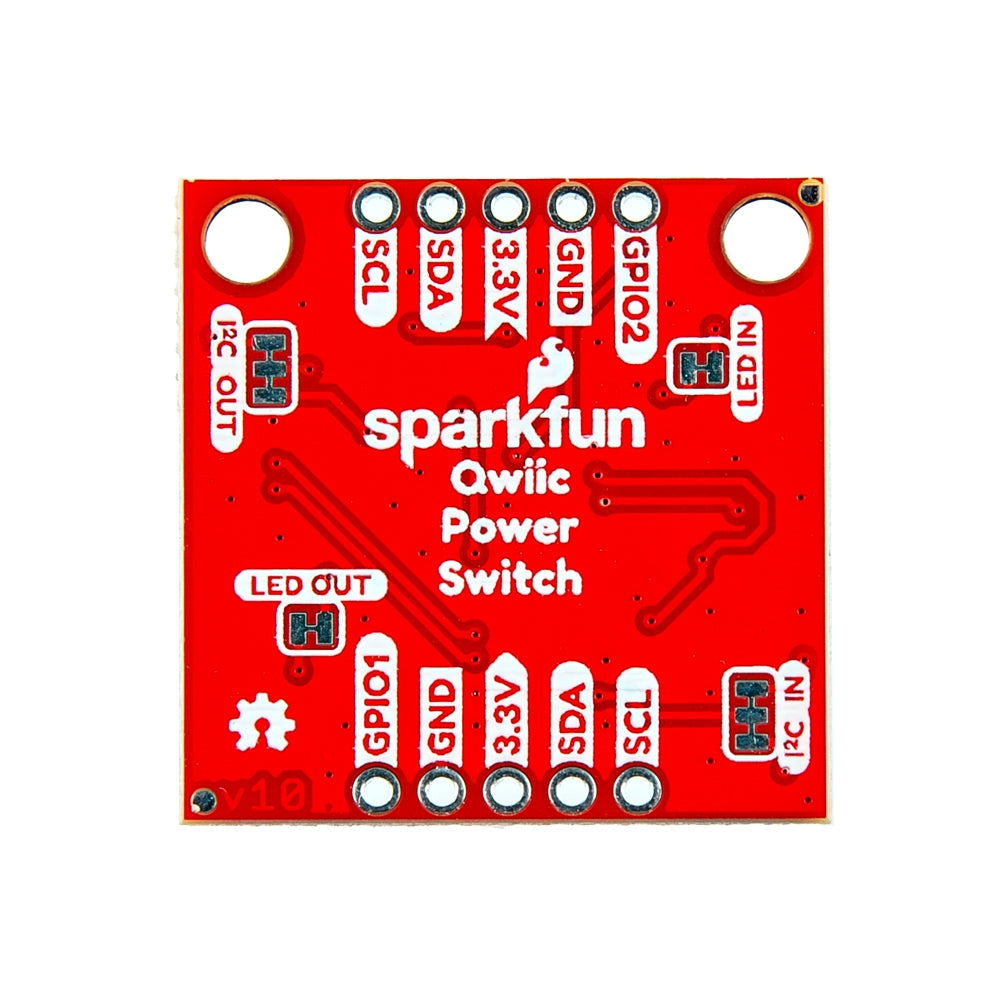

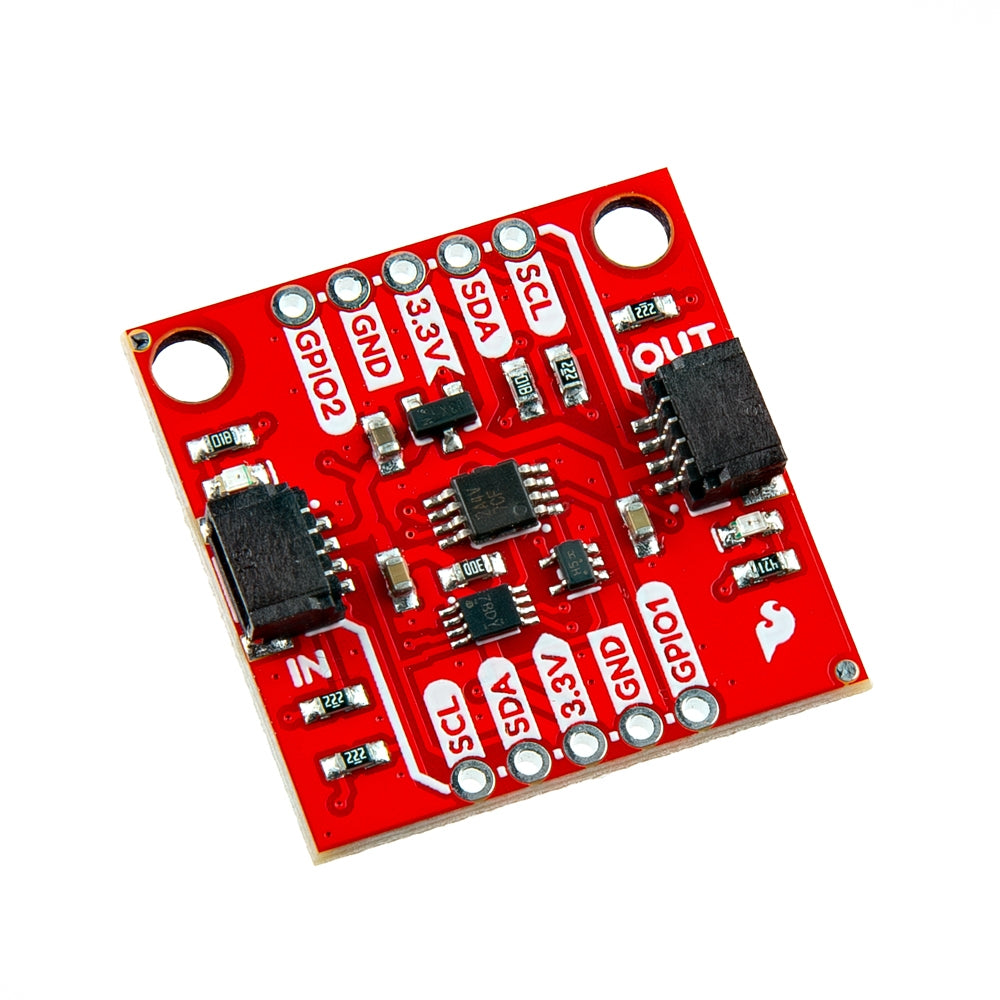

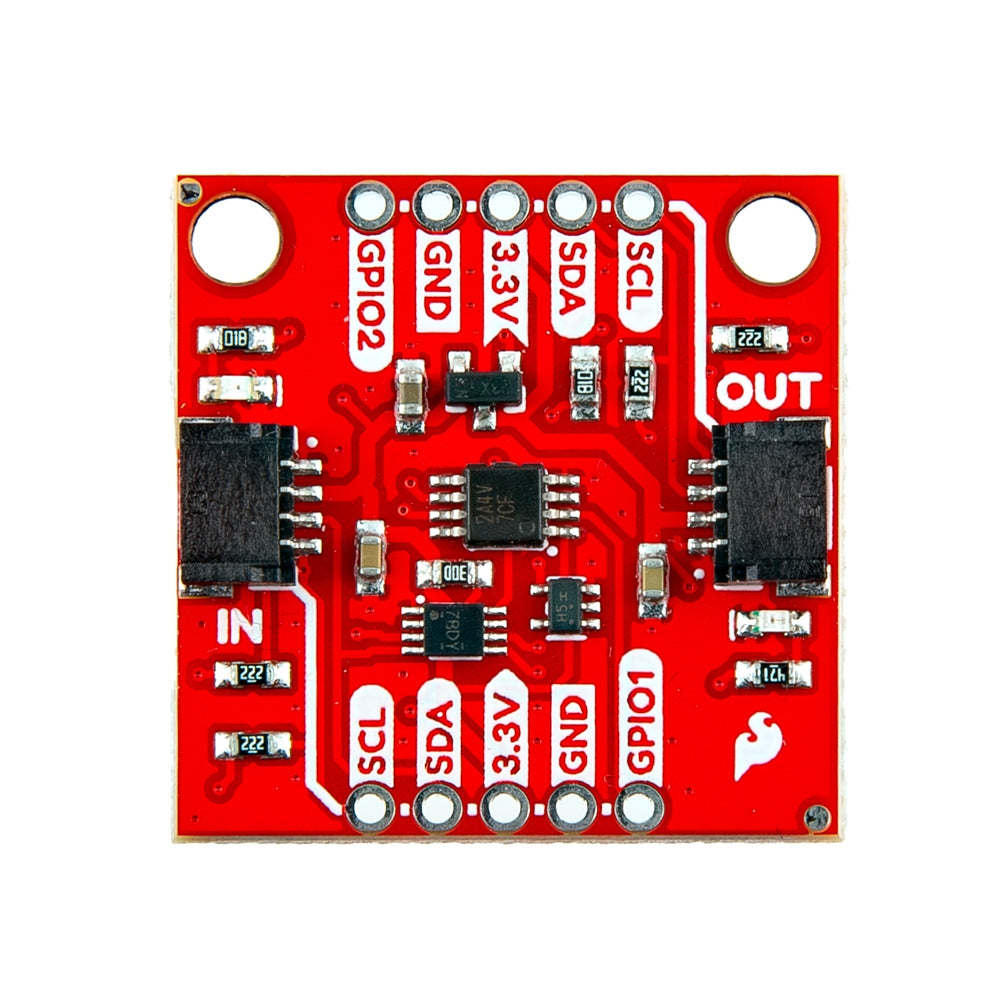

Sometimes you wish you could switch something off to save power, and the SparkFun Qwiic Power Switch (QPS) allows you to do that!
Features & Specs
- PCA9536
- 4-Bit I2C to Parallel Port Expander
- Operating Voltage (VCC): 2.3V to 5.5V
- (Note: Qwiic operation must be limited to 3.3V)
- Operating Temperature: -40°C to +85°C
- 400kHz Fast I2C Bus
- Input/Output Configuration Register
- Polarity Inversion Register
- Internal Power-On Reset
- No Glitch on Power Up
- Standby Current Consumption (Typical): 0.2μA
- I2C Address: 0x41
- PCA9306
- Dual Bidirectional I2C Bus Voltage-Level Translator
- Lockup-free Operation for Isolation
- DMG2305UX P-Channel MOSFET
- 52mΩ (0.052 Ohms) typical on-resistance
- IN and OUT Qwiic Connection Ports
- IN and OUT I2C Pull-Up Resistors
- 2x Extra GPIO Pins
- IN and OUT Power LEDs
- Can be disabled for low power applications
- Jumpers
- IN power LED
- OUT power LED
- IN I2C Pull-Up Resistors
- OUT I2C Pull-Up Resistors
- Board Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
- Weight: 2.40g
Features & Specs
- PCA9536
- 4-Bit I2C to Parallel Port Expander
- Operating Voltage (VCC): 2.3V to 5.5V
- (Note: Qwiic operation must be limited to 3.3V)
- Operating Temperature: -40°C to +85°C
- 400kHz Fast I2C Bus
- Input/Output Configuration Register
- Polarity Inversion Register
- Internal Power-On Reset
- No Glitch on Power Up
- Standby Current Consumption (Typical): 0.2μA
- I2C Address: 0x41
- PCA9306
- Dual Bidirectional I2C Bus Voltage-Level Translator
- Lockup-free Operation for Isolation
- DMG2305UX P-Channel MOSFET
- 52mΩ (0.052 Ohms) typical on-resistance
- IN and OUT Qwiic Connection Ports
- IN and OUT I2C Pull-Up Resistors
- 2x Extra GPIO Pins
- IN and OUT Power LEDs
- Can be disabled for low power applications
- Jumpers
- IN power LED
- OUT power LED
- IN I2C Pull-Up Resistors
- OUT I2C Pull-Up Resistors

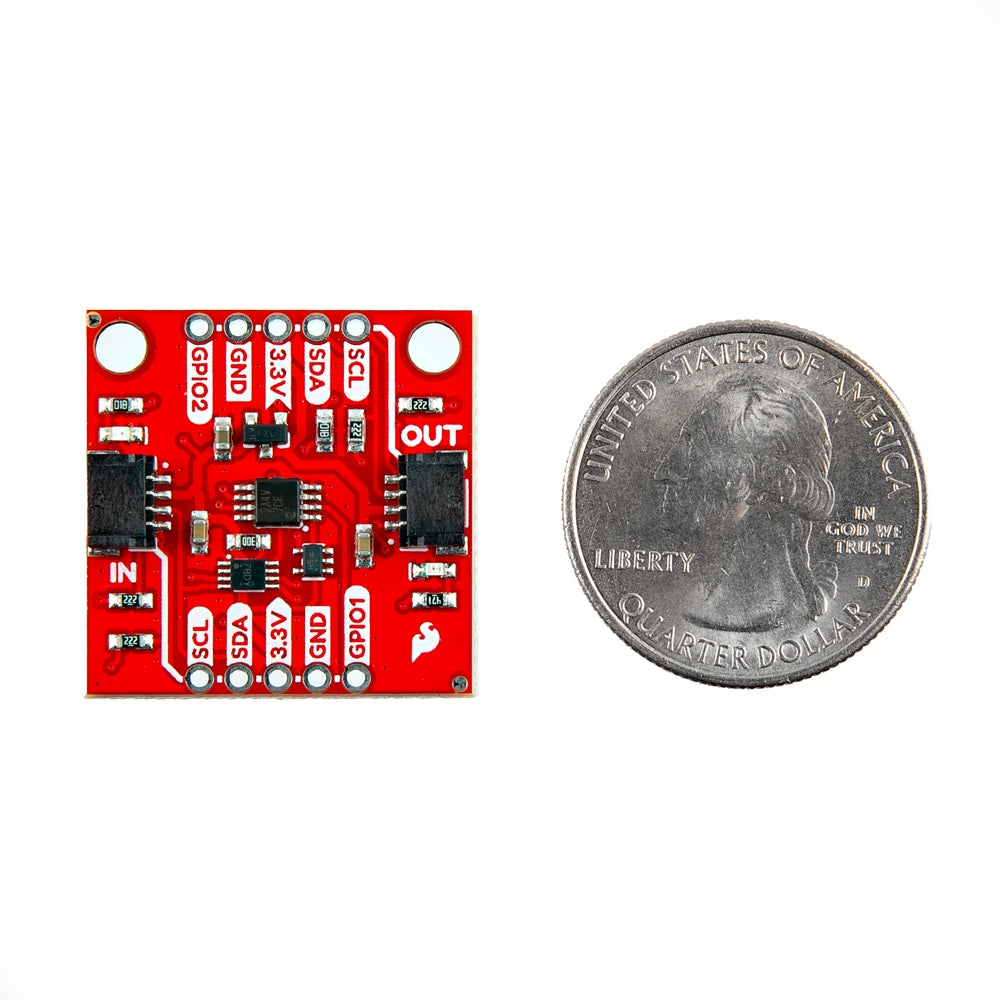

- Board Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
- Weight: 2.40g
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Datasheets
- PCA9536 4-Bit I2C and SMBus I/O Expander
- PCA9306 Dual Bidirectional I2C Bus and SMBus Voltage-Level Translator
- DMG2305UX P-Channel MOSFET
- Arduino Library
- GitHub Product Repo
